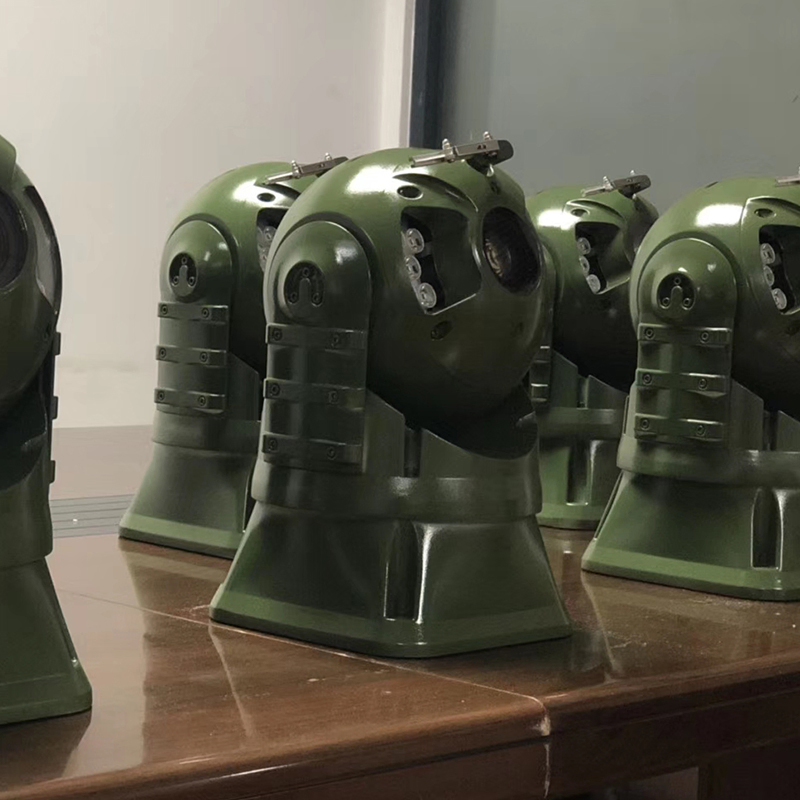

Versatile Rugged Mobile Surveillance Dual Sensor Thermal PTZ Camera System

Customization: Available
Technology: Infrared
Style: Pan/Tilt

Product Description

📋 Basic Information
Model NO. SOAR970-TH Series Type Binocular
Sensor CMOS HDMI Format 1080P
Resolution 4MP, 8MP Lens Autofocus
Certification CE Feature Waterproof, Weatherproof, High Definition, Thermal Imager
Effective Distance 3km Sensor Size 1/1.8 inch
🔍 Product Description

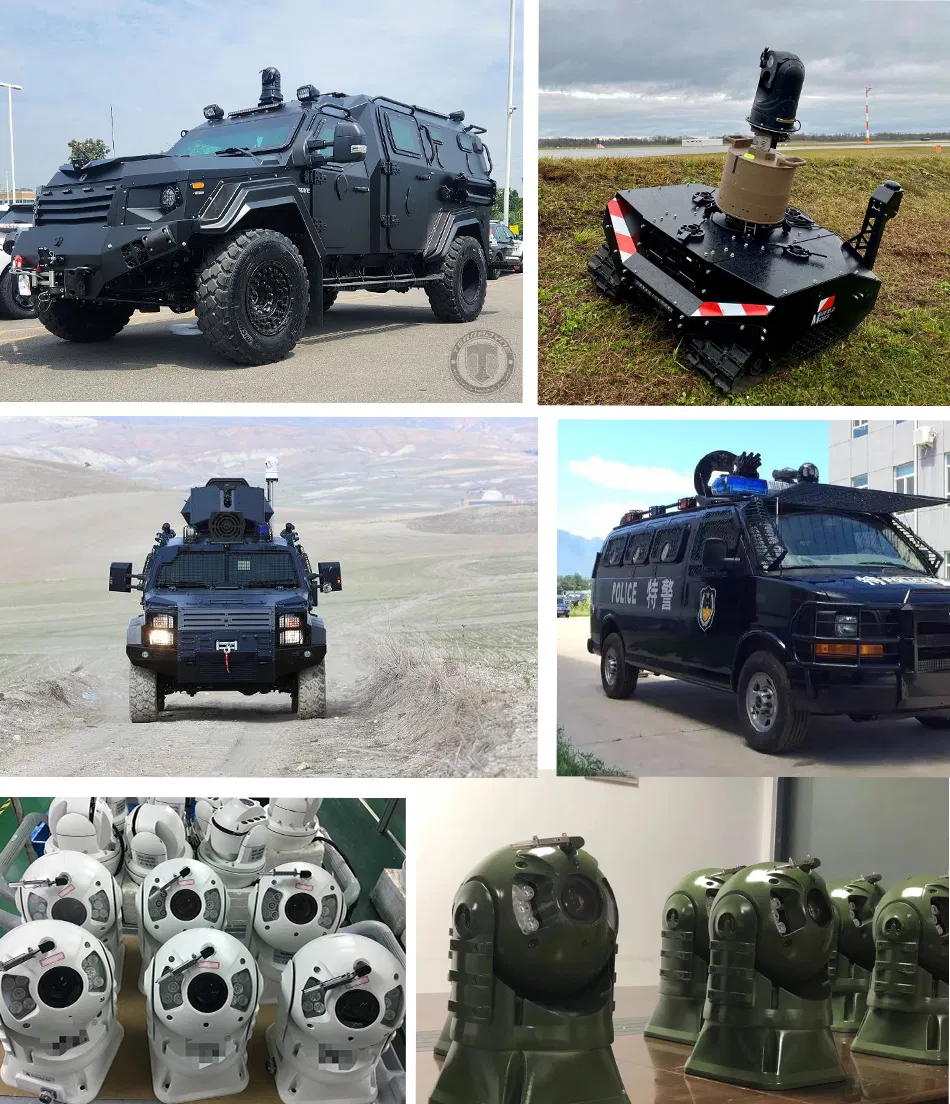

SOAR970 vehicle mounted PTZ Camera
SOAR970 vehicle mounted PTZ Camera

SOAR970 series mobile PTZ is designed for mobile surveillance application. With its excellent waterproof ability up to IP67, it is also widely applied in marine application. The PTZ can be ordered with HDIP (2MP, 4MP, 4K). Integrated IR LED or laser illumination allows it to see from 150m up to 800m in complete darkness.
It features dual sensor options, with HD visible camera (2MP/4MP/8MP, up to 33x zoom) and thermal imager (640x512/1280x1024, up to 40mm focal length). The SOAR970 is built to withstand the harshest conditions, featuring an IP67-rated waterproof and dustproof housing.
Product Highlights
1920×1080 Progressive Scan CMOS, Day/Night monitoring. Optional 2MP, 4MP, 4K resolution.
33X Optical zoom, 5.5~180mm focal length.
Thermal imager 640x512, focal length up to 40mm.
360 degree endless rotation for full situational awareness.
IP67 Rugged Design for extreme environments.
Operating range from -40° to +65°C with optional damper absorber.
⚙️ Technical Specifications
Thermal Imaging Performance
Detector Type VOx Uncooled Infrared FPA
Array Format/Pixel Pitch 640x512 / 12μm
Frame Rate 50Hz
Lens (Thermal) 40mm
NETD ≤50mk@25℃, F#1.0
Visible Camera Details
Image Sensor 1/2.8” Progressive Scan CMOS
Effective Pixels 1920(H) x 1080(V), 2 MP
Focal Length 5.5mm~180mm (33X Optical Zoom)
Mechanical & General
Pan/Tilt Range Pan: 360° (endless); Tilt: –20° ~ +90°
Power Supply DC 12V-24V; Power consumption: ≤24W
Ingress Protection IP66 / IP67 Options
Dimension / Weight φ197*316 mm / 6.5 kg
📏 Dimension Display

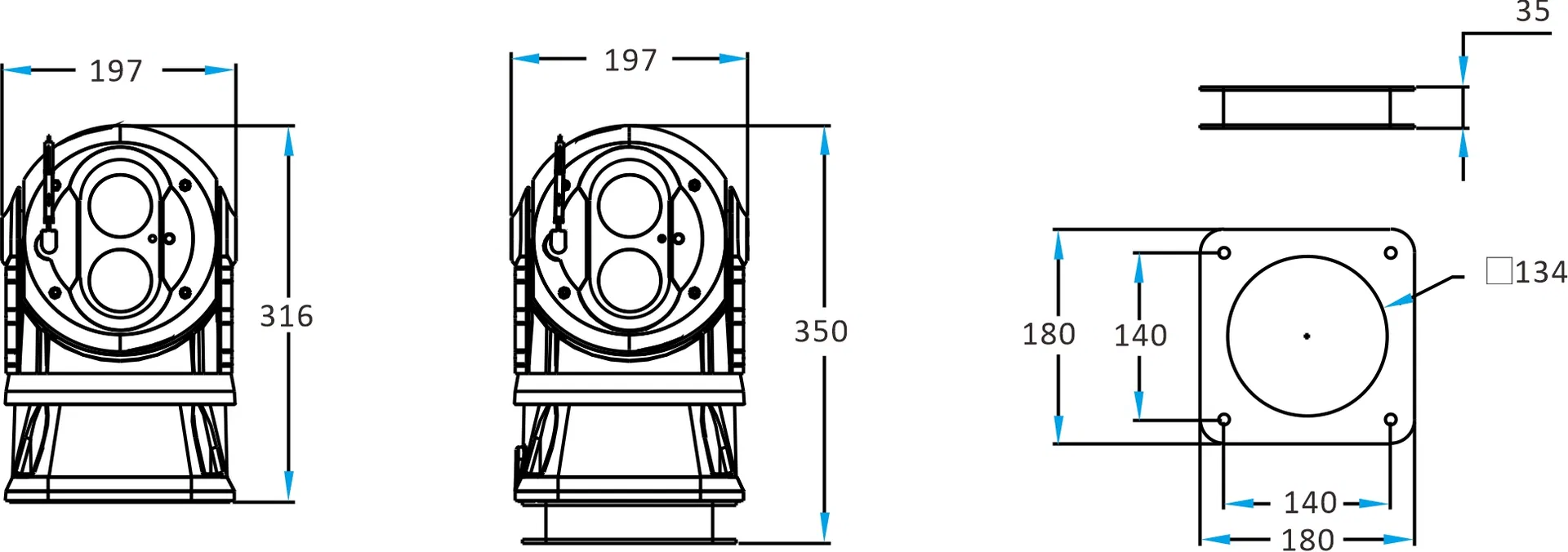

Dimension Diagram
🚀 Application Scenarios
Law Enforcement
Defense
Infrastructure

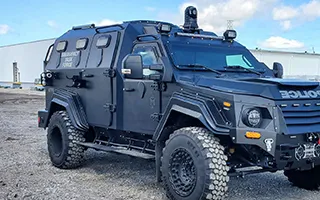

Law Enforcement & Public Safety Urban surveillance, patrol car incident response, riot control, border security, and VIP protection.
Defense & Tactical Reconnaissance Battlefield surveillance from armored vehicles, convoy security, and forward operating base defense.
Critical Infrastructure Protection Power grid inspection, oil/gas pipeline surveillance, and railway security monitoring.
Emergency Response

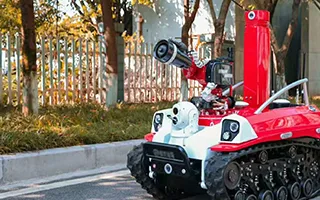

Transportation

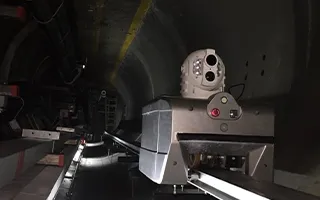

Wildlife Protection
🖼️ Product Gallery
Frequently Asked Questions
Q1: What is the estimated delivery timeline?
For small orders, delivery typically requires 7 working days. For OEM orders, timeline varies based on requirements.
Q2: Is there a minimum order quantity (MOQ)?
The MOQ varies depending on the specific product model.
Q3: What payment methods are accepted?
We accept various payment terms, including T/T (Telegraphic Transfer).
Q4: What is the warranty coverage for your products?
All PTZ products and modules are covered by a standard 1-year warranty.
Q5: Do you provide after-sales technical support?
Yes, we offer lifetime technical support. Technical inquiries are generally responded to within 24 hours.
Q6: Is the camera suitable for marine environments?
Yes, with its IP67-rated waterproof housing and robust construction, it is highly suitable for marine and coastal monitoring.
