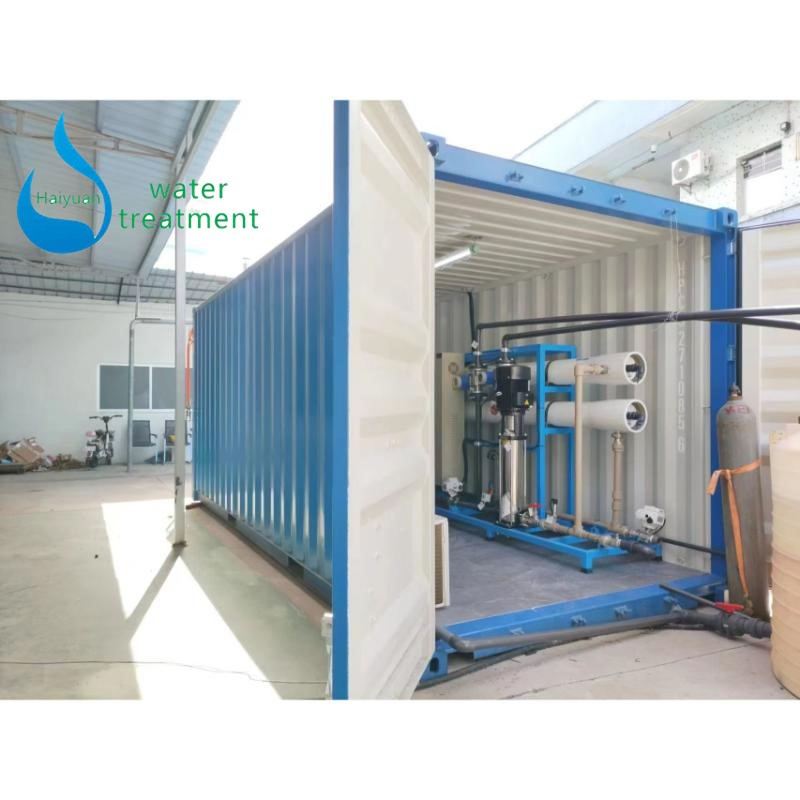

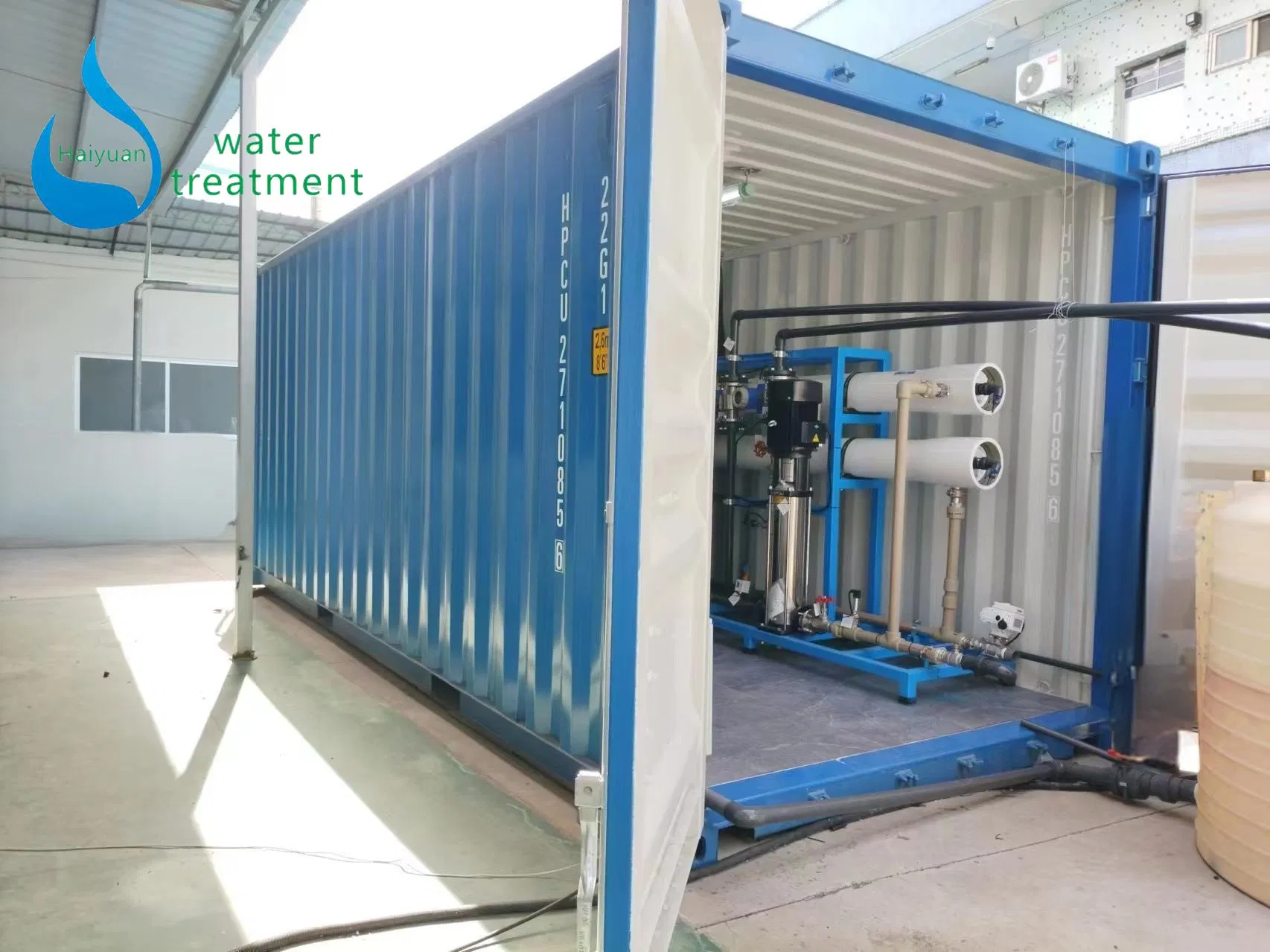

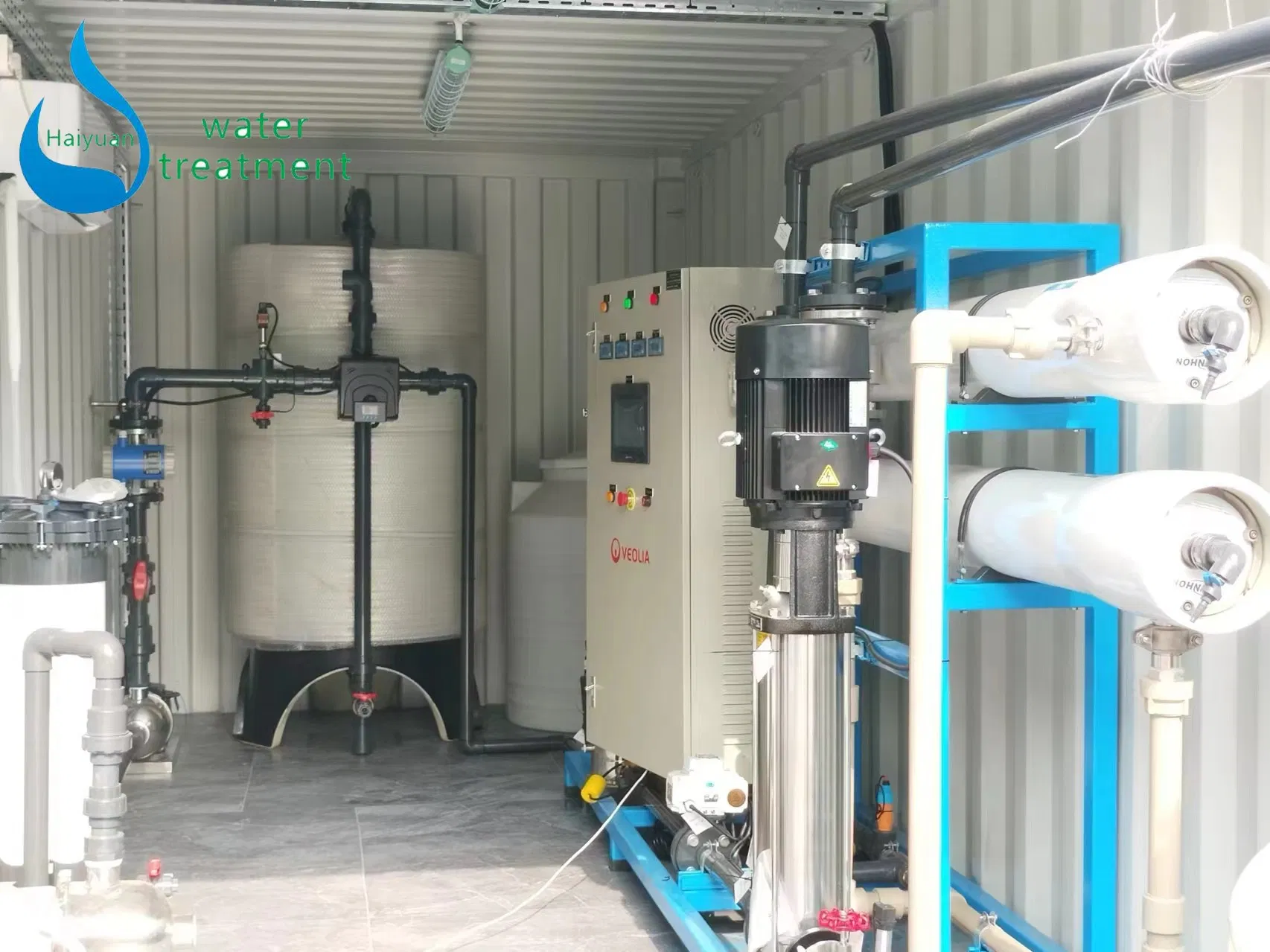

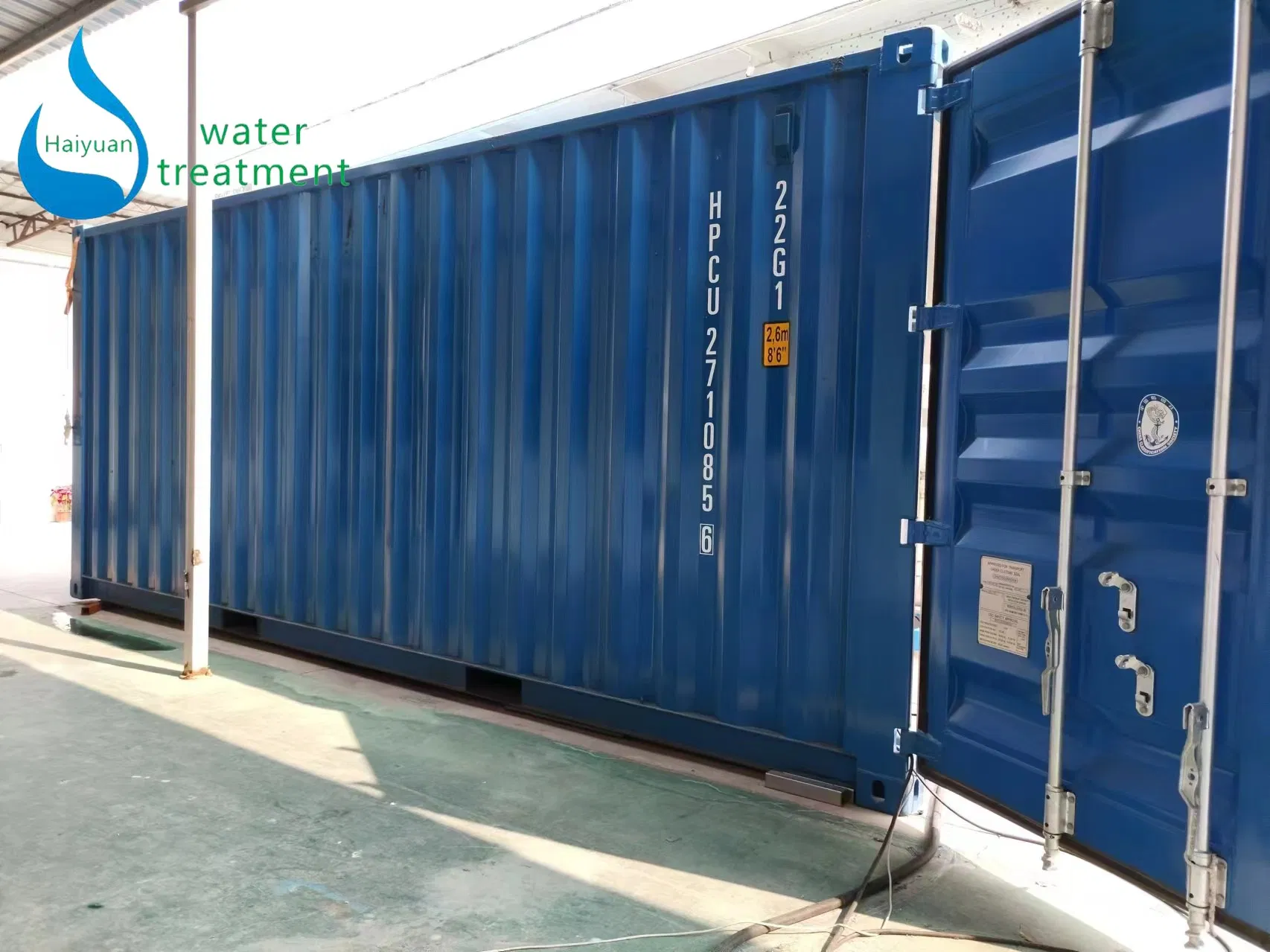

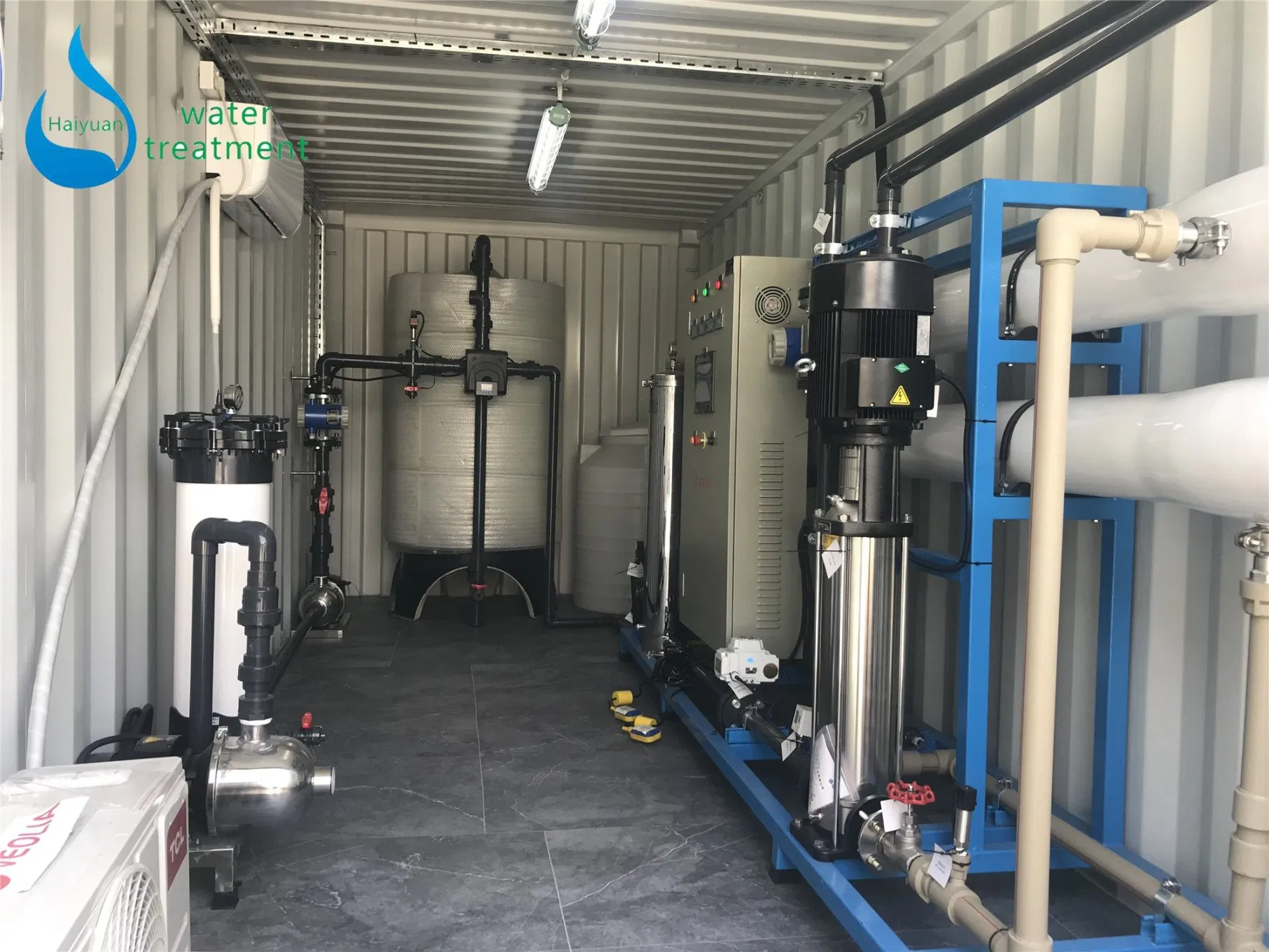

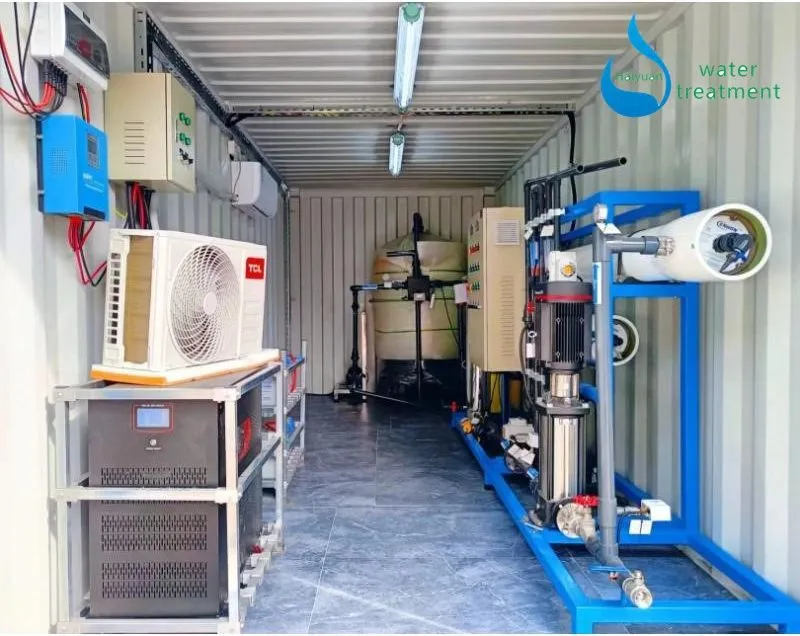

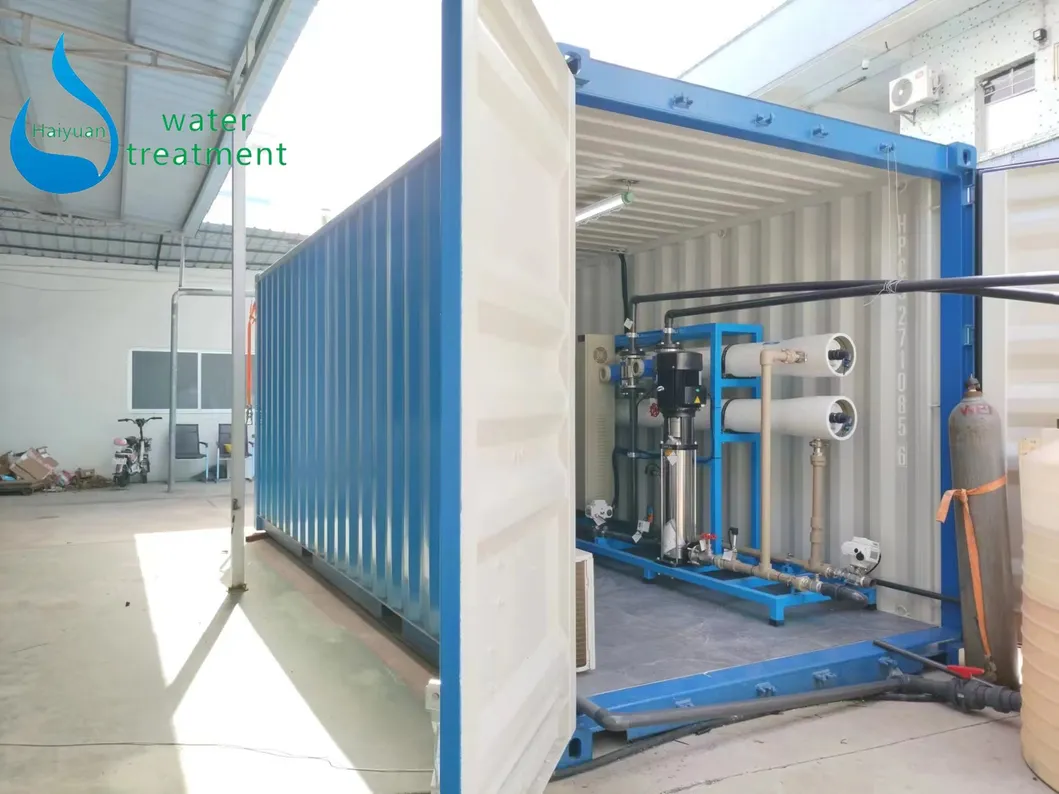

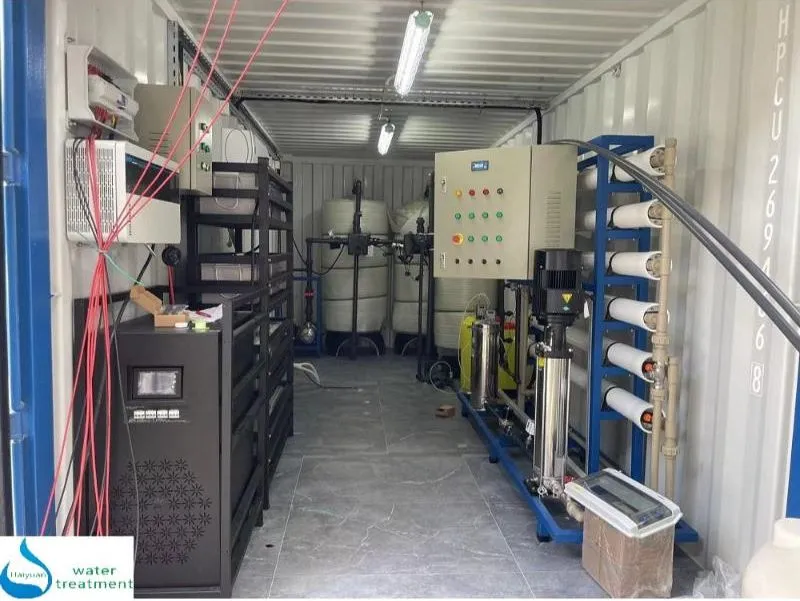

This containerized water treatment system is a fully integrated, modular solution housed in a standard shipping container (20ft or 40ft). It is engineered for treating seawater, brackish water, groundwater, river water, or tap water. The plug-and-play design enables fast deployment and immediate operation in diverse environments.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Flow Rate | 144T/day | Recovery Rate | 60% |
| Applicable Power | 380V/50hz 3 Phase | Rated Power | 9.9KW |
| Feedwater TDS | 2800ppm | Freshwater TDS | 31.6ppm |
| High Pressure | 17.3 bar | Operating Temp | 5-45ºC |
| Feedwater SDI | <5 | Turbidity | <1NTU |
| RO Membranes | 8040*3 core (6pcs) | Container Size | 20FT |
| Process Stage | Equipment | Function Description |
|---|---|---|
| Storage | Raw Water Tank | Stores source water (borehole, river, tap). |
| Pressurization | Feed Water Pump | Transfers water to pretreatment with steady pressure. |
| Pretreatment | Multi-media & Precision Filter | Removes suspended solids, sand, and fine particles (5 microns). |
| Conditioning | Scale Prevention Device | Doses antiscalant to protect RO membranes. |

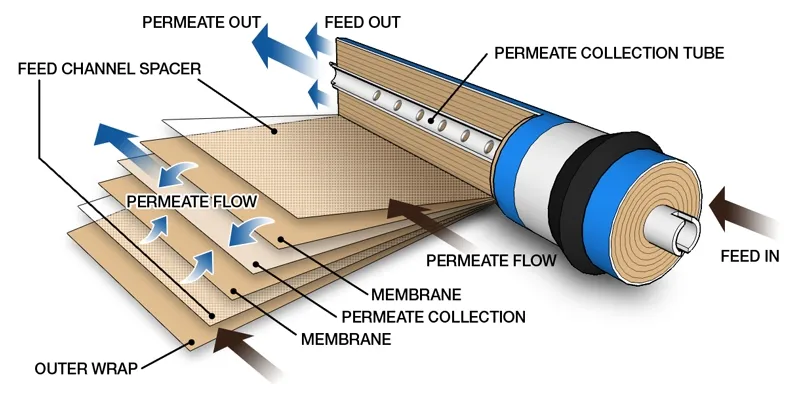

| Membrane Unit | High-pressure Pump & RO | Removes 97-99% of dissolved salts, metals, and bacteria. |
| Distribution | Product Water Tank | Stores purified water for consumption or industry. |
1. Modular & Mobile
ISO-standard containers for easy transport and rapid site installation without civil works.
2. All-in-One Design
Integrated pre-treatment and main treatment units, ready for immediate operation.
3. Smart PLC Control
Fully automatic operation with touchscreen interface and real-time data logging.
4. Low Maintenance
Equipped with automatic CIP cleaning systems and high-quality international components.

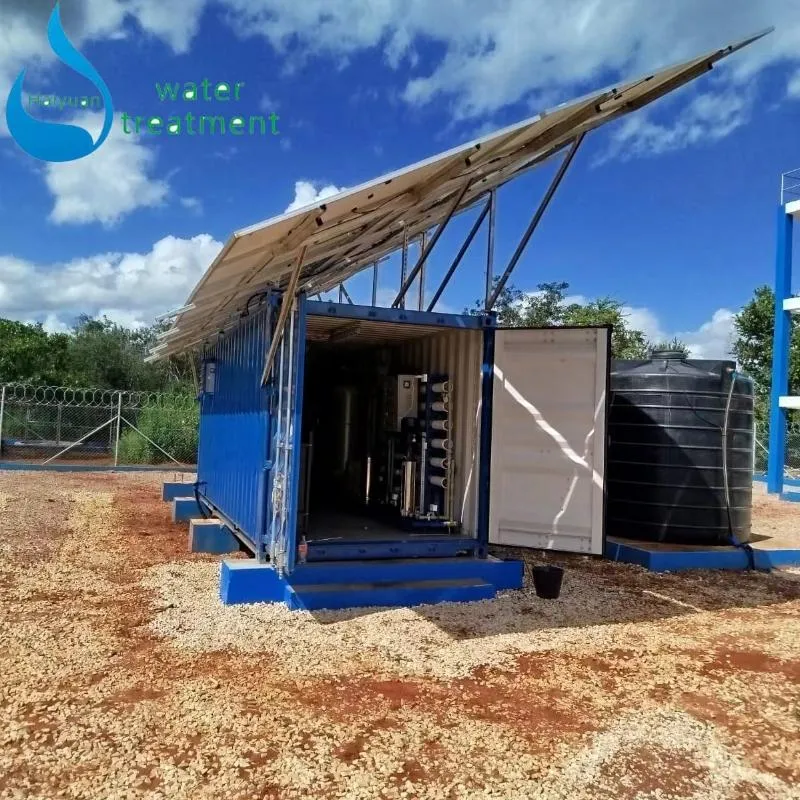

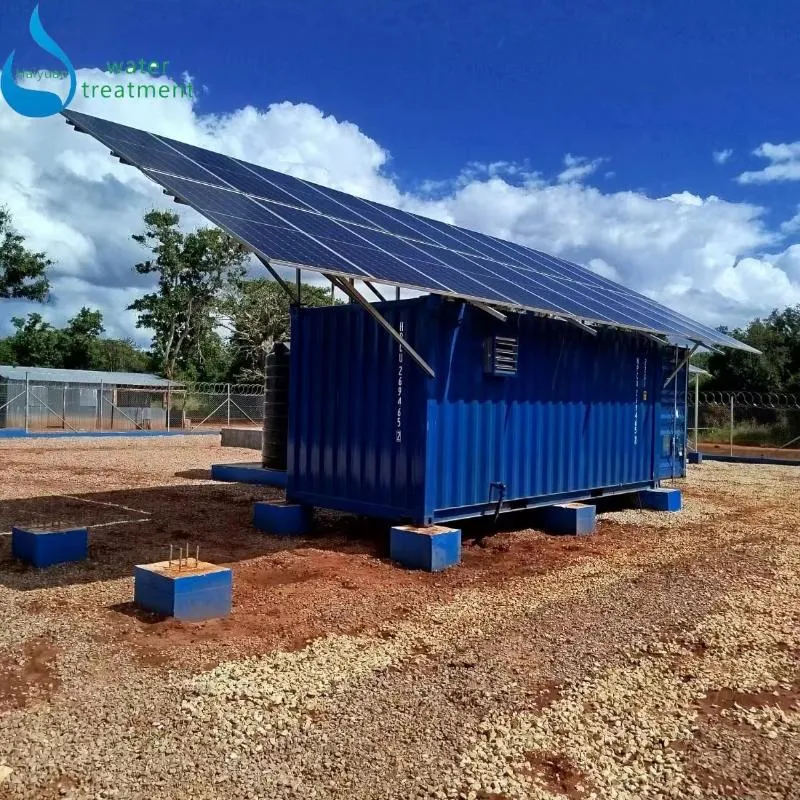

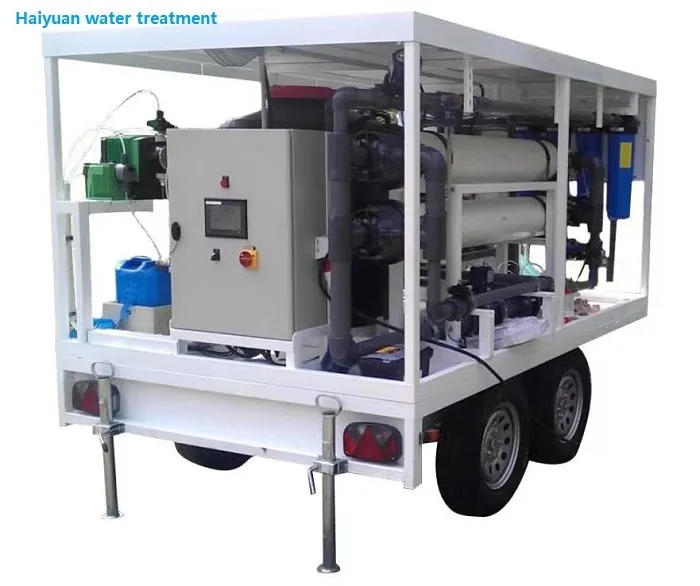

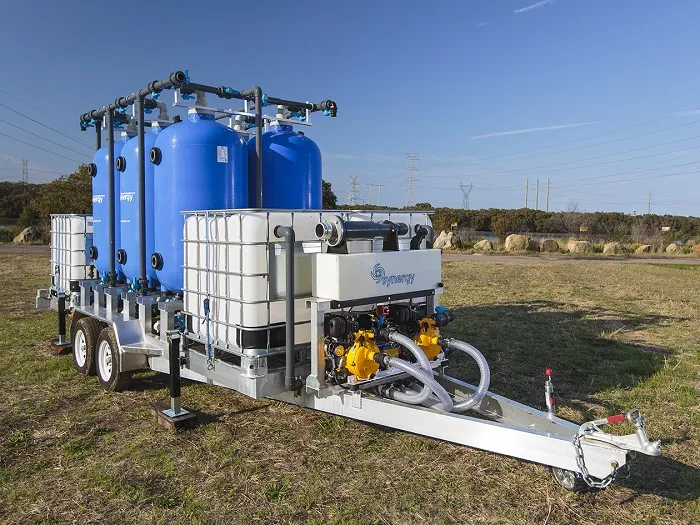

We specialize in custom designs including solar-powered containers and mobile trailer-mounted water treatment systems for maximum flexibility.
To provide an accurate quote, please confirm the following:
