Containerized Mobile Reverse Osmosis RO Seawater Desalination Treatment Water Purification Purifier System

1 / 5

Containerized Mobile Reverse Osmosis RO Seawater Desalination Treatment Water Purification Purifier System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.HYRO 6/hr

Capacity6m3/Hr

Flow RateCustomizable

Productivity6000/H

Valve ControlAutomatic or Manual

Recovery Rate55%-60%

Incoming WaterSalt Borehole Seawater

Untreated WaterFor Drinking or Irrigation

Frame StructureStainless Steel 304/316

HS Code842121

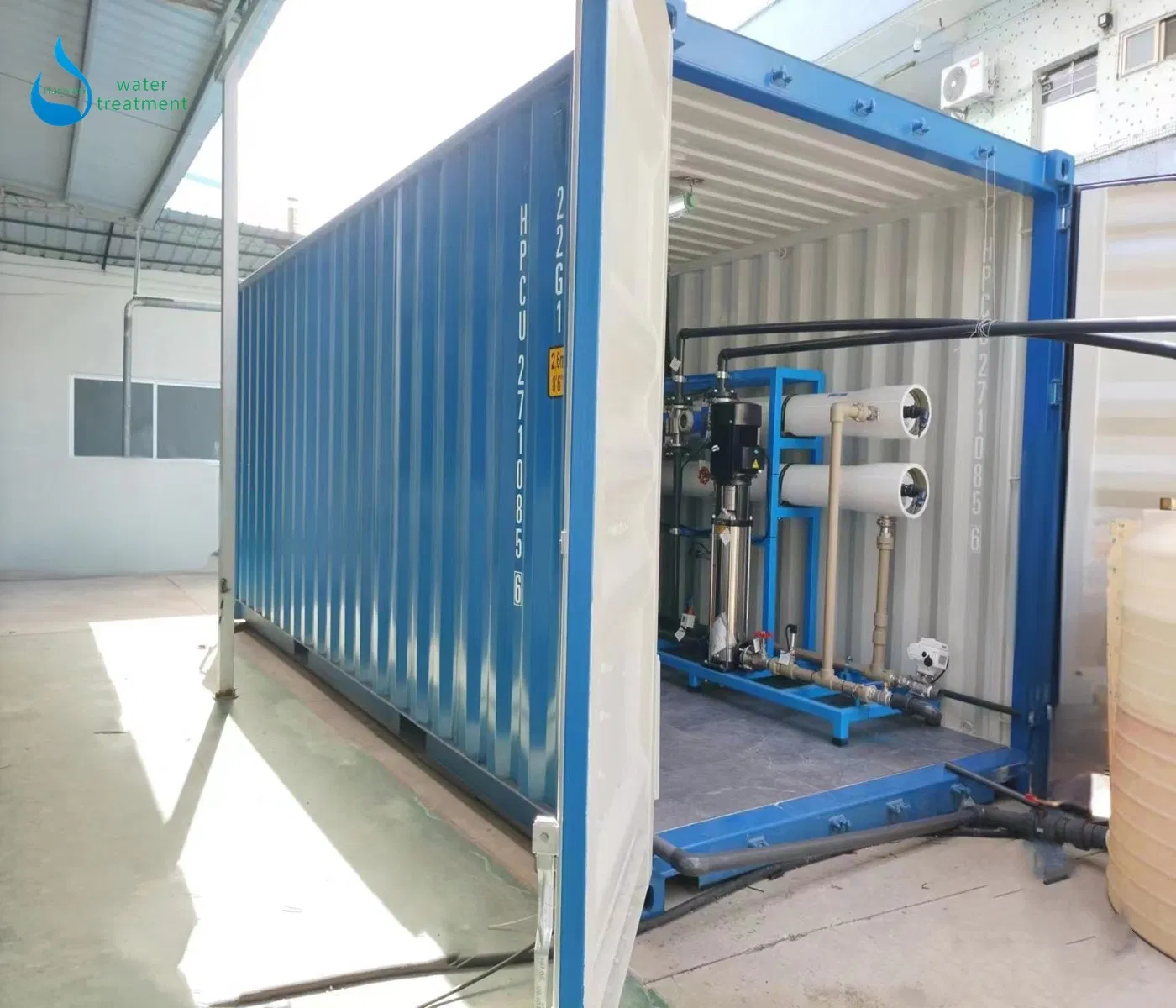

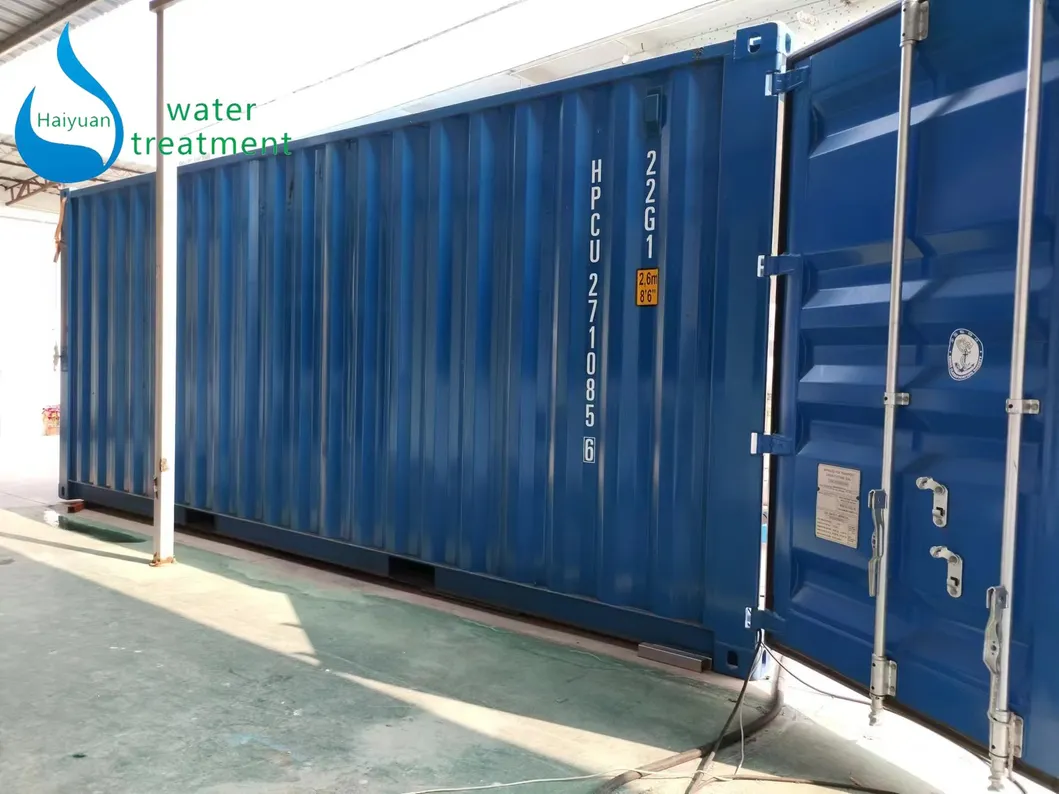

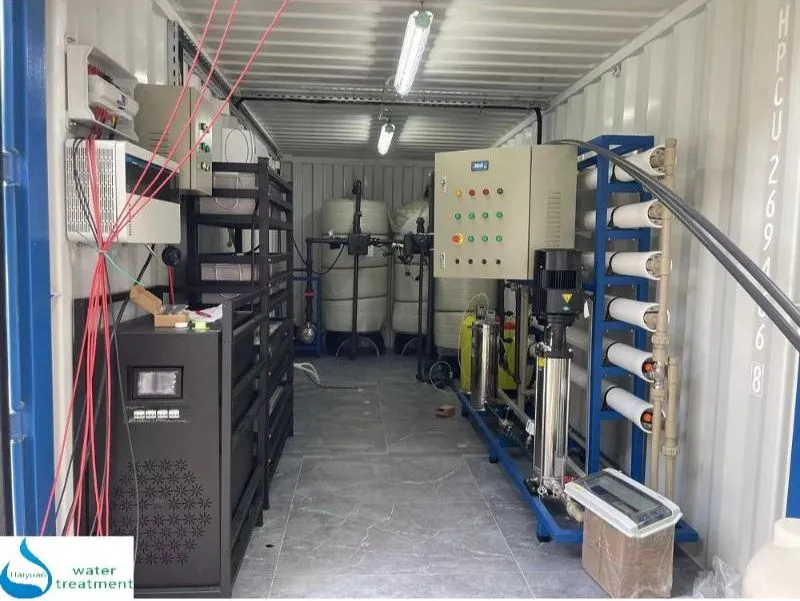

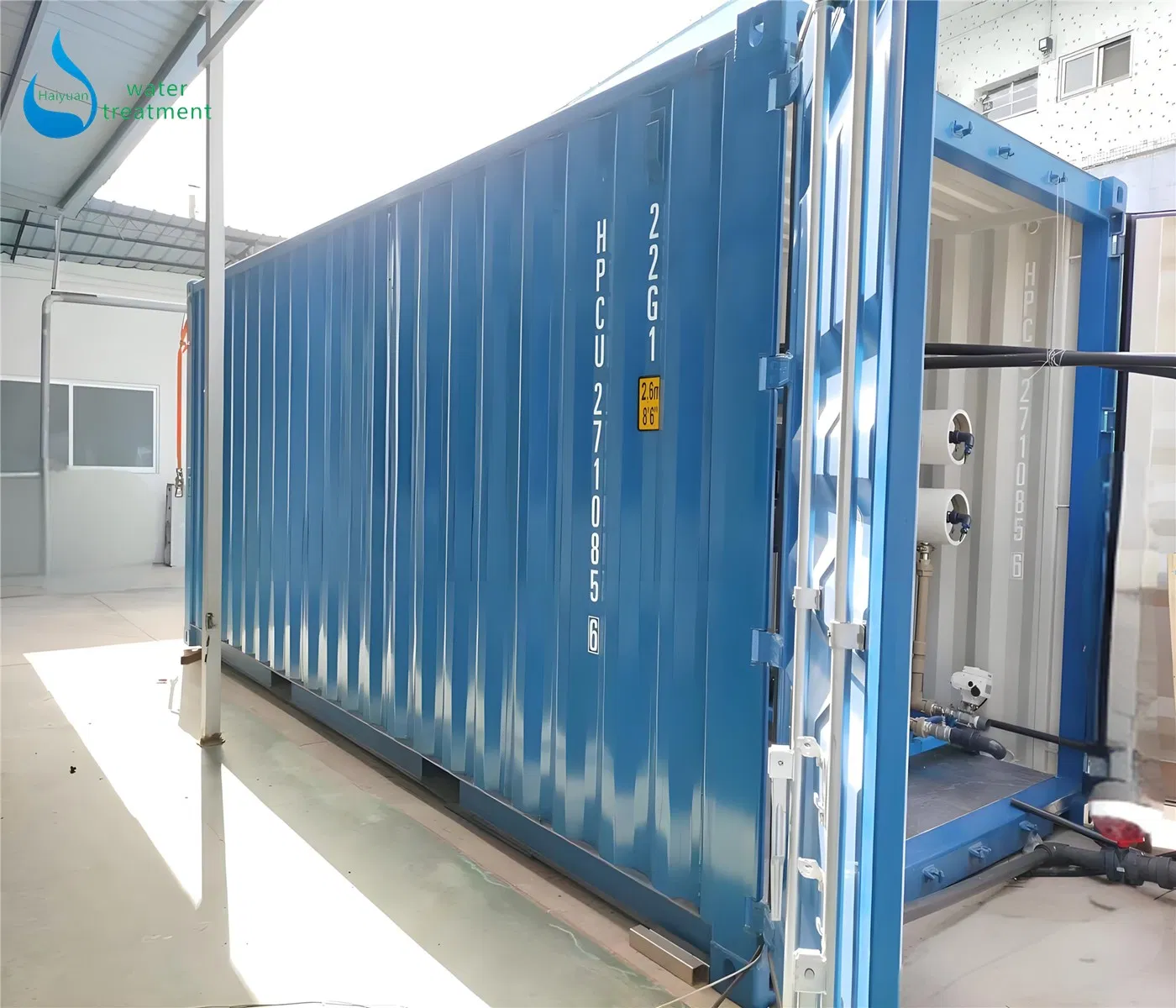

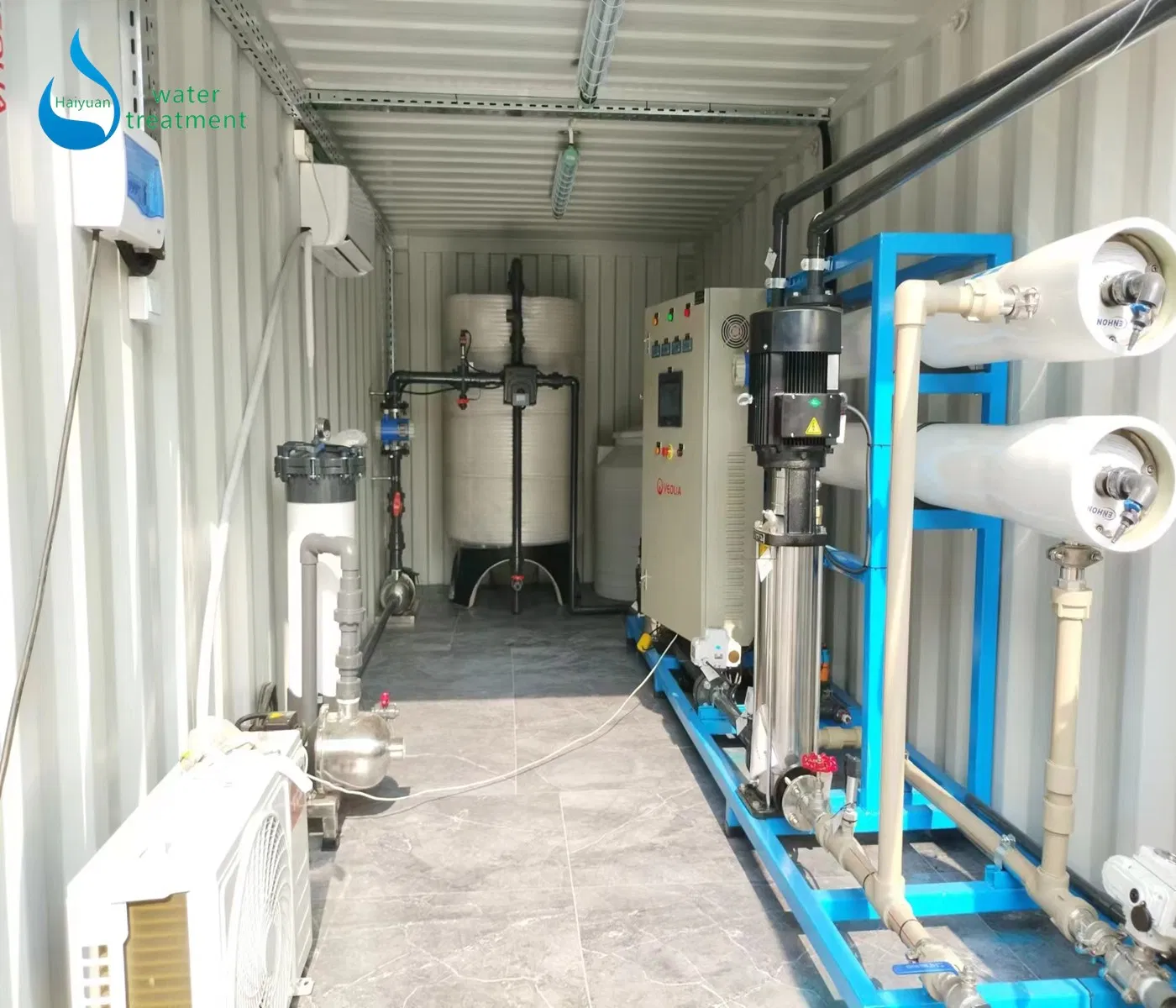

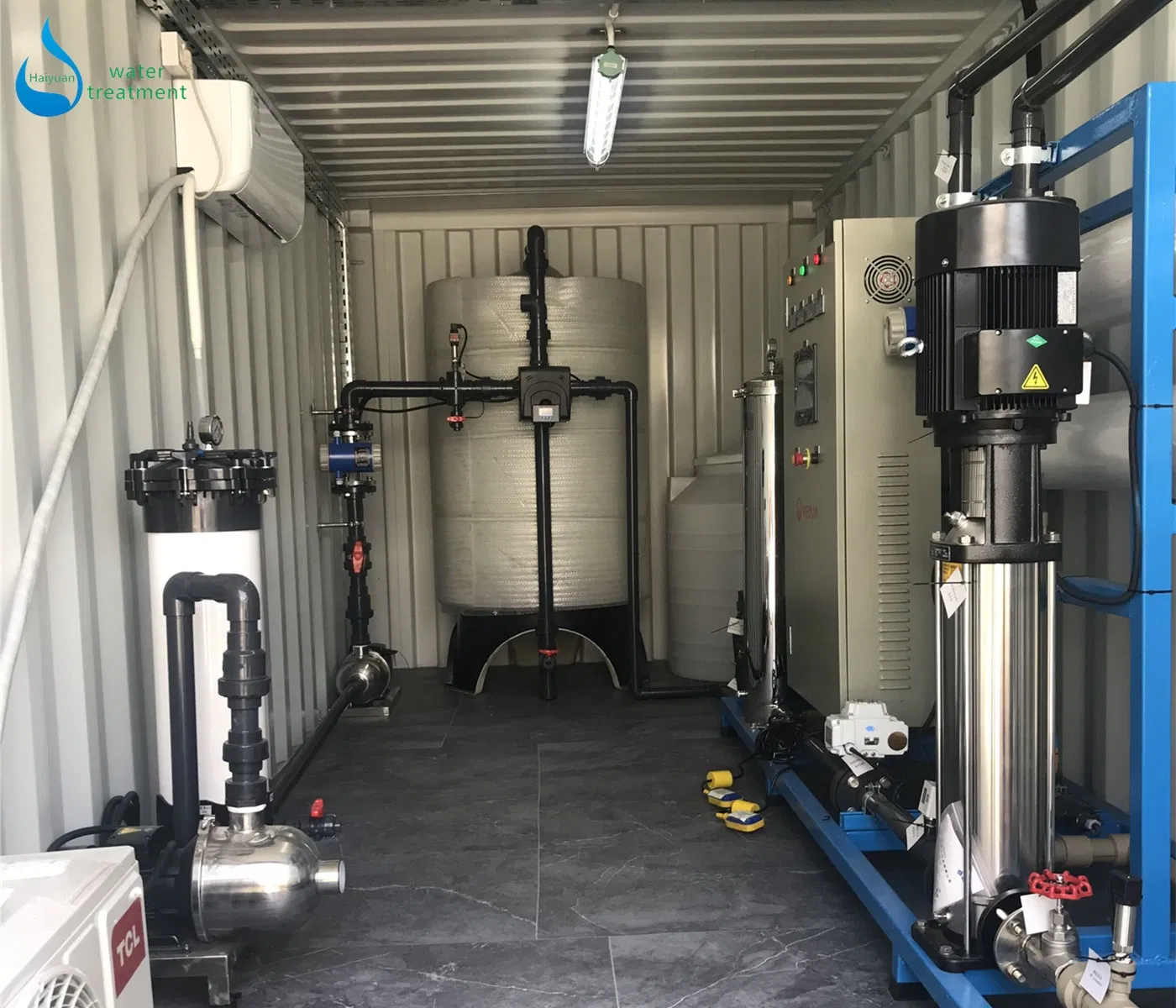

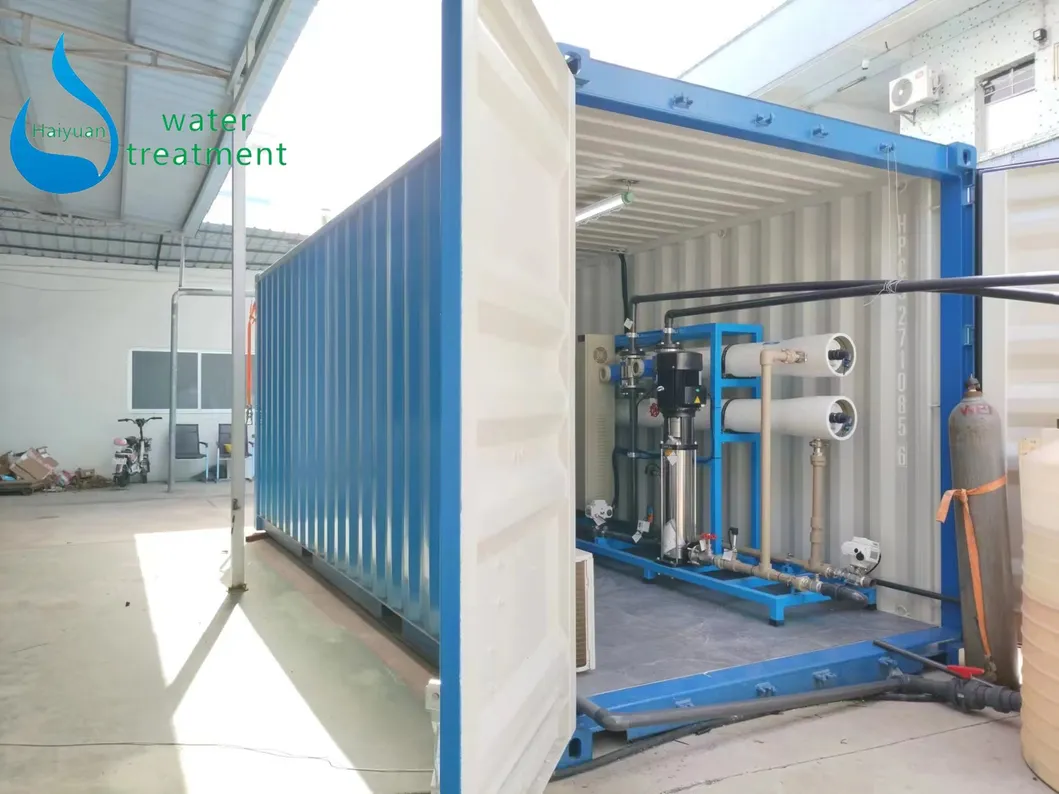

Mobile Containerized RO Water Treatment System

The containerized water treatment system is a fully integrated, modular solution housed in a standard shipping container (20ft or 40ft). Suitable for treating seawater, brackish water, groundwater, river water, or tap water. Plug-and-play design enables fast deployment and immediate operation.

Product Overview: 6000L/hr Capacity

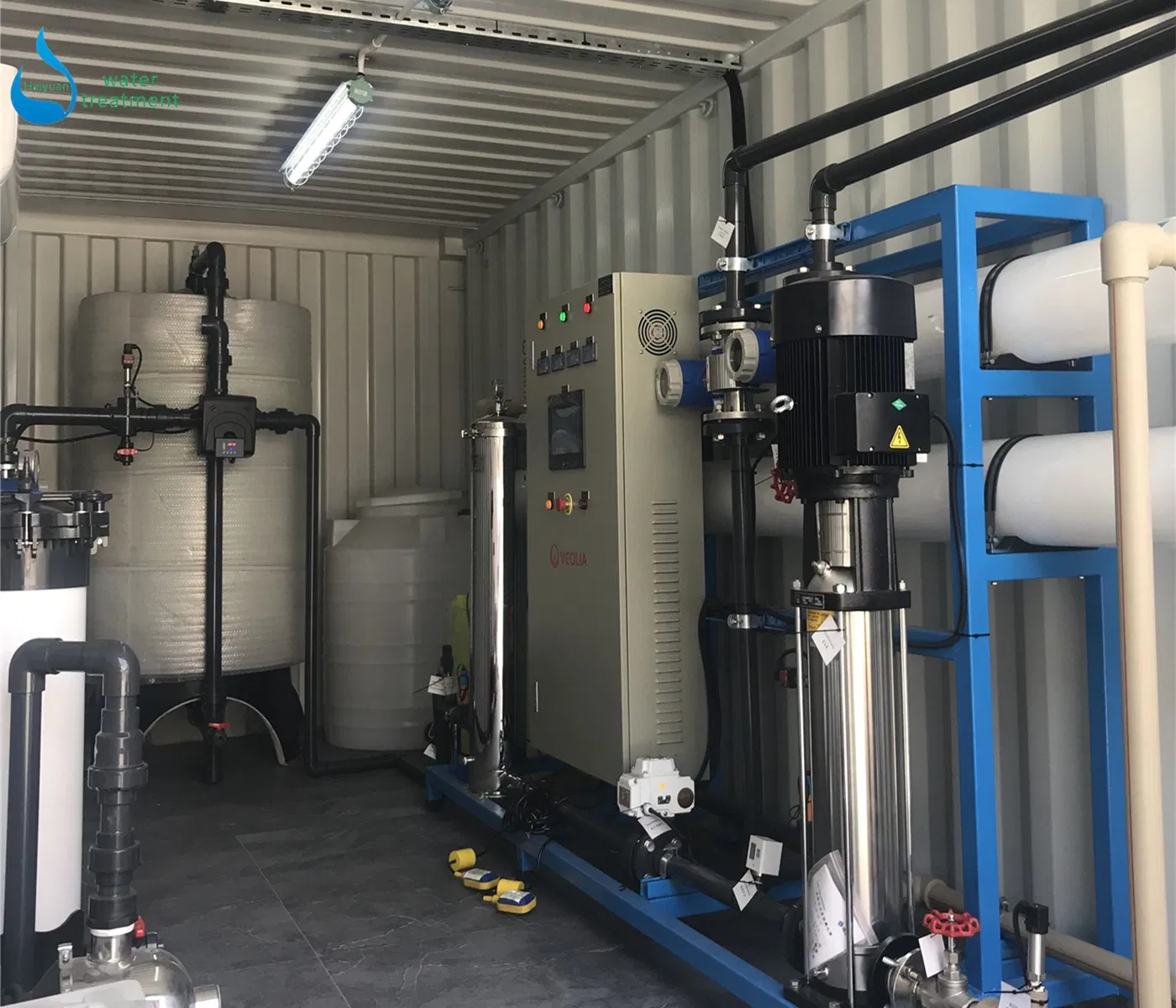

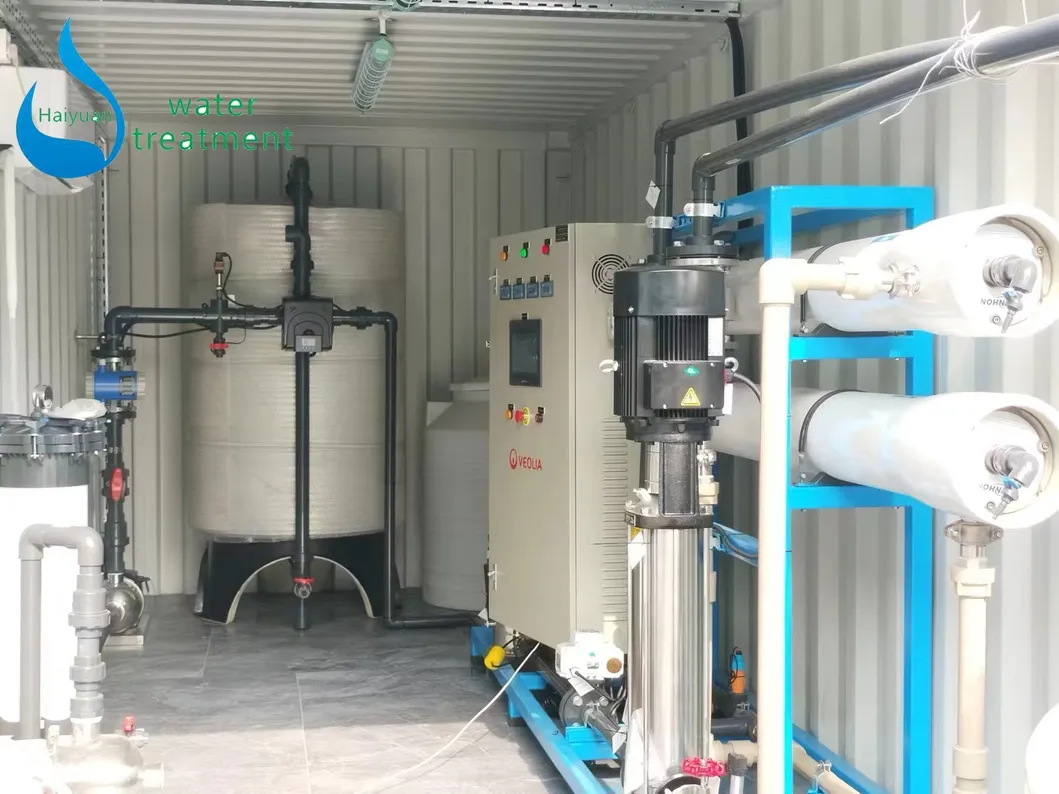

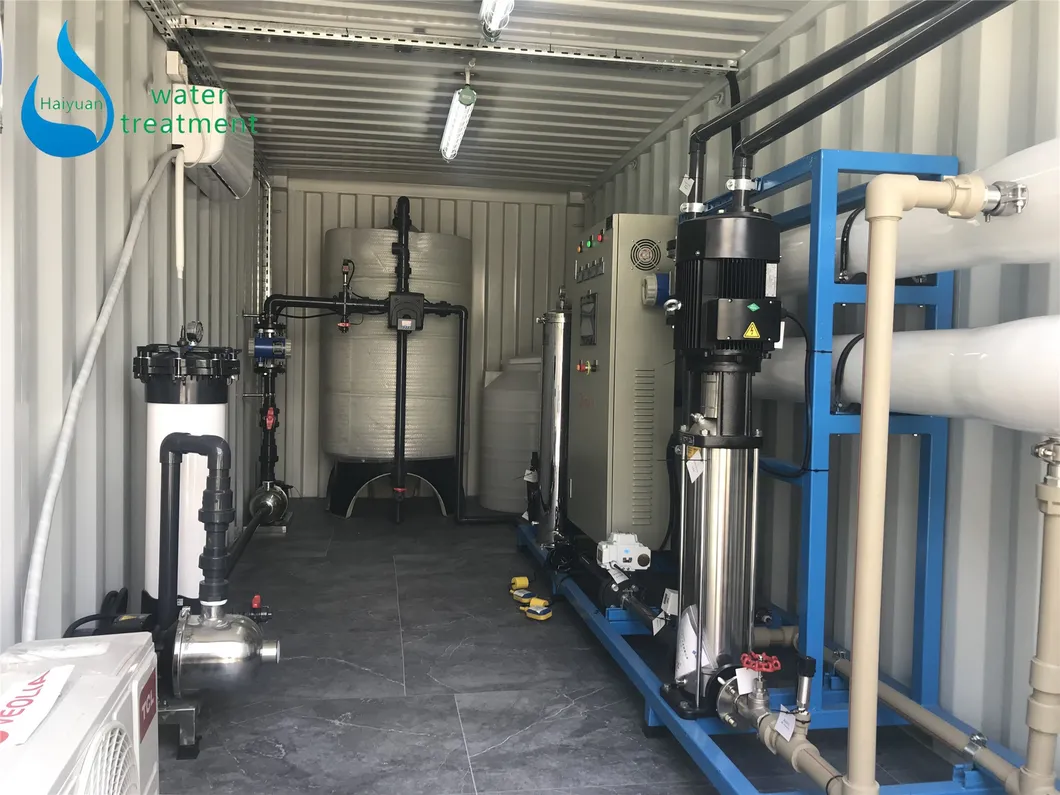

System Configuration & Components

Standard 20ft or 40ft shipping container (New or Refurbished)
Complete Water Treatment System with Interconnecting Piping
Integrated Control Panel and Lighting
Non-slip floor covering and Ventilation fans
Optional: Air conditioning, Insulating whiteboard, Solar Power System
Customizable container exterior color

System Technical Parameters

HY-RO-6T/hr Parameter Details		Performance Metrics
Flow Rate	144T/day	Recovery Rate	60%
Applicable Power	380V/50hz 3 Phase	Rated Power	9.9KW
Feedwater TDS	2800ppm	Freshwater TDS	31.6ppm
Operating Temperature	5-45ºC	RO Membrane	6pcs

RO Process Steps & Functionality

Process Stage	Equipment	Function Description
Raw Water Storage	Raw Water Tank	Stores source water (borehole, river, etc.)
Pretreatment	Multi-media & Precision Filter	Removes suspended solids and protects membranes

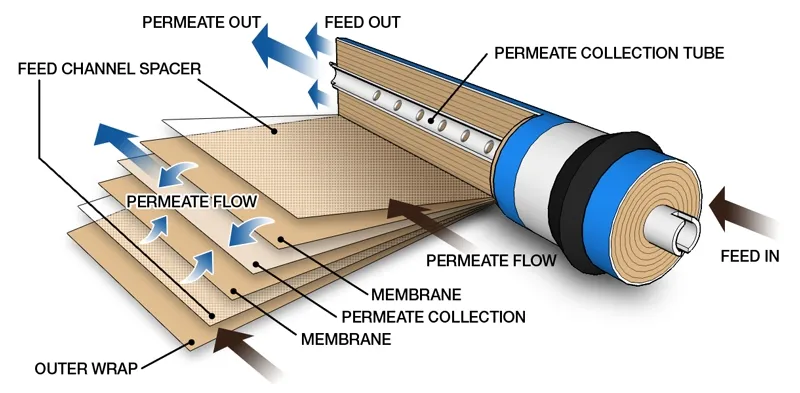

Membrane Separation	RO System Unit	Removes 97-99% of dissolved salts and heavy metals
Clean Storage	Product Water Tank	Stores purified drinking or industrial water

Key Advantages

Modular & Mobile: Built into ISO containers for rapid installation without civil construction.
All-in-One: Pre-treatment, main treatment, and post-treatment in one ready-to-run unit.
Smart Control: Fully automatic PLC with touchscreen and remote monitoring support.
Low Maintenance: Equipped with automatic CIP cleaning and high-quality brand components.
Application Scenarios: Islands, Remote Industrial Zones, Agriculture, Resorts, and Offshore Platforms.

Alternative Capacities & Custom Designs

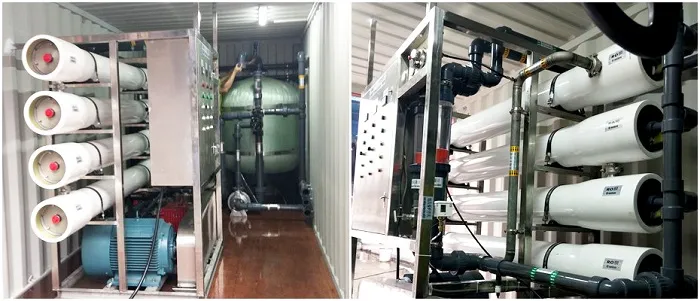

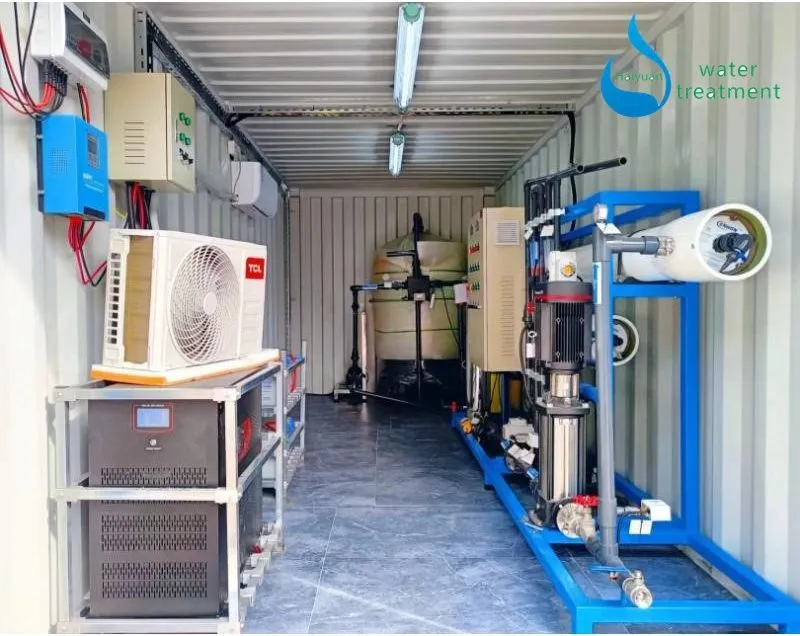

Large Scale 20T/hr RO System

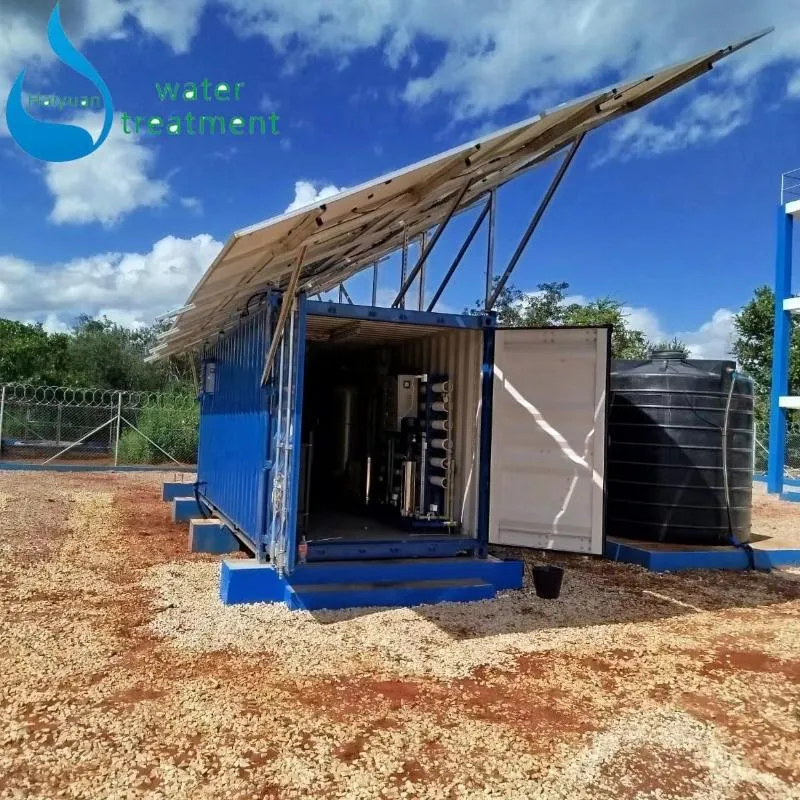

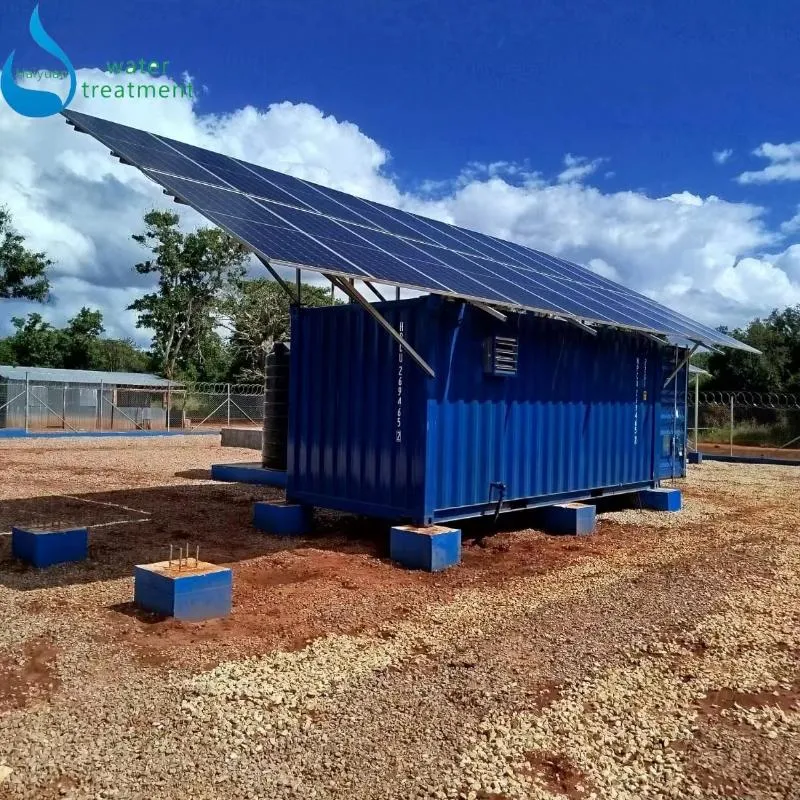

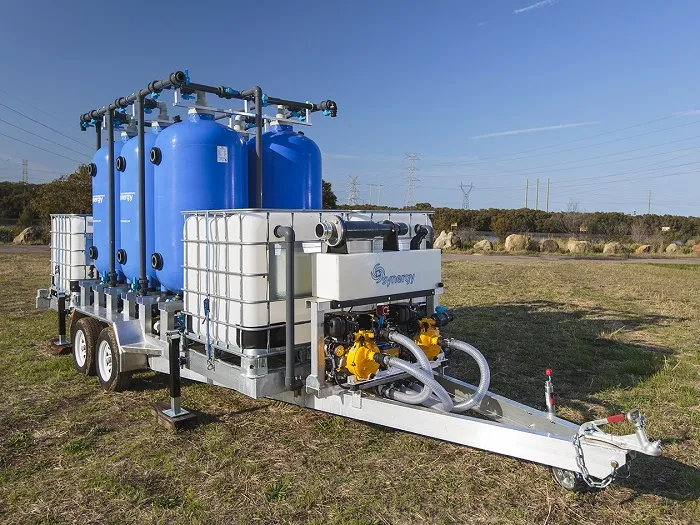

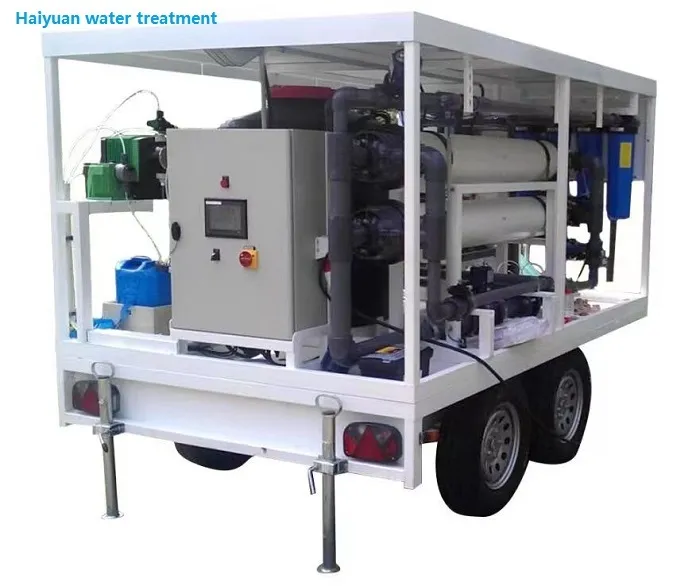

Solar Power & Mobile Trailer Solutions

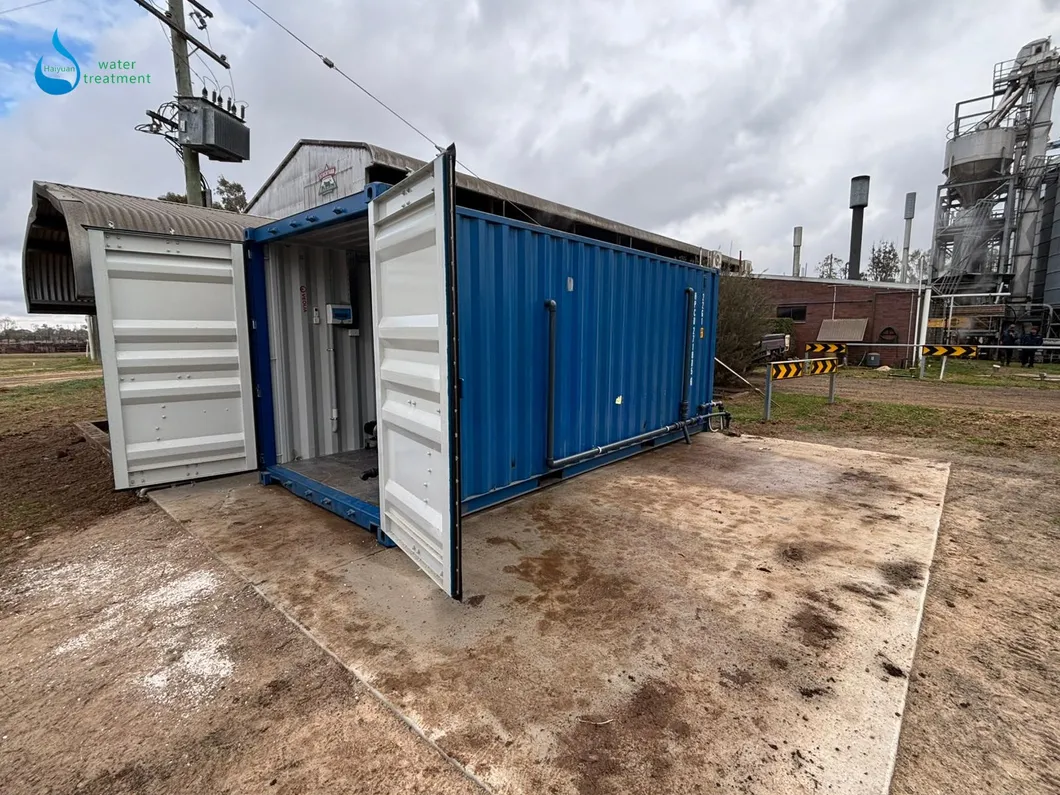

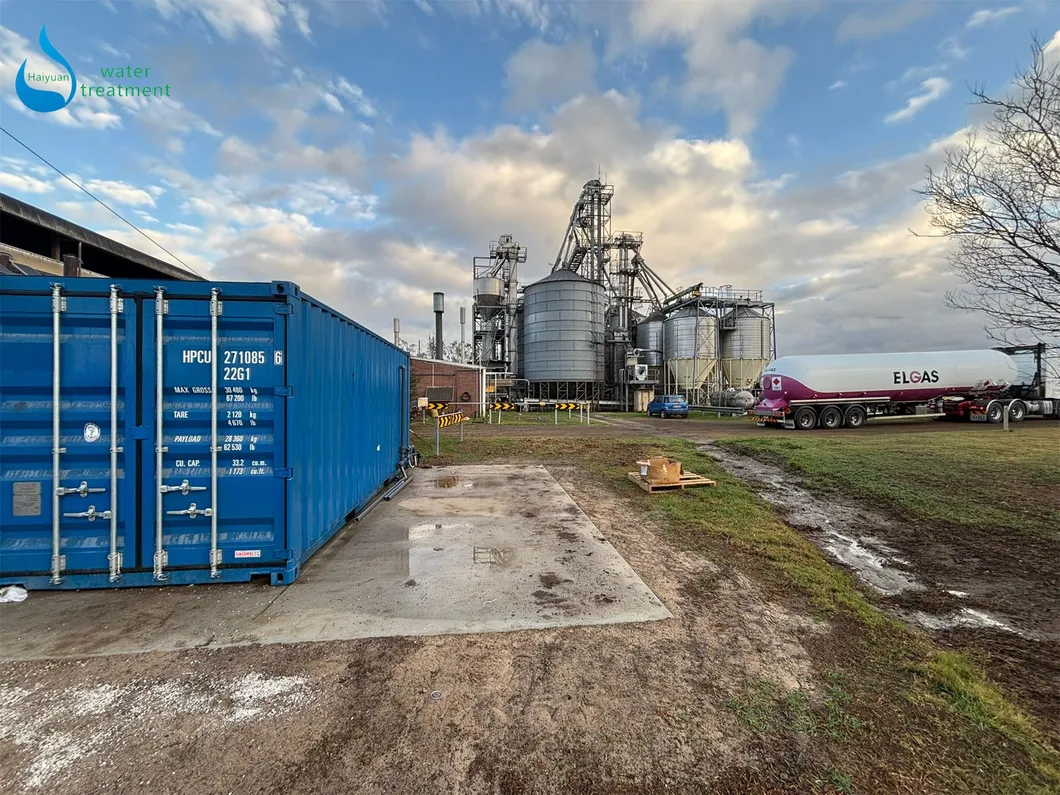

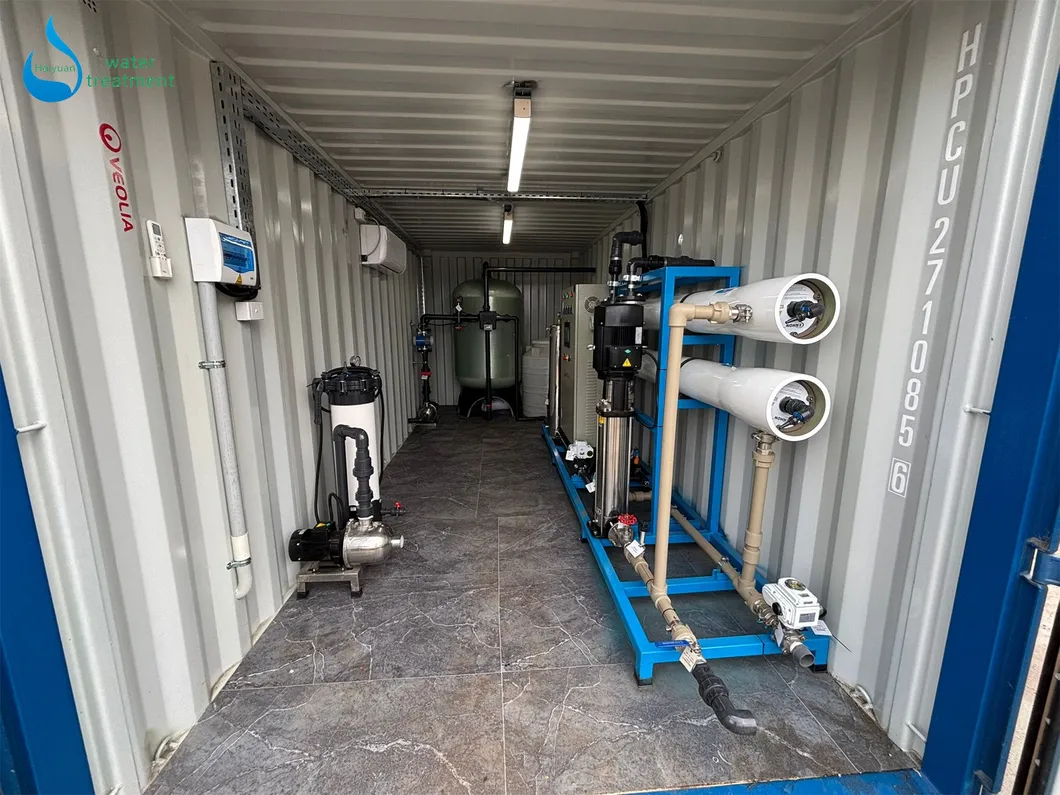

Global Project Case

6T/hr System for Industrial Boiler Feed Water

Application: Boiler feed water production
Water Source: Borehole water
System Type: Mobile, containerized reverse osmosis (RO) system
Services: Installation & Commissioning guidance provided

Certifications & Factory Strength

Buying Guide

To provide the most accurate quote, please confirm the following details:

Untreated Water Source: Well water, seawater, or other (Water test report preferred).
Treated Water Purpose: Drinking water standard (TDS < 500ppm) or specific industrial use?
Output Capacity: How many liters/gallons per hour do you require?
Power Supply: 380v/50hz/3ph or other local specifications?

Frequently Asked Questions (FAQ)

Q: What capacities are available for the containerized RO system?

A: Our systems are fully customizable, with standard capacities ranging from 1 to 100 tons per hour.

Q: Can the system be used for seawater desalination?

A: Yes, we specialize in seawater desalination. For seawater, we use specific high-rejection RO membranes and corrosion-resistant materials.

Q: Is the containerized system easy to move?

A: Absolutely. The entire water treatment plant is integrated into a standard ISO shipping container (20ft or 40ft), making it easy to transport via truck or ship and quick to deploy on-site.

Q: Does the system operate automatically?

A: Yes, the system features a full automatic PLC control system with a touchscreen interface for easy operation and monitoring.

Q: What is the typical salt rejection rate of the RO membrane?

A: Our RO systems typically achieve a salt rejection rate of 97% to 99%, depending on the quality of the raw water.

Q: Can the system run on solar power?

A: Yes, we offer optional solar-powered system configurations, which are ideal for remote areas or off-grid locations.
