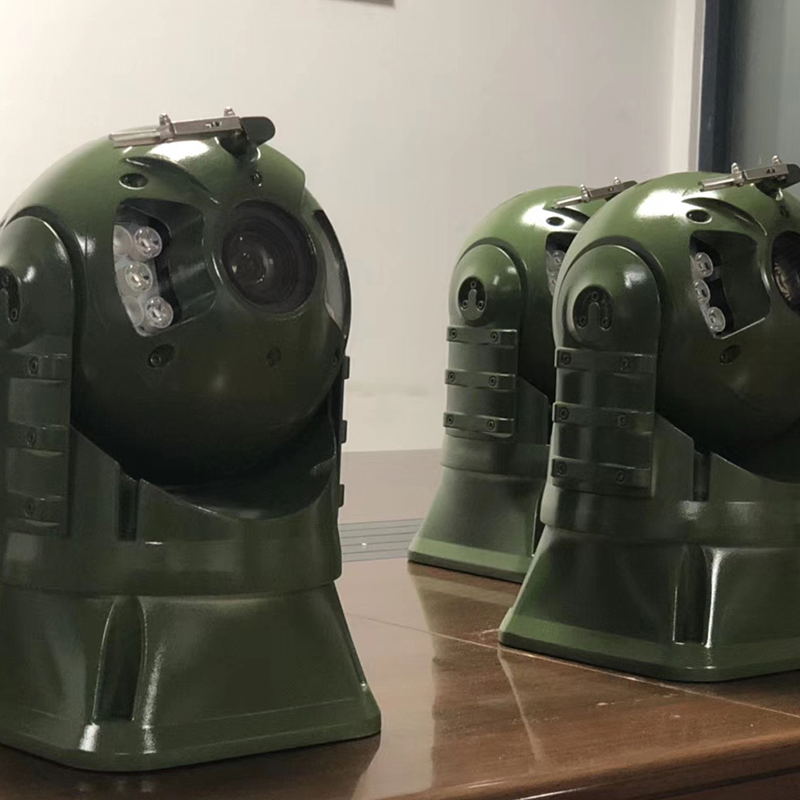

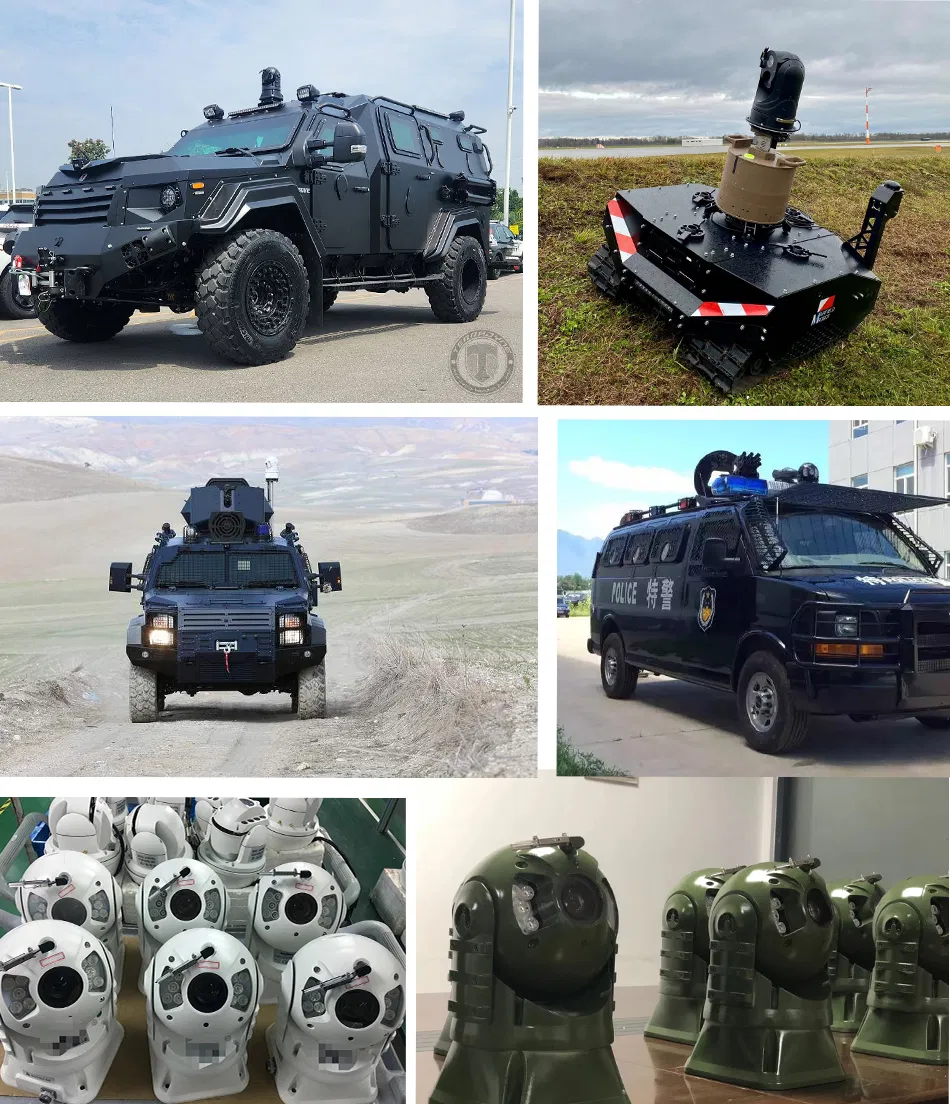

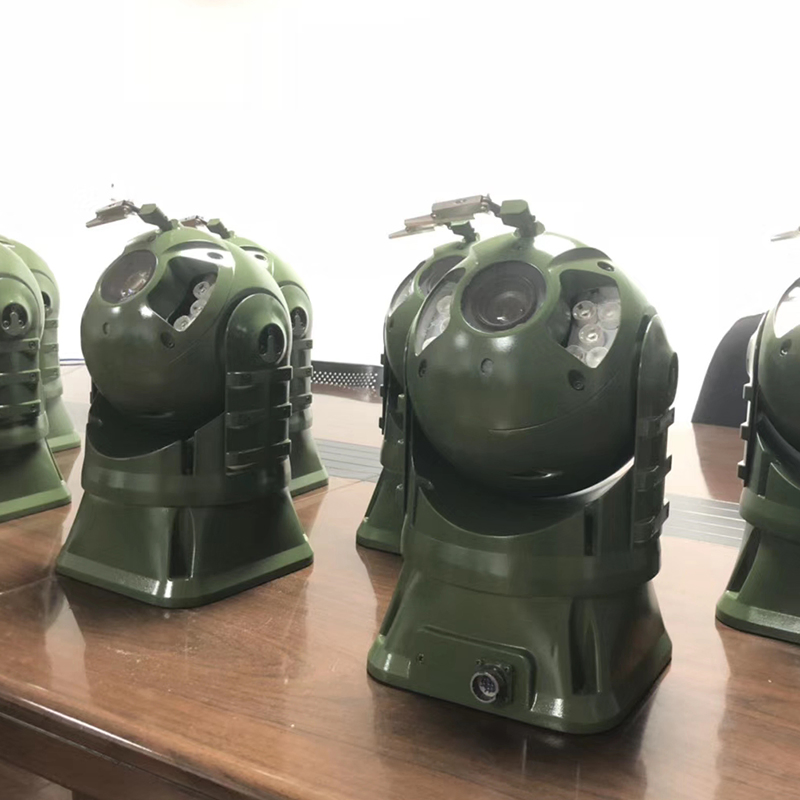

The SOAR970 series mobile PTZ is designed for advanced mobile surveillance applications. With exceptional waterproof capabilities up to IP67, it is widely utilized in marine and harsh outdoor environments. The PTZ supports multiple high-definition options including HDIP (2MP, 4MP, 4K).
Featuring integrated IR LED or laser illumination, this system provides visibility from 150m up to 800m in complete darkness. The dual-sensor configuration options include an HD visible camera (up to 33x zoom) and a thermal imager (640x512/1280x1024, up to 40mm focal length).
Built to withstand the harshest conditions, the IP67-rated housing ensures protection against immersion, heavy rain, salt spray, and airborne particulates, making it ideal for marine surveillance, coastal monitoring, and offshore platforms.
| Thermal Imaging | |
| Detector Type | VOx Uncooled Infrared FPA |
| Array Format/Pixel Pitch | 640x512 / 12μm |
| Lens | 40mm |
| NETD | ≤50mk@25℃, F#1.0 |
| Visible Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| Focal Length | 5.5mm~180mm (33X Optical Zoom) |
| Mechanical & General | |
| Pan / Tilt Range | Pan: 360° endless; Tilt: –20° ~ +90° |
| Power Input | DC 12V-24V wide voltage; ≤24W |
| Ingress Protection | IP66 / IP67 |

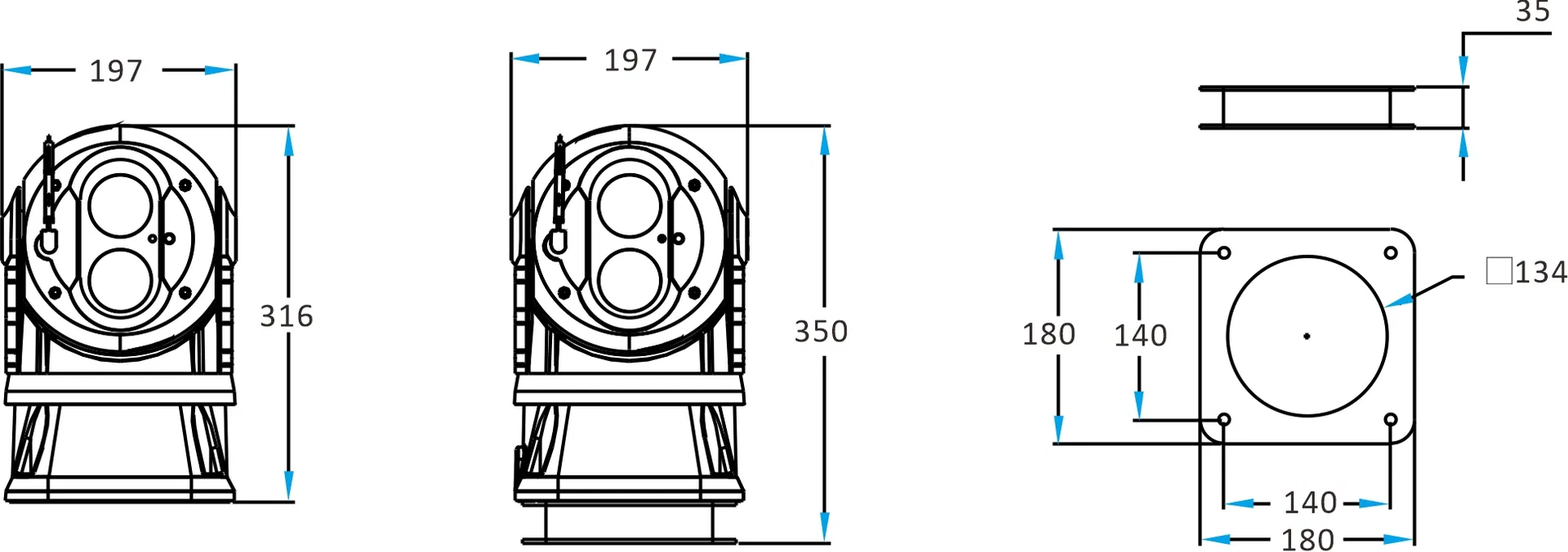

| Weight / Dimension | 6.5 kg / φ197*316 mm |

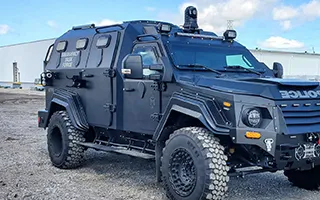

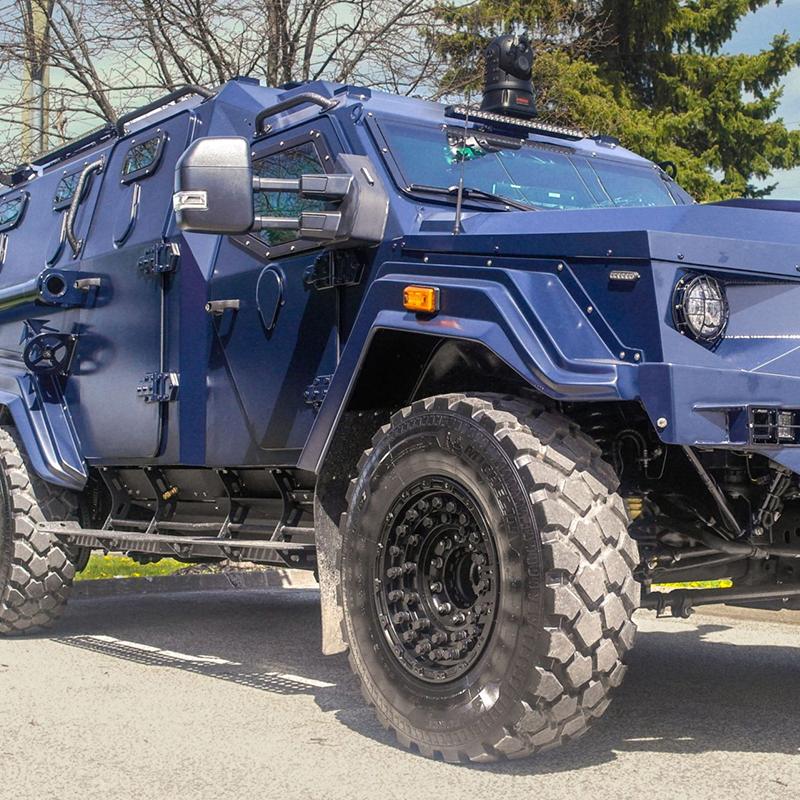

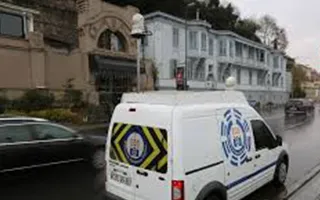

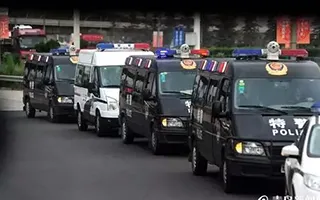

Real-time urban surveillance, patrol car incident response, riot control monitoring, and border security checkpoints.

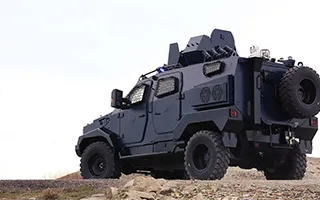

Battlefield reconnaissance from armored vehicles, convoy security, and forward operating base perimeter protection.

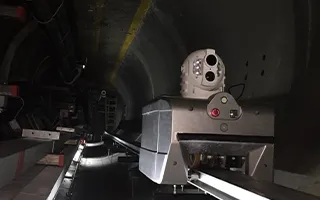

Oil and gas pipeline integrity checks, power grid substation monitoring, and railway security inspections.
