High-Performance Mobile Surveillance Dual Sensor Thermal PTZ Camera System

Customization:	Available
Technology:	Infrared
Style:	Pan/Tilt

ℹ

Basic Information

Model NO.

SOAR970-TH Series

Type

Binocular

Sensor

CMOS

HDMI Format

1080P

Resolution

4MP, 8MP

Lens

Autofocus

Certification

CE

Effective Distance

3km

Sensor Size

1/1.8 inch

Features

Waterproof, High Definition, Thermal Imager

📋

Product Description

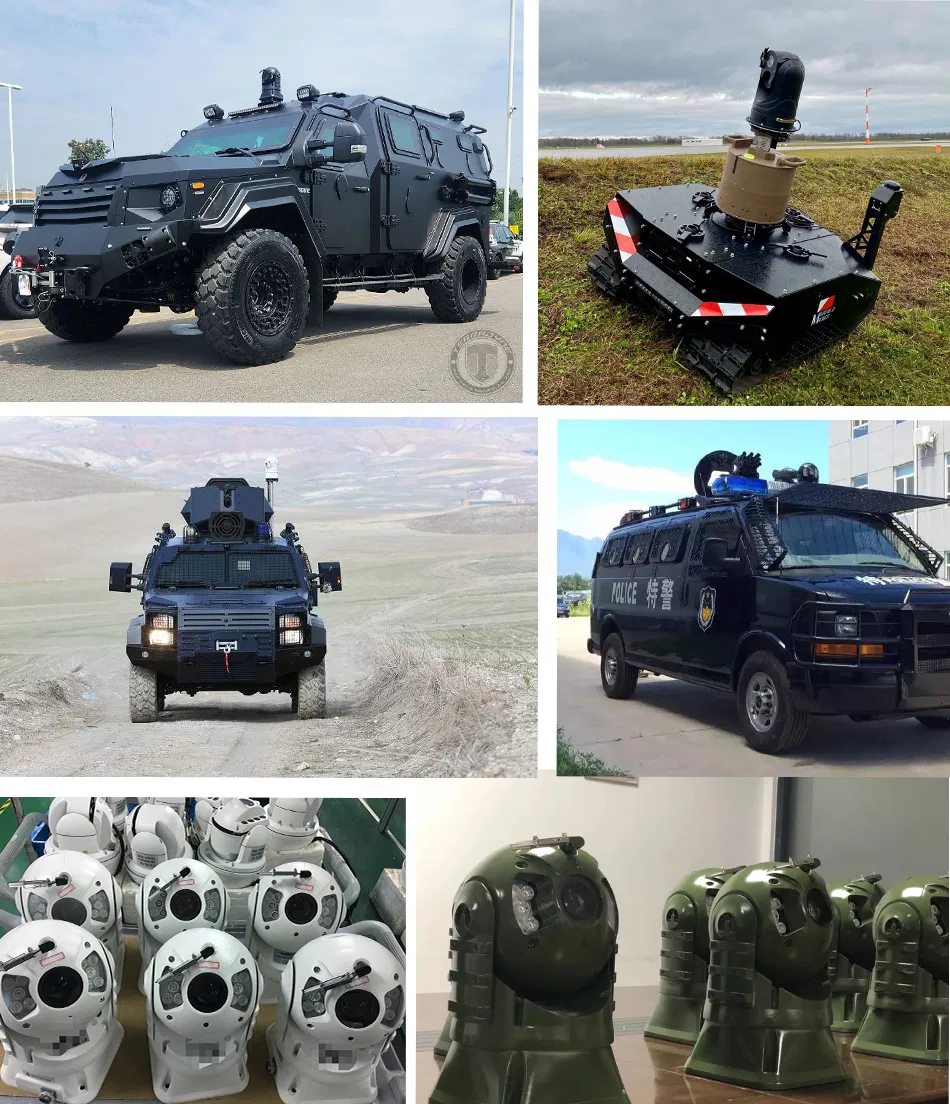

SOAR970 Vehicle Mounted PTZ Camera

The SOAR970 series mobile PTZ is designed for mobile surveillance applications. With its excellent waterproof ability up to IP67, it is also widely applied in marine applications. The PTZ can be ordered with HDIP (2MP, 4MP, 4K). Integrated IR LED or laser illumination allows visibility from 150m up to 800m in complete darkness.

It features dual sensor options, including an HD visible camera (up to 33x zoom) and a thermal imager (640x512/1280x1024, up to 40mm focal length). Built to withstand the harshest conditions, the IP67-rated housing provides complete protection against immersion, heavy rain, and salt spray.

Versatile Deployment Scenarios

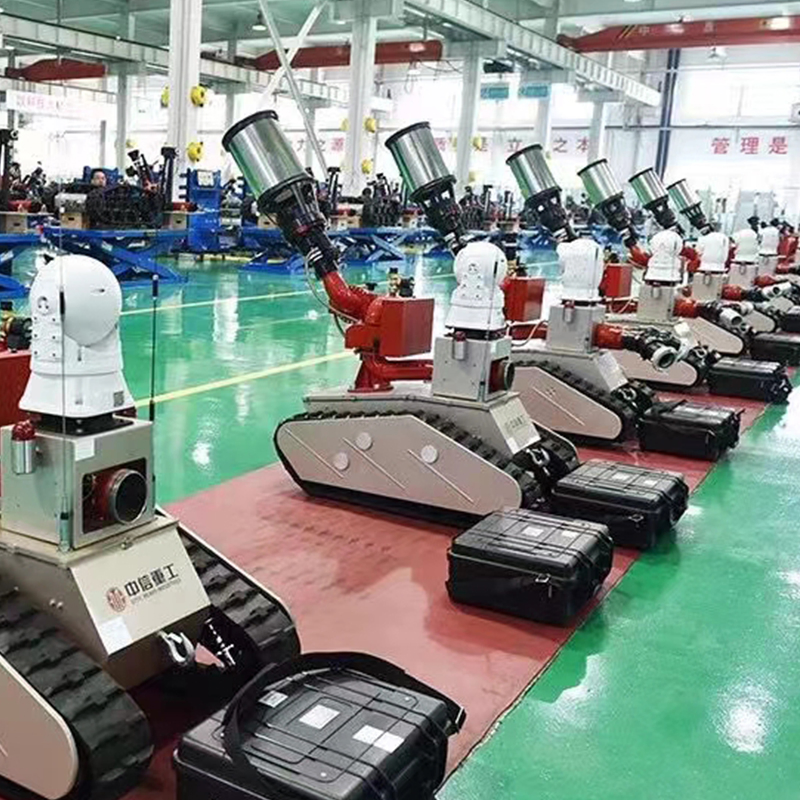

Robotic Surveillance: Integrate into inspection robots or bomb disposal units for real-time visual feedback.

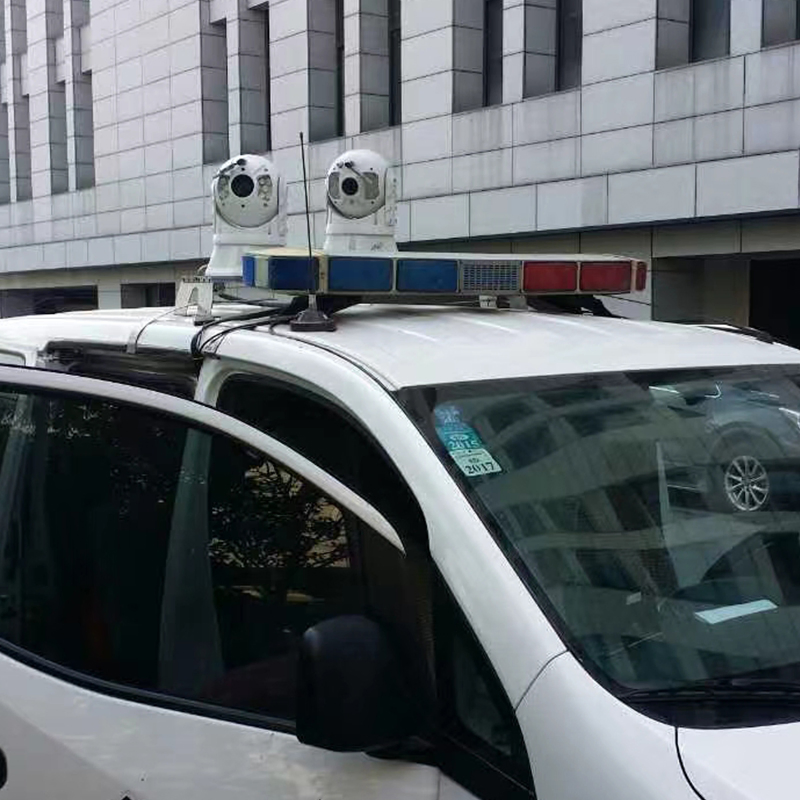

Vehicle-Mounted: Perfect for patrol cars, SWAT vehicles, and reconnaissance units.
Marine Monitoring: Ideal for commercial vessels, yachts, and law enforcement boats.

⭐

Product Highlights

1920×1080 Progressive Scan CMOS, Day/Night monitoring.
Optional 2MP, 4MP, 4K resolution Cameras.
33X Optical zoom, 5.5~180mm focal length.
Thermal imager 640x512, focal length up to 40mm.
360 degree endless rotation.
IP67 Waterproof & Dustproof Design.
Operation Temperatures ranging from -40° to +65°C.

⚙

Technical Specification

Thermal Imaging
Detector	VOx Uncooled Infrared FPA
Array Format/Pixel Pitch	640x512/12μm
Lens	40mm
NETD	≤50mk@25℃, F#1.0
Visible Camera
Image Sensor	1/2.8” Progressive Scan CMOS
Effective Pixels	1920(H) x 1080(V), 2 MP
Focal Length	5.5mm~180mm (33x Optical Zoom)
Pan/Tilt & Mechanical
Pan Range	360° (endless)
Tilt Range	–20° ~ +90° (auto reverse)
Ingress Protection	IP66/IP67
Power	DC 12V-24V; Consumption ≤24W
Weight	6.5 kg

📐

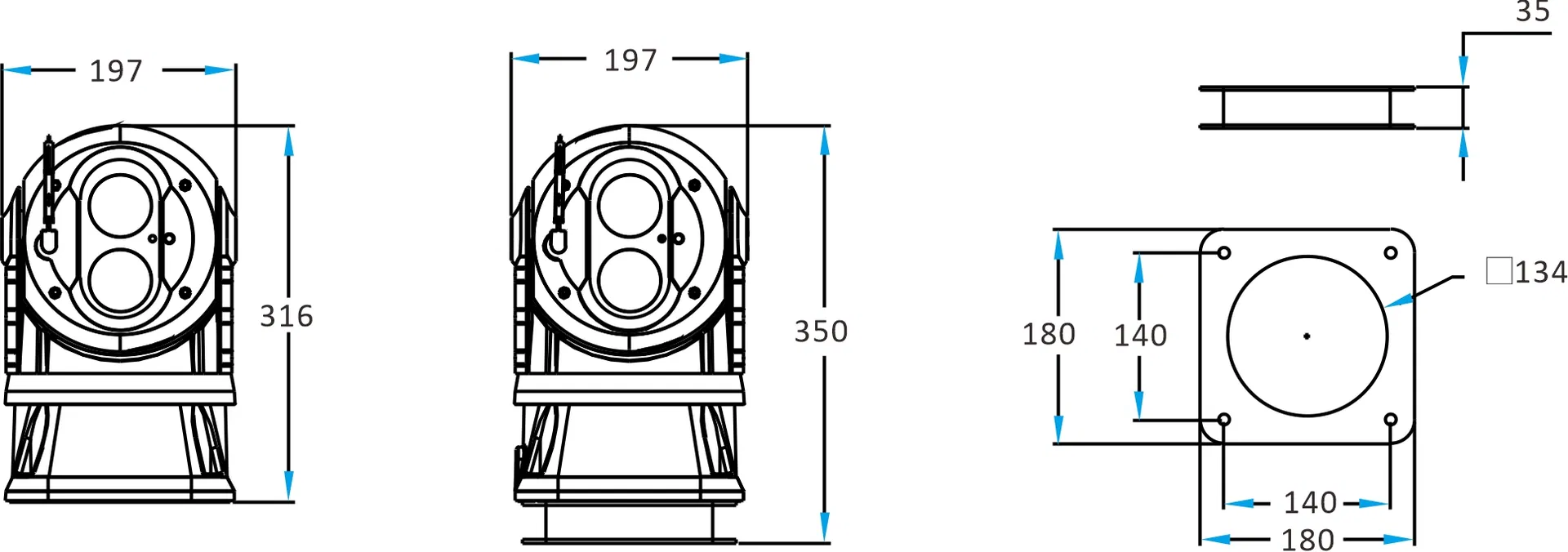

Dimensions

🌐

Application Scenarios

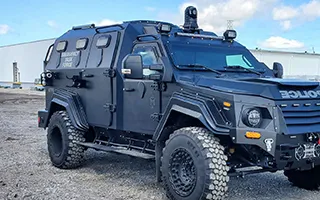

Law Enforcement

Defense

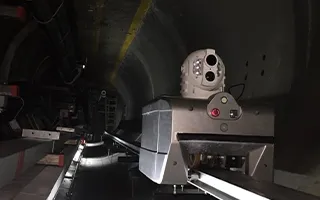

Infrastructure Protection

Emergency Response

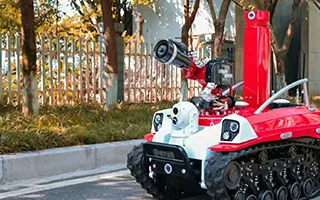

Transportation

Wildlife Protection

❓

Frequently Asked Questions

What is the estimated delivery timeline?

For small orders, delivery typically requires 7 working days. For OEM orders, please confirm with our sales team for specific schedules.

Is there a minimum order quantity (MOQ)?

The MOQ varies depending on the specific product model. Please contact us for details on the product you are interested in.

What payment methods do you accept?

We accept various payment terms to accommodate our clients, including T/T (Telegraphic Transfer).

What is the warranty coverage for your products?

Our PTZ products and camera modules are covered by a comprehensive 1-year warranty from the date of purchase.

Do you provide after-sales technical support?

Yes, we offer lifetime technical support. Our team of engineers will respond to any technical inquiries or troubleshooting needs within 24 hours.

Is the camera suitable for marine environments?

Absolutely. With its IP67-rated waterproof housing and corrosion-resistant construction, the SOAR970 is ideal for salt spray environments and coastal monitoring.
