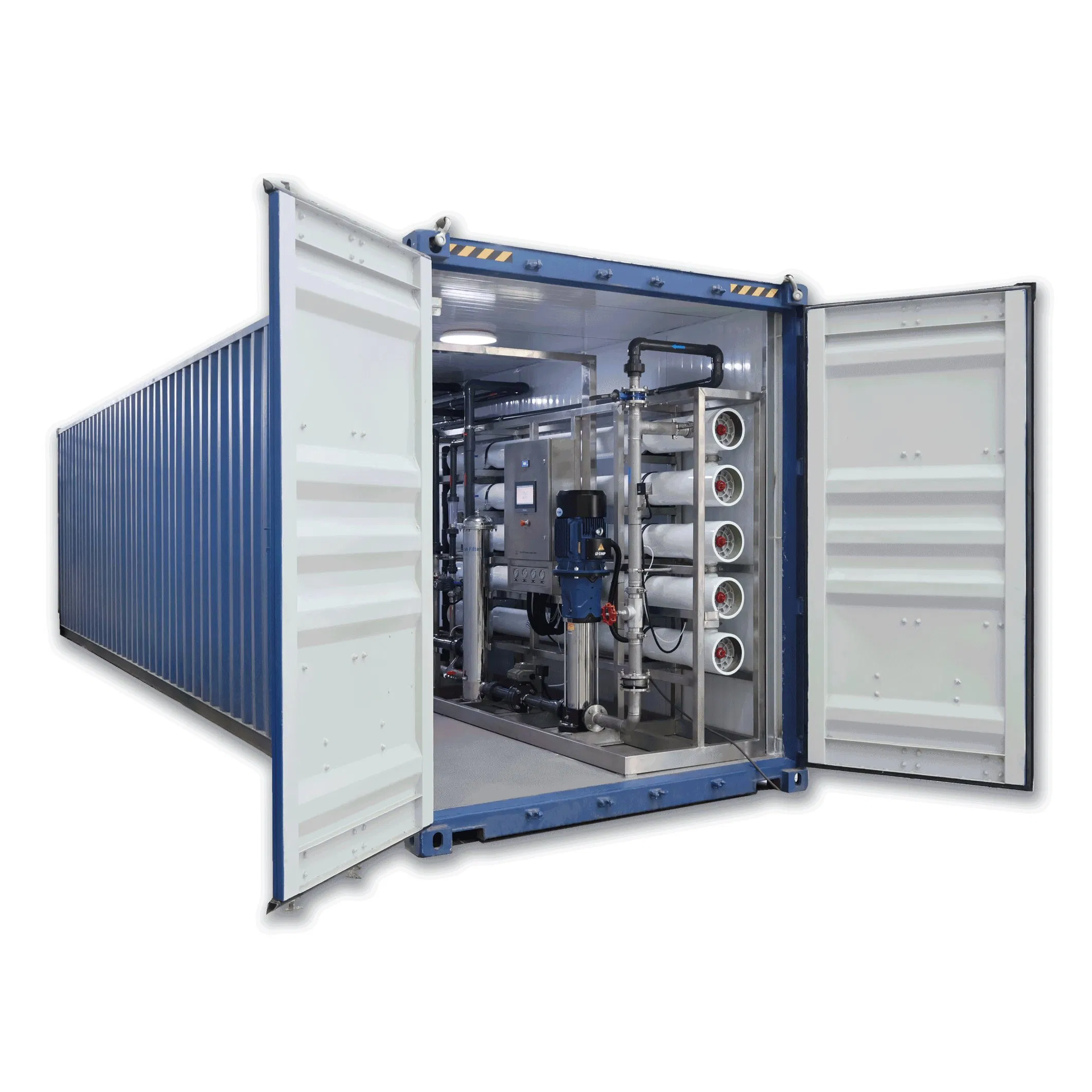

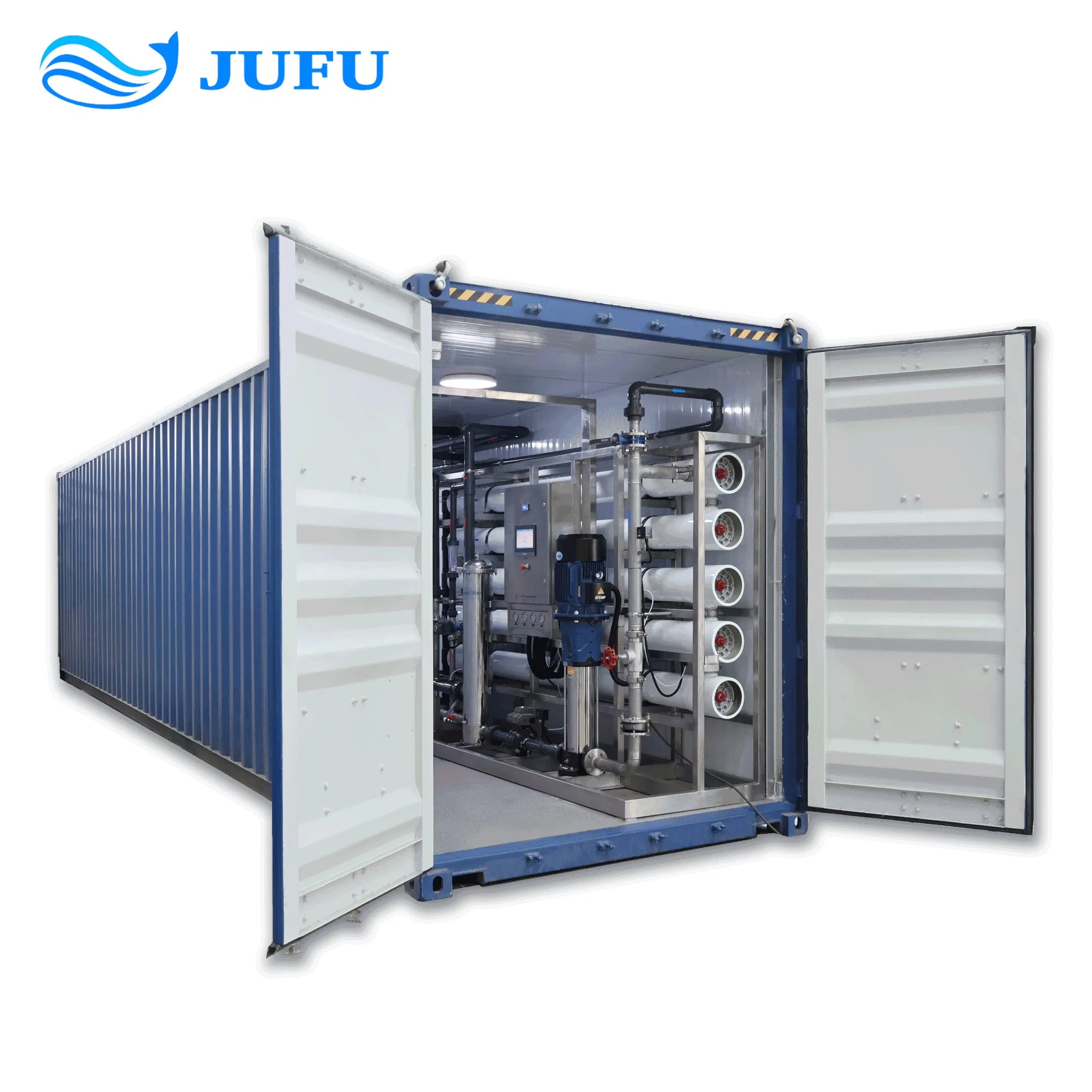

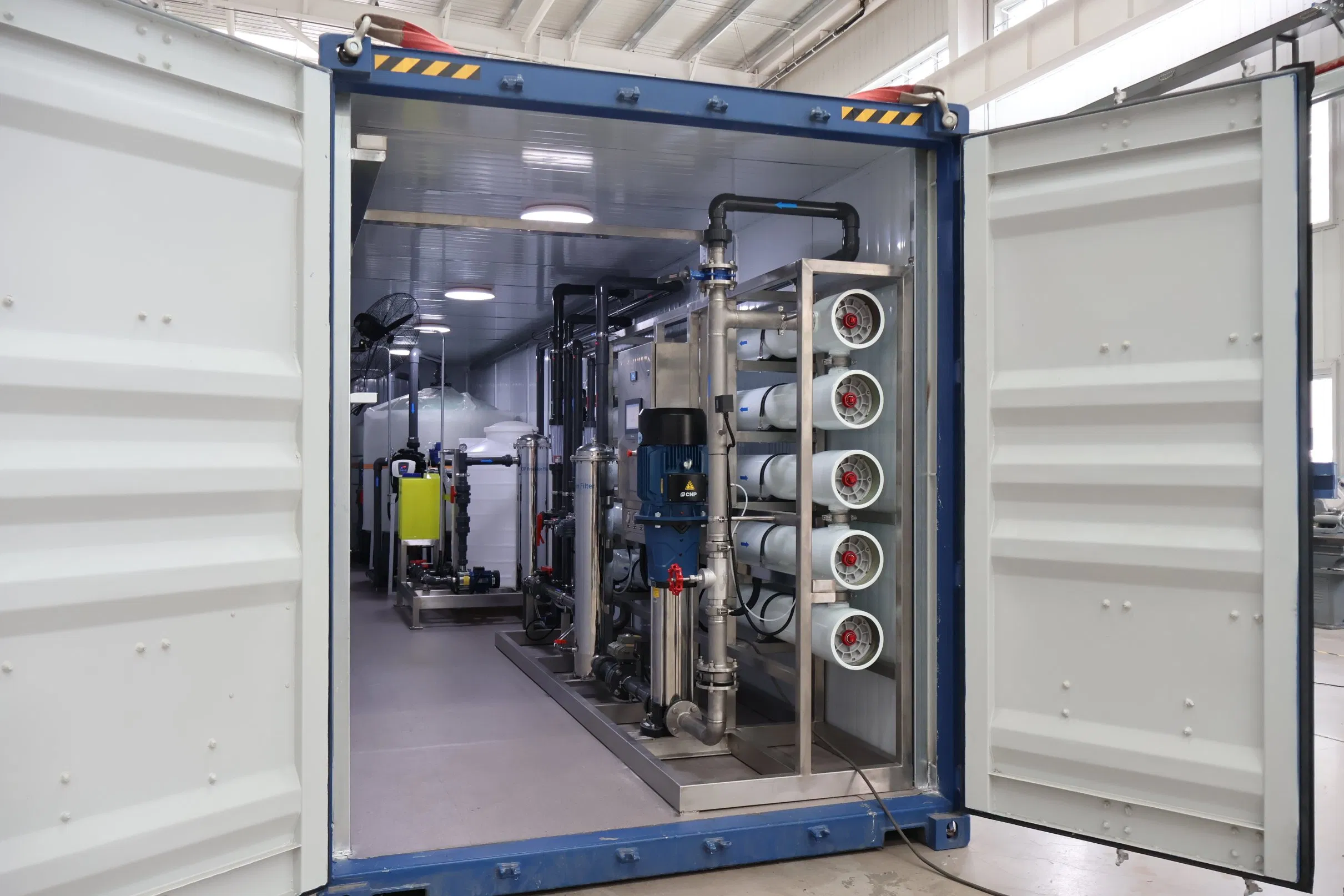

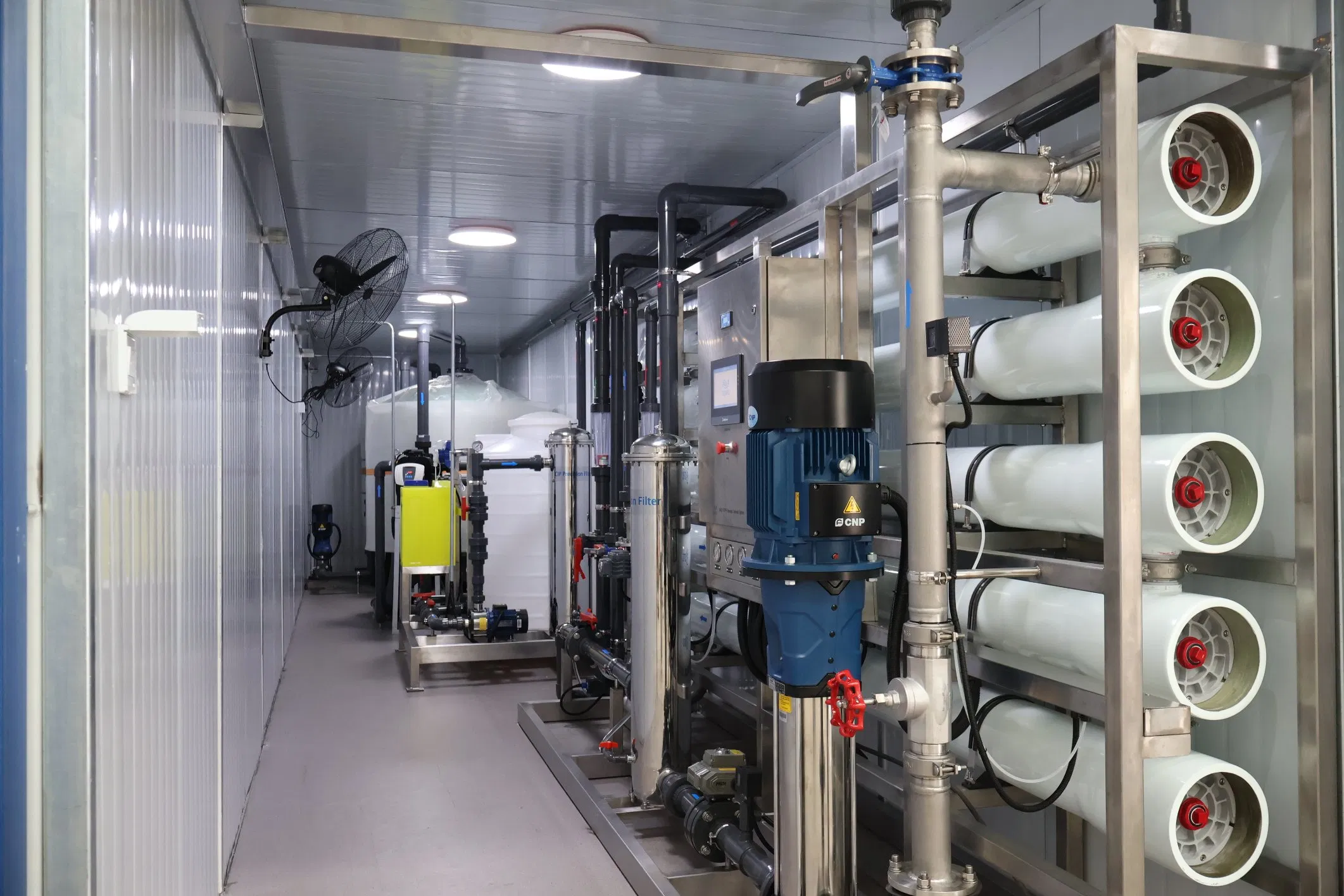

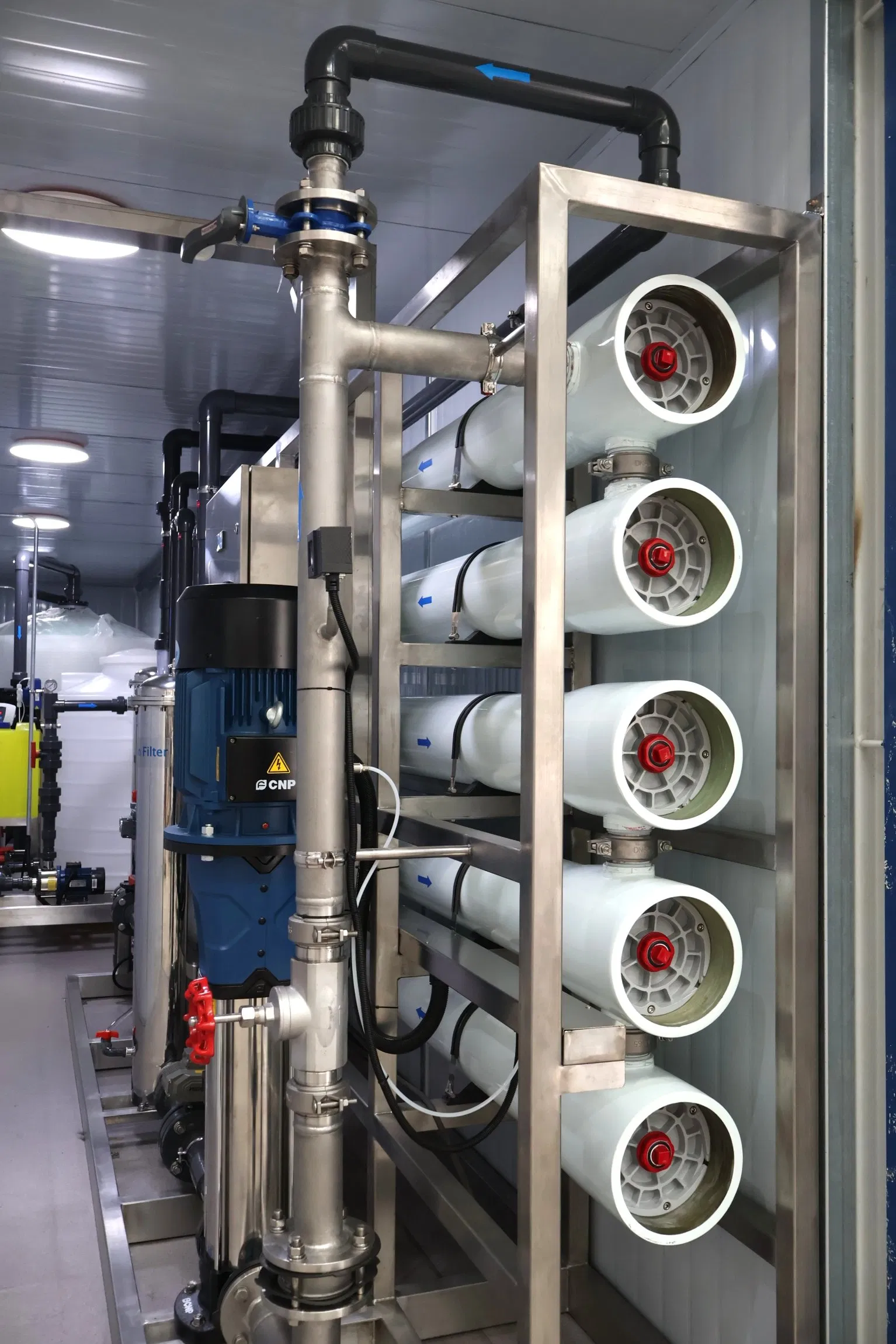

15tph RO Container Water Purification System Reverse Osmosis System Desalination Plant
15tph RO Container Water Purification System Reverse Osmosis System Desalination Plant
15tph RO Container Water Purification System Reverse Osmosis System Desalination Plant
15tph RO Container Water Purification System Reverse Osmosis System Desalination Plant
15tph RO Container Water Purification System Reverse Osmosis System Desalination Plant
1 / 5
15tph RO Container Water Purification System Reverse Osmosis System Desalination Plant
15tph RO Container Water Purification System Reverse Osmosis System Desalination Plant
15tph RO Container Water Purification System Reverse Osmosis System Desalination Plant
15tph RO Container Water Purification System Reverse Osmosis System Desalination Plant
15tph RO Container Water Purification System Reverse Osmosis System Desalination Plant

15tph RO Container Water Purification System Reverse Osmosis System Desalination Plant

Customization: Available
Certification: ISO9001, CE
Salt Rejection Rate: 99.5%
Send Inquiry

Product Description

Water Purification System
Basic Information
Application
Industry
Capacity
6000lph
Operating Pressure
0.8-1.2MPa
Recovery Rate
67%
Desalination Rate
Less Than 99.5%
RO Frame
SUS304
Membrane Elements
Dow /Hydranautics/Troy/ Vontron (Optional)
Raw Water Pump
Cnp/Nyp (Optional)
High Pressure Pump
Cnp/Nyp (Optional)
Control Valve
Manual/Automatic
Control Valve Brand
Fleck/Runxin
Transport Package
Containerized
Specification
JF-XRO-6000L
Origin
China
HS Code
8421219990
Production Capacity
6tph
Product Description

What is Containerized water treatment equipment?

Containerized water treatment equipment is a convenient and efficient solution for water treatment, housing various water treatment processes within a standard shipping container.

  • Structure and Design: Utilizes standard shipping containers for structural strength and modular units for easy maintenance.
  • Application Scenarios: Ideal for construction sites, disaster response, temporary camps, and remote areas.
  • Key Components: Includes pre-treatment units, RO membranes, and disinfection units (UV/Ozone).
  • Core Advantages: High flexibility, cost-effectiveness, and rapid deployment efficiency.

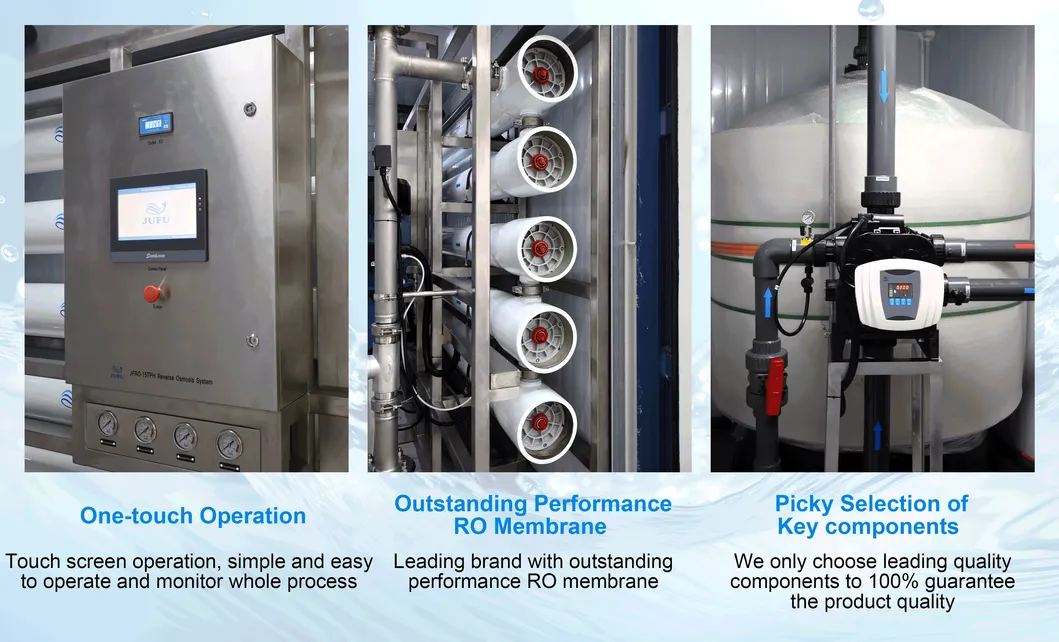

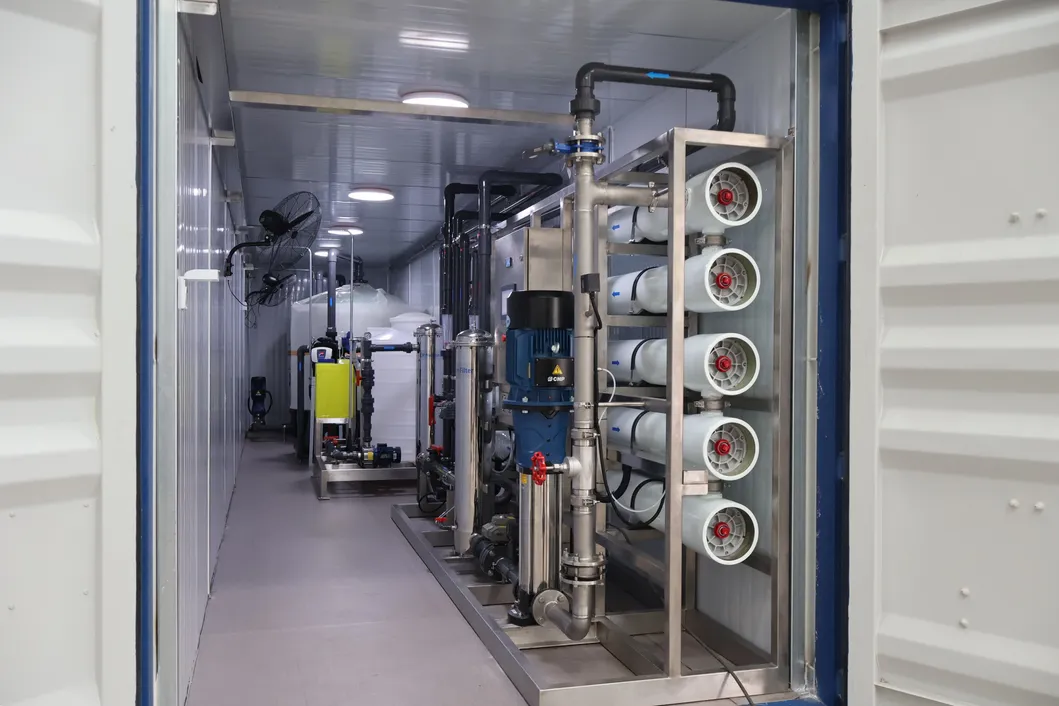

System Detail
Performance & Characteristics
  • Mature RO technology with desalination rate up to 99.5%.
  • Modern automatic control technology to reduce labor costs.
  • Energy-saving design for lower water production costs.
  • Corrosion-resistant stainless steel pipelines for maximum durability.
  • Reliable 24-hour continuous operation.
  • Simple operation: fresh water supply starts immediately after start-up.
  • Integrated communication for status, alarms, and flow monitoring.
Technical Divider
Model JFRO-15T
Producing Capacity 15m³/h RO membrane 8″
Recovery Rate 75% Power Supply Tri-phase: 110/220/380/415V 50/60Hz
Operating Pressure 1.0-1.6MPa
Desalination Rate 99% Power Consumption 21KW/22KW
Filtration Accuracy 0.0001 micron Control Type Manual / Auto control
Feed Water Quality SDI < 5 | Free Chlorine < 0.1mg/L | TDS < 2000mg/L
Flow Chart Divider
System Working Flow
Raw water tank → Booster pump → Quartz sand filter → Activated carbon filter → Scale inhibitor dosing → Precision filter → High pressure pump → Reverse Osmosis System → Pure water tank

*Note: Raw water tank and pure water tank are to be prepared by the customer.

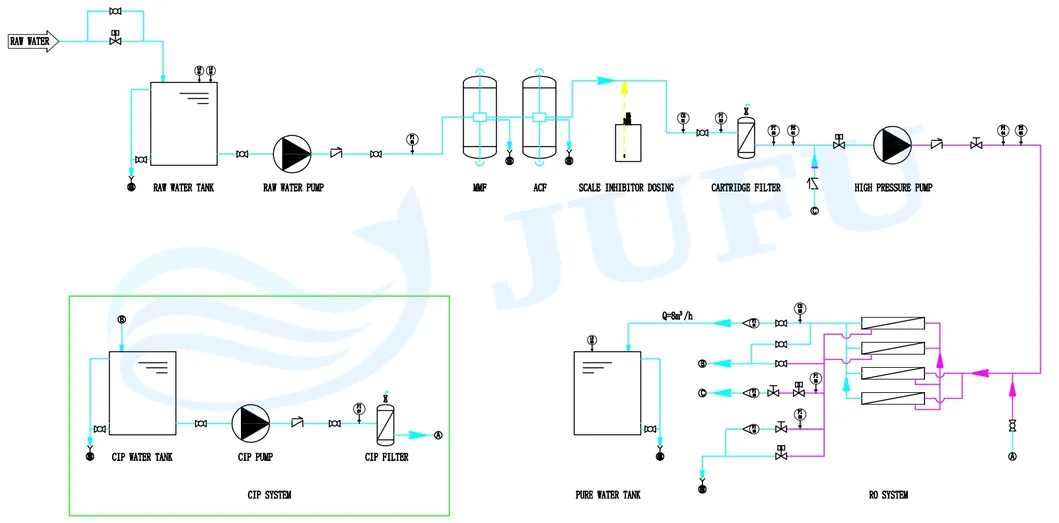

Technical Diagram
Product Gallery

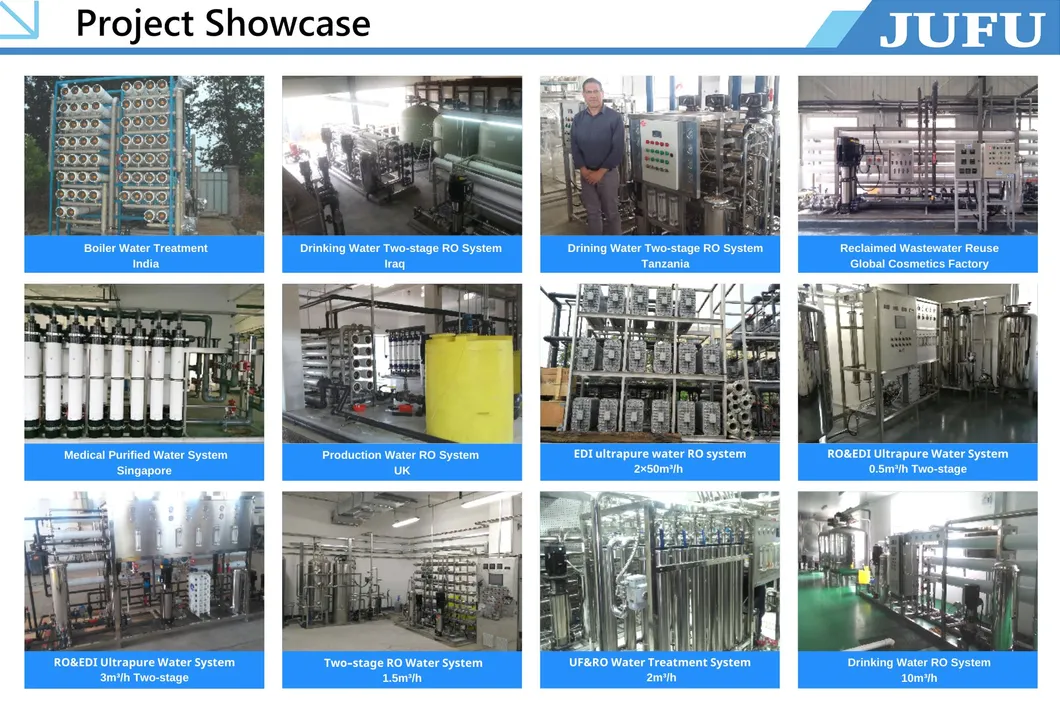

Project Divider

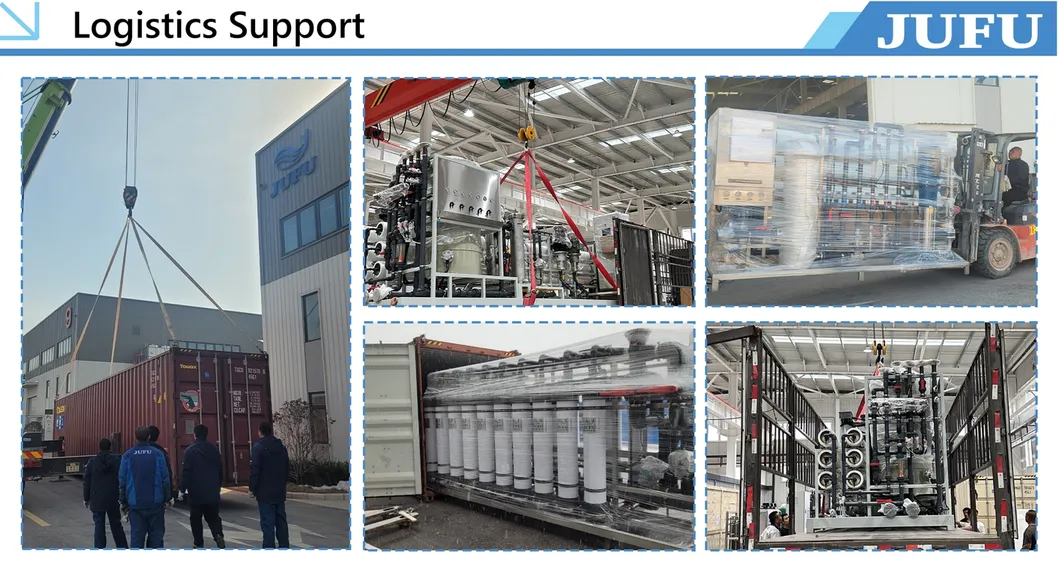

System View End Divider
Frequently Asked Questions
What is your company's manufacturing background?
We are a Hi-tech manufacturer in the water treatment industry for almost two decades, specializing in R&D, manufacturing, sales, and engineering installation of water purification technologies.
What information is required for product selection?
Please provide the raw water source (analysis report if possible), required output capacity, project application, local piping standards, and if on-site installation guidance is needed.
How can I ensure the product matches my specific case?
Our professional engineers provide tailor-made solutions based on your requirements. We highlight and solve project pain-points for overall optimization.
What are the standard payment terms?
We typically require a deposit in advance with the balance cleared before delivery.
What is the typical lead time for equipment?
The lead time generally ranges from 3-5 weeks for standard products, depending on specific configurations.
What kind of warranty do you provide?
We offer a 1-year warranty. With proper use and maintenance, the products are designed to operate reliably for over 5 years.
