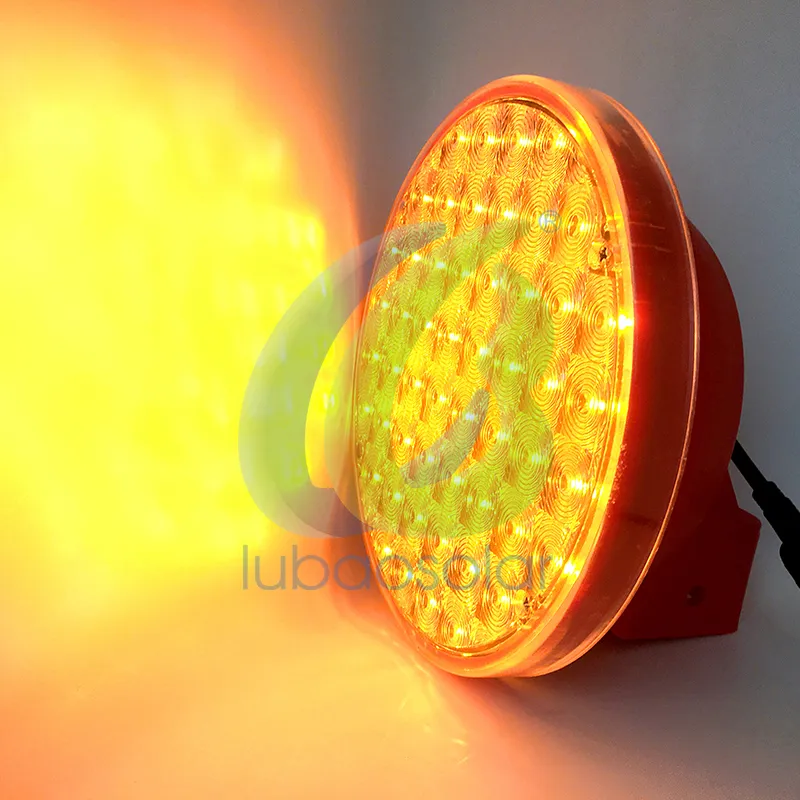

LED Intelligent Traffic Control Zone Visibility Enhancement Warning Lighting Safety System

1 / 5

LED Intelligent Traffic Control Zone Visibility Enhancement Warning Lighting Safety System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.LB-26500-4

DimensionsDiameter 200mm, Thickness 12mm

System Config1 Main Controller, 3 Follower Units

LED Qty52 PCS High-Brightness

MaterialHousing: PP, Lens: PC

Input Voltage12V

ColorsHousing: Red, Lens: Transparent, LED: Yellow

Package Size59.00cm * 33.50cm * 22.50cm

Gross Weight8.600kg

Product Overview

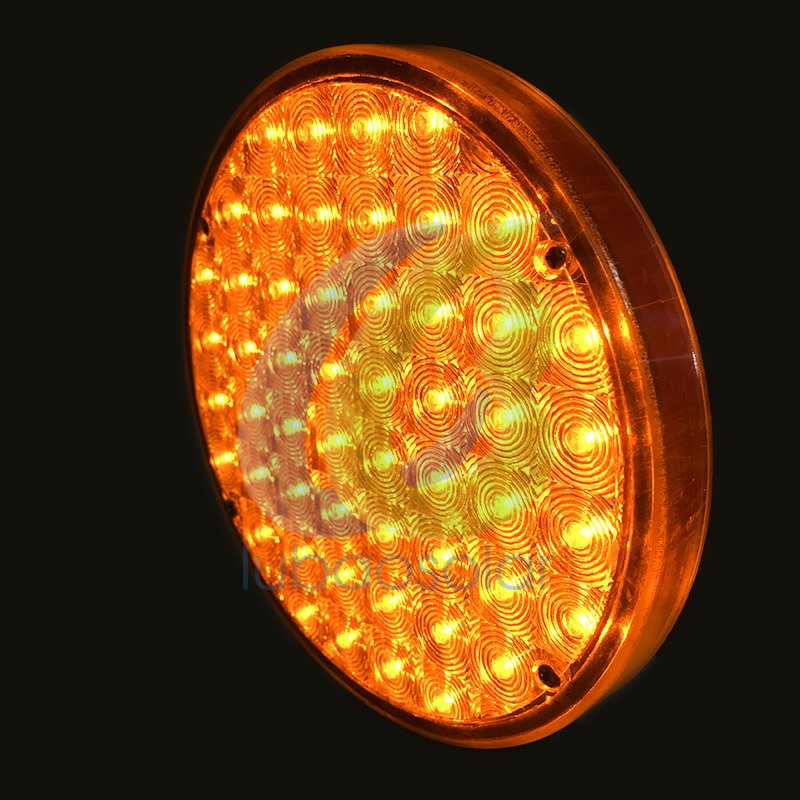

Enhance safety and visibility in any traffic control zone with our LED Intelligent Traffic Control Zone Visibility Enhancement Warning Lighting Safety System. Equipped with 52 high-brightness LEDs and an automatic brightness sensor, it guarantees superior daytime and nighttime visibility and continuous warning for 12 or 24 hours.

Key Features

Robust PP housing and PC lens for exceptional durability
Synchronous and sequential flashing modes

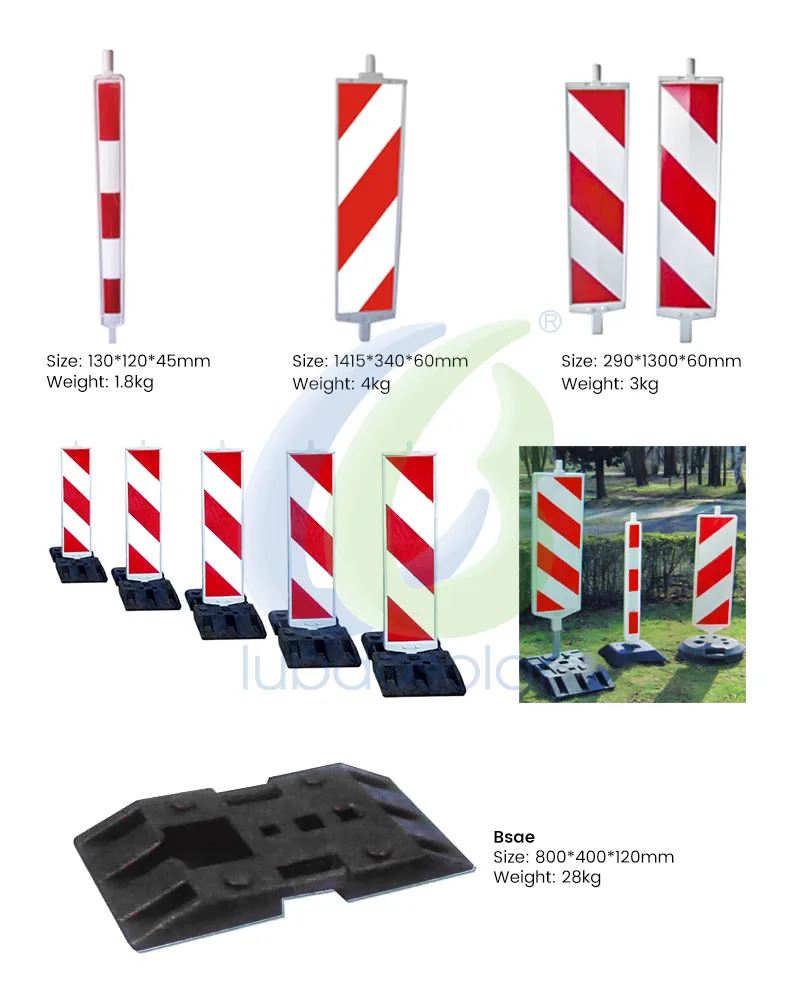

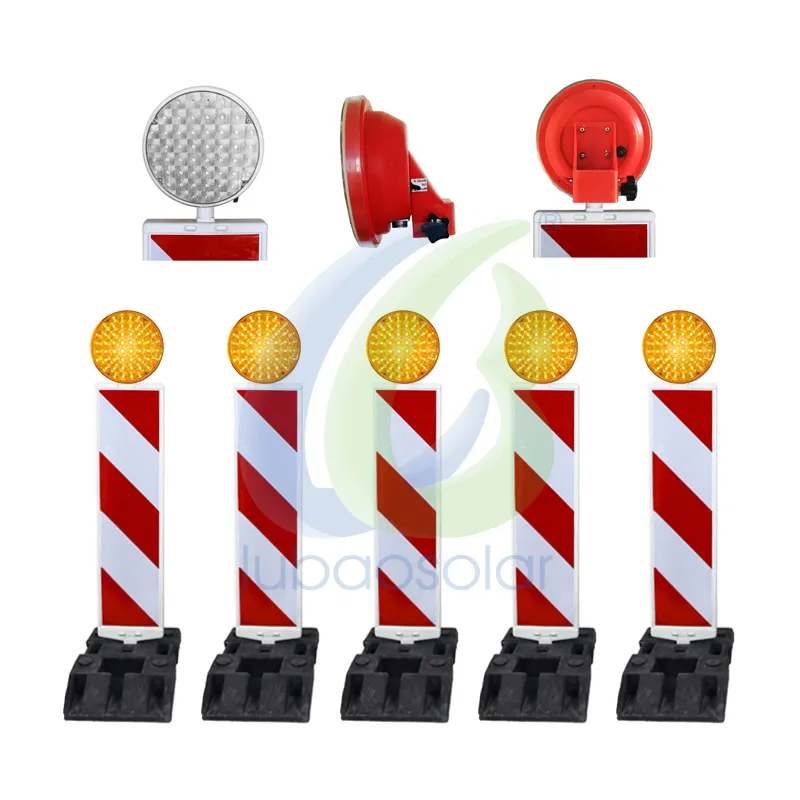

Seamless integration with reflective traffic panels
Modular design (1 main controller + 3 follower units)
Customizable configuration (4-in-1 or 5-in-1 solutions)

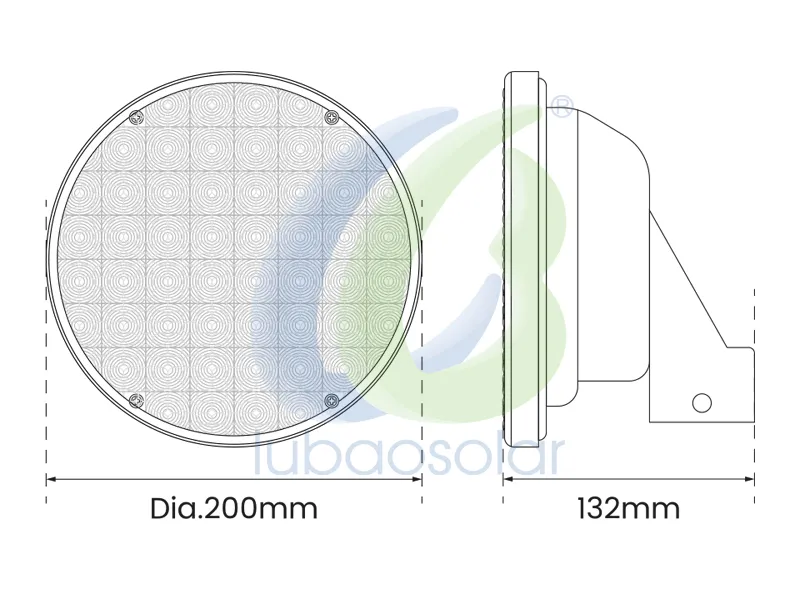

Detailed Dimensions & Inclusion

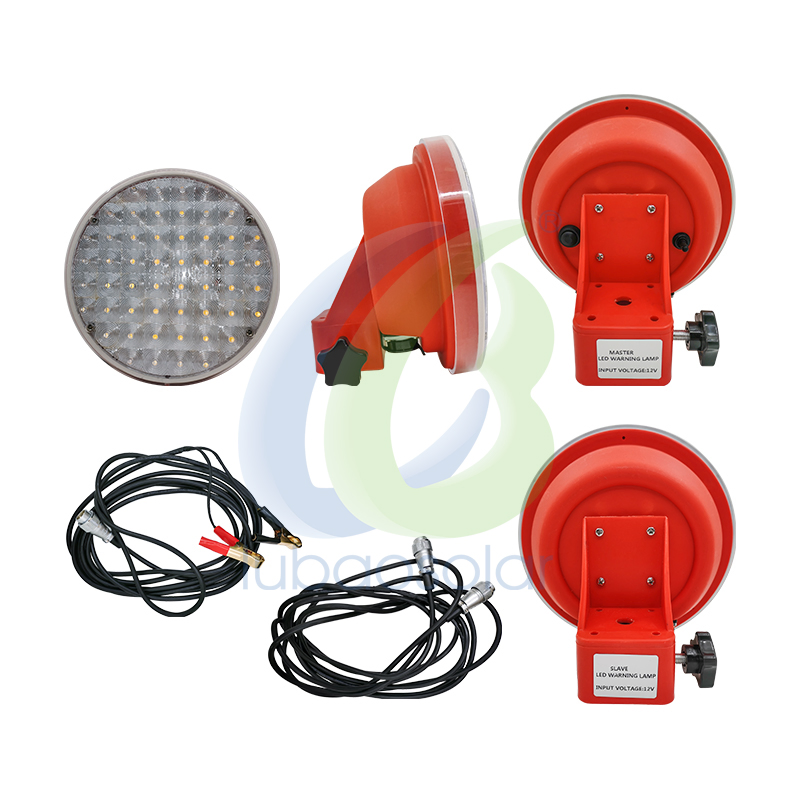

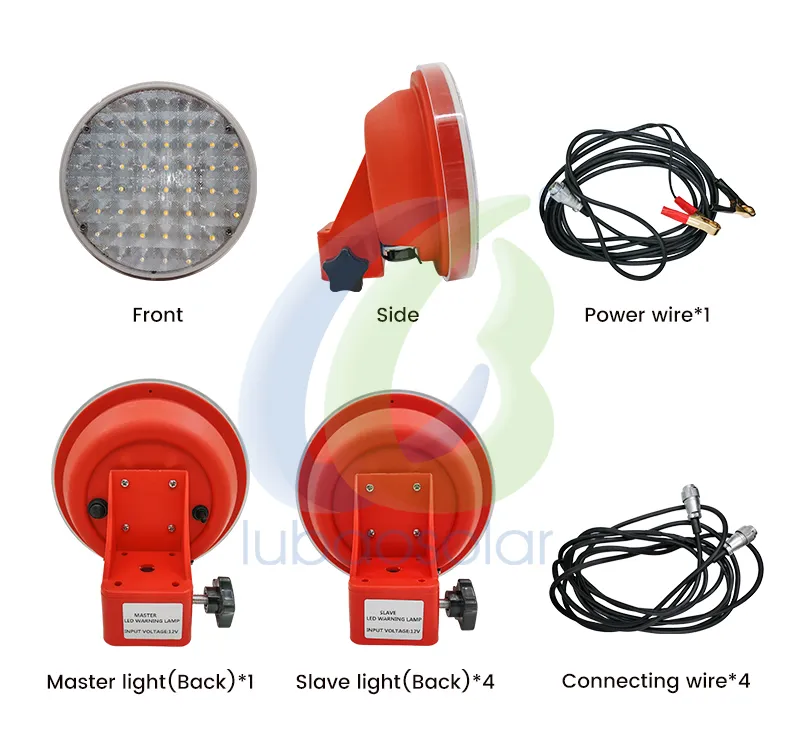

System Inclusion

Wiring & Manufacturing

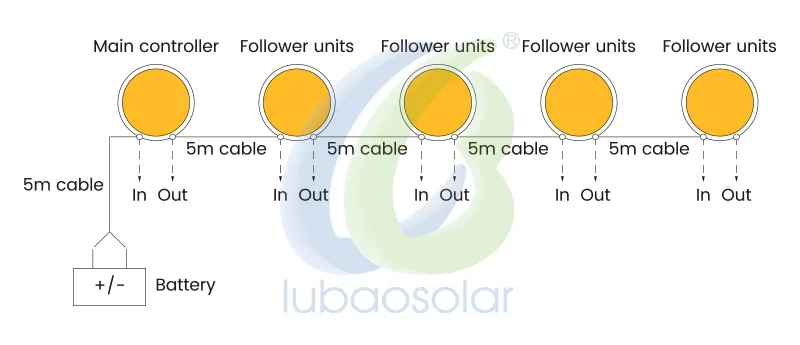

Wiring Diagram

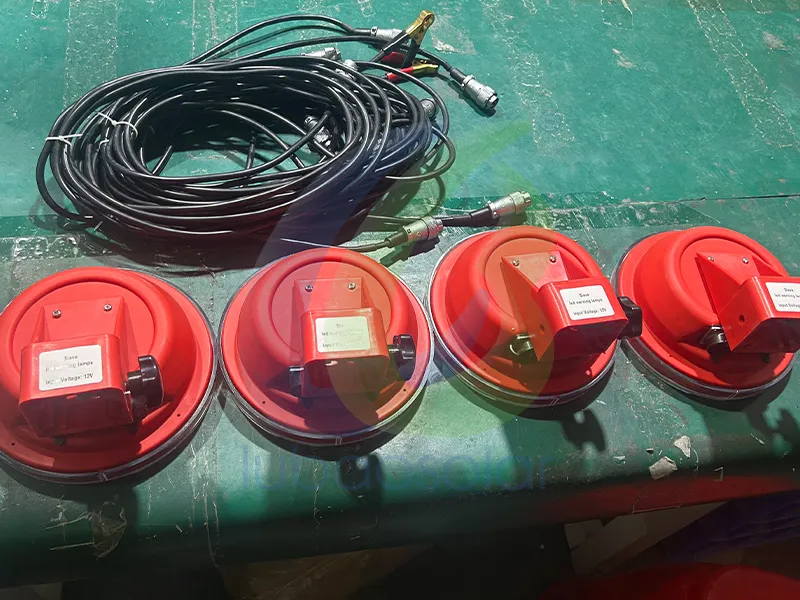

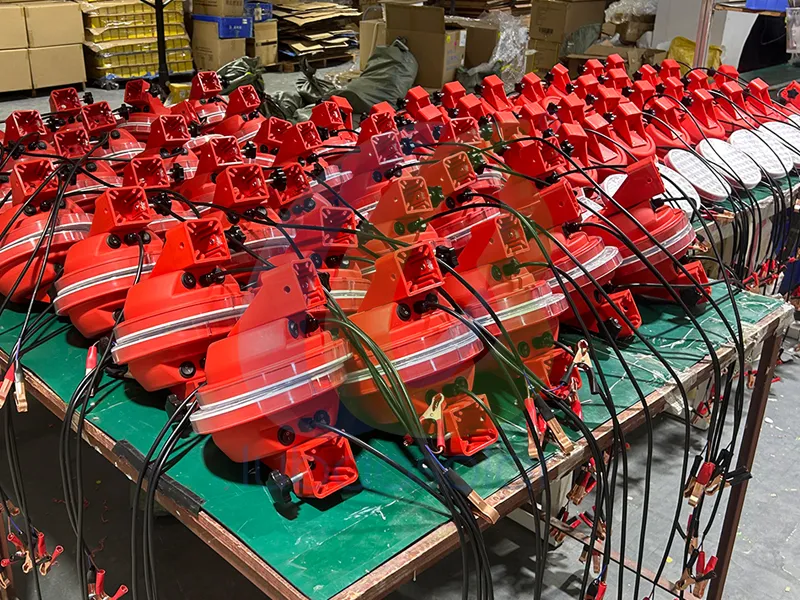

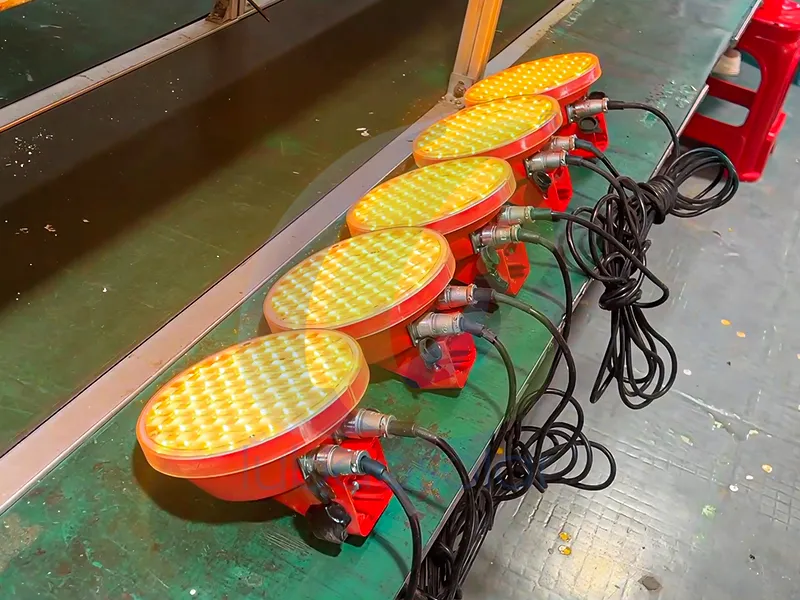

Factory Production

Recommended Usage

This diversion group guide light system (sequential flashing) is used to warn vehicles about lane changes or deviations. A series of lights sequentially illuminates to indicate the direction to follow. It operates under the Master-Slave principle, allowing a maximum of 5 lights to be connected.

CE Compliance & Standards

Complies with EMC Directive 2014/30/EU and related standards: EN IEC 55015:2019, EN IEC 61547:2023, EN IEC 61000-3-2:2019, and EN 61000-3-3:2013.

Safety & Installation

Reverse polarity protection prevents damage from incorrect wiring.
Ensure the 12V DC power supply is off during installation.
Keep cables away from sharp edges, heat sources, and moisture.
Regularly inspect connectors for wear or damage.

Frequently Asked Questions

What are the available flashing modes for this system?

The system supports both Synchronous Flashing and Sequential Flashing modes to provide clear dynamic guidance for traffic.

How many light units can be connected in one series?

The standard configuration includes 1 main controller and 3 follower units (4-in-1), but it can be customized up to a 5-in-1 system.

Does the system automatically adjust its brightness?

Yes, it features an integrated automatic brightness sensor that optimizes visibility for both daytime and nighttime conditions.

What is the required power input for the safety lights?

The system operates on a standard 12V DC power input. It includes protection to prevent lighting up if polarity is reversed.

Can these lights be used with existing traffic panels?

Yes, the modular design allows these lights to be used in conjunction with standard reflective traffic panels for enhanced visibility.

What is the length of the connecting cables?

The standard system comes with 5-meter connecting wires and a 5-meter power wire, which are customizable upon request.
