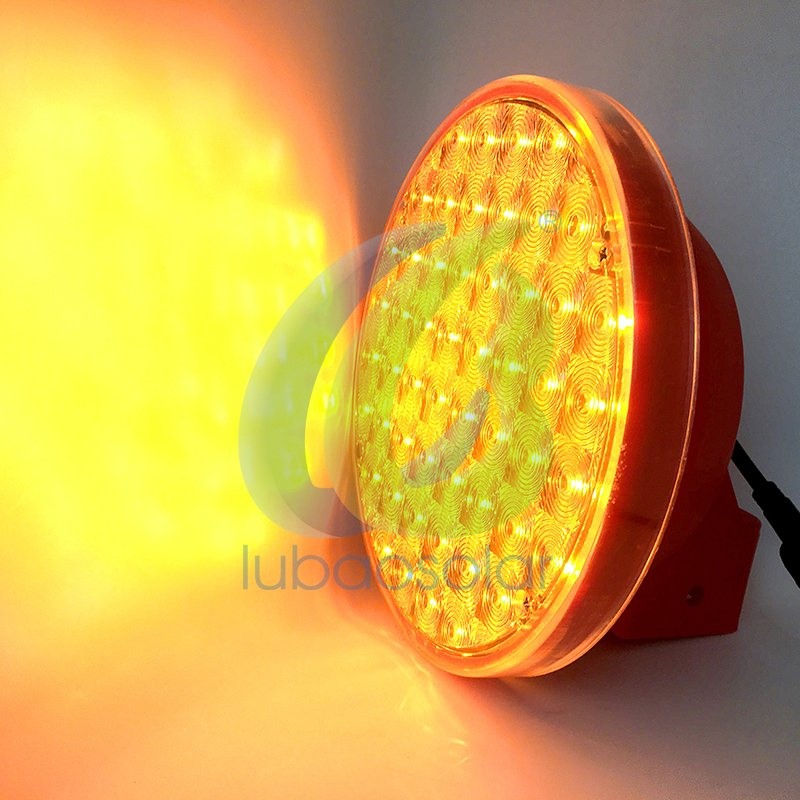

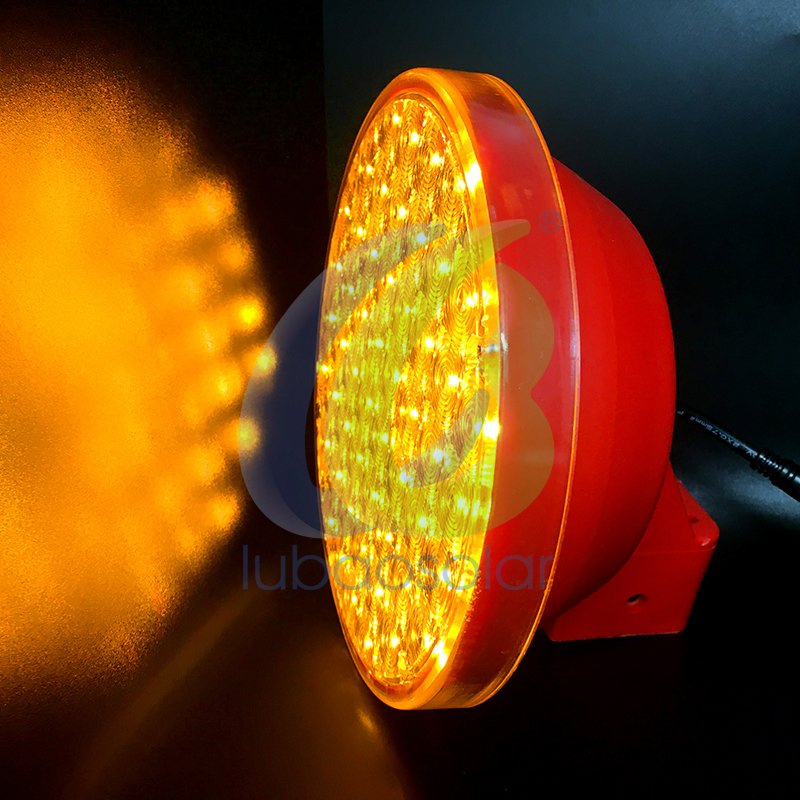

Advanced Emergency Detour Warning and Safety Guidance Control System

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
LB-26500-4
Dimensions
Diameter 200mm, Thickness 12mm
Configuration
1 Main Controller, 3 Follower Units
LED Quantity
52 PCS High-Brightness LEDs
Material
Housing - PP, Lens - PC
Input Voltage
12V
Color
Red Housing, Transparent Lens, Yellow LED
Packaging
Standard Carton Box

Auto Light-Sensing Safety Guidance System

Ensure immediate and effective emergency guidance with our Auto Light-Sensing Emergency Detour Warning and Safety Guidance Control System. Designed for critical situations, its 52 high-brightness LEDs, coupled with an automatic brightness sensor, guarantee optimal visibility and continuous warning for 12 or 24 hours, day or night.

Safety Guidance Control System
  • Rugged PP housing and PC lens for lasting durability.
  • Synchronous and sequential flashing modes.
  • Seamless integration with reflective panels.
  • Modular setup: easily customized to 4-in-1 or 5-in-1 configurations.
  • Standard 5m connecting wires for flexible placement.

Dimensions & System Components

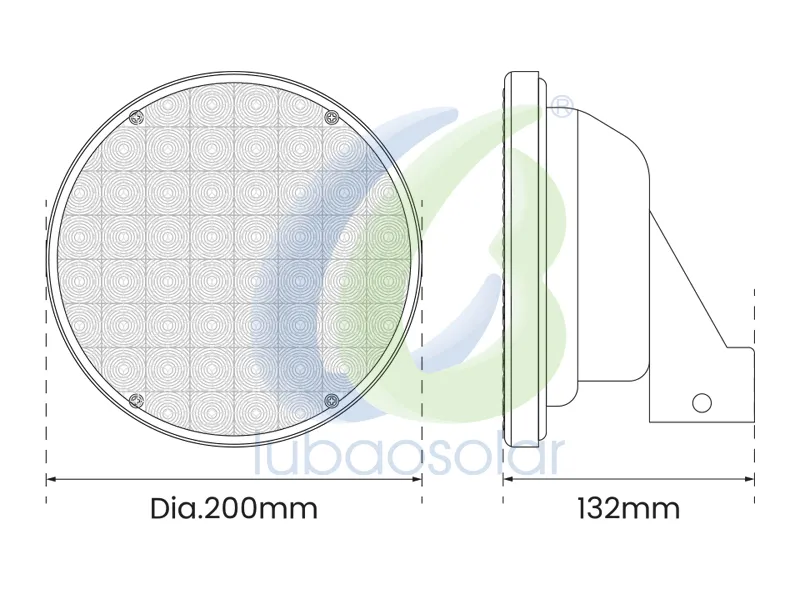

Size Reference
Product Size

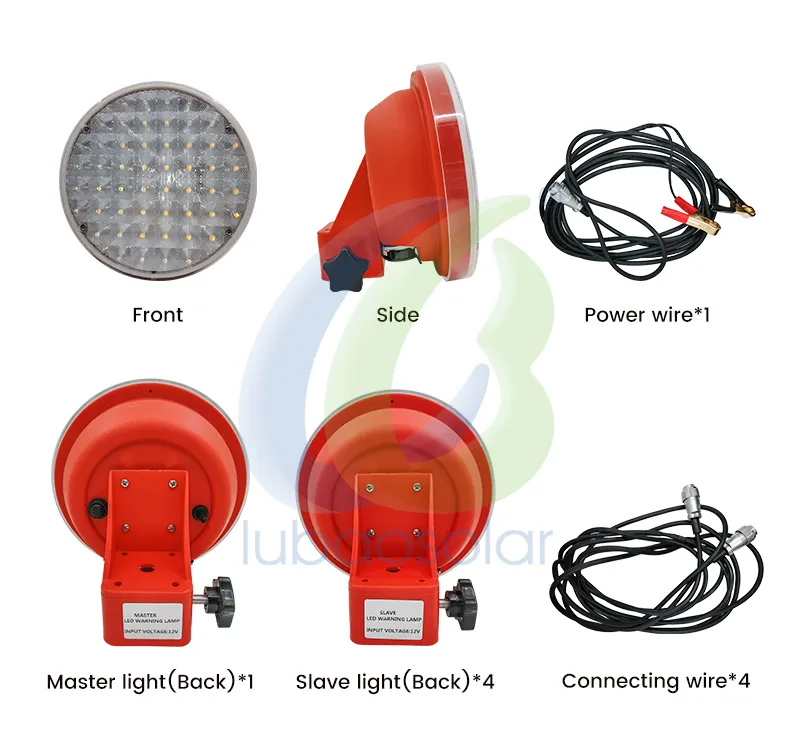

Inclusion Details
System Inclusion

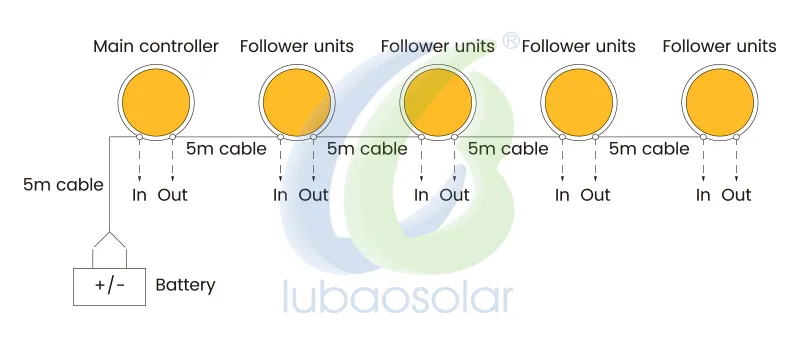

Technical Wiring Diagram

Wiring Diagram

The synchronization signal is transmitted via cable from the "out" connector of the previous light to the "in" connector of the next one to ensure uniform flashing patterns.

Factory Production

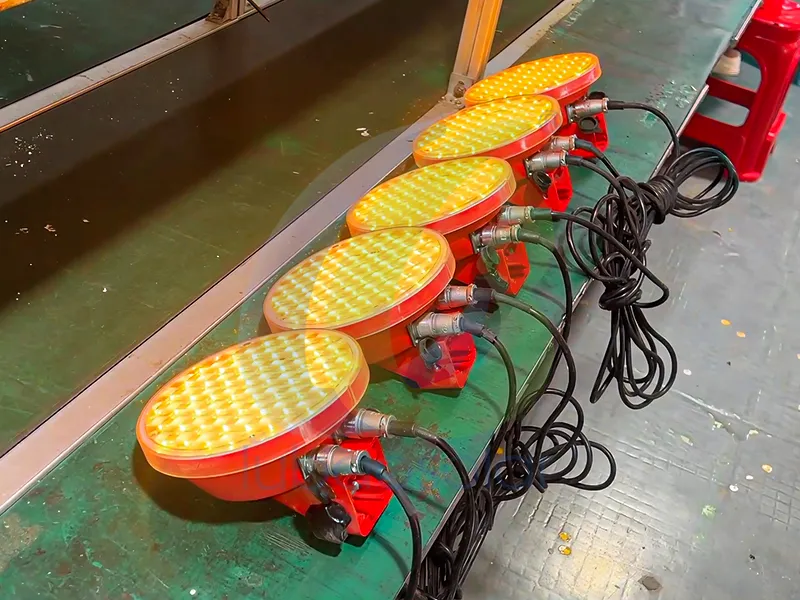

Production View 1

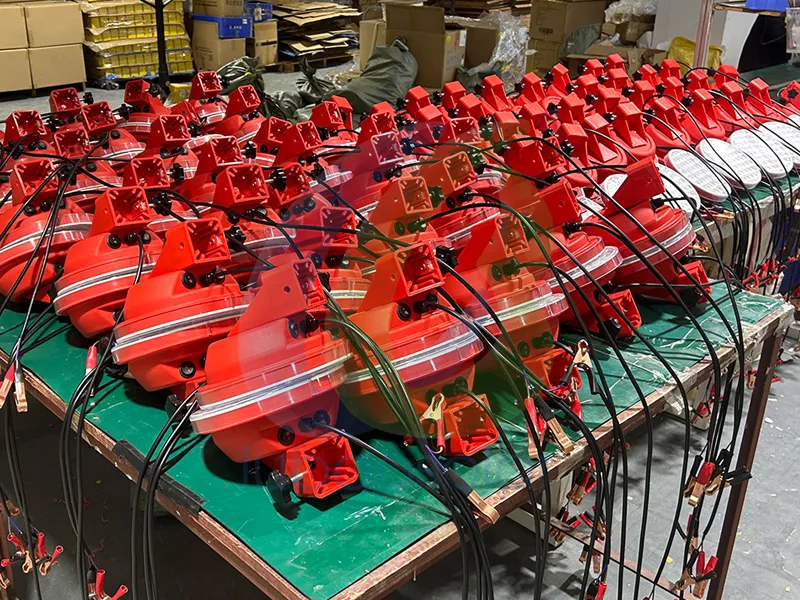

Production View 2

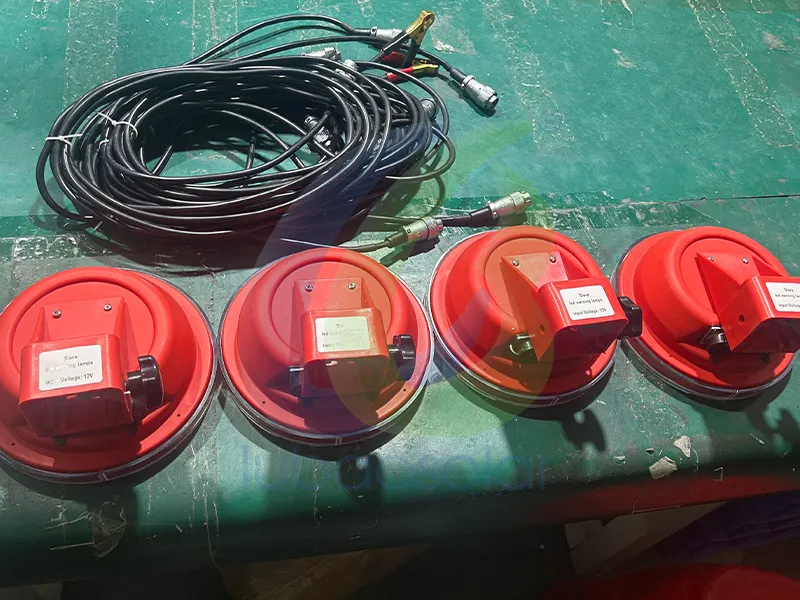

Production View 3

Recommended Combinations

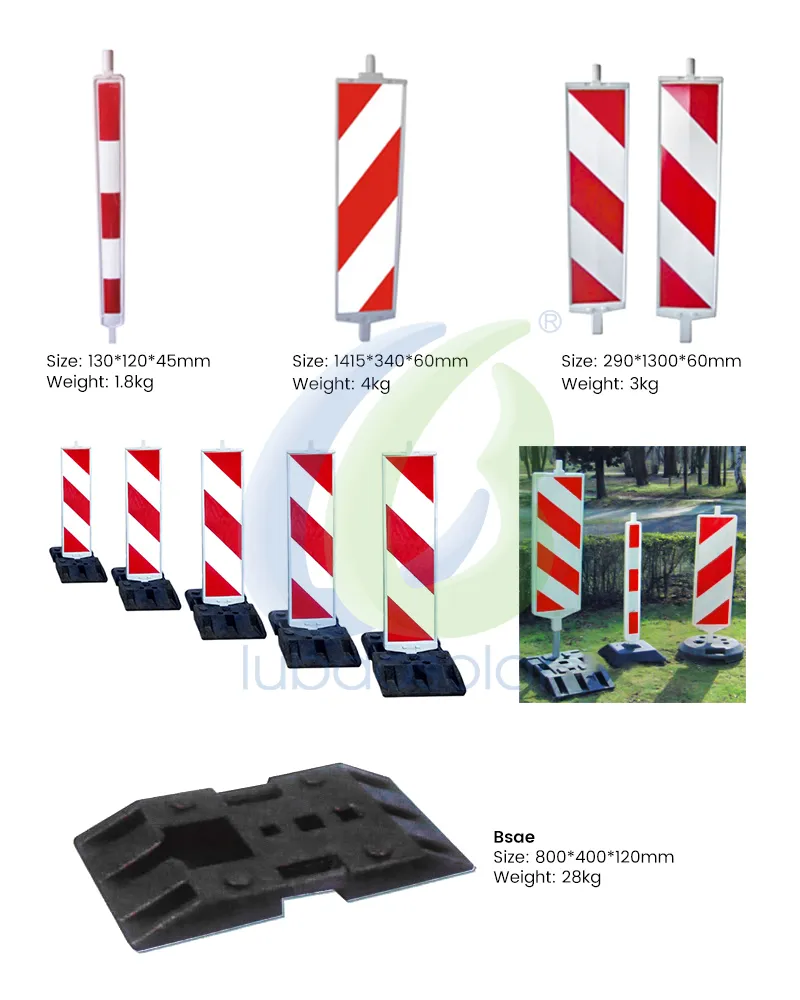

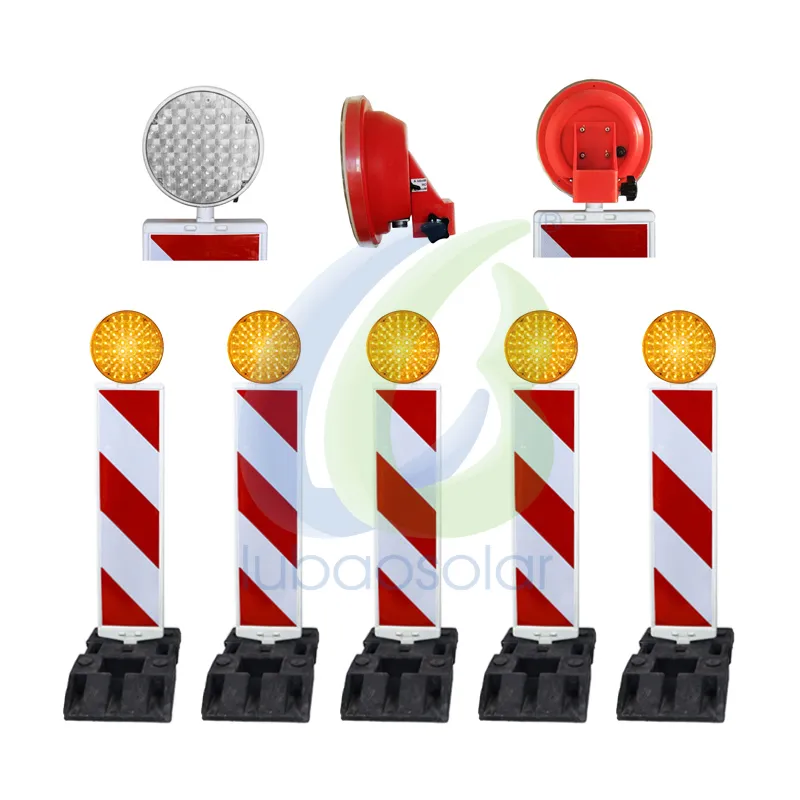

This system can be used in conjunction with reflective traffic panels for maximum visibility. Manufactured from UV-stabilized HDPE through blow molding with protective rims.

Panel Combination
Panel Size

Compliance & Safety Precautions

CE Compliance: Meets EMC Directive 2014/30/EU and standard EN IEC 55015:2019. Ensuring safety, electromagnetic compatibility, and environmental protection.

Safety Tips: This light features reverse polarity protection (will not light if +/- is reversed). Always ensure the power is off during installation. Keep cables away from sharp edges and moisture.

Frequently Asked Questions

Q1: How many light units are included in a standard system?

A: The standard system configuration includes 1 main controller unit and 3 follower units (slave lights), creating a 4-in-1 setup.

Q2: Does the system work automatically at night?

A: Yes, it features an automatic light sensor that detects ambient light levels to activate the system for 12h or 24h operation modes.

Q3: What are the available flashing modes?

A: The system supports both Synchronous Flashing (all lights flash at once) and Sequential Flashing (lights flash in order to guide traffic).

Q4: What is the maximum distance between the lights?

A: Each unit comes with a standard 5-meter connecting cable, allowing flexible positioning around hazards or lane changes.

Q5: Is the system compatible with standard 12V power?

A: Yes, the system is designed for a 12V DC input, making it compatible with most vehicle and portable power sources used in traffic control.

Q6: Can the number of lights be customized?

A: Yes, the modular master-slave design allows for customization into 4-in-1 or 5-in-1 setups depending on your specific safety requirements.
