Sea Water desalting system containerized bwro reverse osmosis swro system container ro seawater desalination system

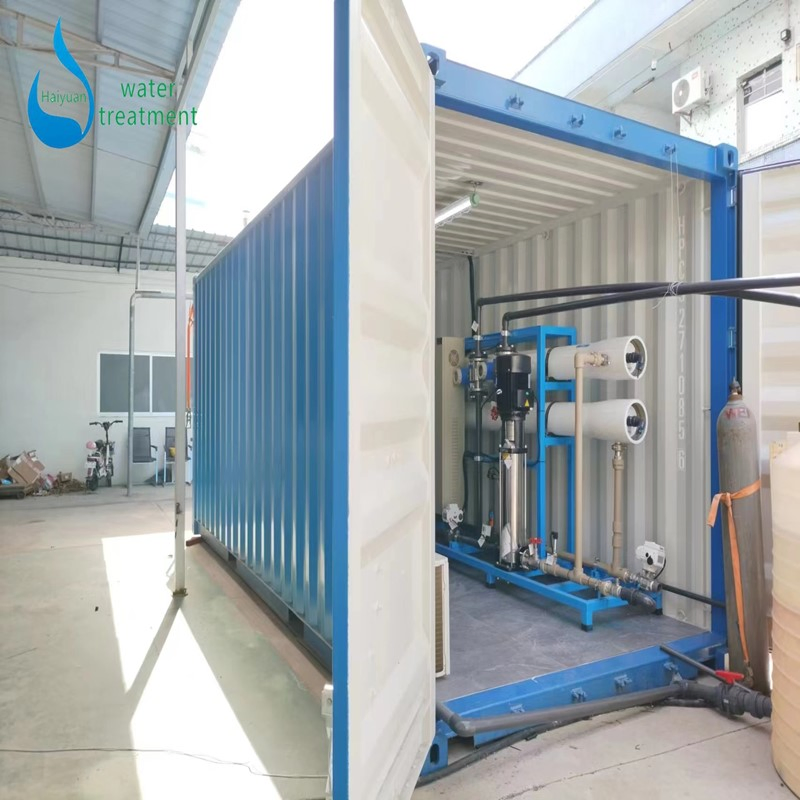

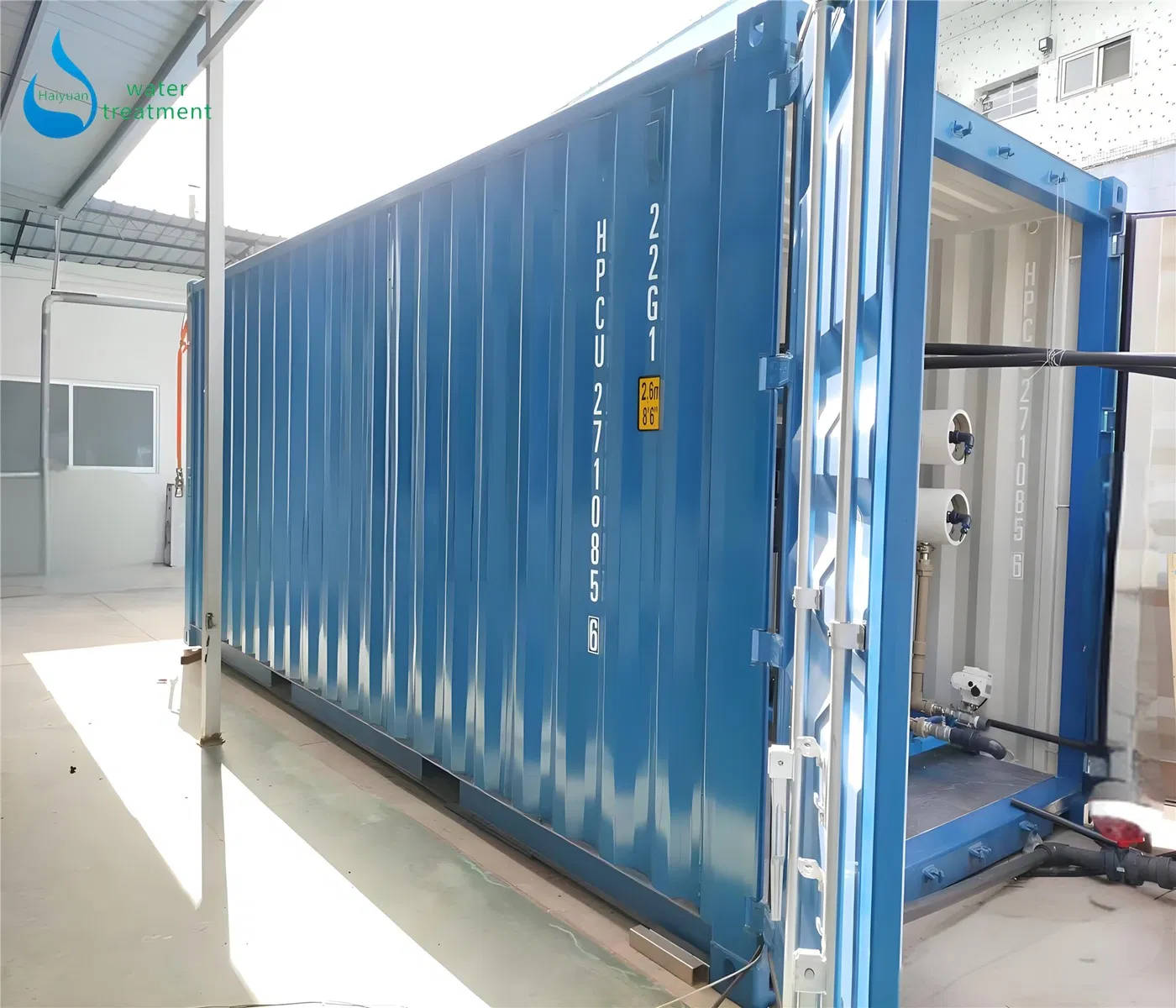

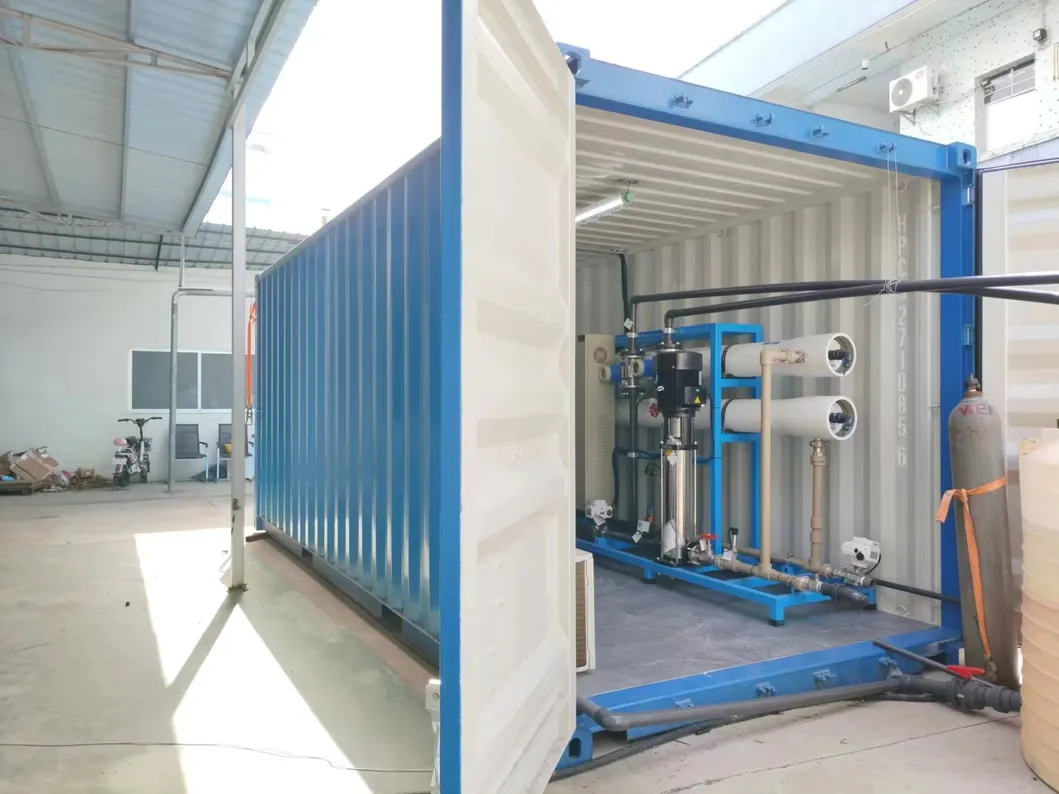

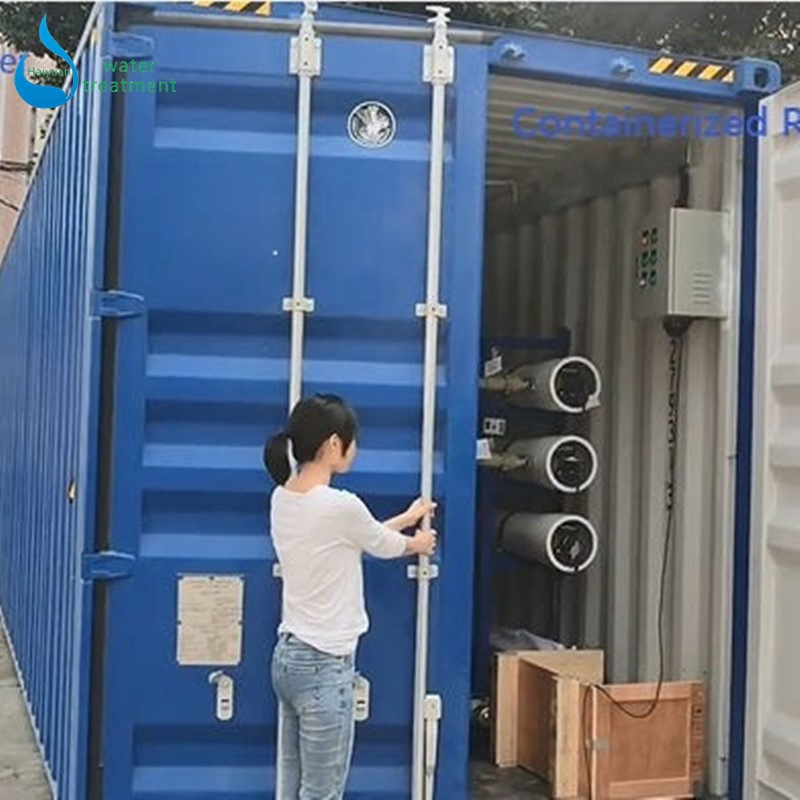

The containerized water treatment system is a fully integrated, modular solution housed in a standard shipping container (20ft or 40ft). It is suitable for treating seawater, brackish water, groundwater, river water, or tap water. The system can be configured with reverse osmosis (RO), ultrafiltration, UV sterilization, softening, and chemical dosing modules. Plug-and-play design enables fast deployment and immediate operation.
| HY-RO-6T/hr container reverse osmosis | |||
|---|---|---|---|
| Flow rate | 144T/day | Recovery rate | 60% |
| Applicable power | 380V/50hz 3 phase | Rated power | 9.9KW |
| Feedwater TDS | 2800ppm | Freshwater TDS | 31.6ppm |
| High pressure | 17.3bar | Operating temperature | 5-45ºC |
| RO membrane | 6pcs | Container | 20FT |

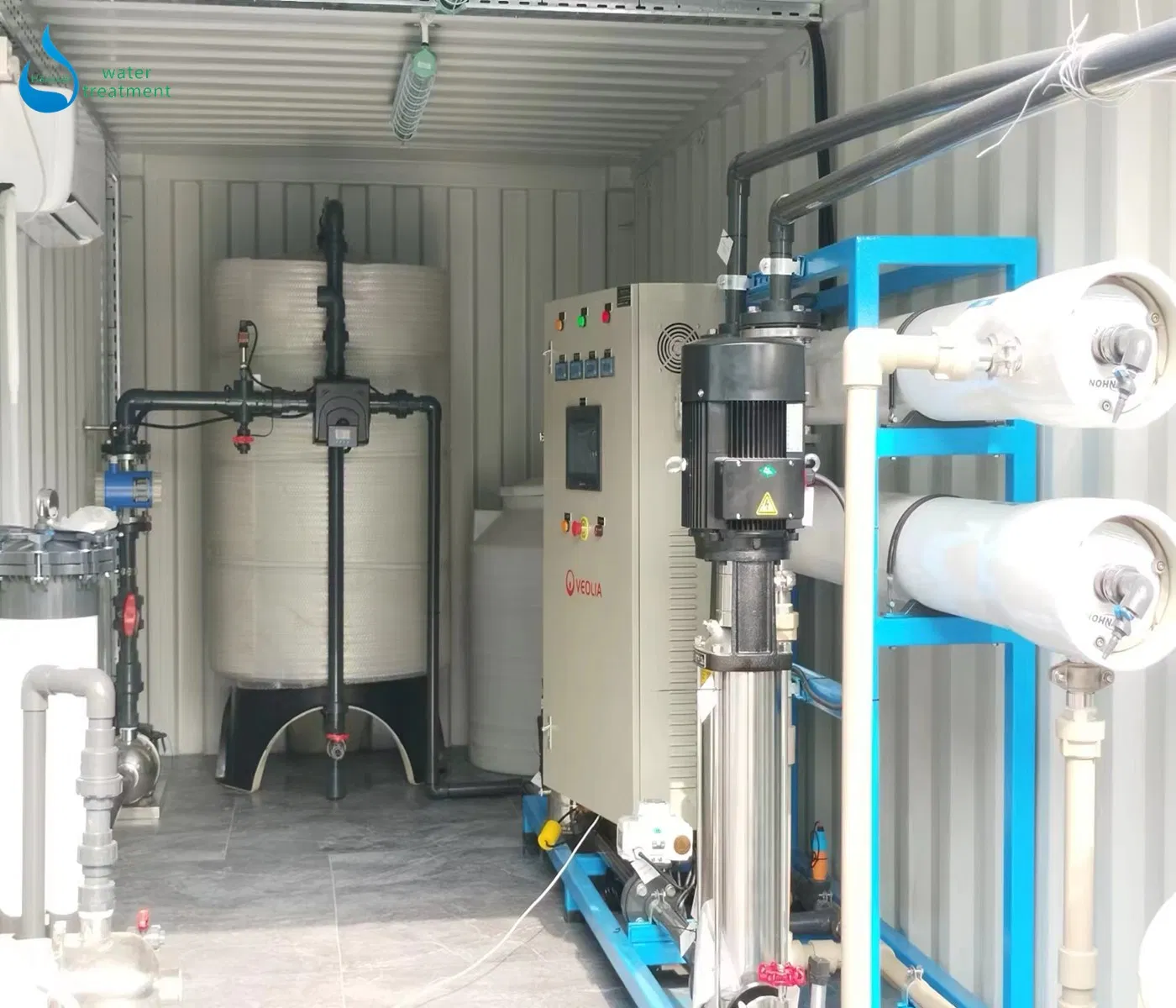

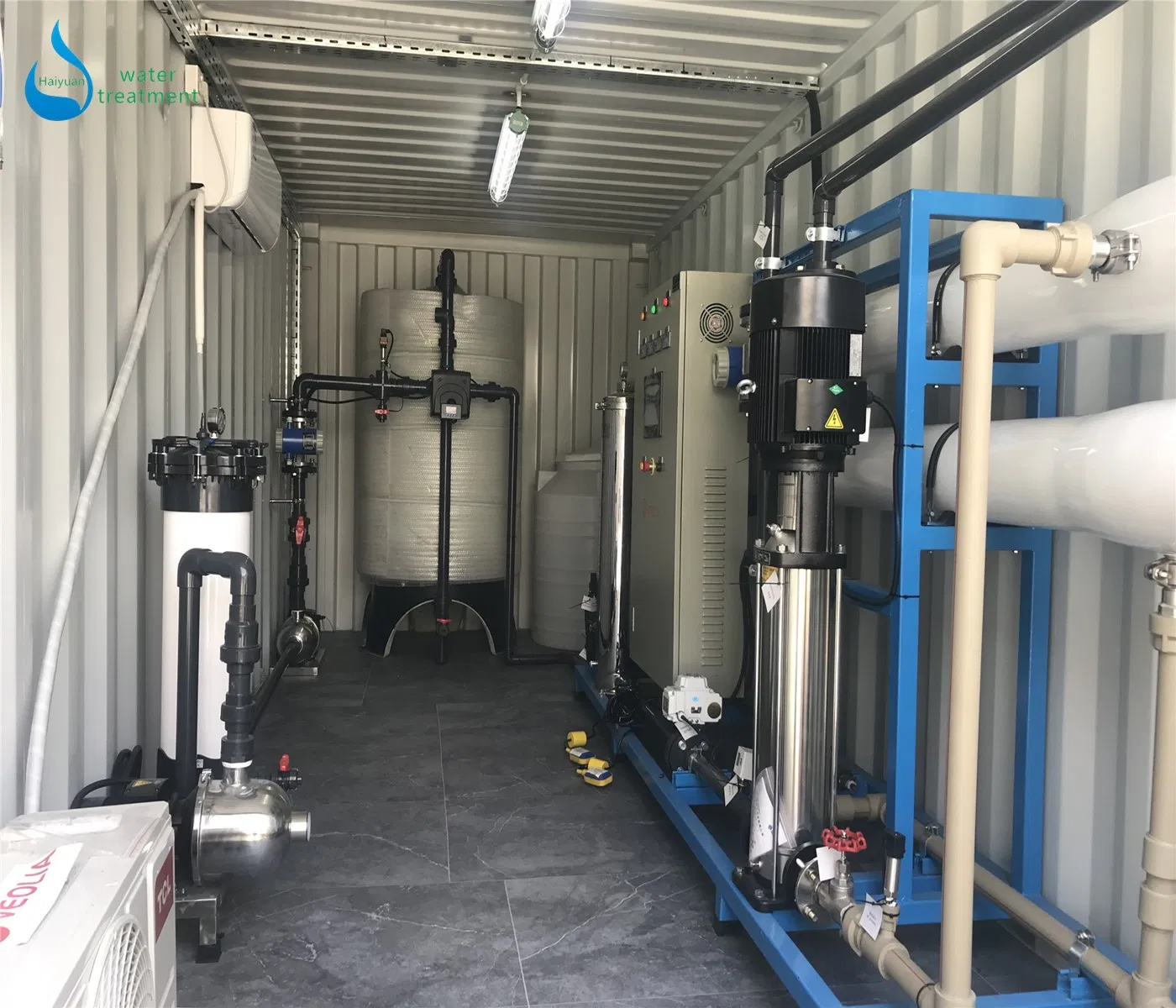

Raw water tank → Feed water pump → Multi-media filter → Scale prevention and dosing device → Precision filter → High-pressure pump → RO system → Product water tank
| Process Stage | Equipment | Function Description |
|---|---|---|
| Raw Water Storage | Raw Water Tank | Stores raw water source for the system. |
| Pretreatment Stage | Multi-media Filter | Removes suspended solids, sand, and rust. |
| Chemical Dosing | Antiscalant Device | Prevents scaling on RO membranes. |

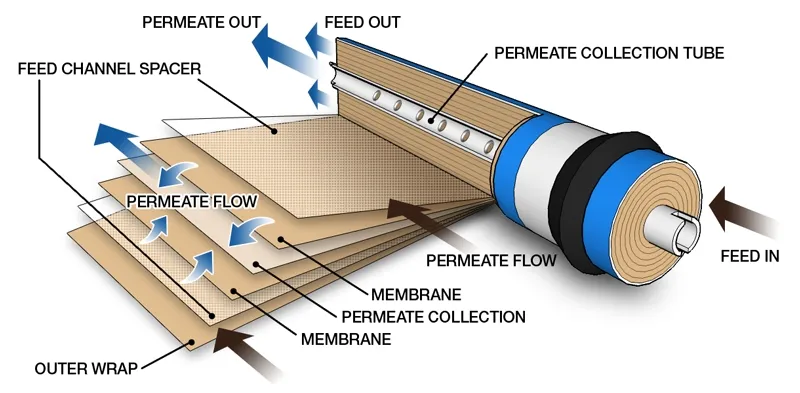

| Membrane Separation | RO System | Removes 97-99% of dissolved salts and bacteria. |
| Storage | Product Water Tank | Stores purified water for consumption. |
• Islands & Remote Areas: Reliable supply for off-grid communities.
• Industrial Zones: Process water, boiler, and cooling water.
• Hotels & Resorts: Potable water for luxury hospitality.
• Ships & Offshore Platforms: Solving freshwater shortage at sea.
To find the most appropriate desalination system, please provide:
1. Output water flow rate (m3/hr, m3/day, etc.)
2. Water purpose (industry process/drinking water)
3. Power specifications (Voltage/Hz/Phase)
4. Source water analysis report (TDS, Iron, Manganese, etc.)
