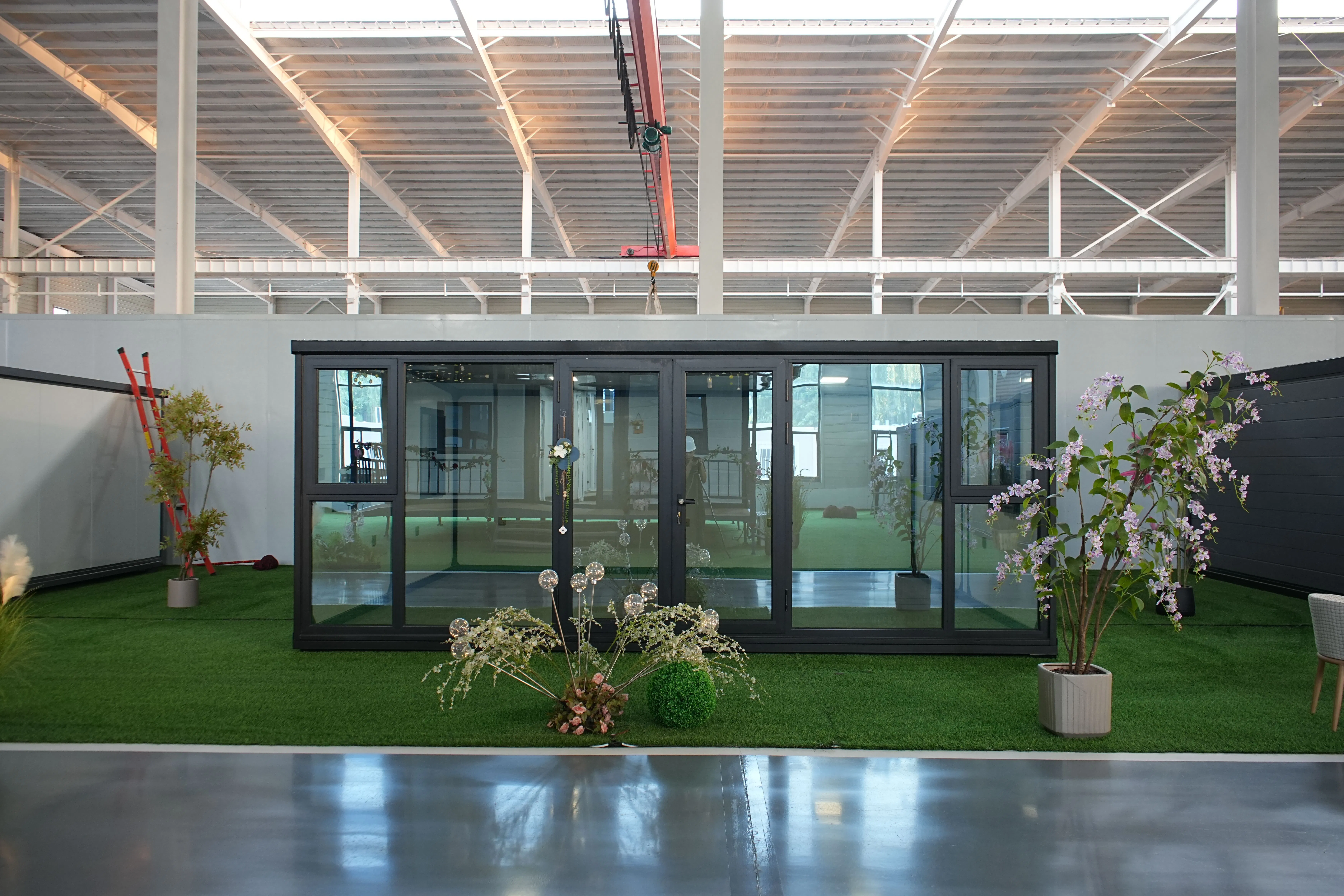

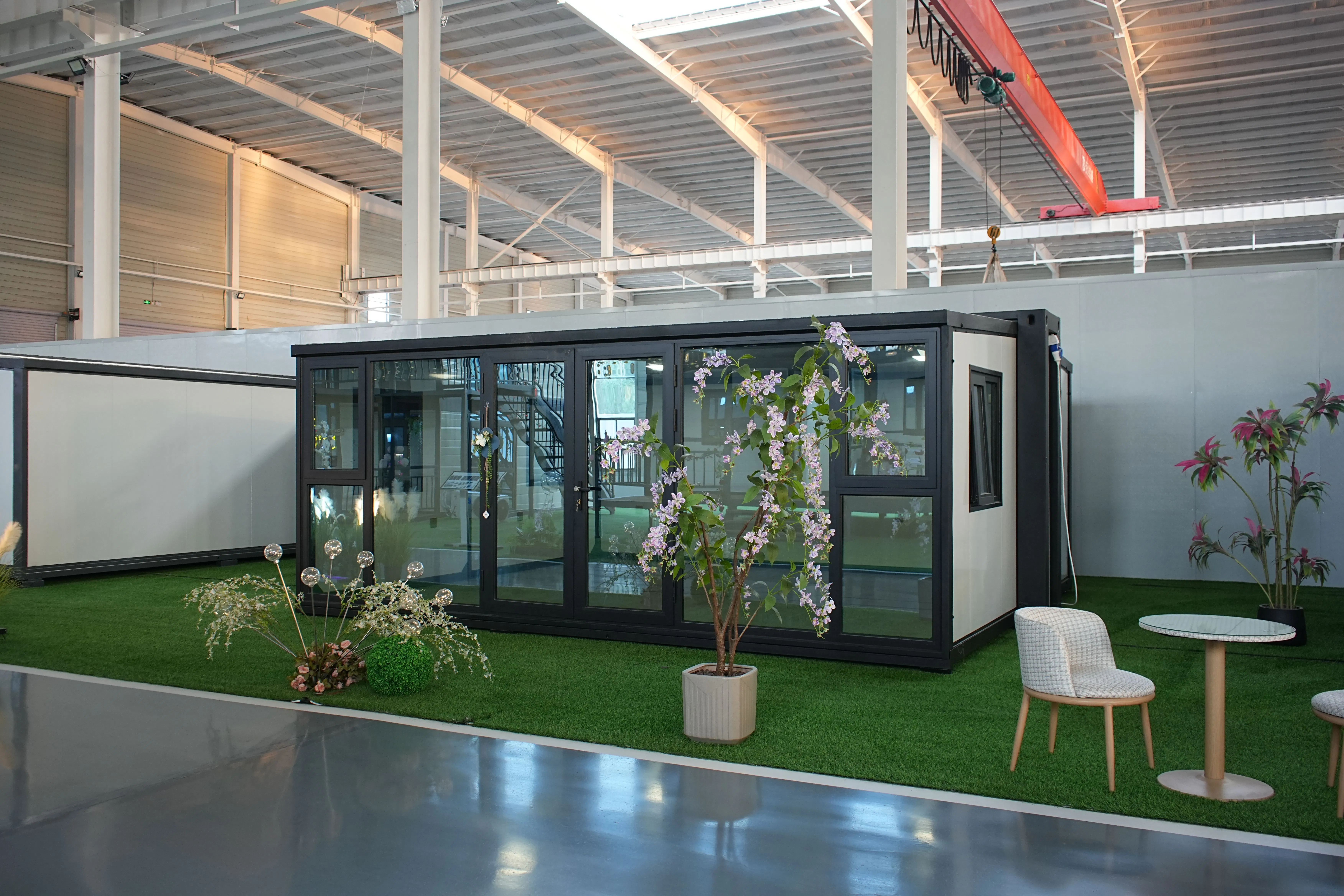

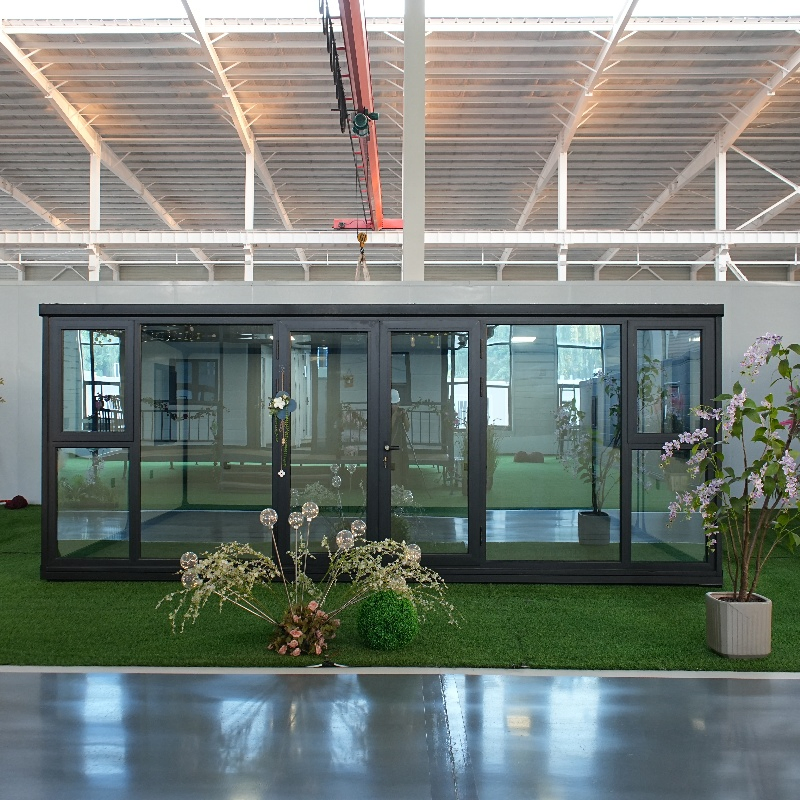

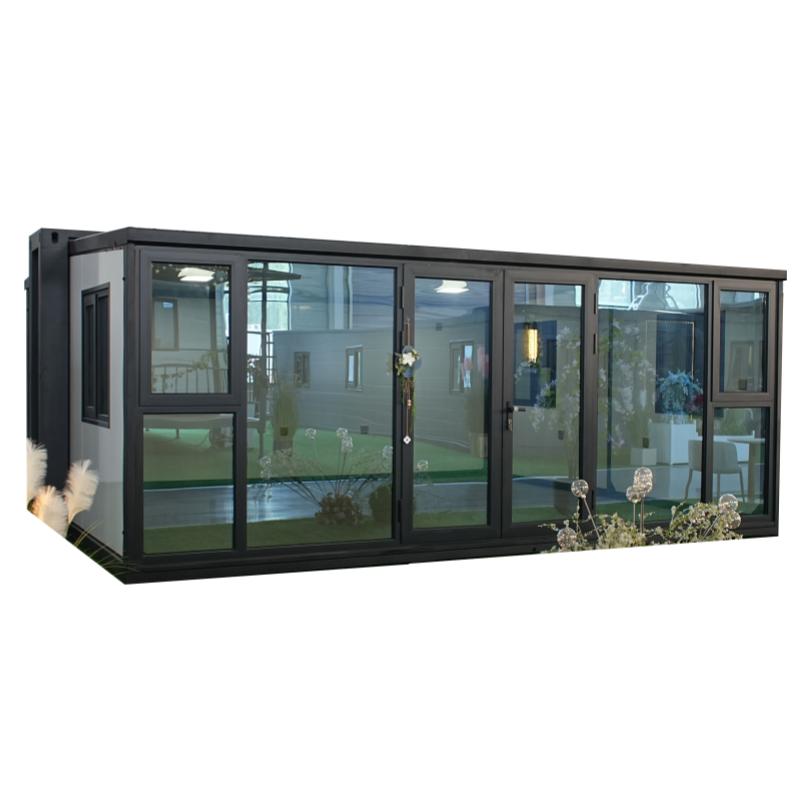

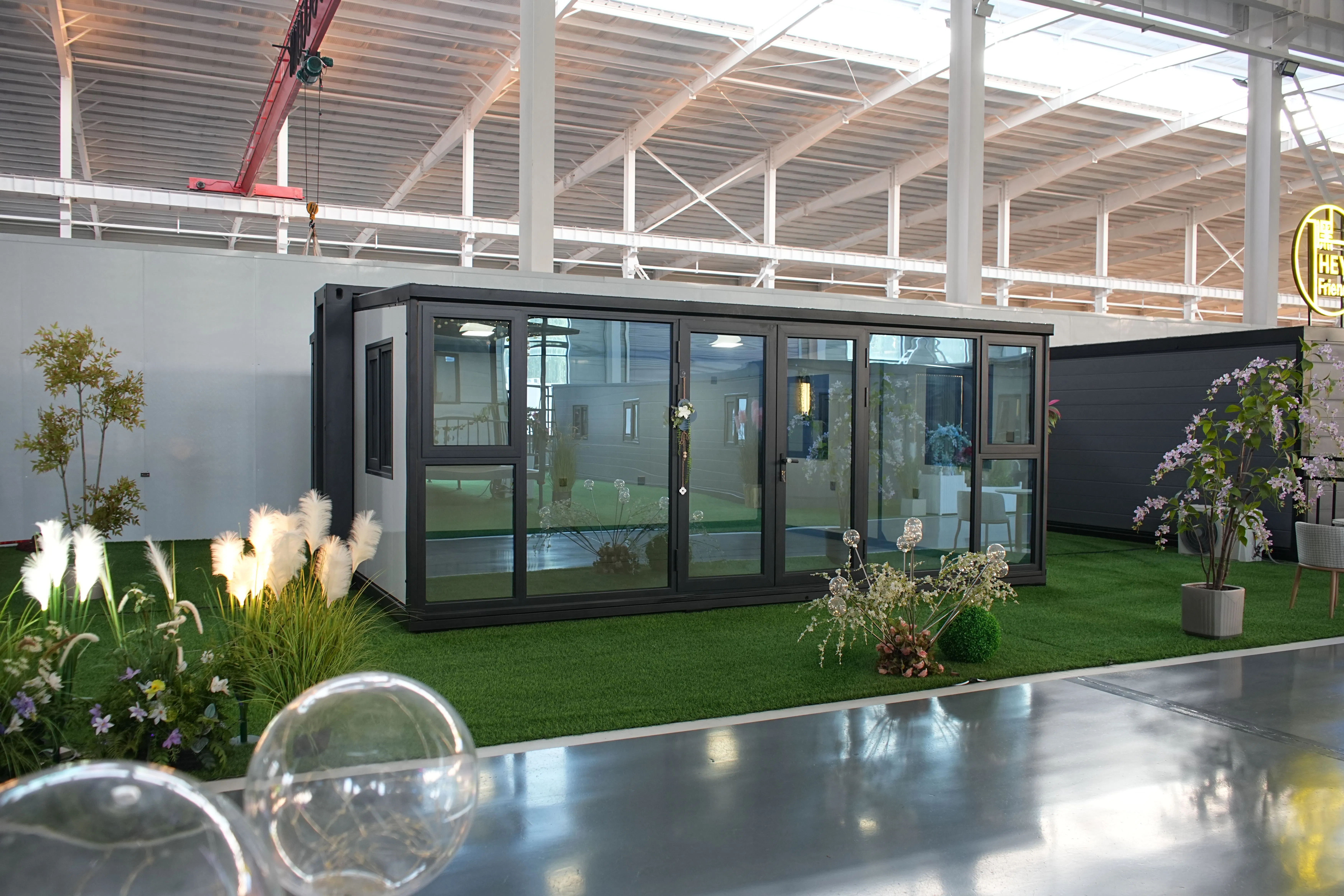

Luxury Modular Steel Building with Foldable Steel Structure Design
Luxury Modular Steel Building with Foldable Steel Structure Design
Luxury Modular Steel Building with Foldable Steel Structure Design
Luxury Modular Steel Building with Foldable Steel Structure Design
Luxury Modular Steel Building with Foldable Steel Structure Design
1 / 5
Luxury Modular Steel Building with Foldable Steel Structure Design
Luxury Modular Steel Building with Foldable Steel Structure Design
Luxury Modular Steel Building with Foldable Steel Structure Design
Luxury Modular Steel Building with Foldable Steel Structure Design
Luxury Modular Steel Building with Foldable Steel Structure Design

Luxury Modular Steel Building with Foldable Steel Structure Design

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information

Model No.
T16
Installation
Fast Installation
Material
Galvanized Steel Structure
Life Span
10-25 Years
Load-Bearing
Up to 3 layers, bearing 6 tons
Expand Width
5.9m
Package Size
590cm * 70cm * 248cm
Gross Weight
1950kg

⚙ Core Features

✓ Earthquake Resistant
✓ Easily Movable
✓ Eco-Friendliness
✓ Flexibly Combinable
✓ Leak & Moisture Proof
✓ Thermal Insulation
✓ Wind Resistance
✓ Waterproof

📷 Product Showcase

Modular Steel Building Design
Foldable Steel Structure
Prefabricated Container House

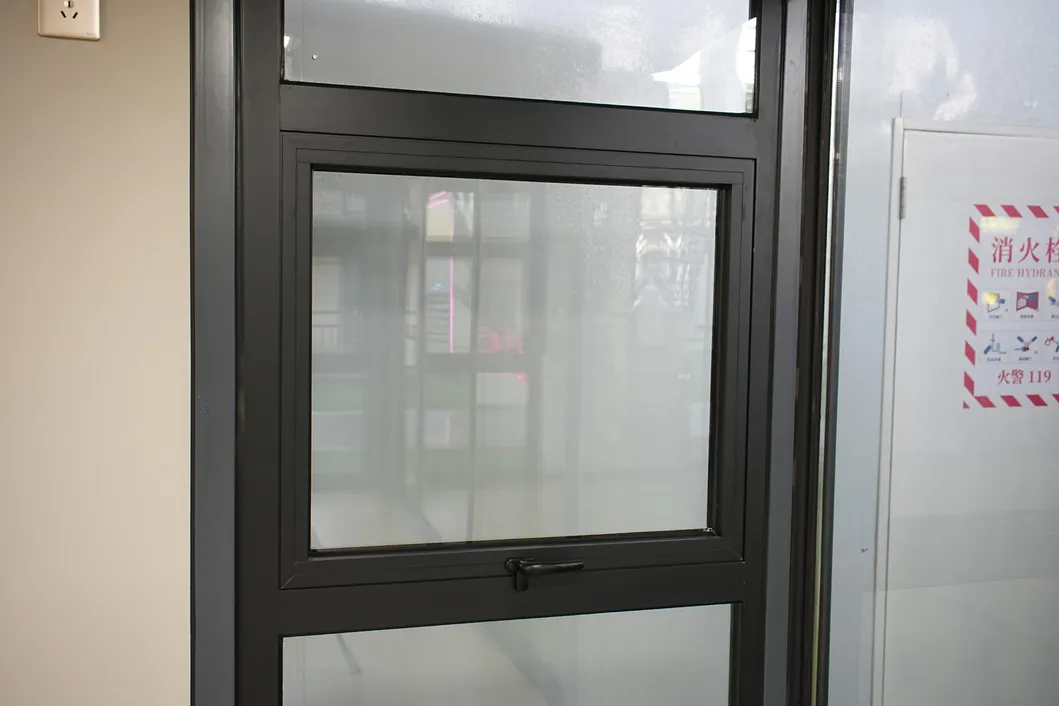

Modular Building Interior

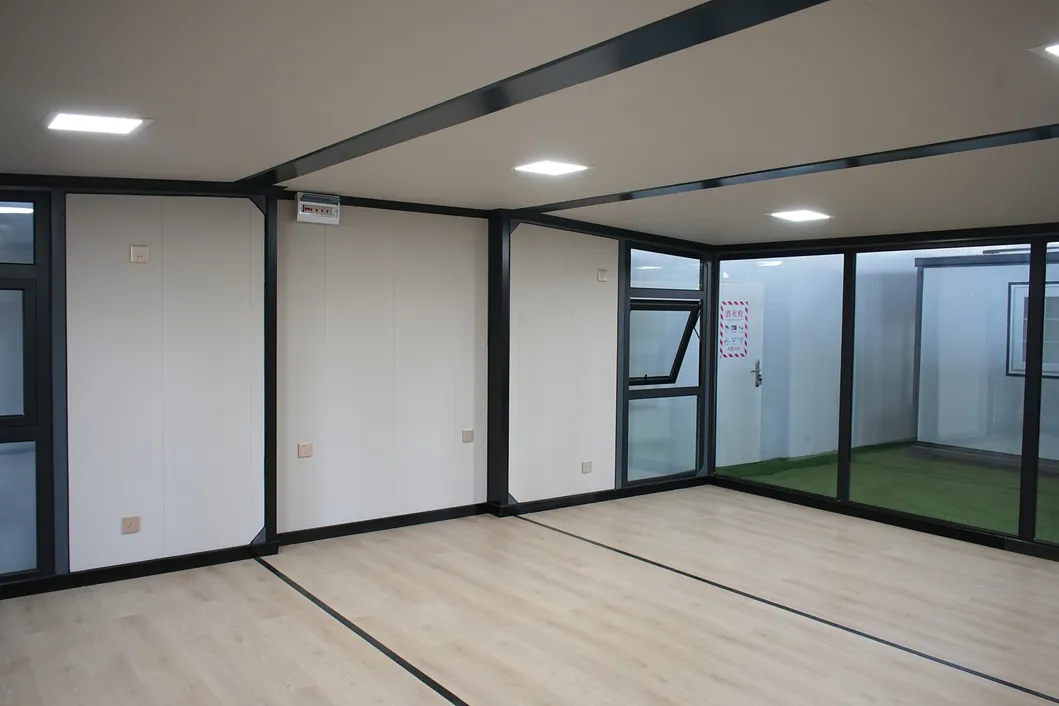

Expandable Folding Container

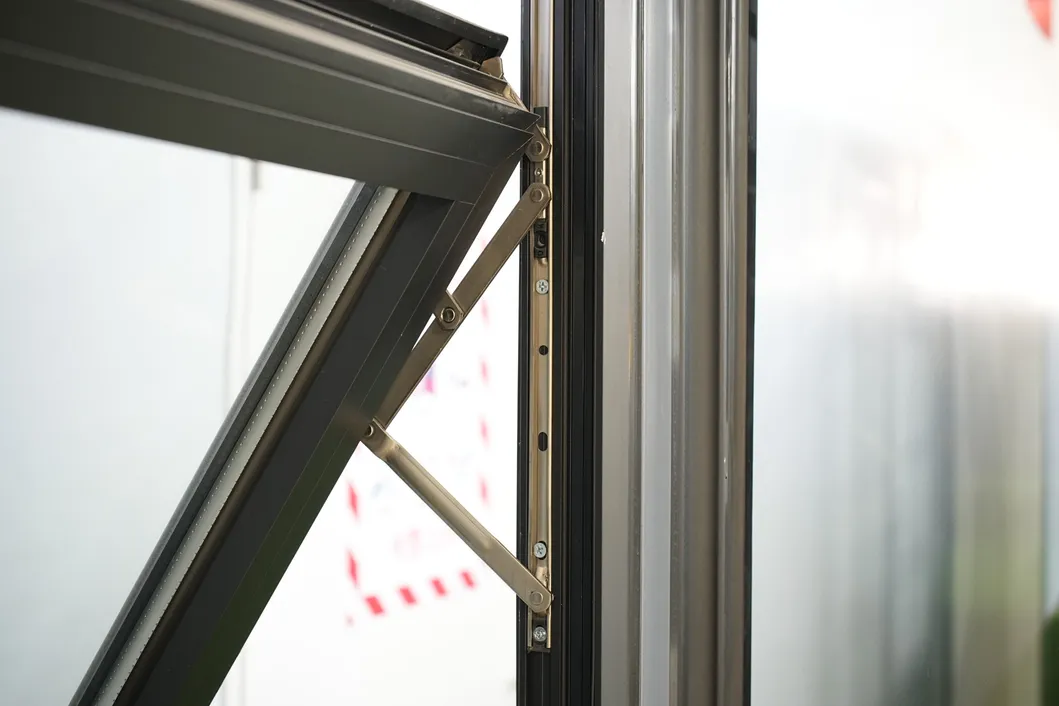

Steel Structure Detail

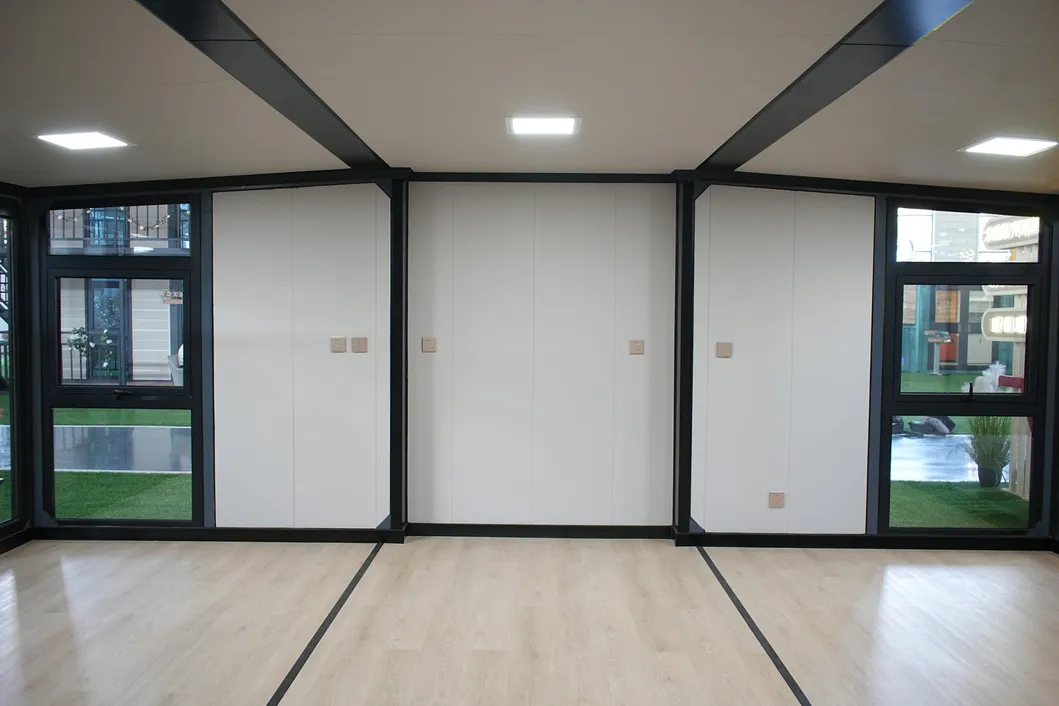

Portable Building Solution

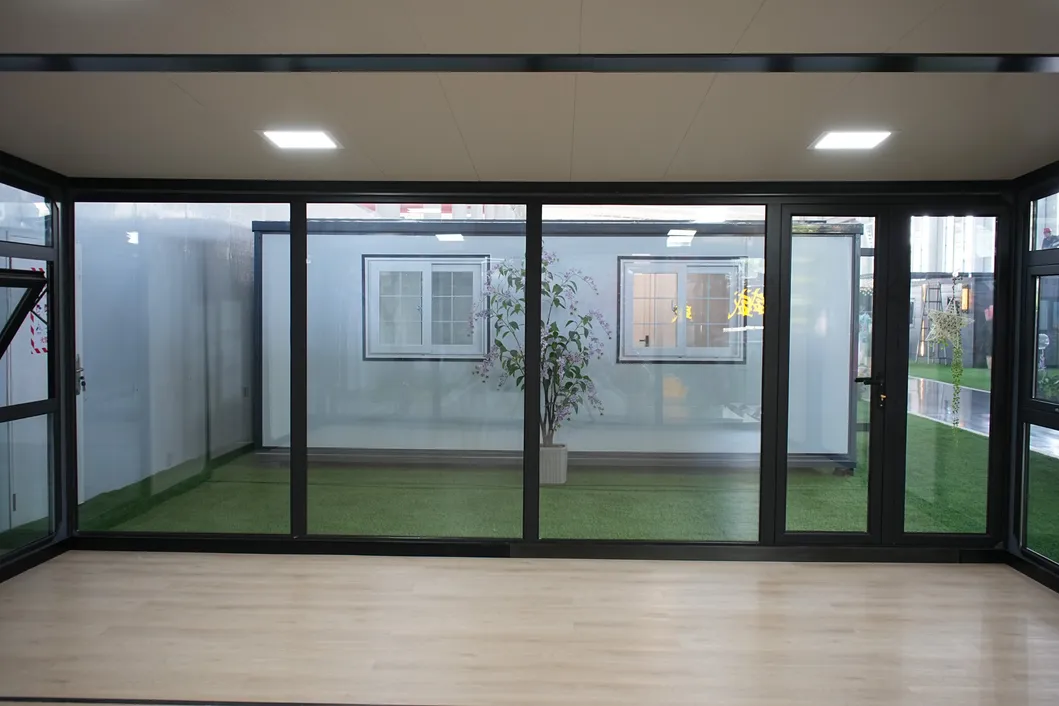

Luxury Modular Home

📐 Product Specifications

20 Feet Expandable Folding Container House Parameters
Product Model 20 Feet House Type One Hall
Expanded Size L5900*W7020*H2450 Capacity 2-4 People
Internal Dimensions L5740*W7000*H2250 Power Consumption 12KW
Folded Size L5900*W2400*H2950 Net Weight 3.1 Tons
Floor Area 38m²
No. Component Content Specifications
1-6 Main Frame (Galvanized) Beams & Columns 80*100*3.0mm Square tube with 2.0 bending parts
7-10 Side Frame Folding Hinge 130mm Galvanized hinges
12-14 Roof System Internal & External Panels T50mm/T100mm EPS color steel plate + corrugated veneer
15-16 Wallboard Partitions T65mm/T50mm EPS color steel plate
17-18 Ground Flooring 18mm Fireproof cement fiber floor / Bamboo plywood
19-20 Doors & Windows Openings Plastic steel sliding window (920*920mm); Steel door (840*2030mm)
21-25 Electrical System Circuitry 220V/50HZ, Leakage protector, Standard sockets & LED Lighting

📍 Technical Diagrams & Views

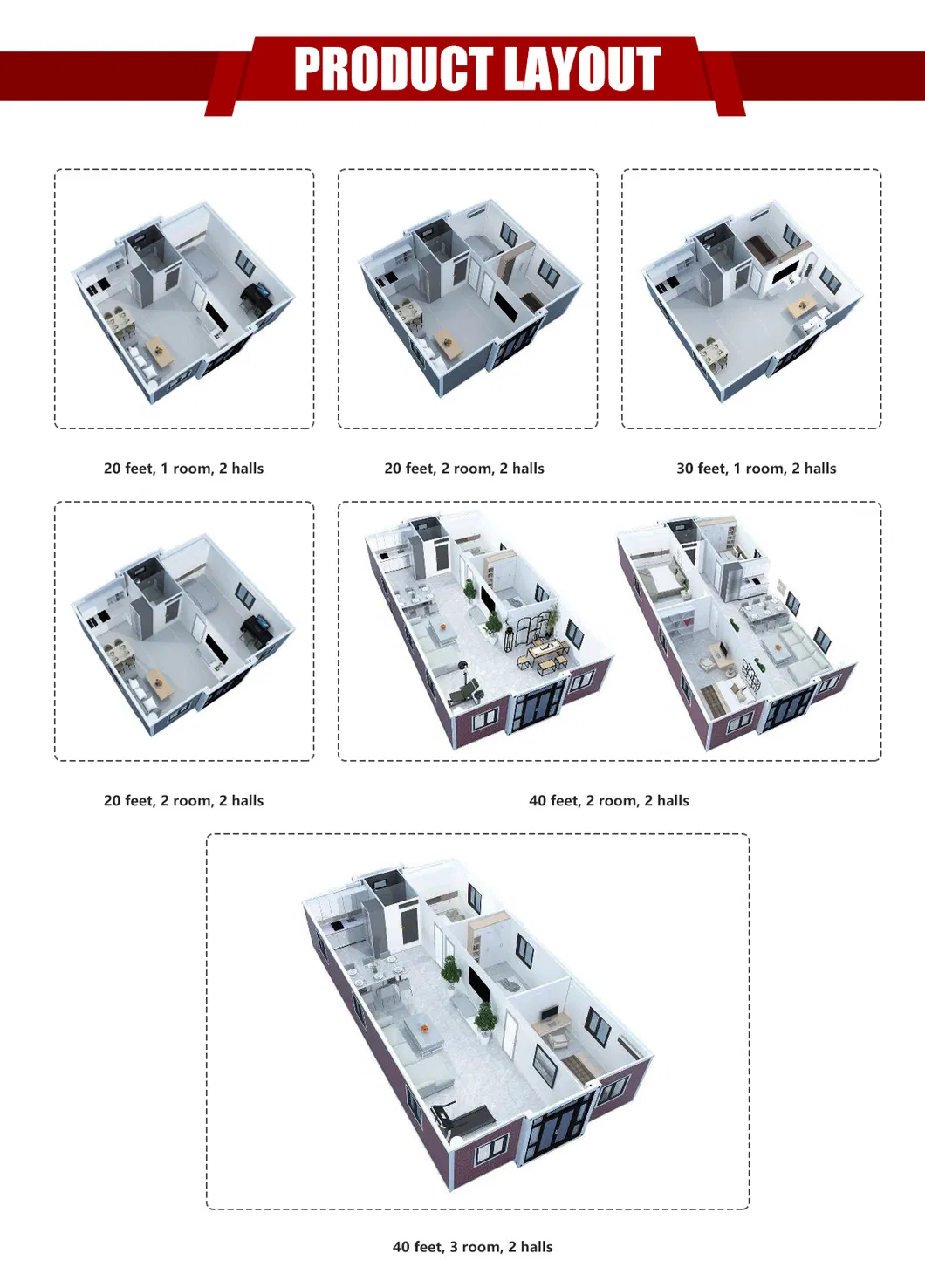

Layout Diagram 1

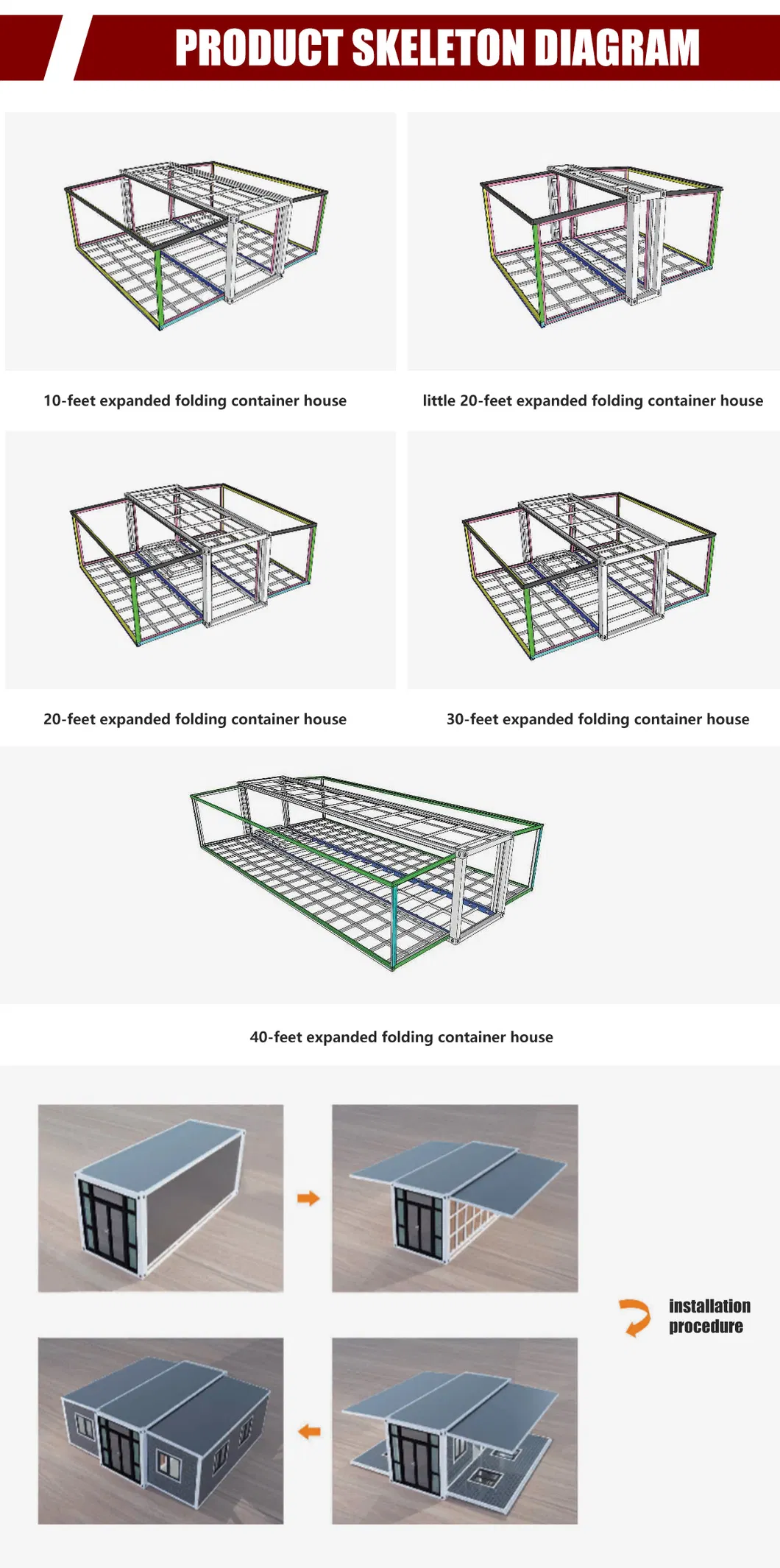

Layout Diagram 2
Structure Detail 1
Structure Detail 2
Folding Mechanism
Final Assembly View

❓ Frequently Asked Questions

How is the product quality guaranteed?
We implement strict quality control as our core principle. Every product undergoes rigorous testing procedures to ensure 100% quality before delivery.
What types of structures can be purchased?
Our range includes Container Houses, Prefabricated Houses, Portable Toilets, Steel Structures, Guard Houses, and Light Steel Villas.
What sets your modular buildings apart from others?
With over 20 years of manufacturing and 6 years of design experience, we produce our own steel materials and sandwich panels. This ensures stable quality and cost-effective solutions for our clients.
What delivery and payment terms are available?
We support various delivery terms including FOB, CFR, CIF, EXW, DDP, and DDU. Payments can be made via T/T, L/C, Credit Card, and other standard methods in multiple global currencies.
How can I obtain a project quotation?
If you have drawings, we can provide a quote based on your design. Alternatively, our engineers can create custom drawings for your confirmation before providing a detailed quotation.
Is the container house suitable for extreme weather?
Yes, our units are designed with features like wind resistance, earthquake resistance, and thermal insulation to withstand various environmental conditions.
