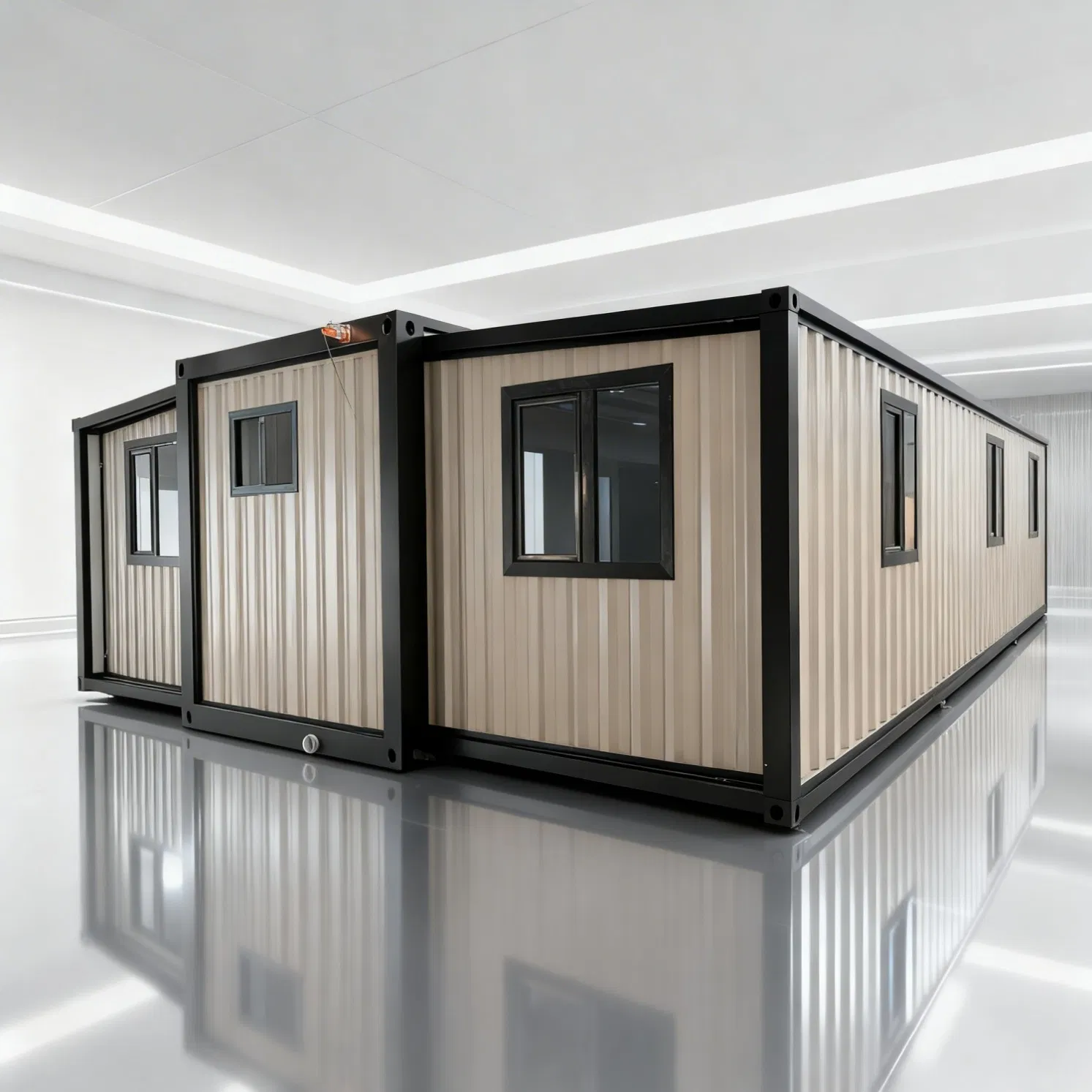

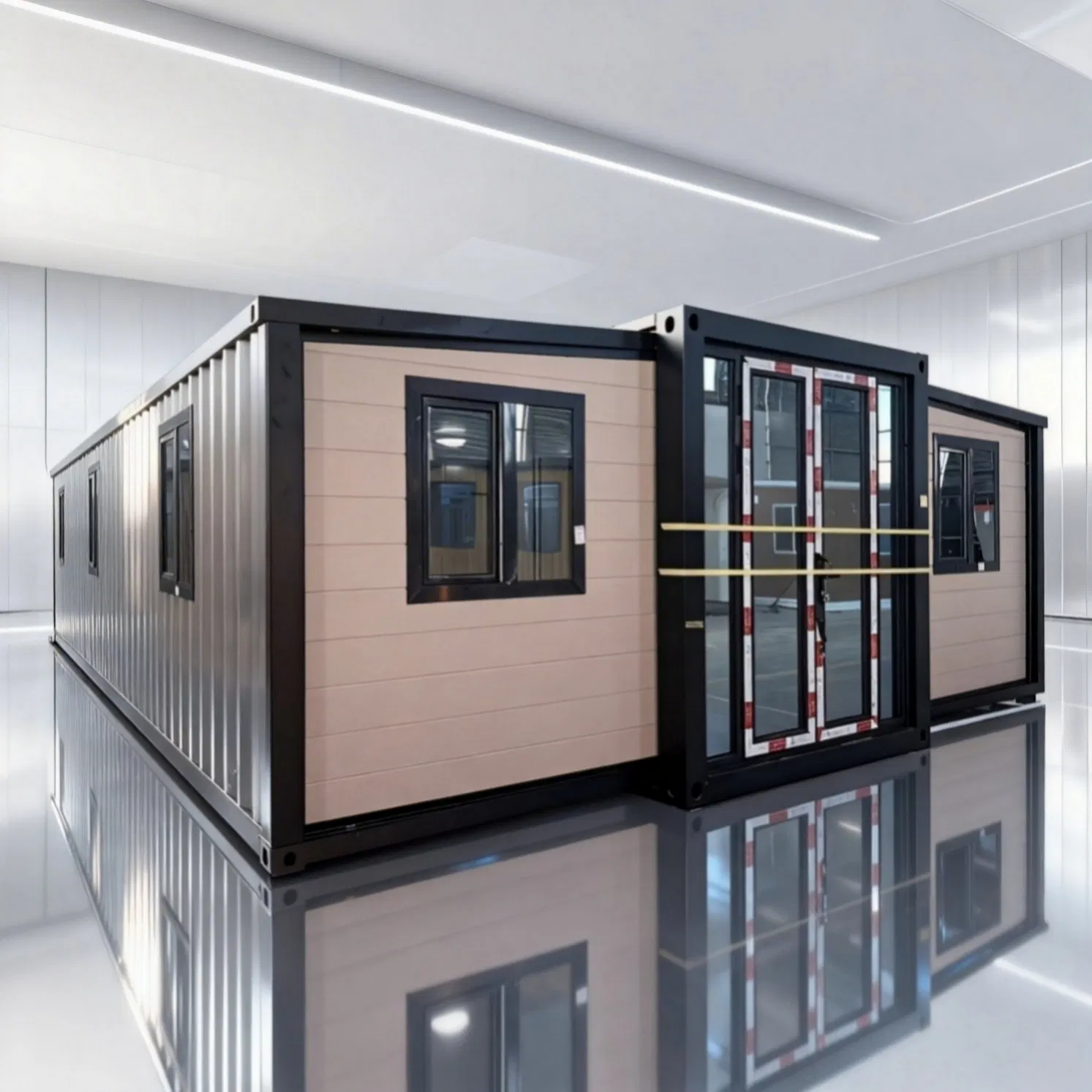

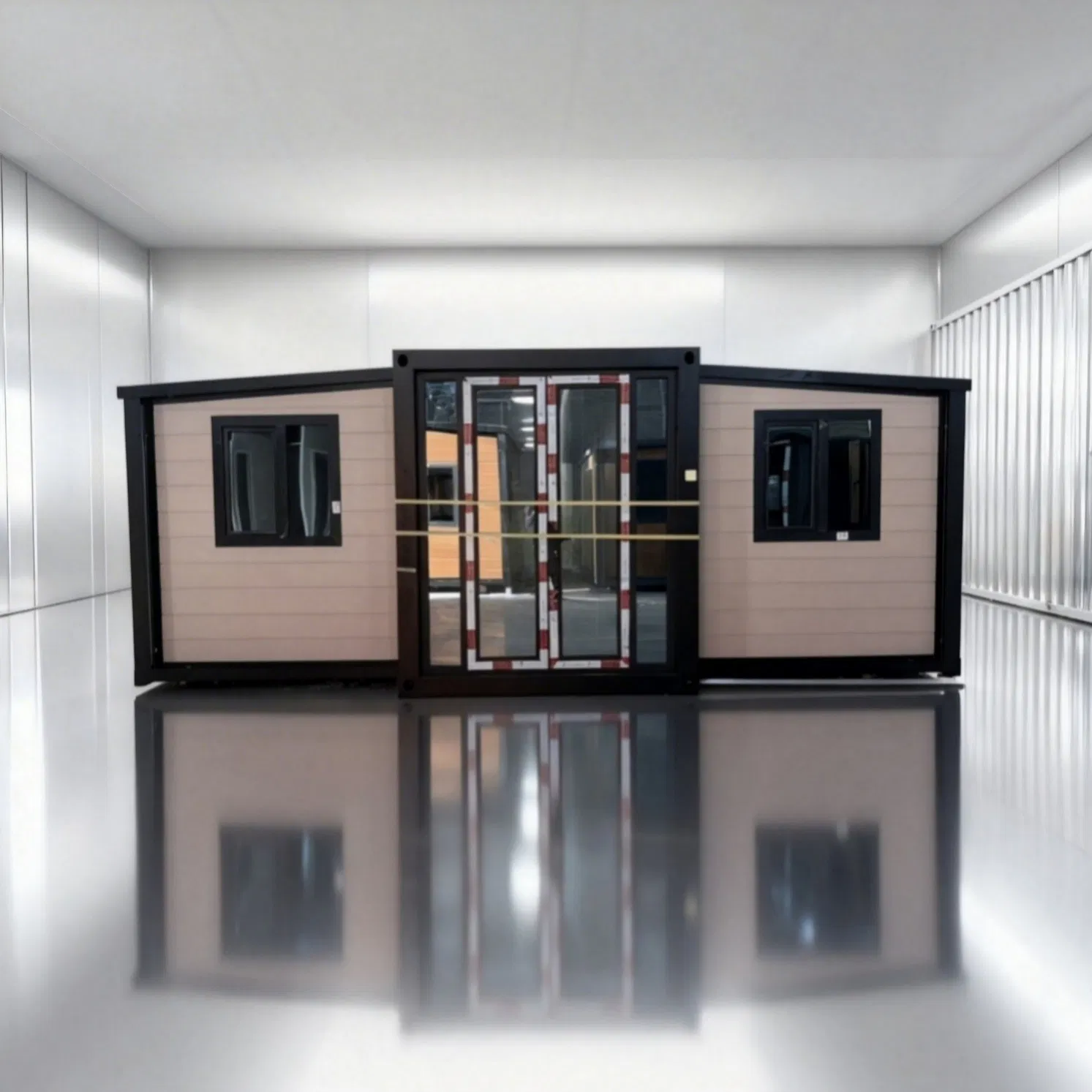

Expandable Forty Foot Twin Wing Storage Unit with 40X60mm Steel Frame and Seamless Interior Finish for Quick Assembly

After-sales Service: Field Installation, Commissioning and Training
Application: Apartment
Fast Installation: Standard Installation

Product Description

📊
Basic Info.
Feature
Earthquake Resistant, Easily Movable, Eco-Friendliness, Leak Proof, Moisture Proof, Safe
Material
Container
Expanded Dimensions
L11800 × W6200 × H2480mm
Interior Dimensions
L11200 × W6060 × H2200mm
Occupancy
4-6 People
Power Consumption
12 Kw
Production Capacity
1000 Sets/Year

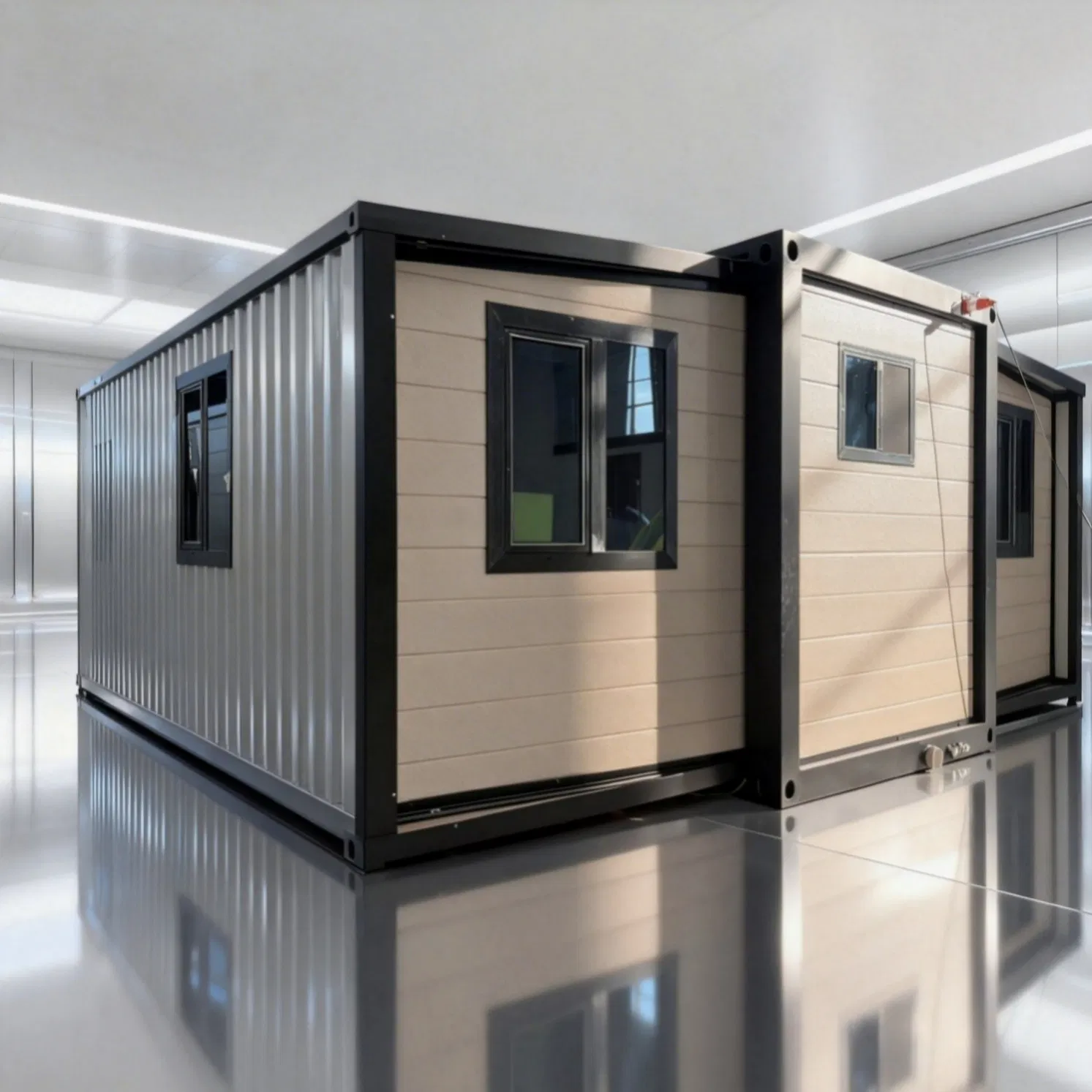

Expandable Forty Foot Twin Wing Storage Unit
🚀
Product Description & Features
🏠
Superior Load-Bearing Roof – High-density EPS top panel delivers excellent structural strength and durability.
🏗️
Reinforced Lifting Points – 8 mm thick lifting anchors, exceeding standard specifications for safer handling and transport.
Premium Exterior Finish – 0.27 mm orange-peel textured wall panels offer an attractive appearance and enhanced weather resistance.
🛡️
Seamless, Nail-Free Exterior – No exposed nails on the outer surface, ensuring better waterproofing and corrosion protection.
💪
Upgraded Base Frame – 40×60 mm bottom steel tubing, providing greater rigidity and resistance to deformation.
❄️
Double-Glazed Windows – Improved thermal insulation and noise reduction for enhanced comfort.
Unit View 1
Unit View 2
📏
Technical Specifications
Specification Item Details

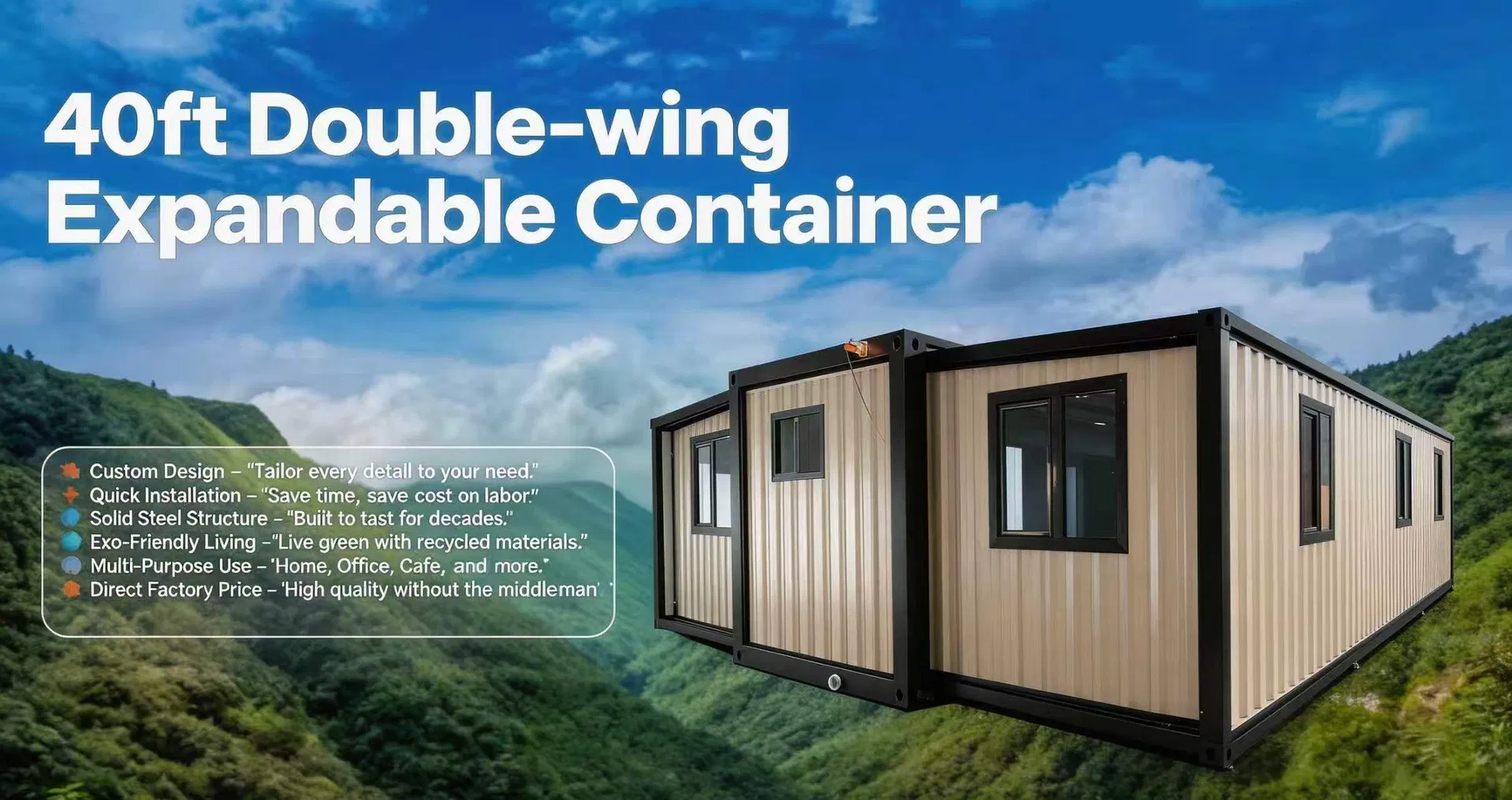

Product name40ft Double-wing Expandable Container
Expanded DimensionsL11800 × W6200 × H2480mm
Interior DimensionsL11200 × W6060 × H2200mm
Folded DimensionsL11800 × W2200 × H2480mm
Occupancy4-6 people
Power Consumption12 kW
Net WeightApprox. 5.5 tons
Floor Area74.8 m²
Interior View

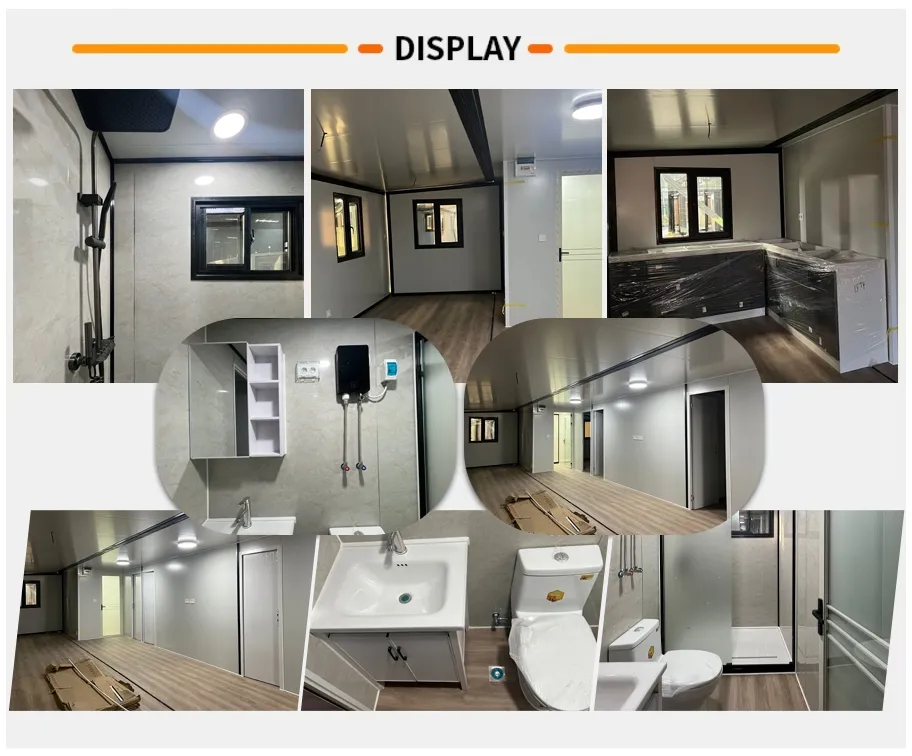

Detail View
Assembly View
🏗️
Frame & Structure Details
Component Material / Specification
Top main beam80×140×3.5mm square tube
Bottom main beam80×140×3.5mm square tube
Vertical postBending part, 3.0mm (with 6mm lifting head)
Side wing frame40×80×1.5mm / 60×80×2.0mm galvanized tube
Folding hinge13mm galvanized hinge
Protection coatingElectrostatic powder spray coating

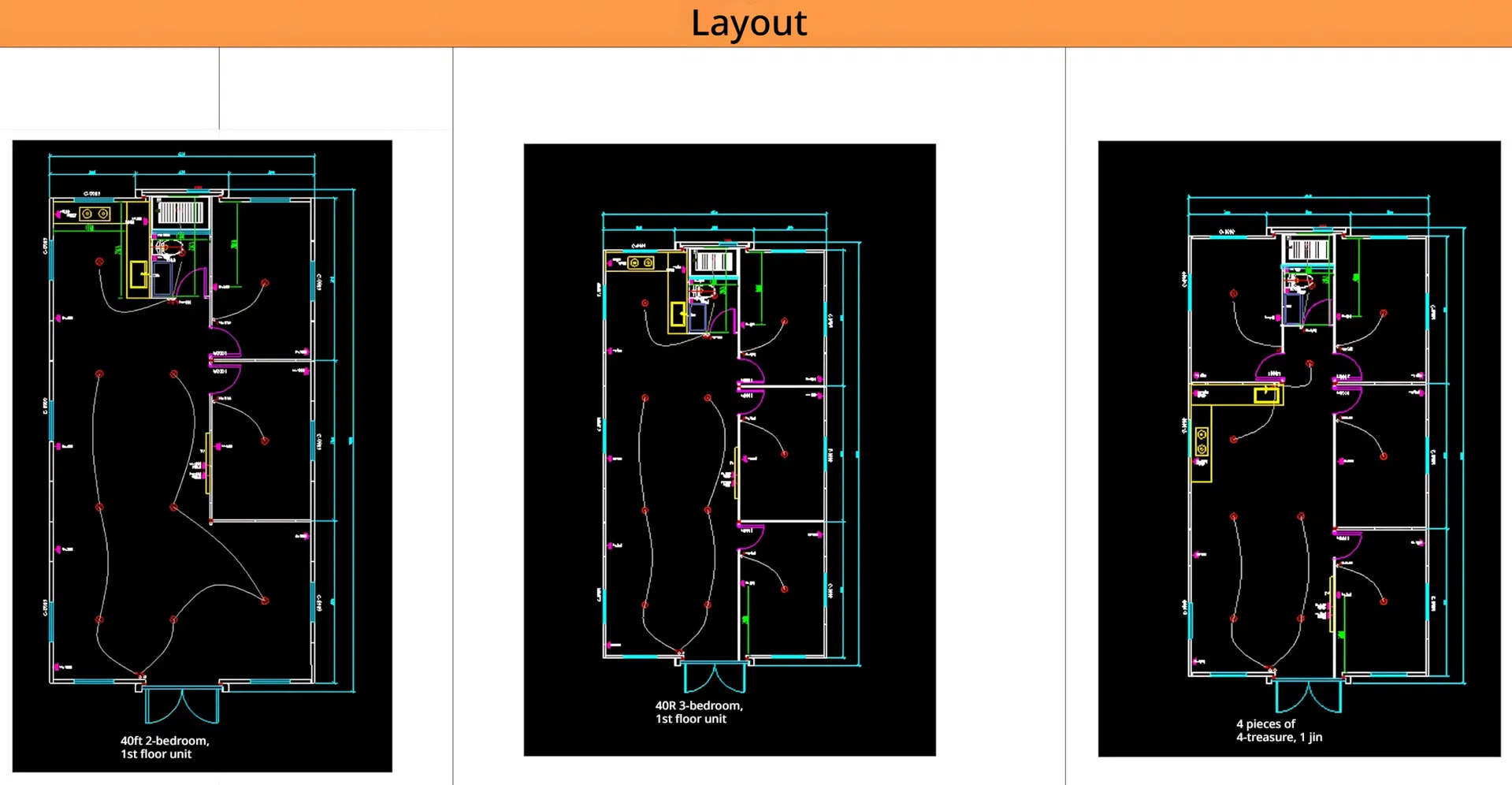

Structural Detail
Manufacturing

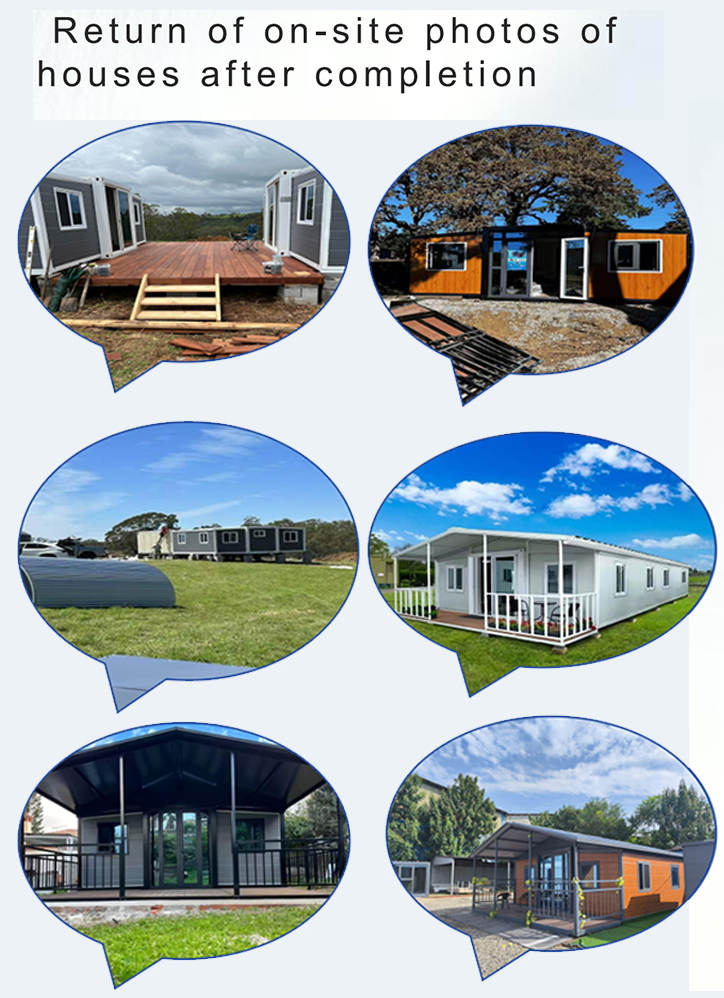

Side View
Back View
Frequently Asked Questions
Are you a manufacturer?
We are not only the manufacturer but also production experts in expandable container solutions.
What is the quality level of your machines and units?
There is no problem with the quality of our units; they are built with high-grade galvanized steel and premium finishes for long-term use.
Do you provide installation assistance?
Yes, we provide support and can arrange for experienced engineers to assist with installation abroad if required.
Is there a warranty period?
Yes, the units come with a standard one-year warranty, and we also provide support to solve issues outside the warranty period.
How many people can the 40ft expandable unit accommodate?
The 40ft double-wing expandable unit is designed to comfortably accommodate between 4 to 6 people.
What are the benefits of the 40x60mm steel frame upgrade?
The upgraded 40x60mm bottom steel tubing provides significantly greater rigidity and resistance to deformation compared to the industry-standard 35x35mm frames.
