Basic Information
Feature
Earthquake Resistant, Easily Movable, Eco-Friendliness, Leak Proof, Moisture Proof, Safe
Material
Container Structure
Expanded Size
11800 × 6200 × 2480mm
Interior Size
11200 × 6060 × 2200mm
Folded Size
11800 × 2200 × 2480mm

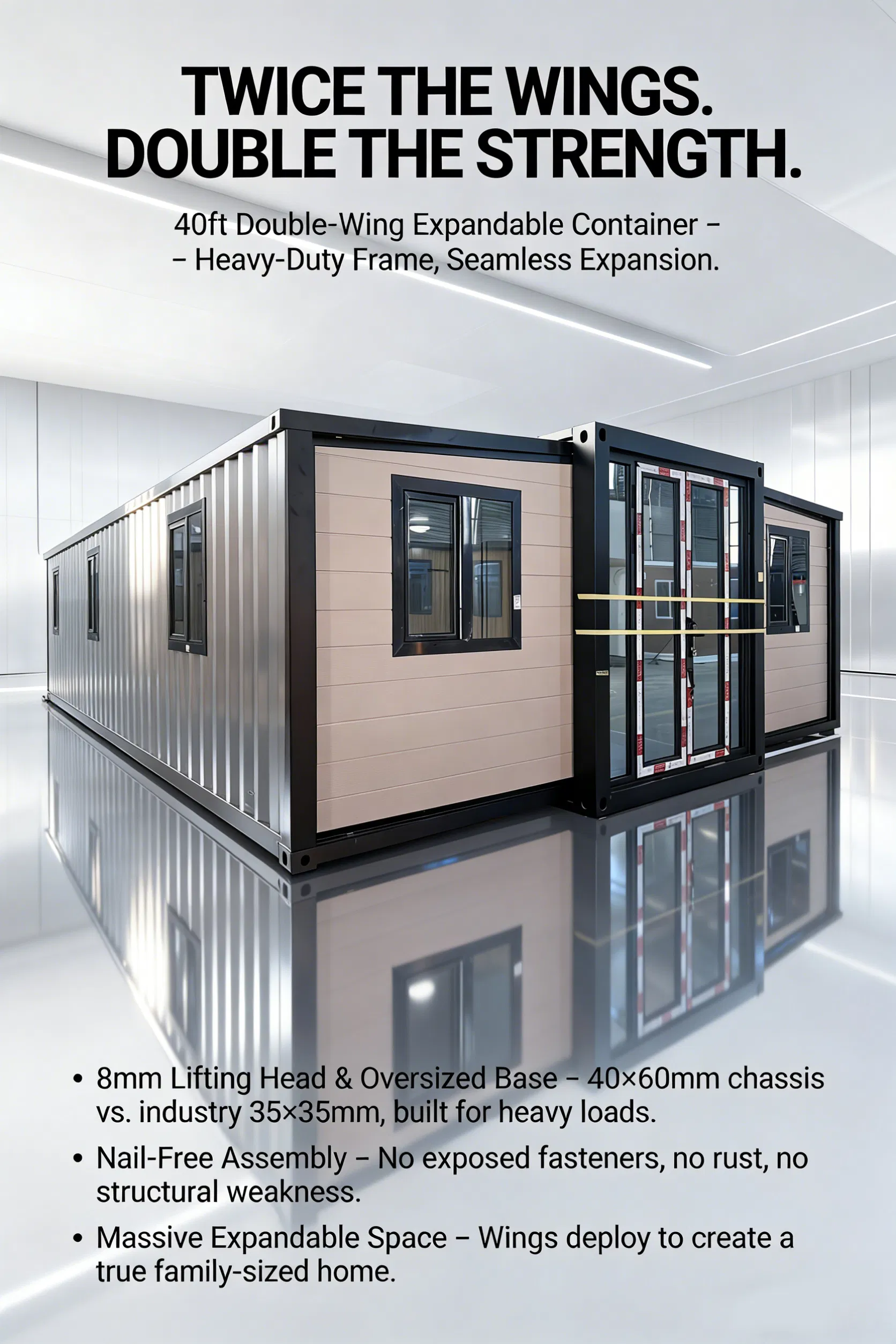

Product Description & Highlights
- Superior Load-Bearing Roof: High-density EPS top panel delivers excellent structural strength and durability.
- Reinforced Lifting Points: 8 mm thick lifting anchors for safer handling and transport.
- Premium Exterior Finish: 0.27 mm orange-peel textured wall panels for weather resistance.
- Seamless Exterior: No exposed nails, ensuring better waterproofing and corrosion protection.
- Upgraded Base Frame: 40×60 mm bottom steel tubing for greater rigidity.
- Thermal Performance: Double-glazed plastic-steel windows for insulation and noise reduction.
| Dimension & Capacity Specifications |

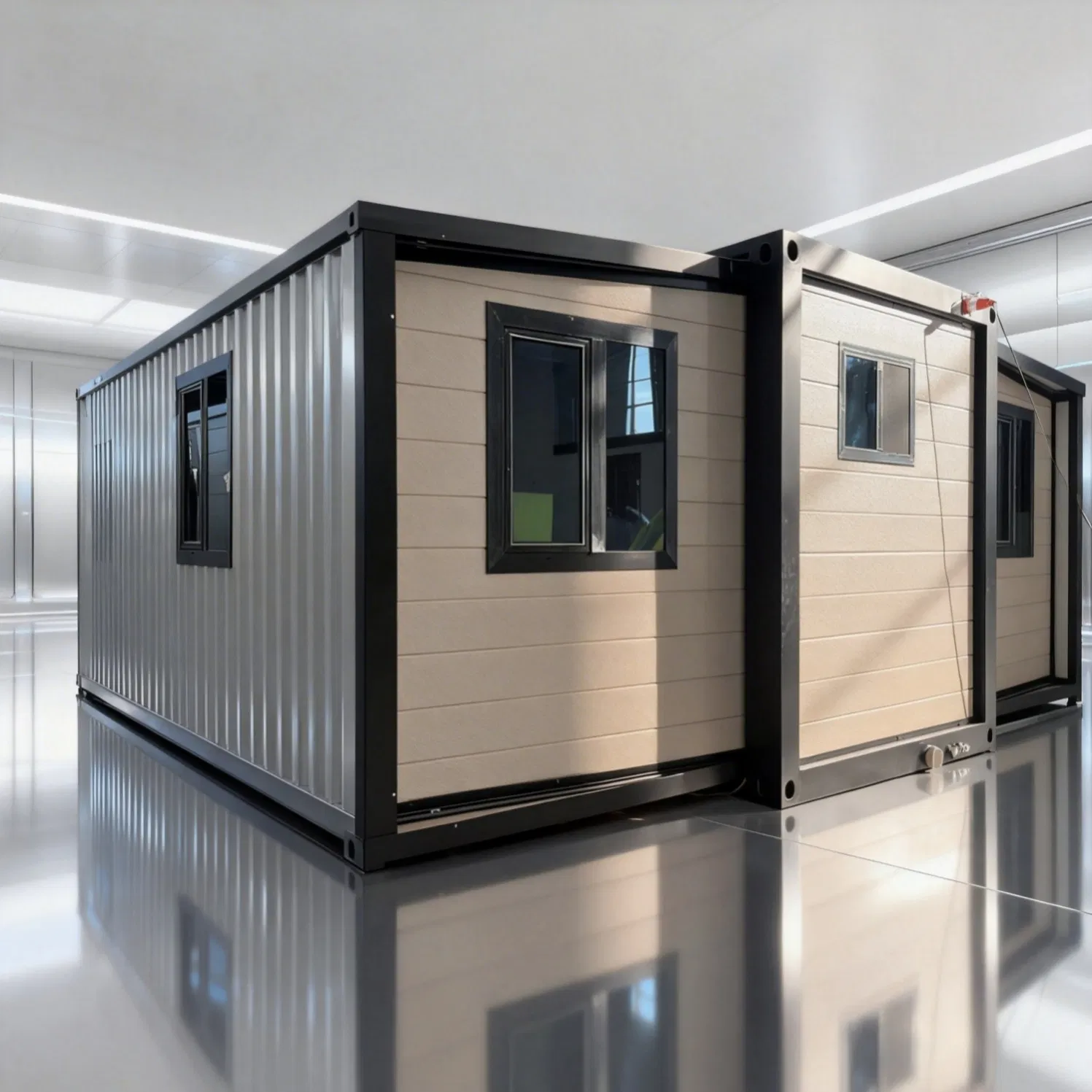

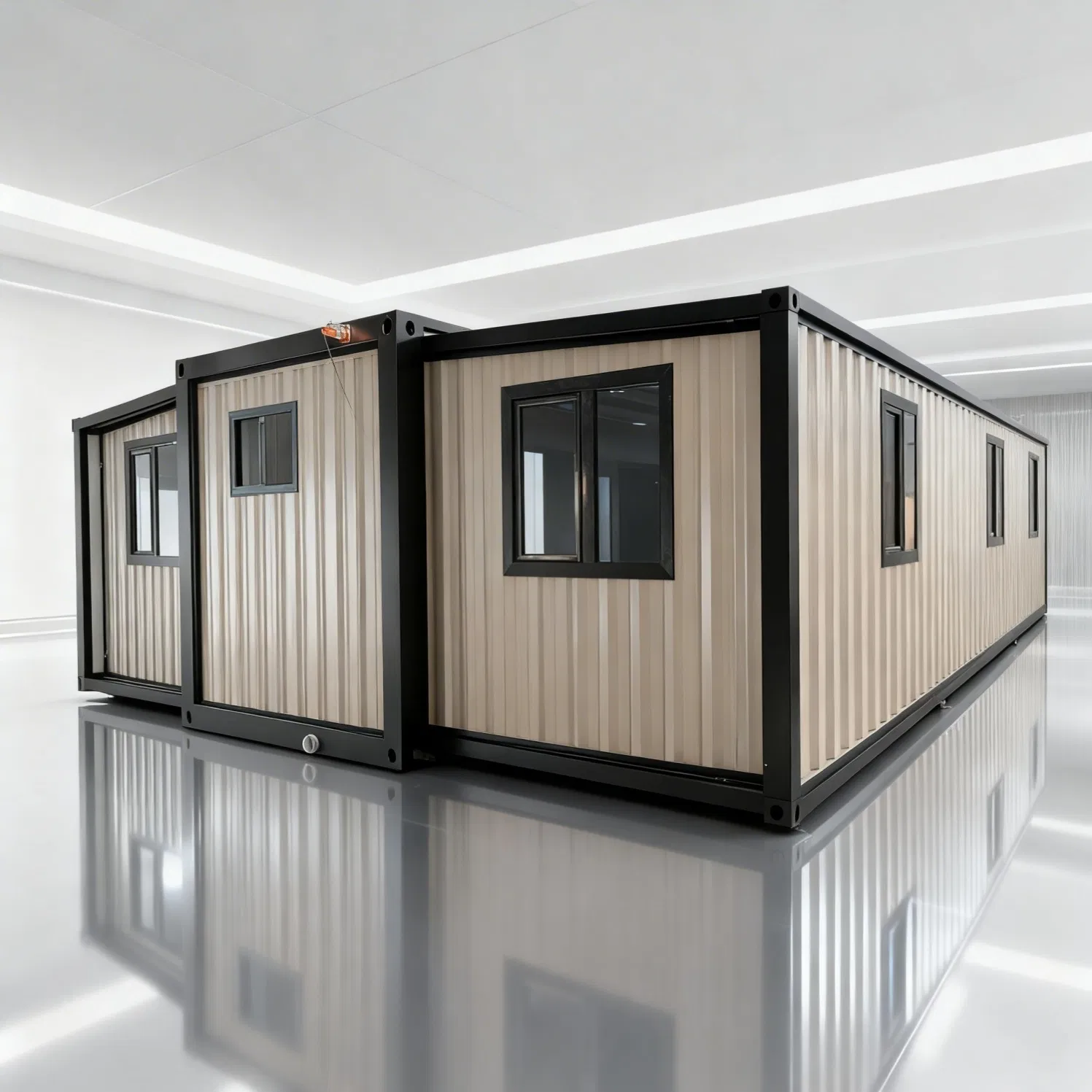

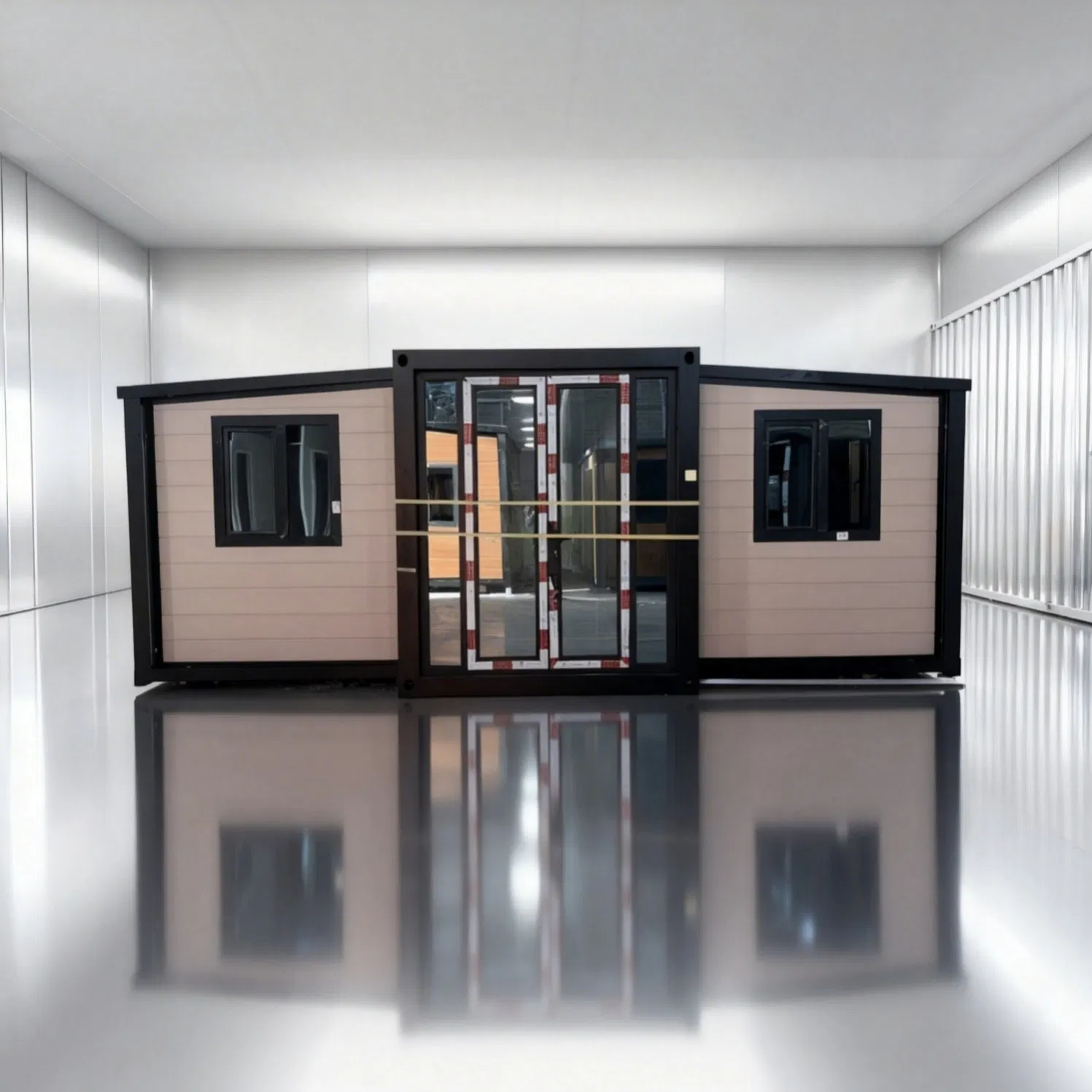

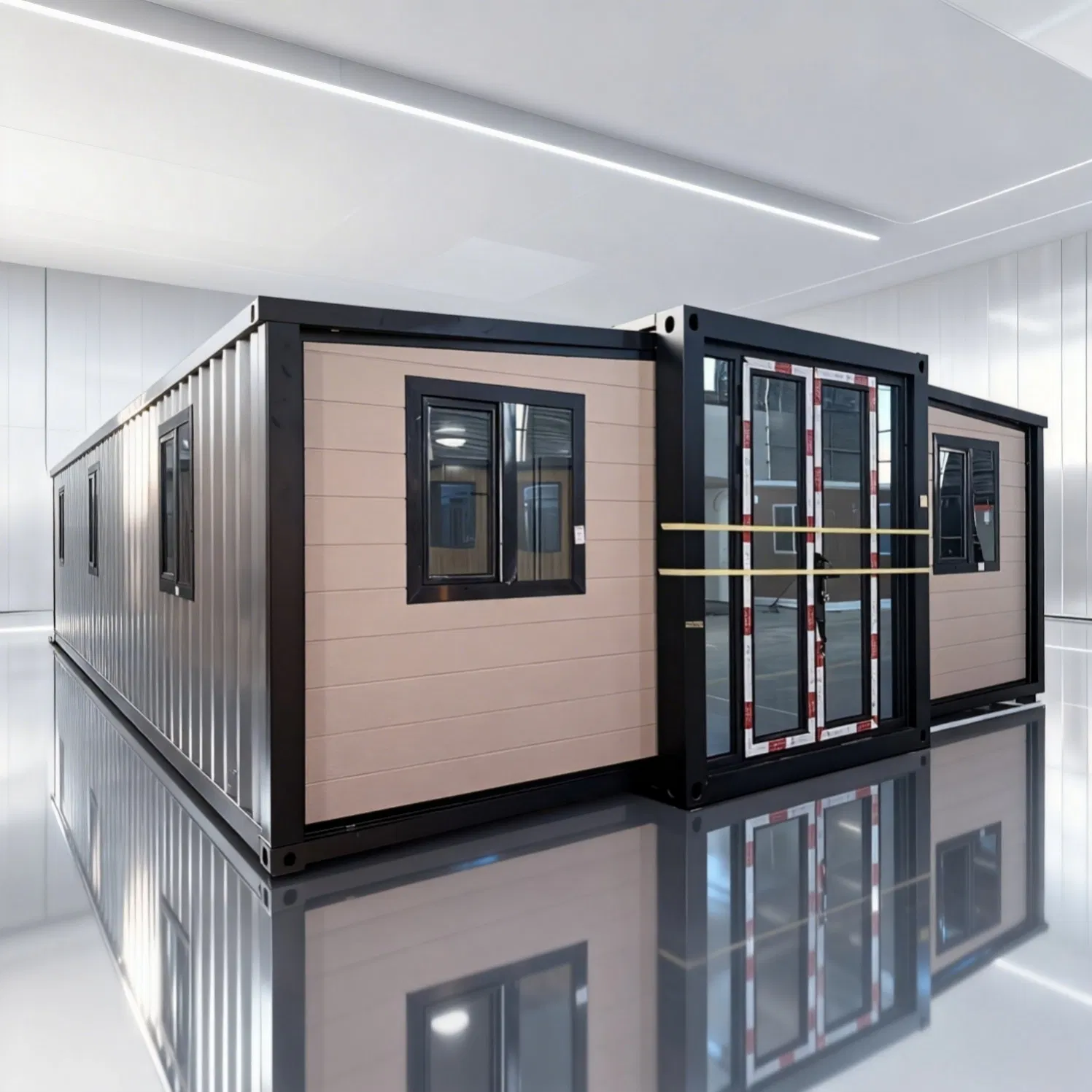

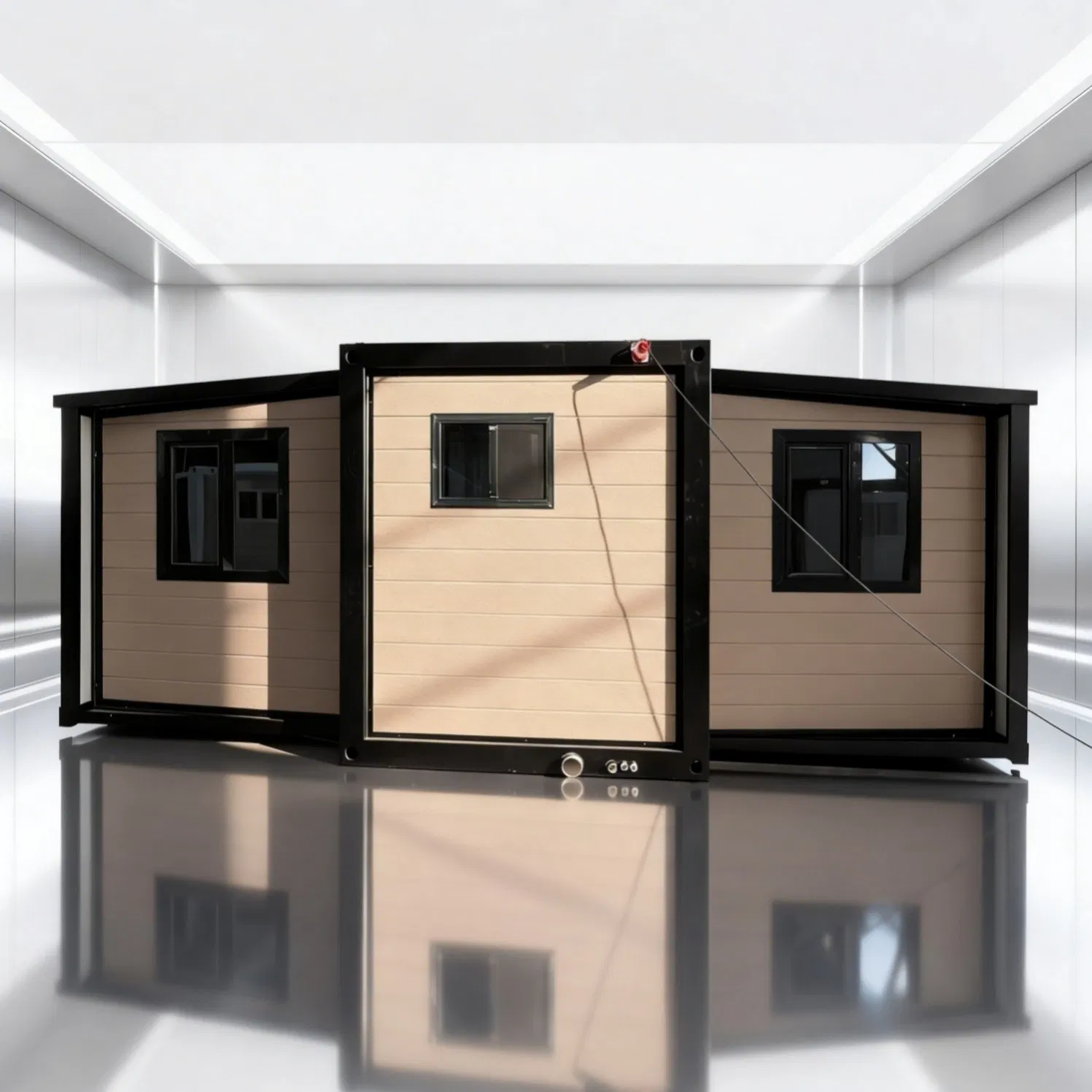

| Product Name | 40ft Double-wing Expandable Container |
| Expanded Dimensions | L11800 × W6200 × H2480mm |
| Interior Dimensions | L11200 × W6060 × H2200mm |
| Folded Dimensions | L11800 × W2200 × H2480mm |
| Occupancy | 4-6 people |
| Net Weight | Approx. 5.5 tons |
| Floor Area | 74.8 m² |
Technical Frame Details
| Component |
Part |
Specification |
| Main Frame | Top main beam | 80×140×3.5mm square tube |
| Top cross beam | Bending part, 3.0mm |
| Bottom main beam | 80×140×3.5mm square tube |
| Vertical post | 3.0mm with 6mm lifting head liner |
| Side Wing Frame | Top/Bottom Frame | 40×80mm / 80×80mm square tubes |
| Folding hinge | 13mm galvanized hinge |
| Coating | Protection | Electrostatic powder spray coating |
Frequently Asked Questions
What is the quality assurance for this unit?
The structural integrity and materials used are strictly monitored to ensure durability and safety. The unit is designed to be earthquake-resistant and moisture-proof for long-term use.

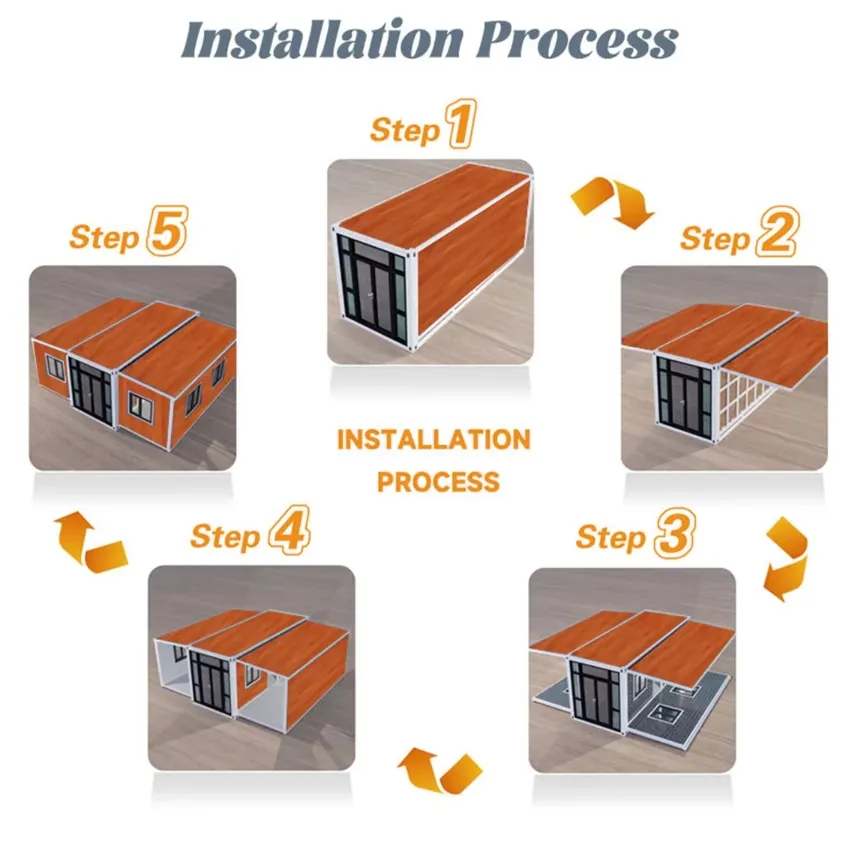

Do you provide assistance with the installation process?
Yes, experienced technical support is available to guide the installation process to ensure the unit is deployed correctly and safely.
What is the warranty period for the container?
The standard warranty is one year, during which we provide full support. We also offer solutions for any issues that may arise after the warranty period has expired.
How is the thermal performance of the expandable container?
The unit features double-glazed plastic-steel windows and heavy-duty EPS top panels, which provide excellent thermal insulation and noise reduction.
How many people can the 40ft expandable container accommodate?
With a floor area of 74.8 m², the interior is designed to comfortably accommodate between 4 to 6 people.
What are the folded dimensions for transportation?
When folded for transport, the dimensions are L11800 × W2200 × H2480mm, making it compatible with standard 40HQ shipping containers.
