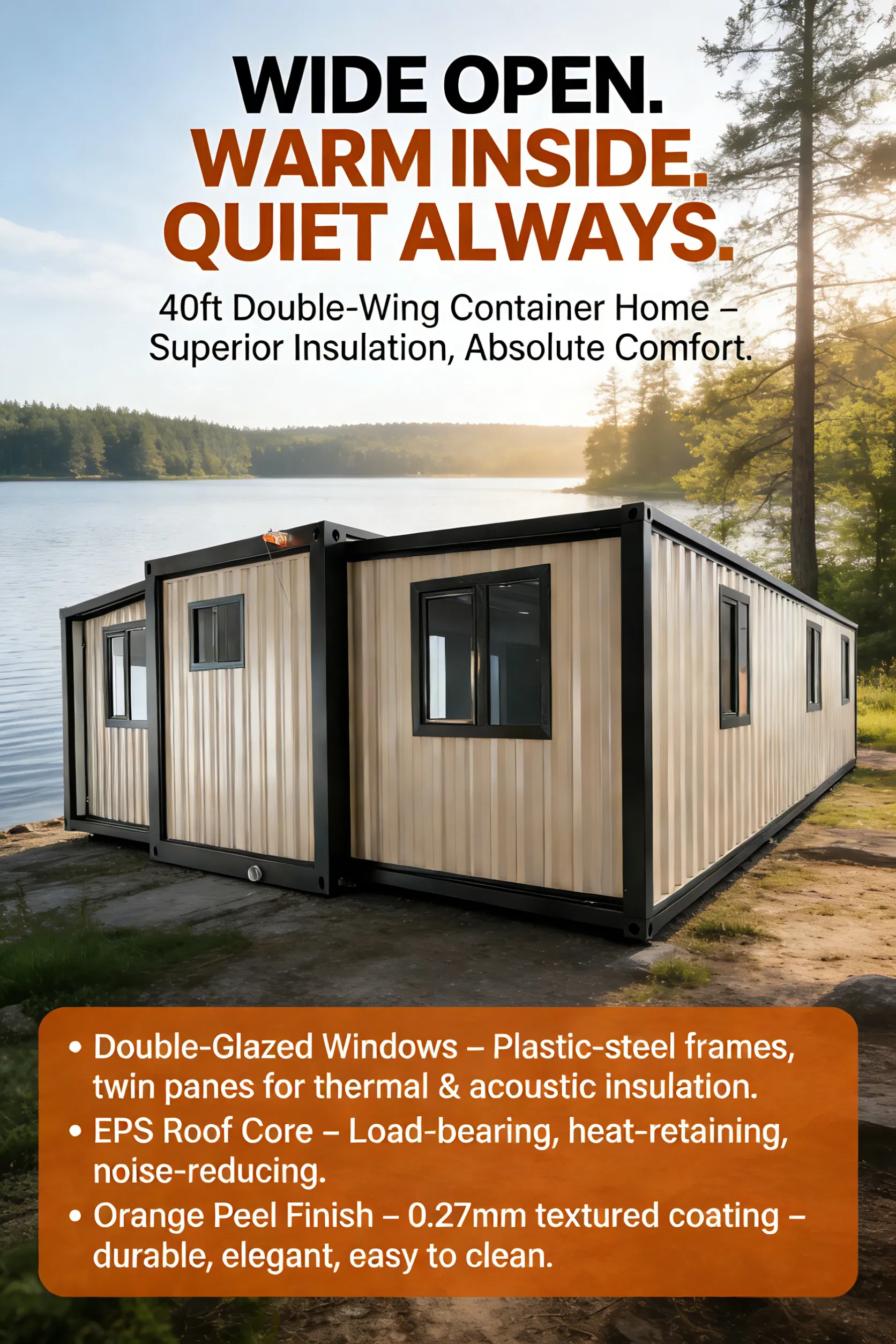

High-density EPS top panel delivers excellent structural strength and durability.
8 mm thick lifting anchors, exceeding standard specifications for safer handling and transport.
0.27 mm orange-peel textured wall panels offer an attractive appearance and enhanced weather resistance.
No exposed nails on the outer surface, ensuring better waterproofing and corrosion protection.
40×60 mm bottom steel tubing providing greater rigidity and resistance to deformation.
Plastic-steel windows for improved thermal insulation and noise reduction.
| Dimension & Capacity | |
|---|---|

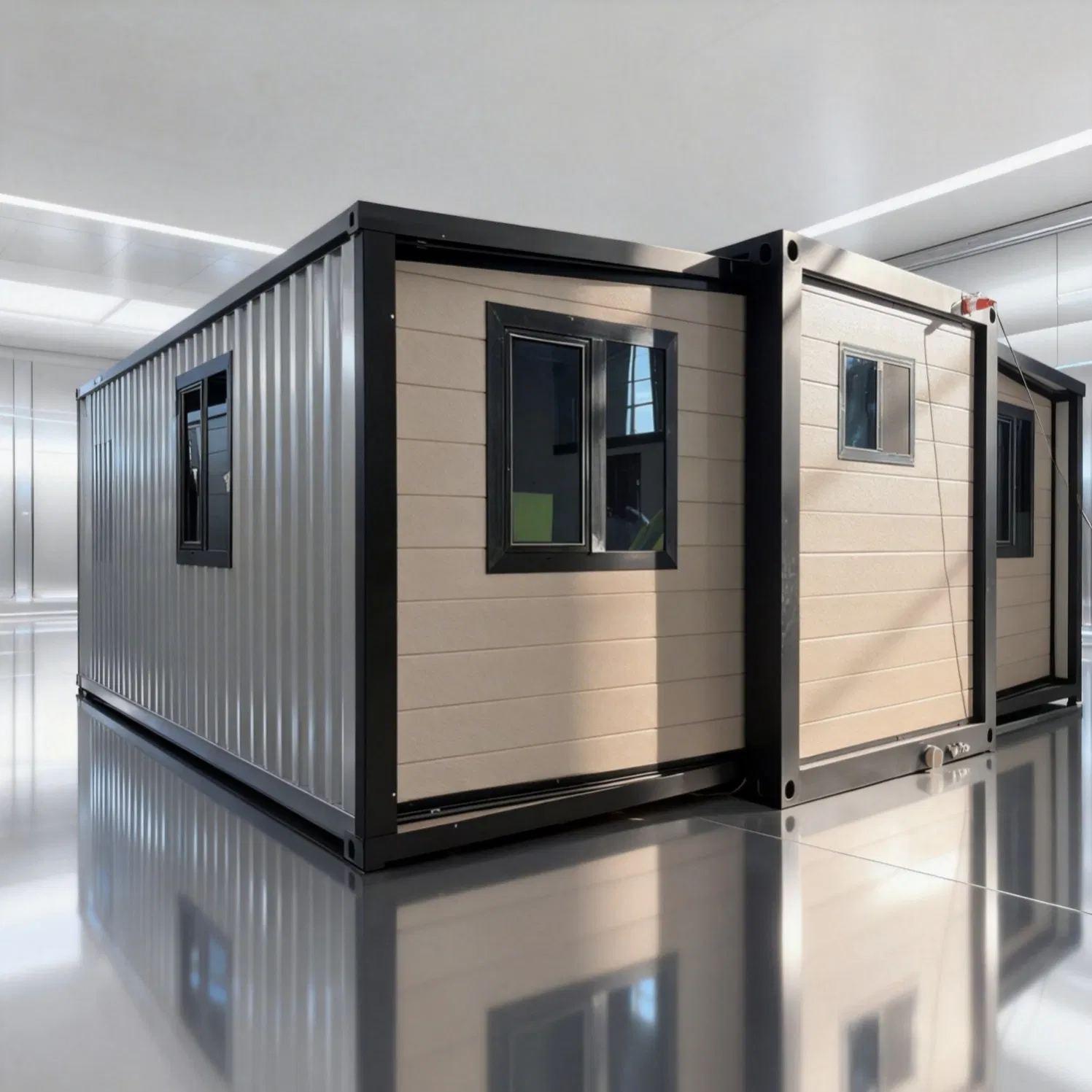

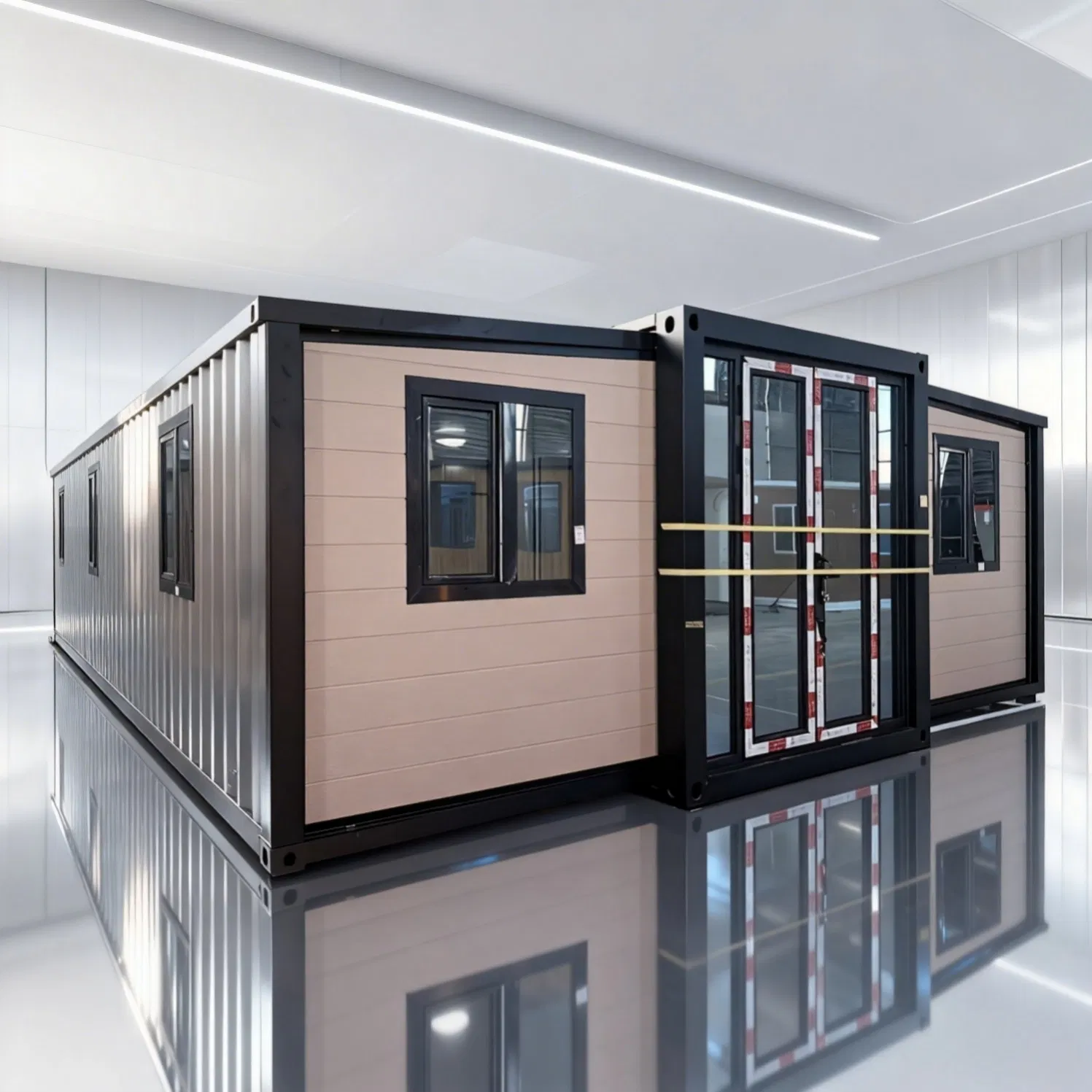

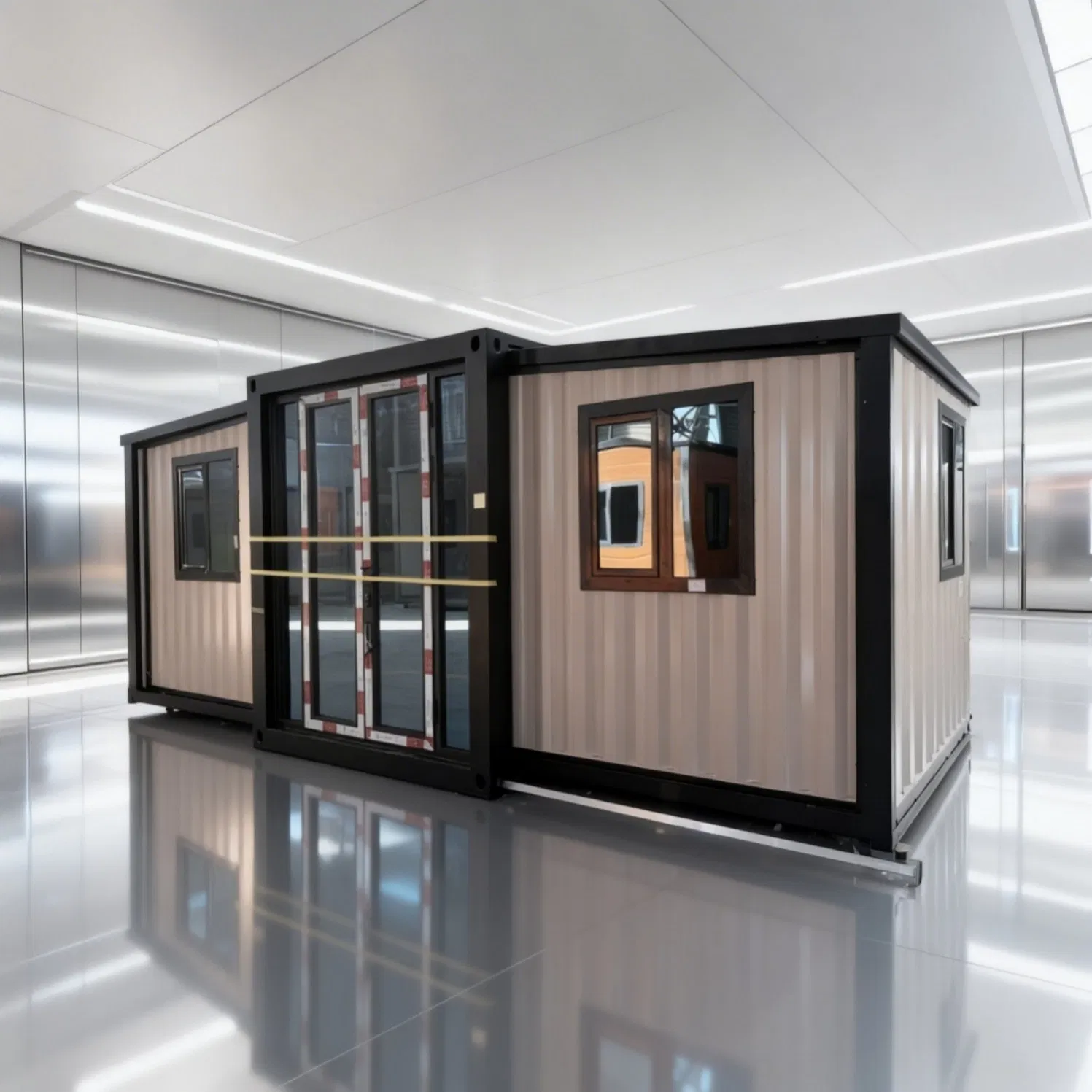

| Product name | 40ft Double-wing Expandable Container |
| Expanded Dimensions | L11800 × W6200 × H2480mm |
| Interior Dimensions | L11200 × W6060 × H2200mm |
| Folded Dimensions | L11800 × W2200 × H2480mm |
| Net Weight | Approx. 5.5 tons |
| Floor Area | 74.8 m² |
| Material Details (Fully Galvanized) | ||
|---|---|---|
| Main Frame | Top main beam | 80×140×3.5mm square tube |
| Top cross beam | Bending part, 3.0mm | |
| Bottom main beam | 80×140×3.5mm square tube | |
| Vertical post | Bending part, 3.0mm (6mm lifting head) | |
| Side Wing | Top Frame | 40×80×2.0mm / 60×80×2.0mm square tube |
| Bottom frame | 80×80×2.0mm / 40×80×1.5mm P-shaped tube | |
| Coating | Overall frame | Electrostatic powder spray coating |
