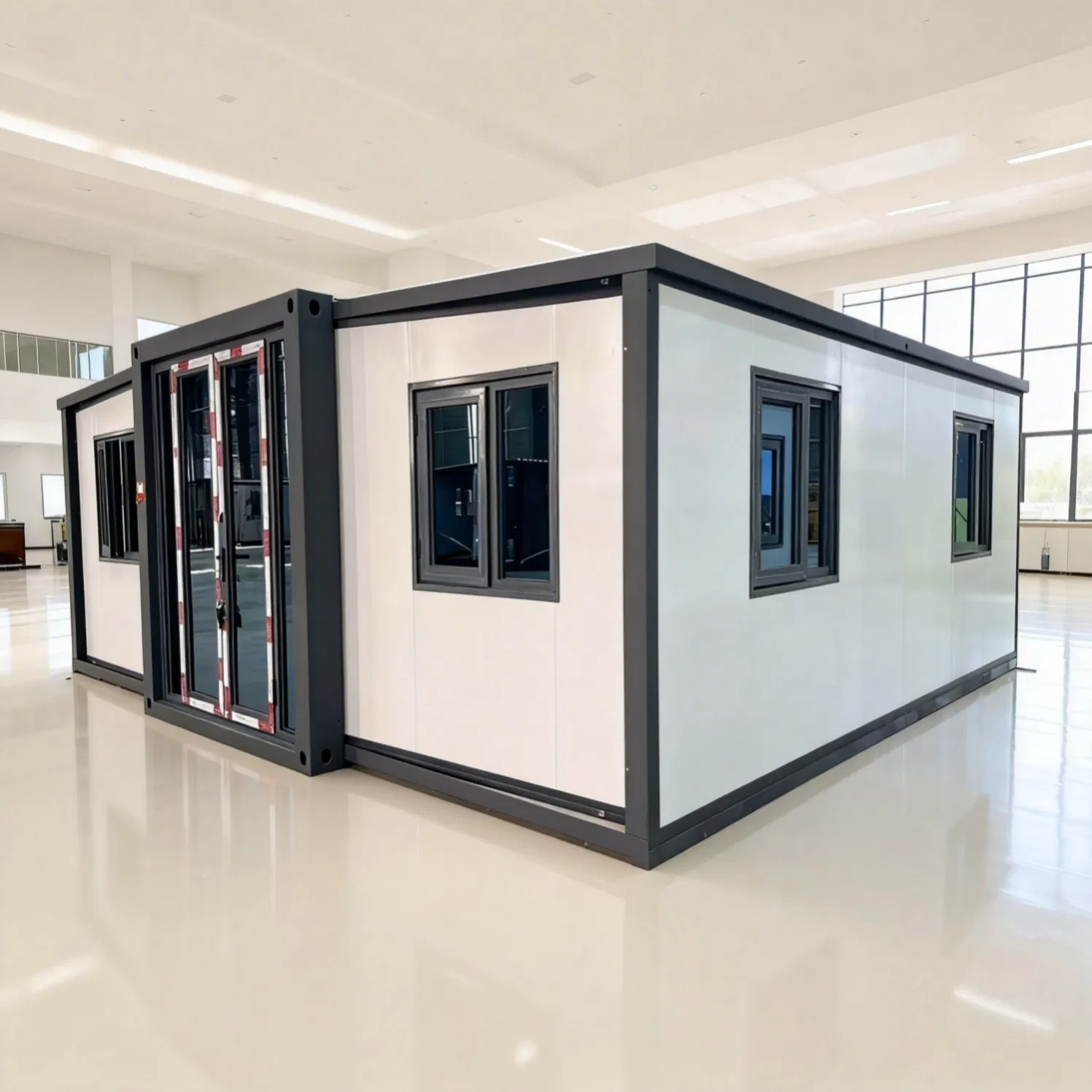

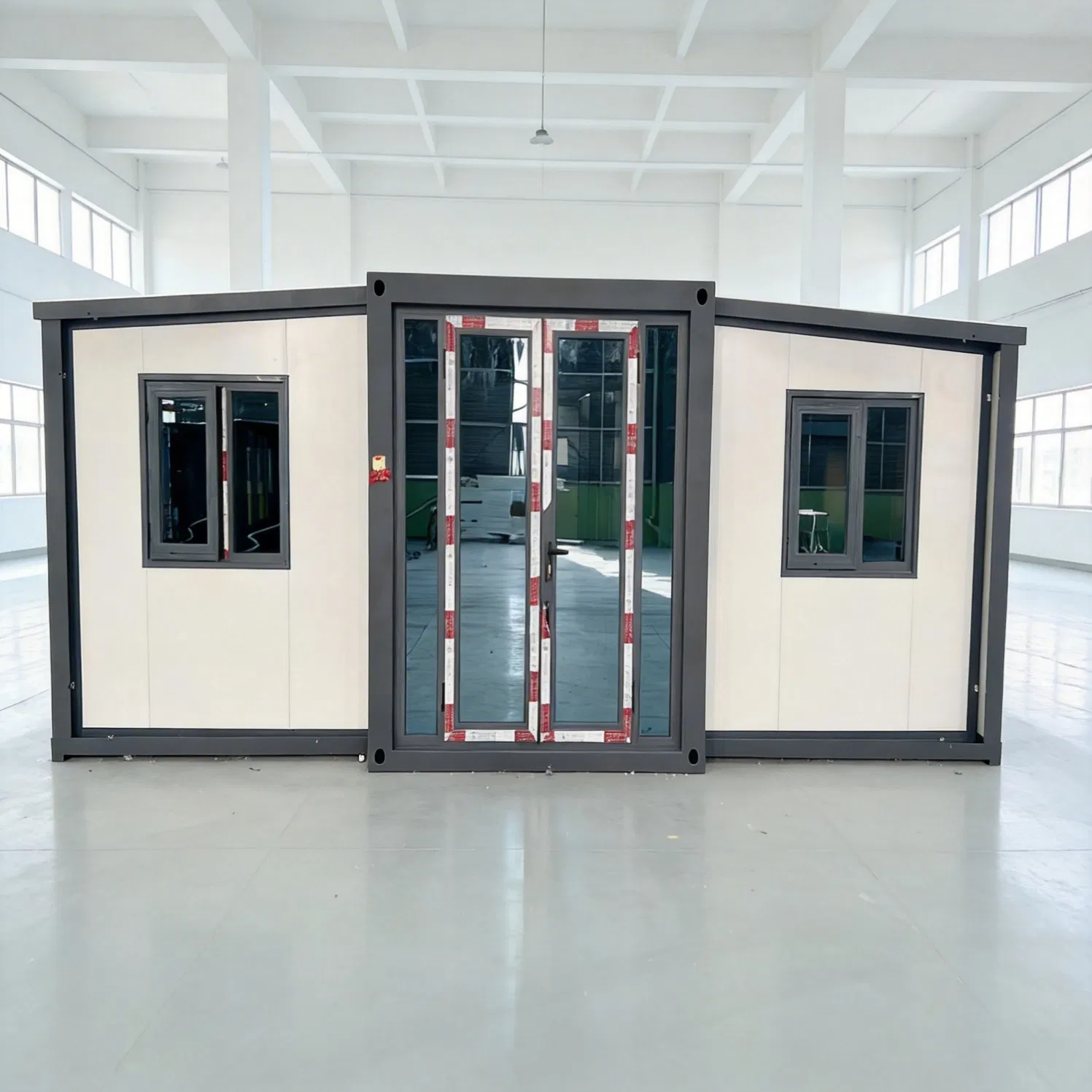

Expandable Twenty Foot Twin Wing Shipping Unit with EPS Load Bearing Roof and Double Glazed Windows for Comfort
Expandable Twenty Foot Twin Wing Shipping Unit with EPS Load Bearing Roof and Double Glazed Windows for Comfort
Expandable Twenty Foot Twin Wing Shipping Unit with EPS Load Bearing Roof and Double Glazed Windows for Comfort
Expandable Twenty Foot Twin Wing Shipping Unit with EPS Load Bearing Roof and Double Glazed Windows for Comfort
Expandable Twenty Foot Twin Wing Shipping Unit with EPS Load Bearing Roof and Double Glazed Windows for Comfort
1 / 5
Expandable Twenty Foot Twin Wing Shipping Unit with EPS Load Bearing Roof and Double Glazed Windows for Comfort
Expandable Twenty Foot Twin Wing Shipping Unit with EPS Load Bearing Roof and Double Glazed Windows for Comfort
Expandable Twenty Foot Twin Wing Shipping Unit with EPS Load Bearing Roof and Double Glazed Windows for Comfort
Expandable Twenty Foot Twin Wing Shipping Unit with EPS Load Bearing Roof and Double Glazed Windows for Comfort
Expandable Twenty Foot Twin Wing Shipping Unit with EPS Load Bearing Roof and Double Glazed Windows for Comfort

Expandable Twenty Foot Twin Wing Shipping Unit with EPS Load Bearing Roof and Double Glazed Windows for Comfort

After-sales Service: Field Installation, Commissioning and Training
Application: Apartment
Fast Installation: Standard Installation
Send Inquiry

Product Description

Basic Specifications

Feature
Earthquake Resistant, Easily Movable, Eco-Friendliness, Leak Proof, Moisture Proof, Safe
Material
Container
Expanded Dimensions
L5900 × W6480 × H2480
Interior Dimensions
L5460 × W6320 × H2235
Folded Dimensions
L5900 × W2200 × H2480
Occupancy
2-4 People
Power Consumption
12 Kw
Floor Area
38.2 m²

Product Highlights

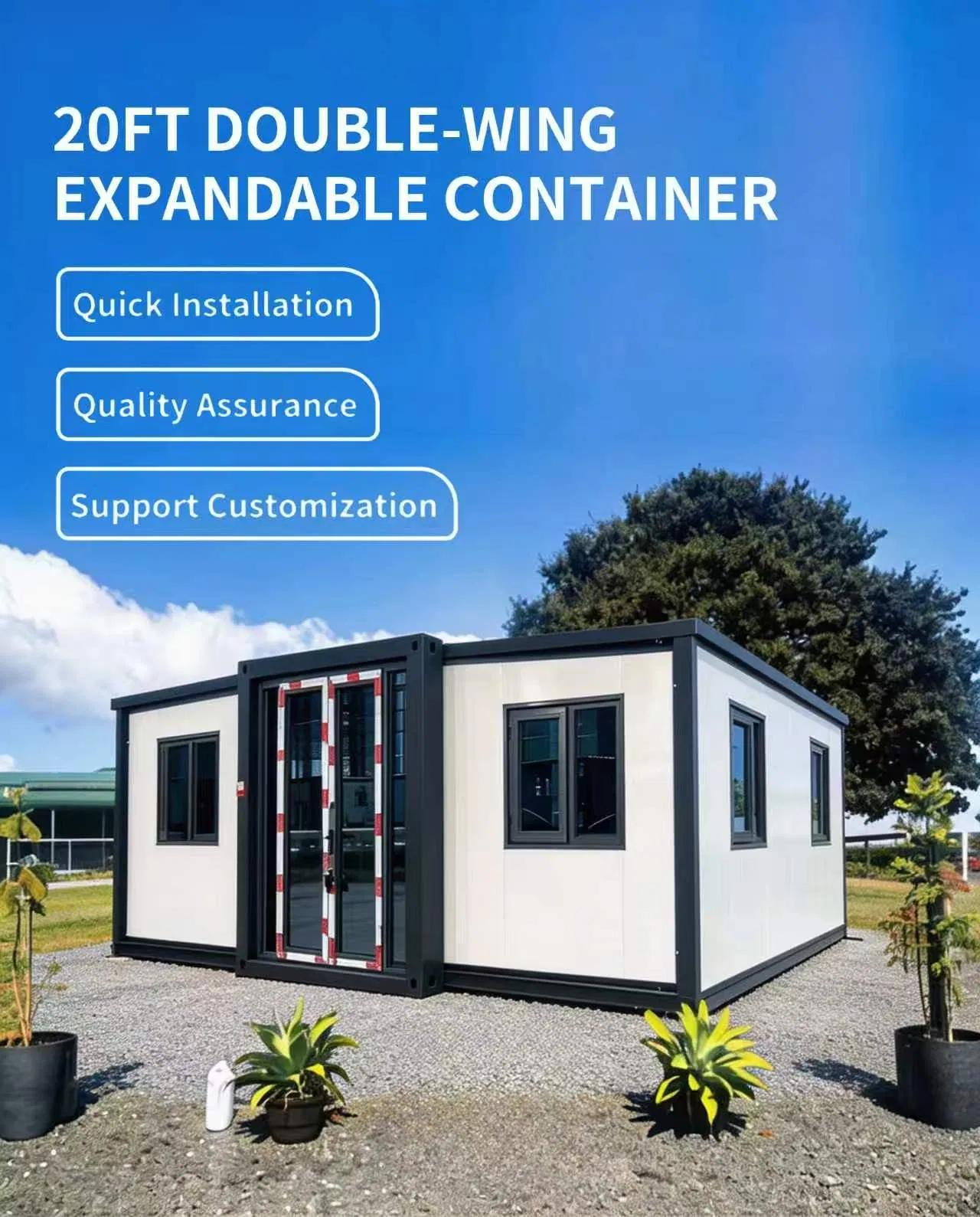

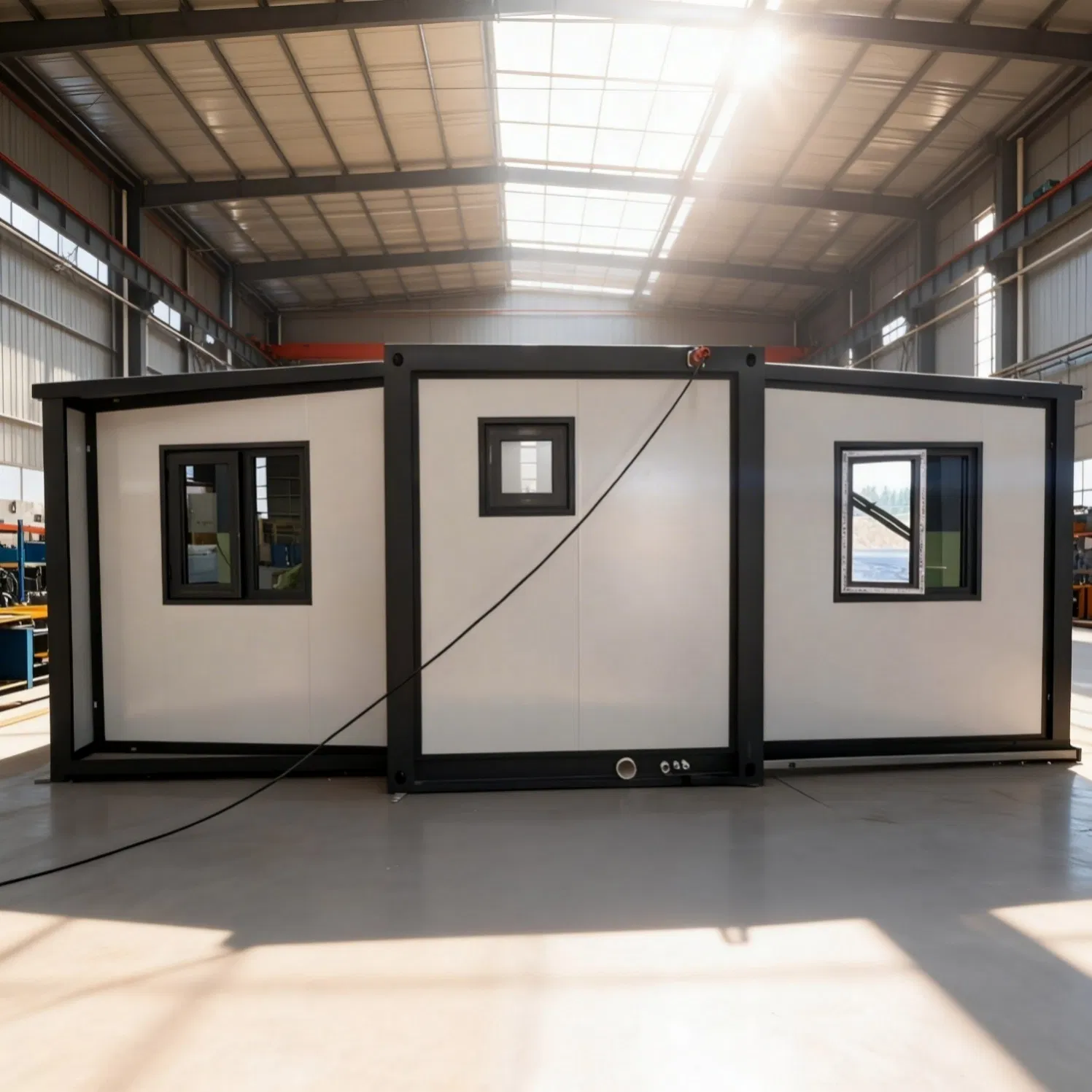

Expandable Unit Overview

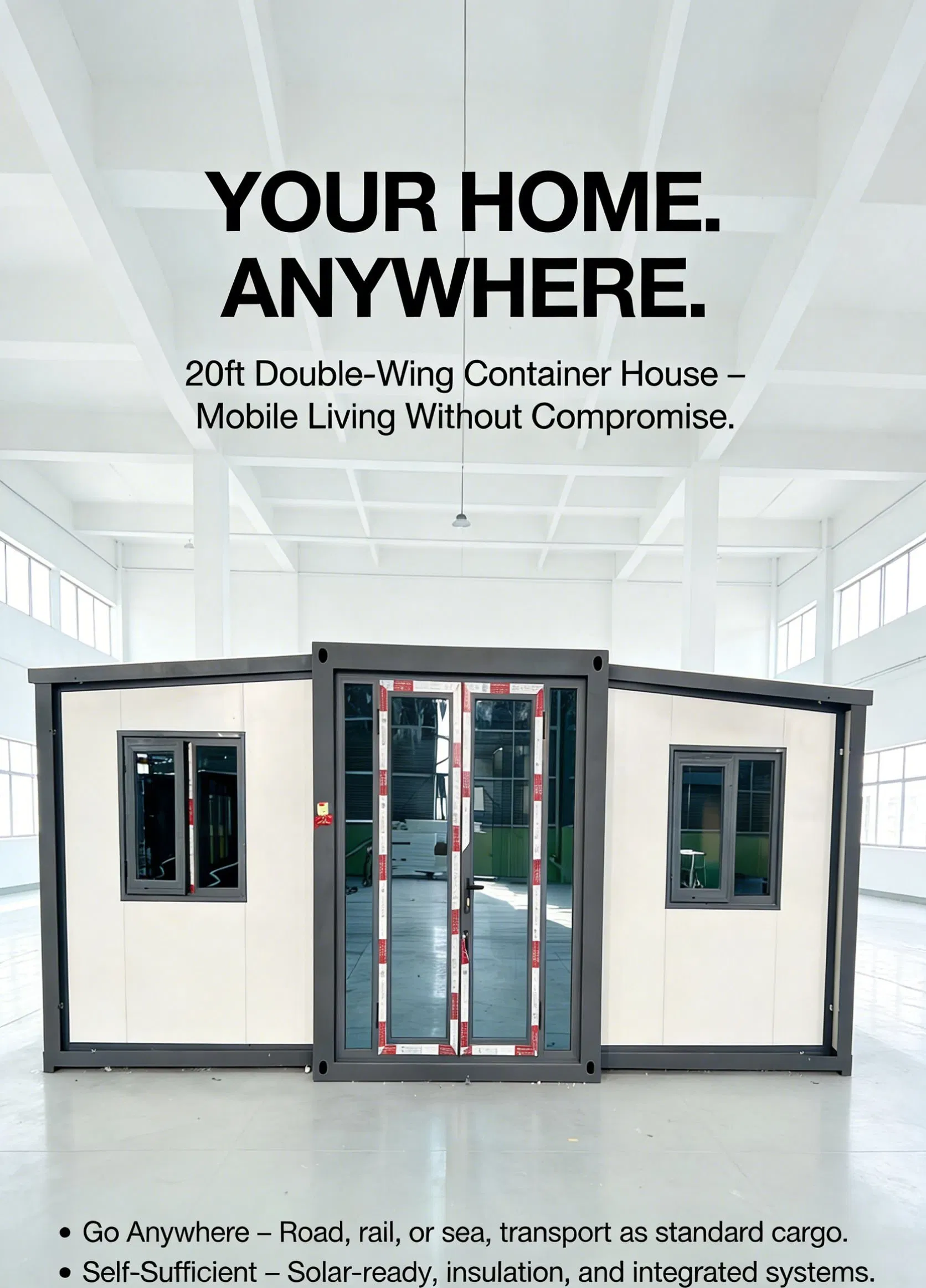

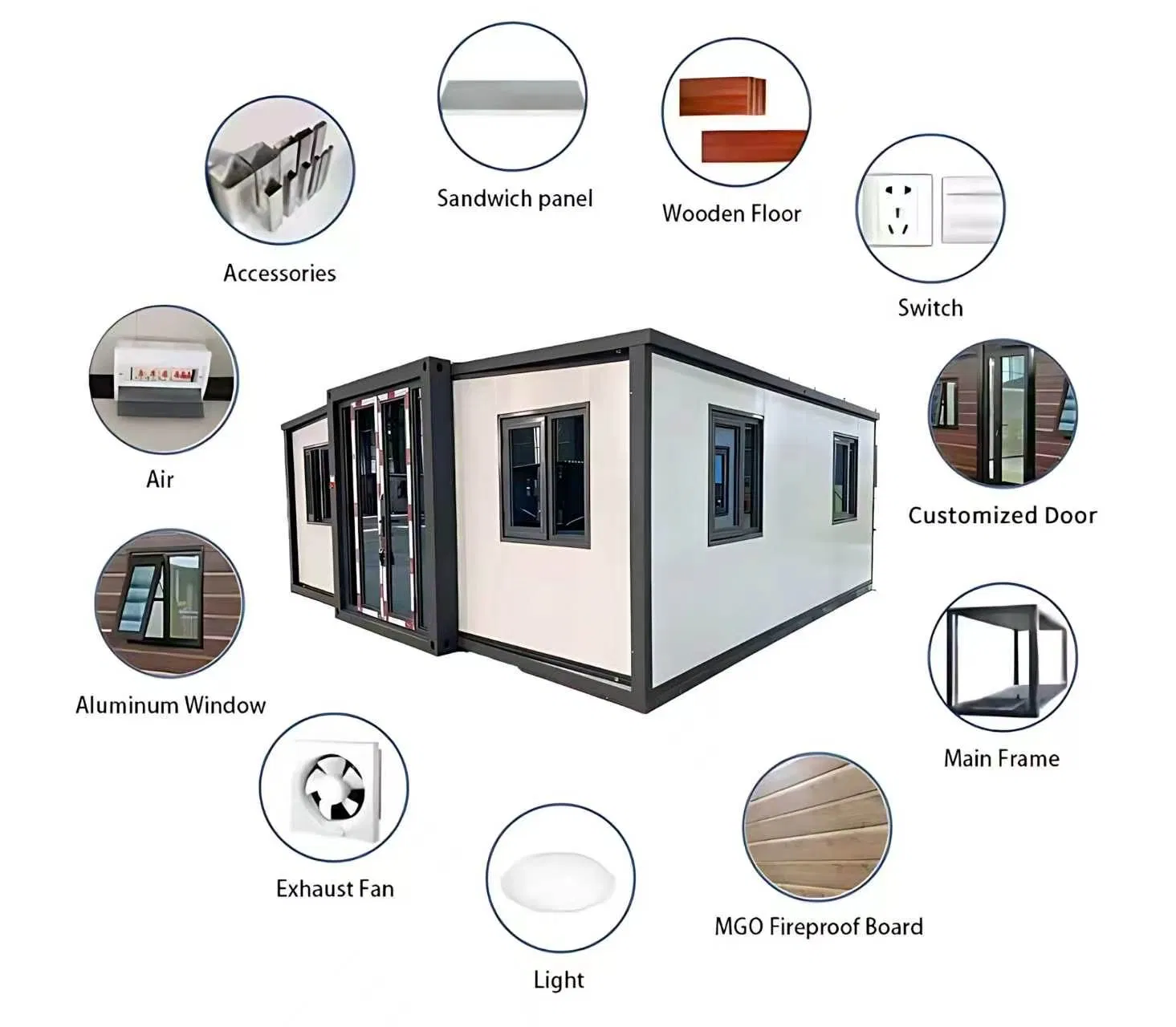

Unit Structural View
✔
Superior Load-Bearing Roof: High-density EPS top panel delivers excellent structural strength and durability.
✔
Reinforced Lifting Points: 8 mm thick lifting anchors, exceeding standard specifications for safer handling.
✔
Premium Exterior Finish: 0.27 mm orange-peel textured wall panels for weather resistance.
✔
Seamless Exterior: No exposed nails on the outer surface, ensuring better waterproofing and corrosion protection.
✔
Upgraded Base Frame: 40×60 mm bottom steel tubing for greater rigidity and resistance to deformation.
✔
Double-Glazed Windows: Plastic-steel windows for improved thermal insulation and noise reduction.

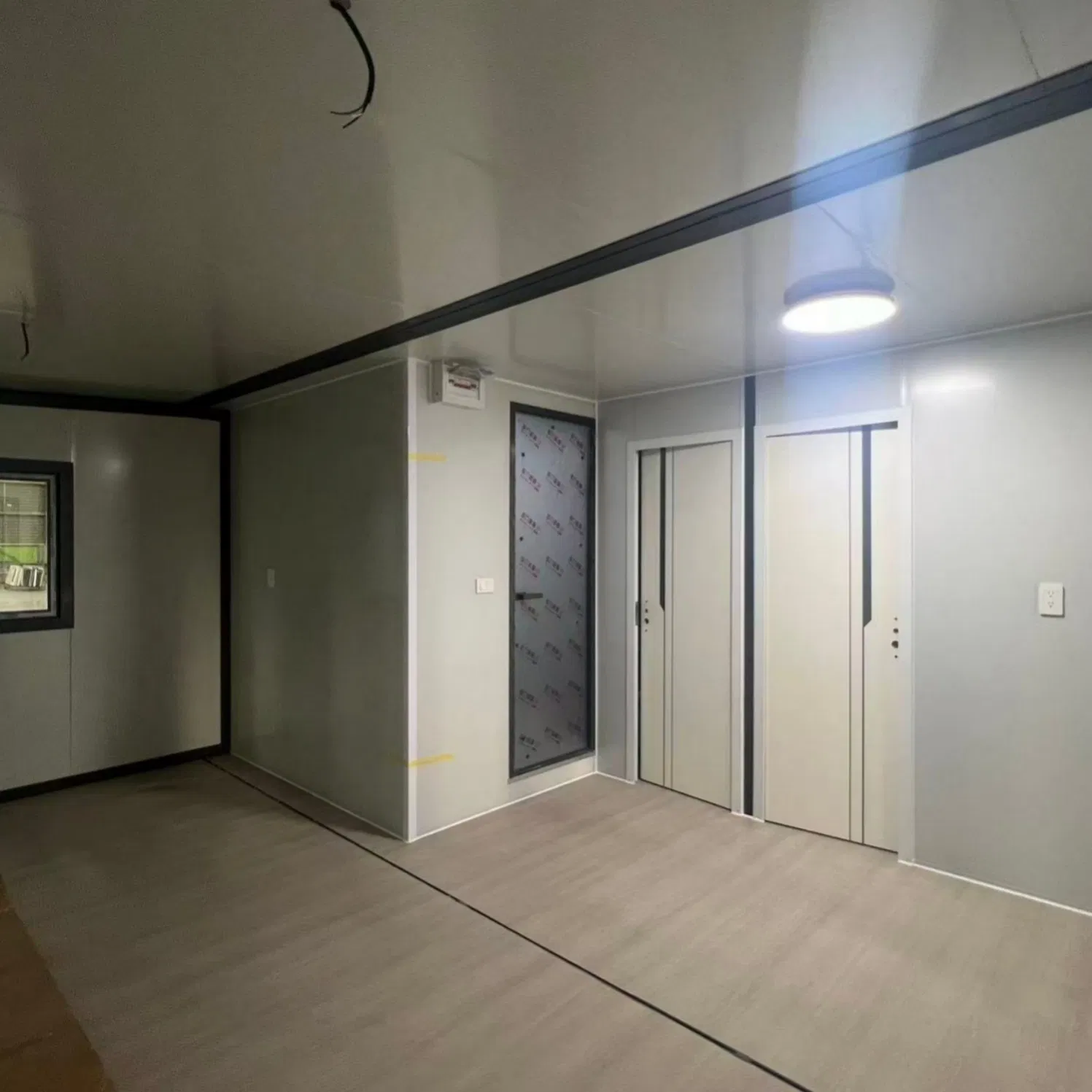

Interior Construction
Base Frame Detail

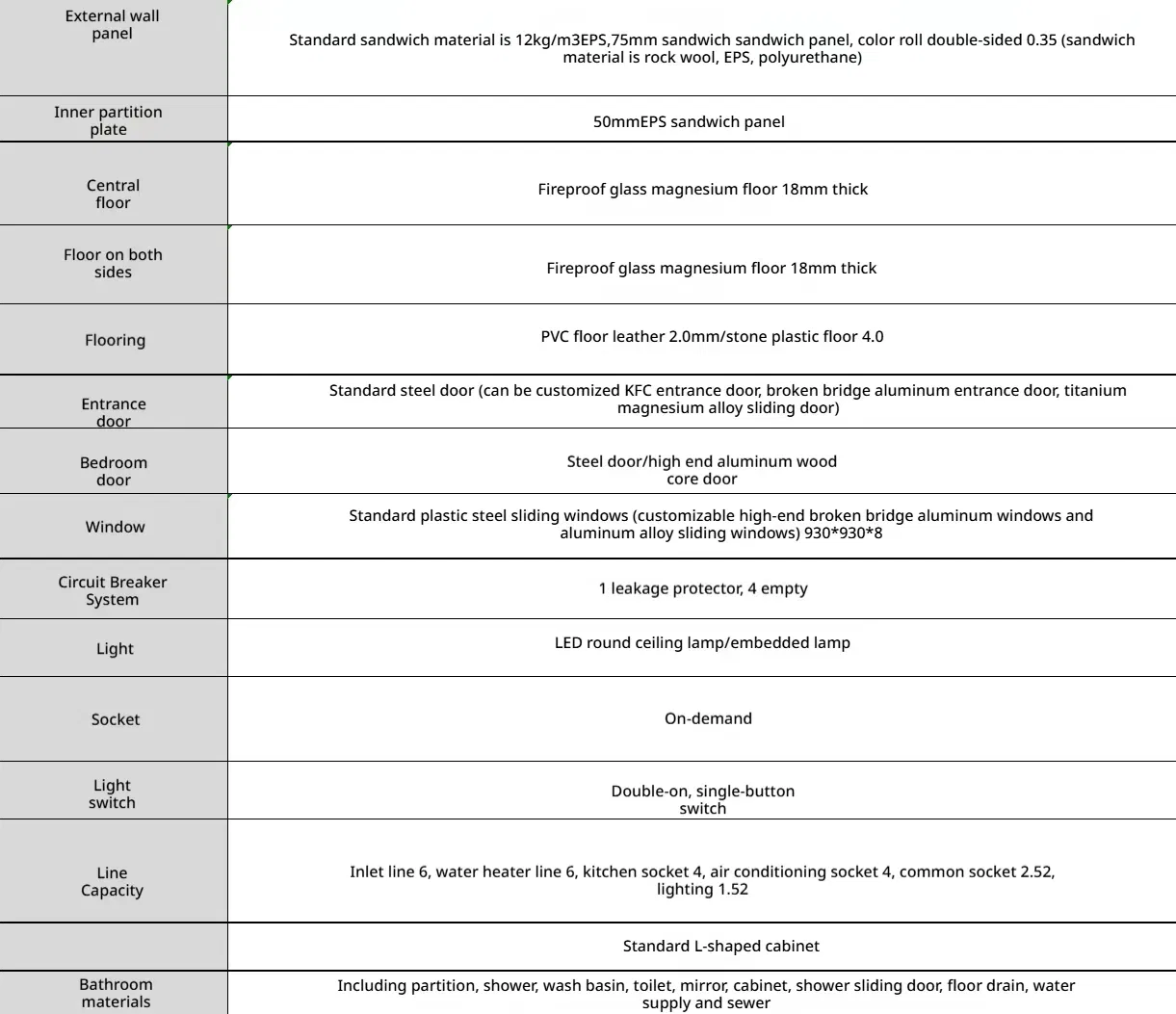

Technical Parameters

Main Component Specification
Top main beam80*80*2.5mm square tube
Top beamBending piece 2.0mm
Bottom main beam60*80*2.5mm square tube
Bottom cross memberBending piece 2.0mm
Column Hanging HeadBending piece 2.0mm (6mm hanger liner)
Top Frame40*80*1.5mm P tube / 40*80*2.0mm square tube
Bottom frame60*80*2.0mm / 80*80*2.0mm square tube
Folding hinge13mm Galvanized Hinge
External Center Top1.0 thick steel plate (integrally welded)
Internal top/ceiling50mm EPS sandwich panel

Product Gallery

Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Expansion View

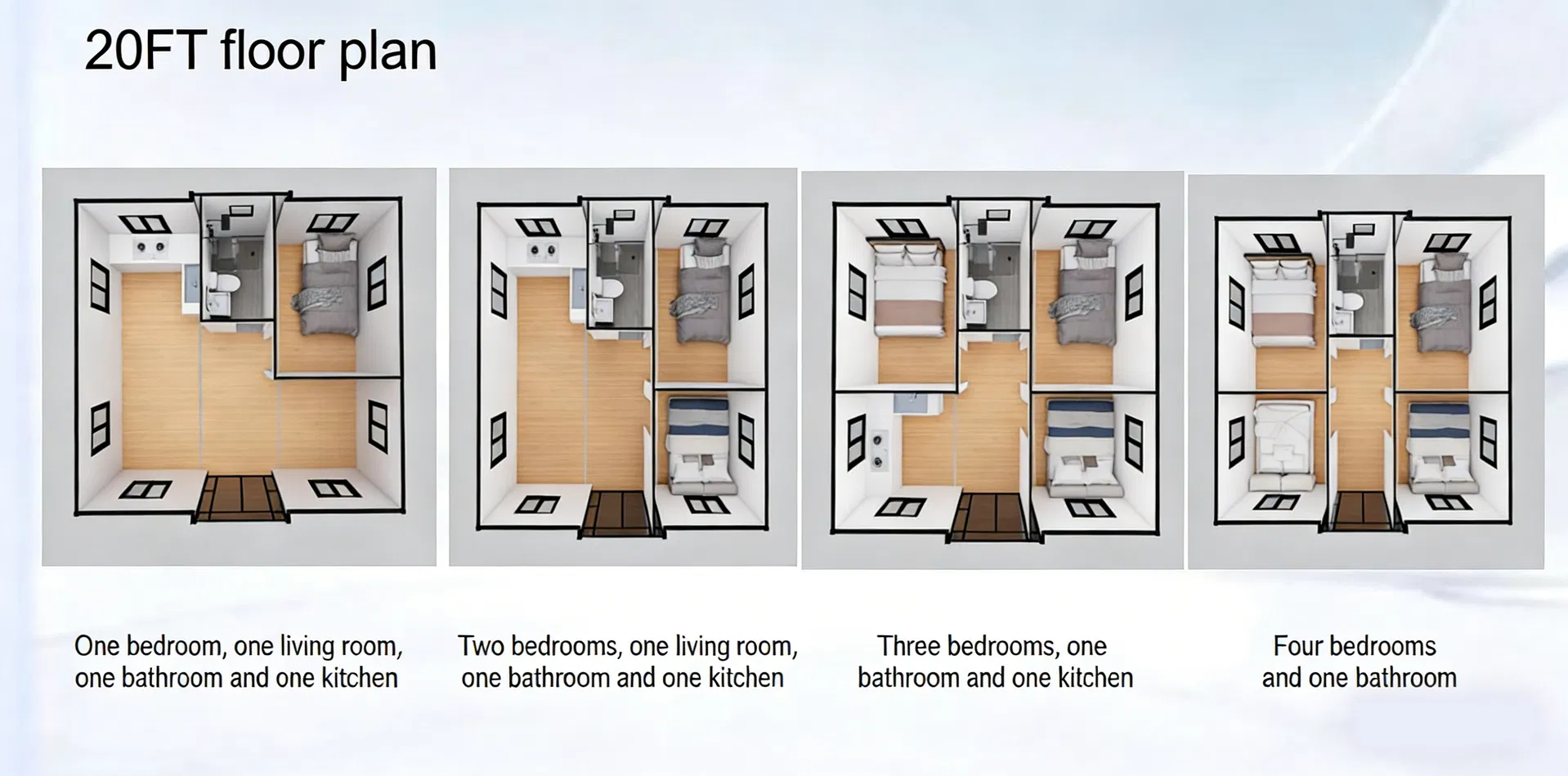

Internal Layout

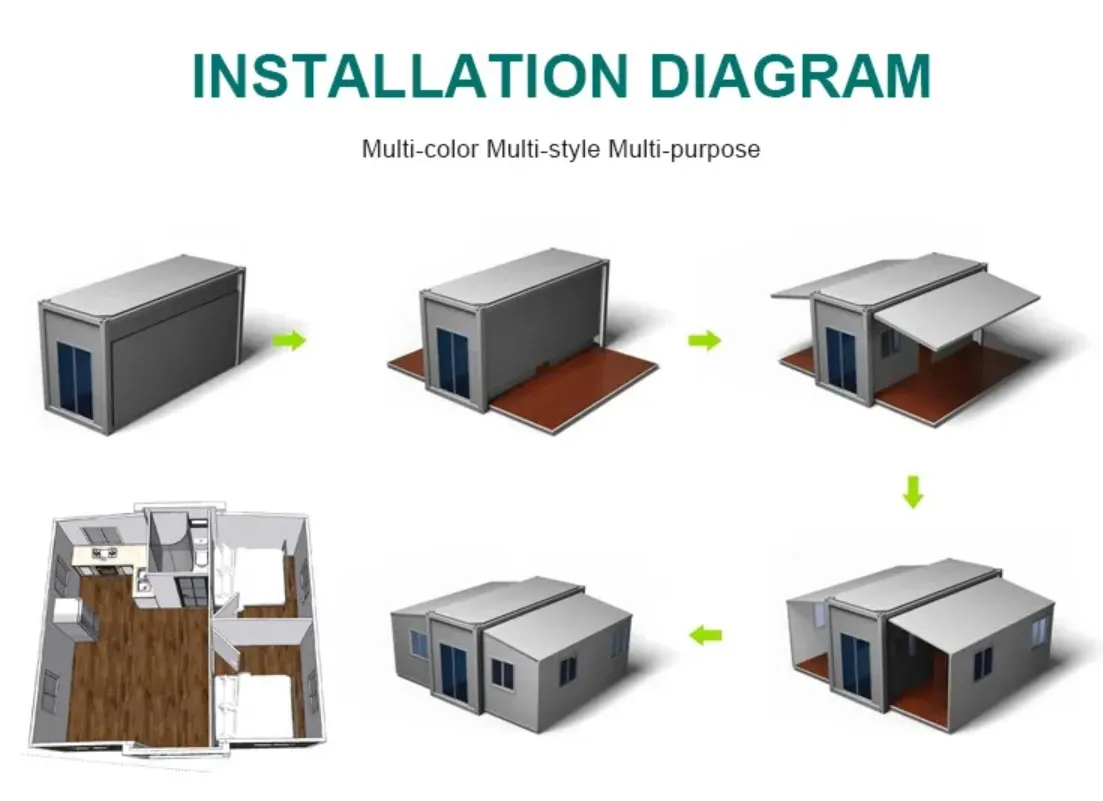

Installation Step 1
Installation Step 2

Frequently Asked Questions

Are you a manufacturer?
We are not only a manufacturer but also production experts in the field of expandable container units.
Is the quality of the units reliable?
Our units are built to high standards. There are no quality issues with our machinery and production process, ensuring safe and long-term use.
Do you provide assistance with installation?
Yes, we provide support and can arrange for experienced engineers to assist with installation requirements abroad.
What is the warranty period?
We provide a standard one-year warranty and continue to help solve any problems that may arise even outside the warranty period.
Is the unit earthquake and moisture resistant?
Yes, the unit is specifically designed to be earthquake resistant, moisture proof, and leak proof for enhanced safety.
How many people can the 20ft expandable container accommodate?
The unit is designed for comfortable occupancy of 2 to 4 people, making it ideal for various residential or commercial uses.
