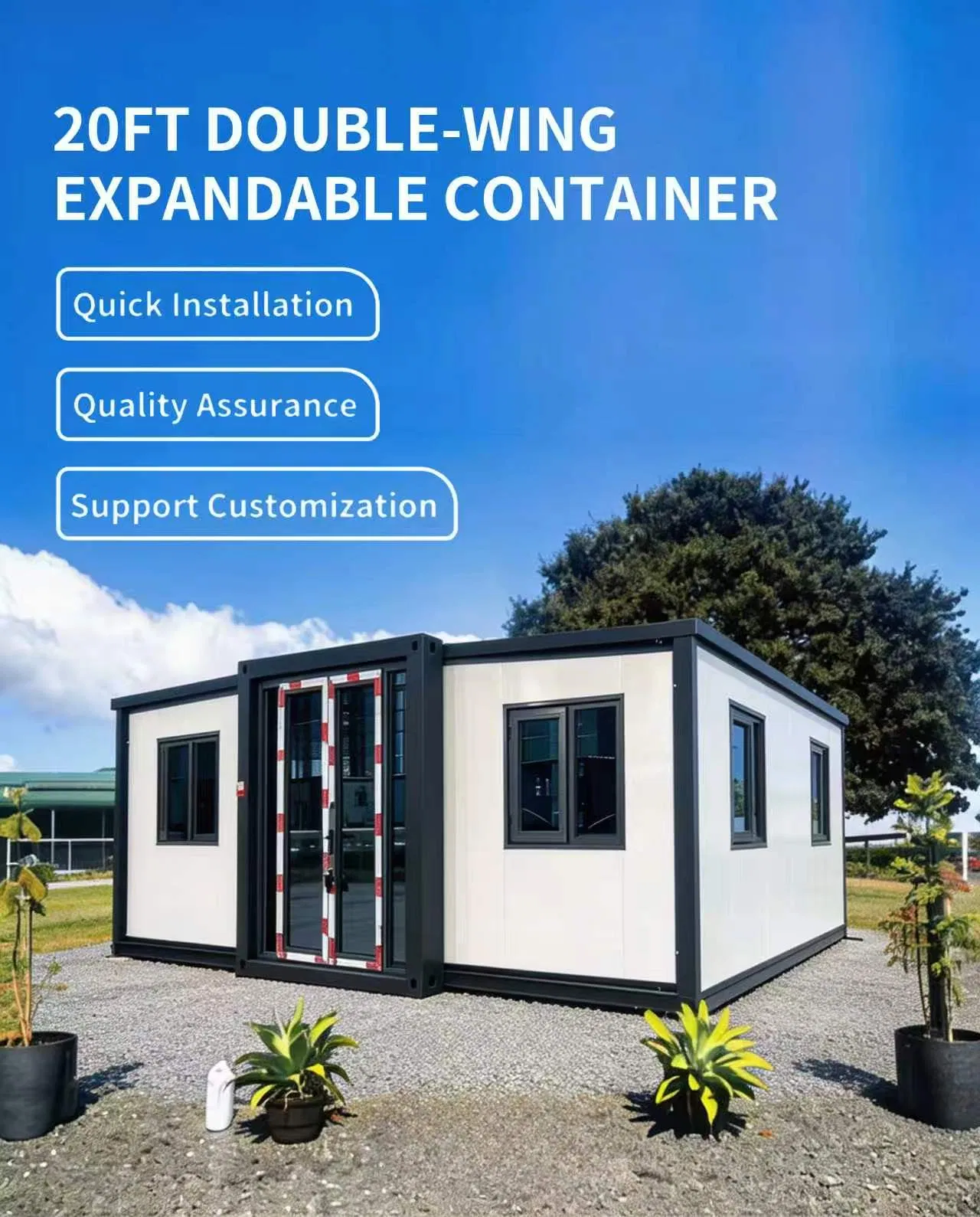

Overview & Basic Specifications
Feature
Earthquake Resistant, Easily Movable, Eco-Friendliness, Leak Proof, Moisture Proof, Safe
Material
Container Structure

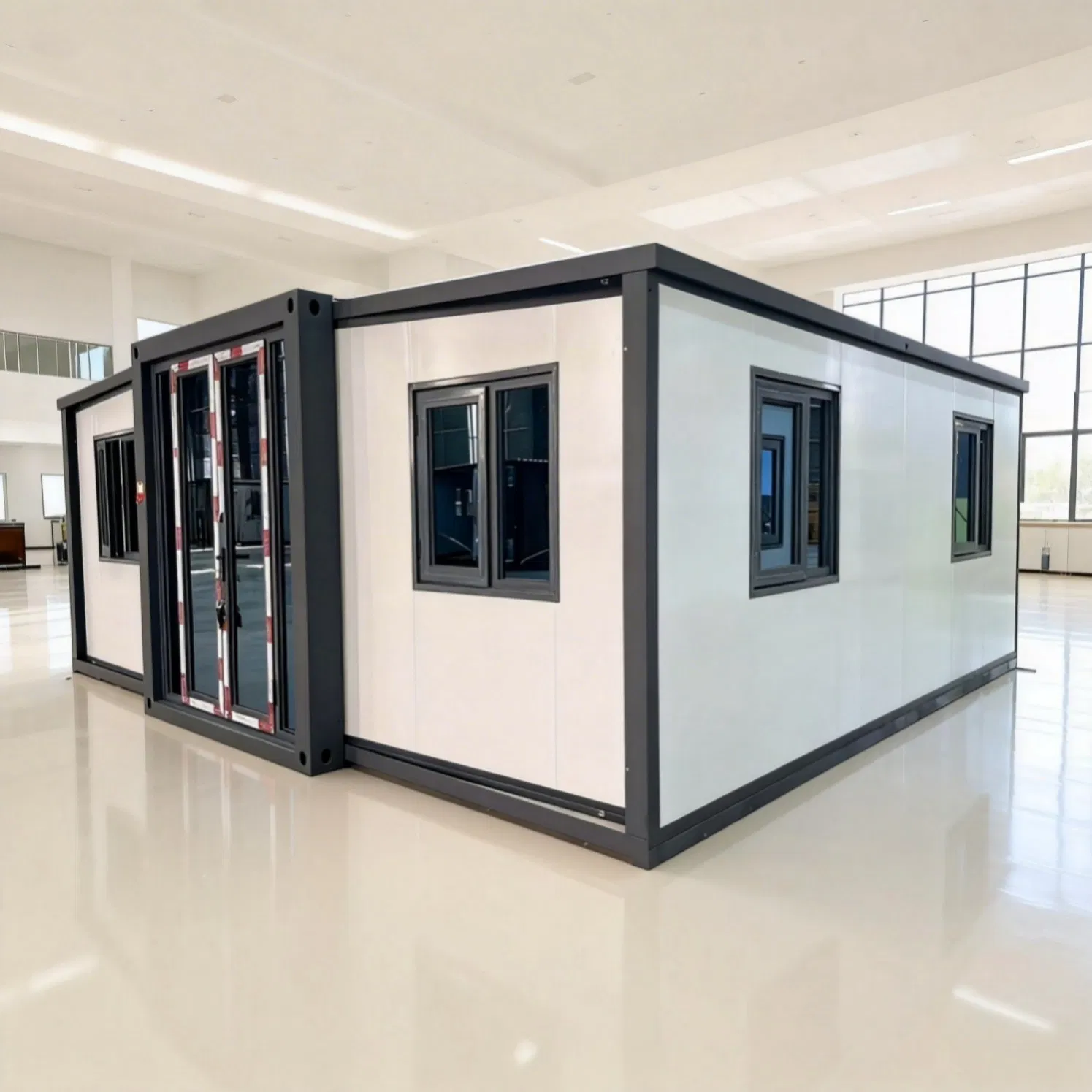

Expanded Dimensions
L5900 × W6480 × H2480
Interior Dimensions
L5460 × W6320 × H2235

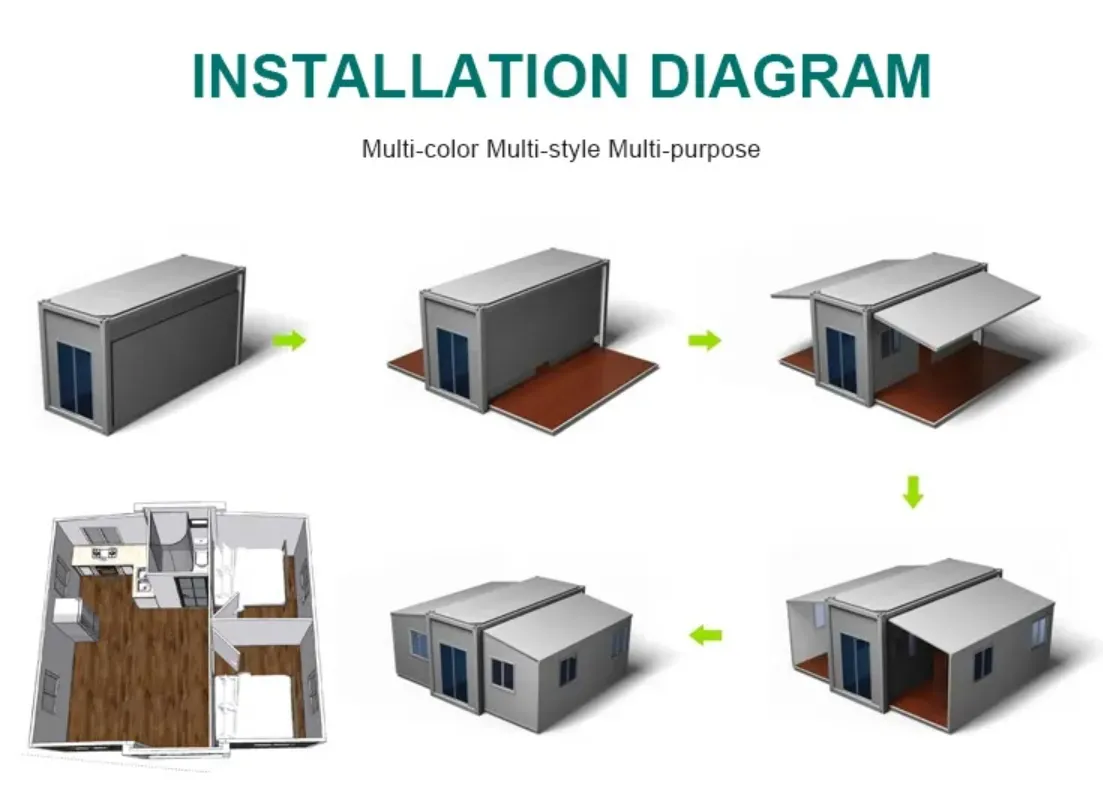

Folded Dimensions
L5900 × W2200 × H2480

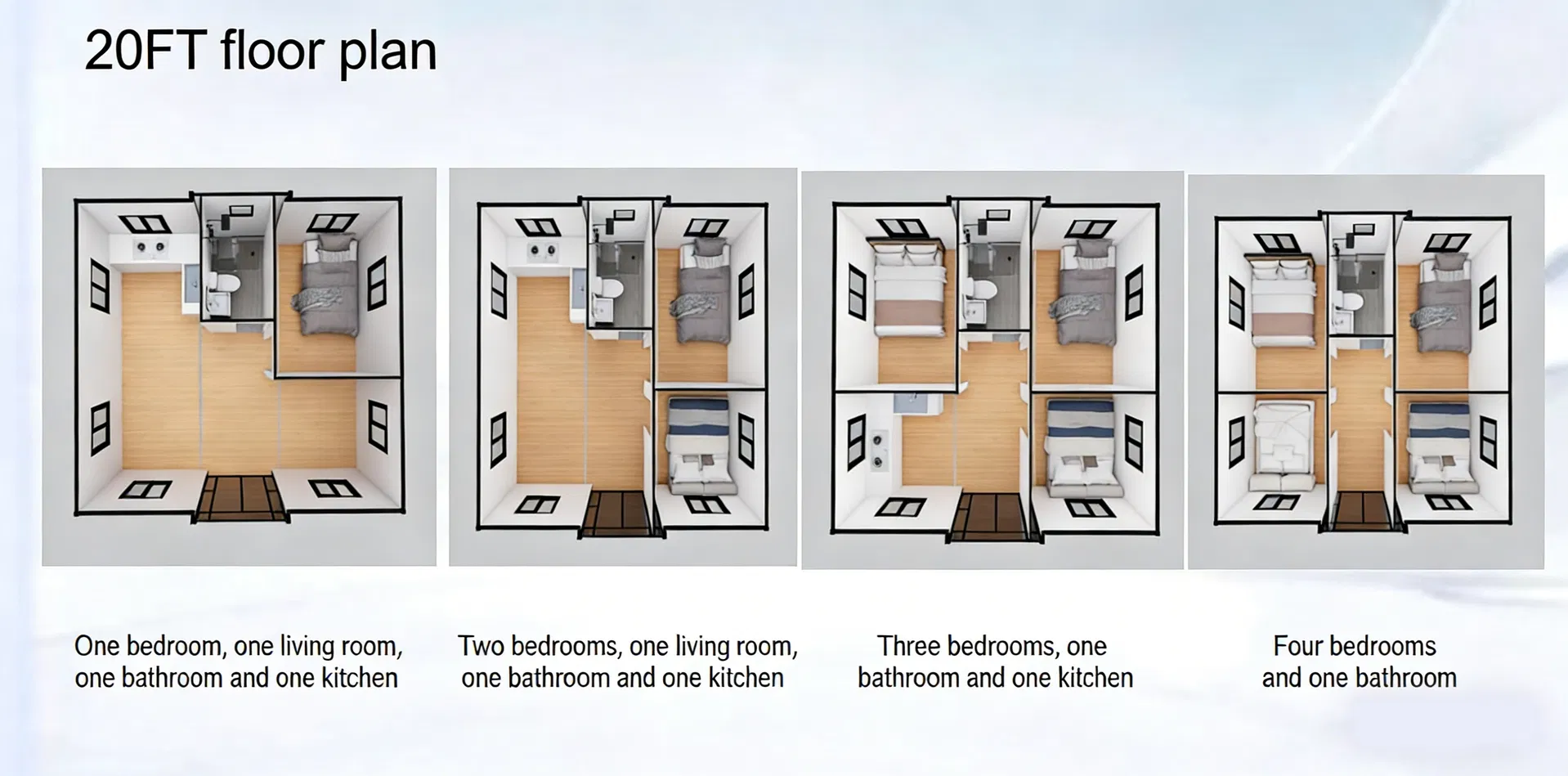

Occupancy
2-4 People
Power Consumption
12 Kw
Production Capacity
1000 Sets/Year

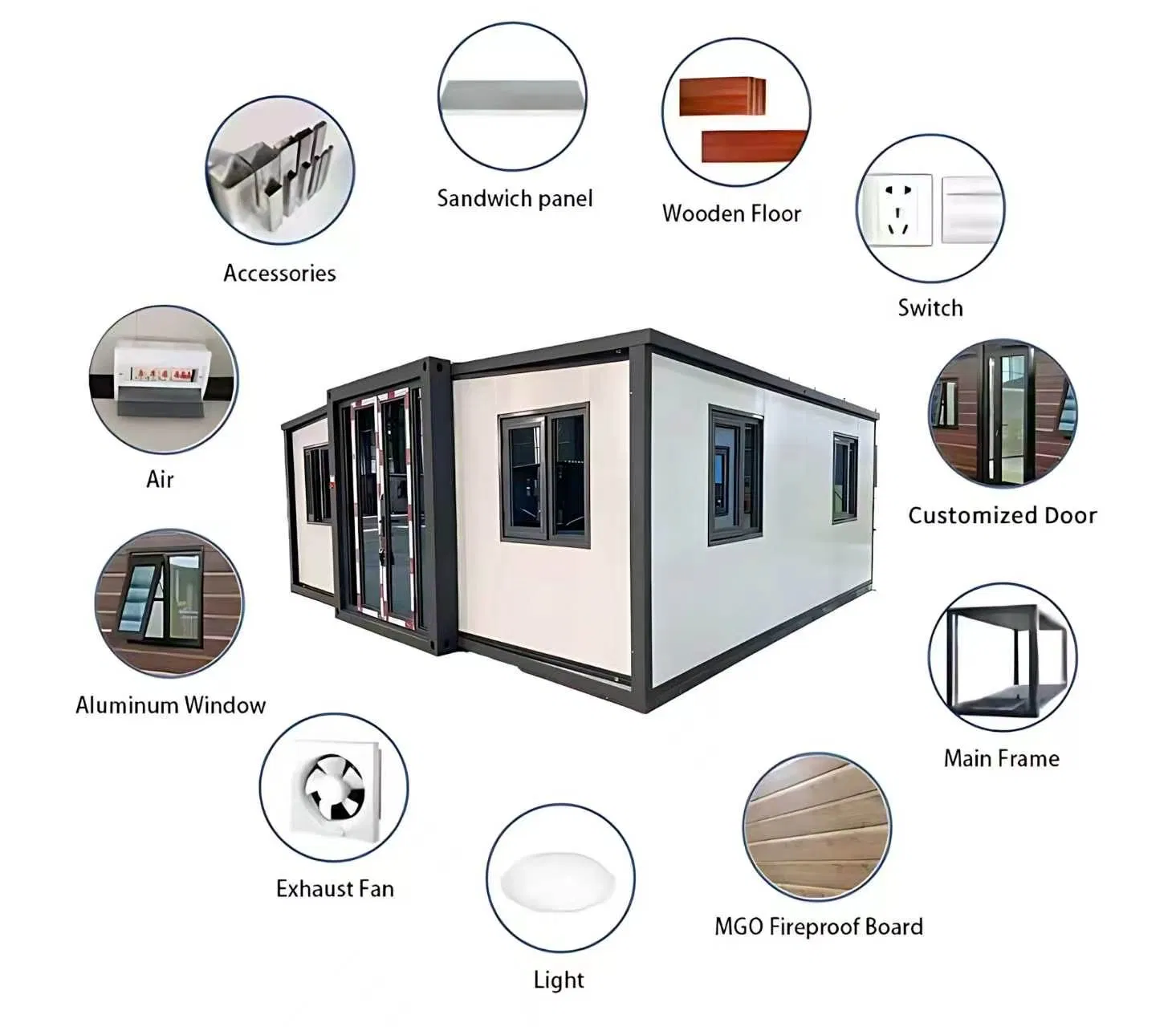

Key Product Features
✓

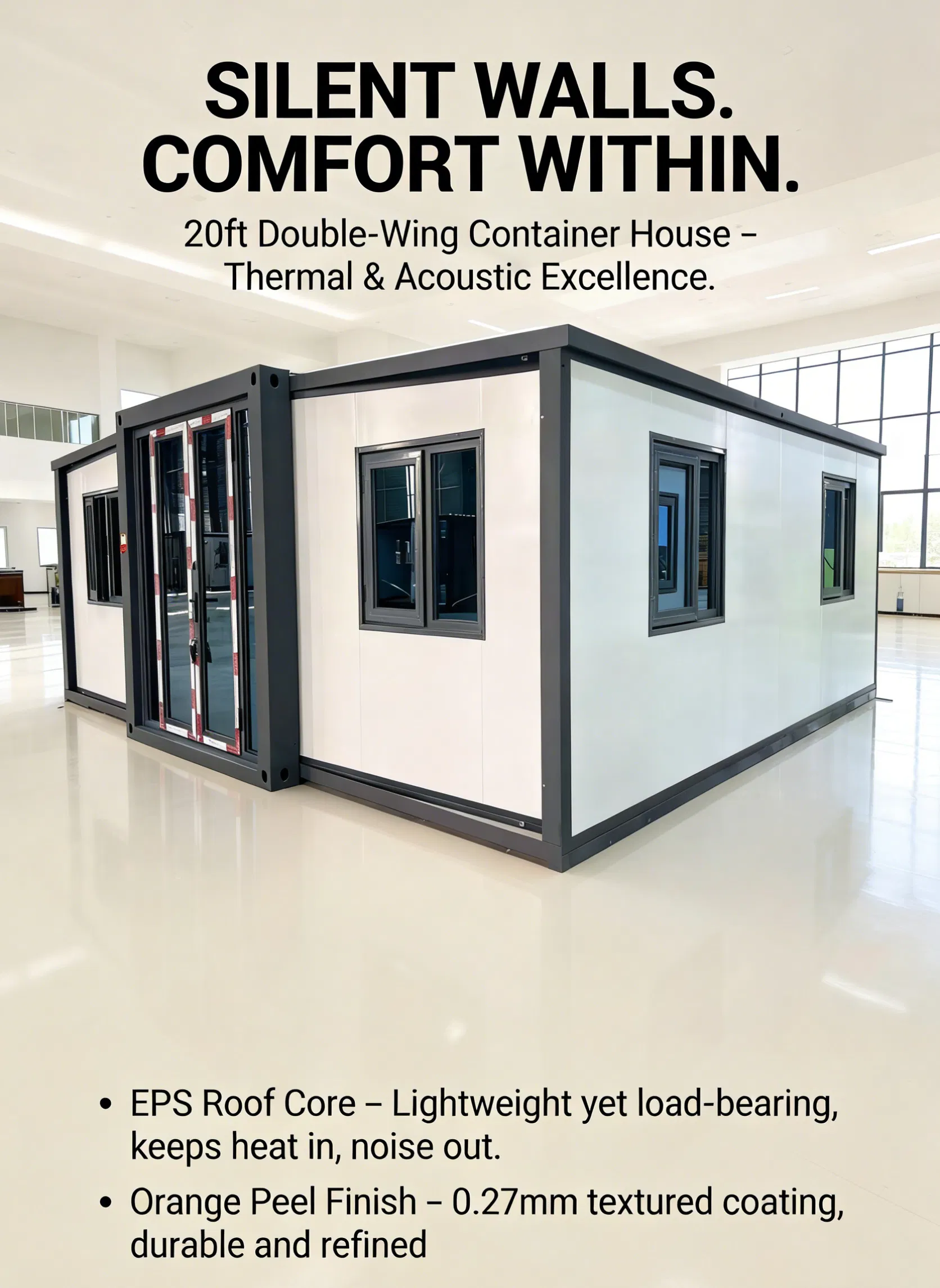

Superior Load-Bearing Roof: High-density EPS top panel delivers excellent structural strength and durability.
✓
Reinforced Lifting Points: 8 mm thick lifting anchors, exceeding standard specifications for safer handling and transport.
✓
Premium Exterior Finish: 0.27 mm orange-peel textured wall panels offer an attractive appearance and enhanced weather resistance.
✓
Seamless, Nail-Free Exterior: No exposed nails on the outer surface, ensuring better waterproofing and corrosion protection.
✓
Upgraded Base Frame: 40×60 mm bottom steel tubing provides greater rigidity and resistance to deformation.
✓

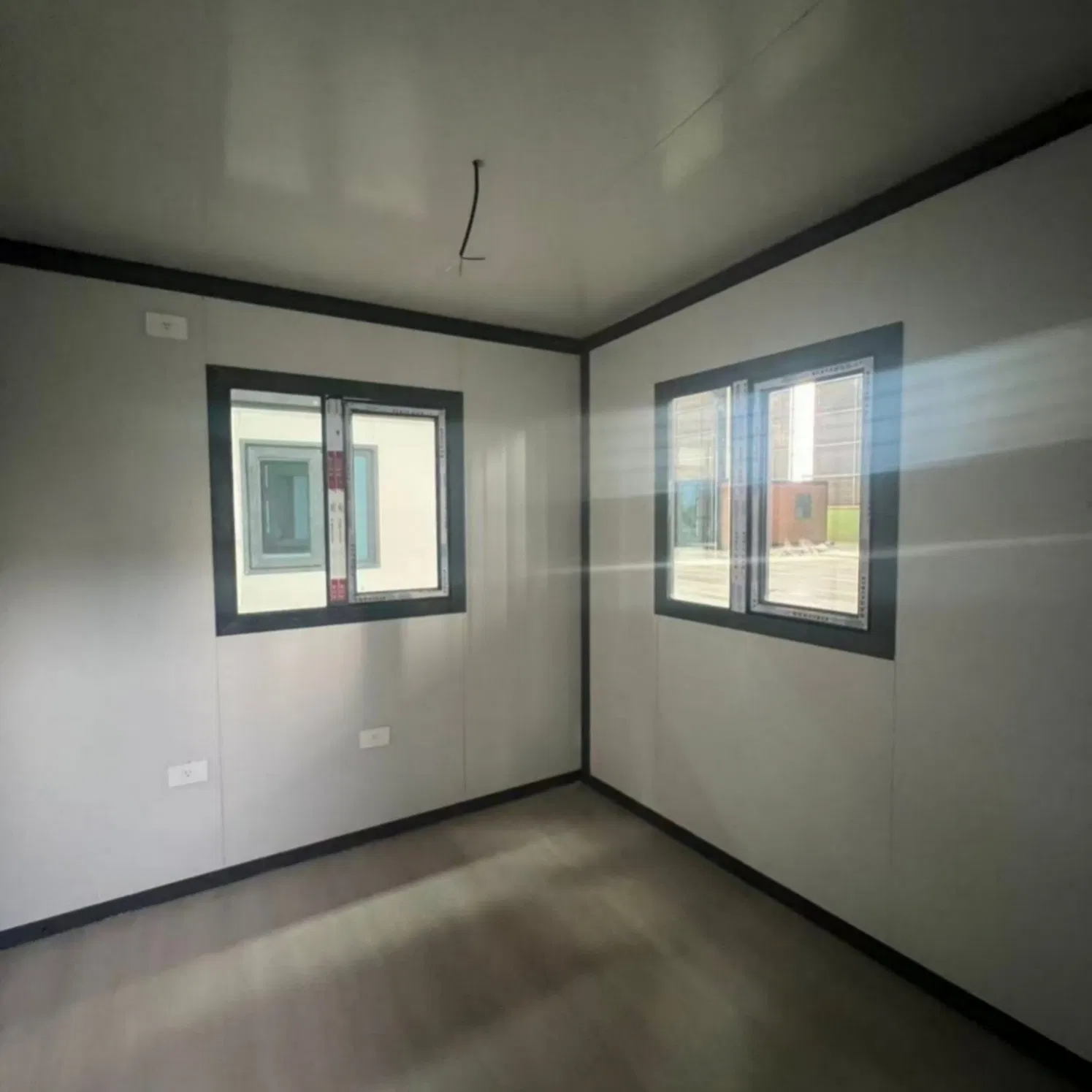

Double-Glazed Windows: Plastic-steel windows for improved thermal insulation and noise reduction.

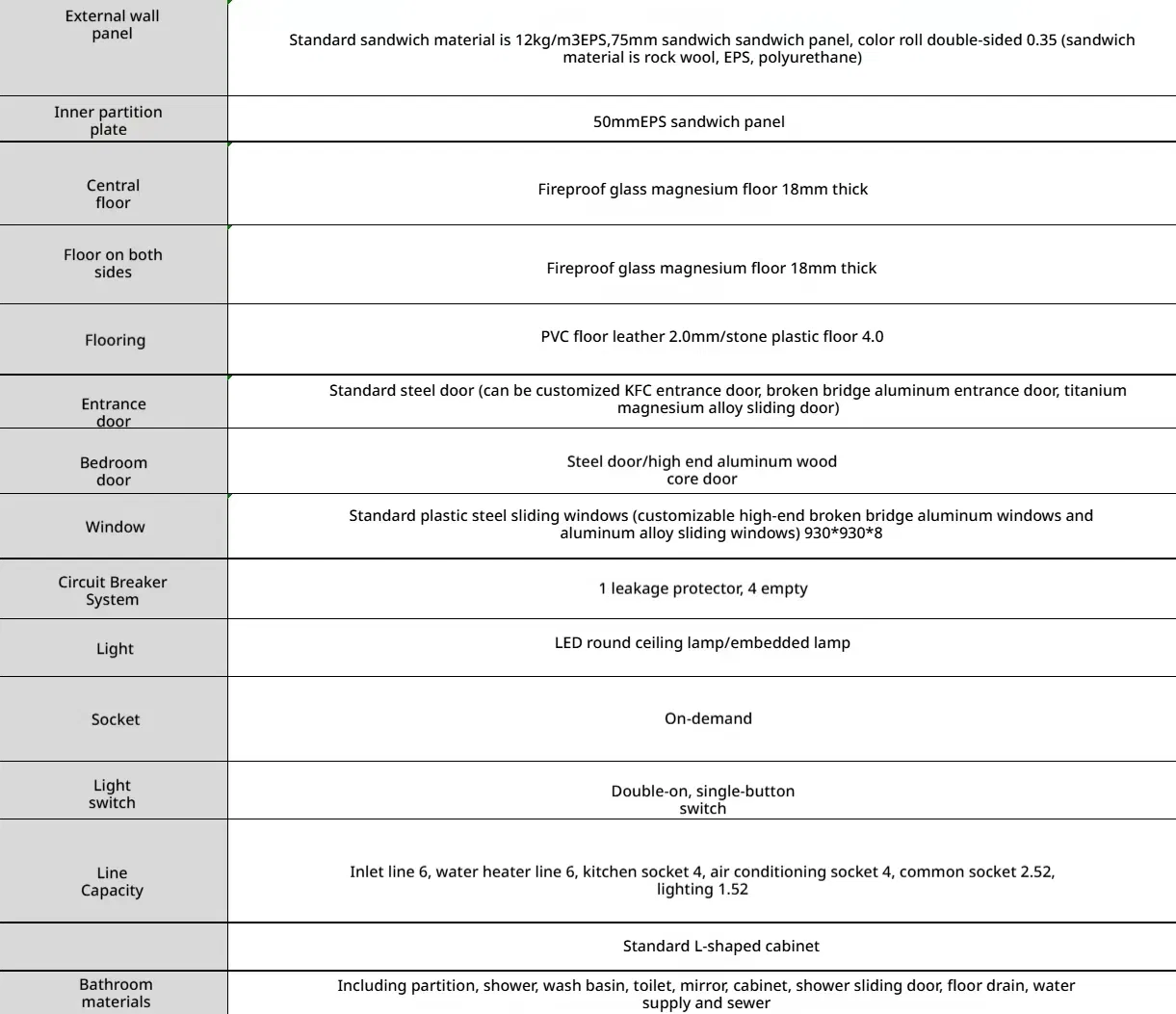

Technical Specifications
| Component |
Sub-Category |
Specification Details |
| Main Frame (Fully Galvanized) |
Top Main Beam |
80*80*2.5mm square tube |
| Top Beam |
Bending piece 2.0mm |
| Bottom Main Beam |
60*80*2.5mm square tube |
| Bottom Cross Member |
Bending piece 2.0mm |
| Column Hanging Head |
Bending piece 2.0mm (6mm hanger liner) |
| Secondary Frame |
Top Frame |
40*80*1.5mm P tube / 2.0mm bending part |
| Bottom Frame |
60*80*2.0mm / 80*80*2.0mm square tube |
| Folding Hinge |
13mm Galvanized Hinge |
| Protective Coating |
Integral Frame |
Electrostatic Spraying |
| Roofing & Insulation |
External/Internal |
1.0mm thick welded steel plate / 50mm EPS sandwich panel |
FAQ
Are you a manufacturer?
We are not only the manufacturer but also production experts with extensive experience in modular unit fabrication.
What is the quality of your units?
Our units undergo rigorous quality control. With upgraded 40x60mm steel frames and reinforced lifting points, they are built for durability and long-term use.
Do you provide assistance with installation?
Yes, we provide professional support and can arrange for experienced engineers to assist with installation abroad to ensure proper setup.
What is the warranty period for the modular units?
We provide a one-year warranty and continue to offer technical support and problem-solving assistance even after the warranty period expires.
How well is the unit insulated for different climates?
The units are equipped with 50mm high-density EPS sandwich panels and double-glazed plastic-steel windows, providing excellent thermal insulation and noise reduction.
How many people can the 20ft expandable container accommodate?
The 20ft double-wing expandable container is designed to comfortably accommodate 2 to 4 people, making it ideal for temporary or permanent housing.
