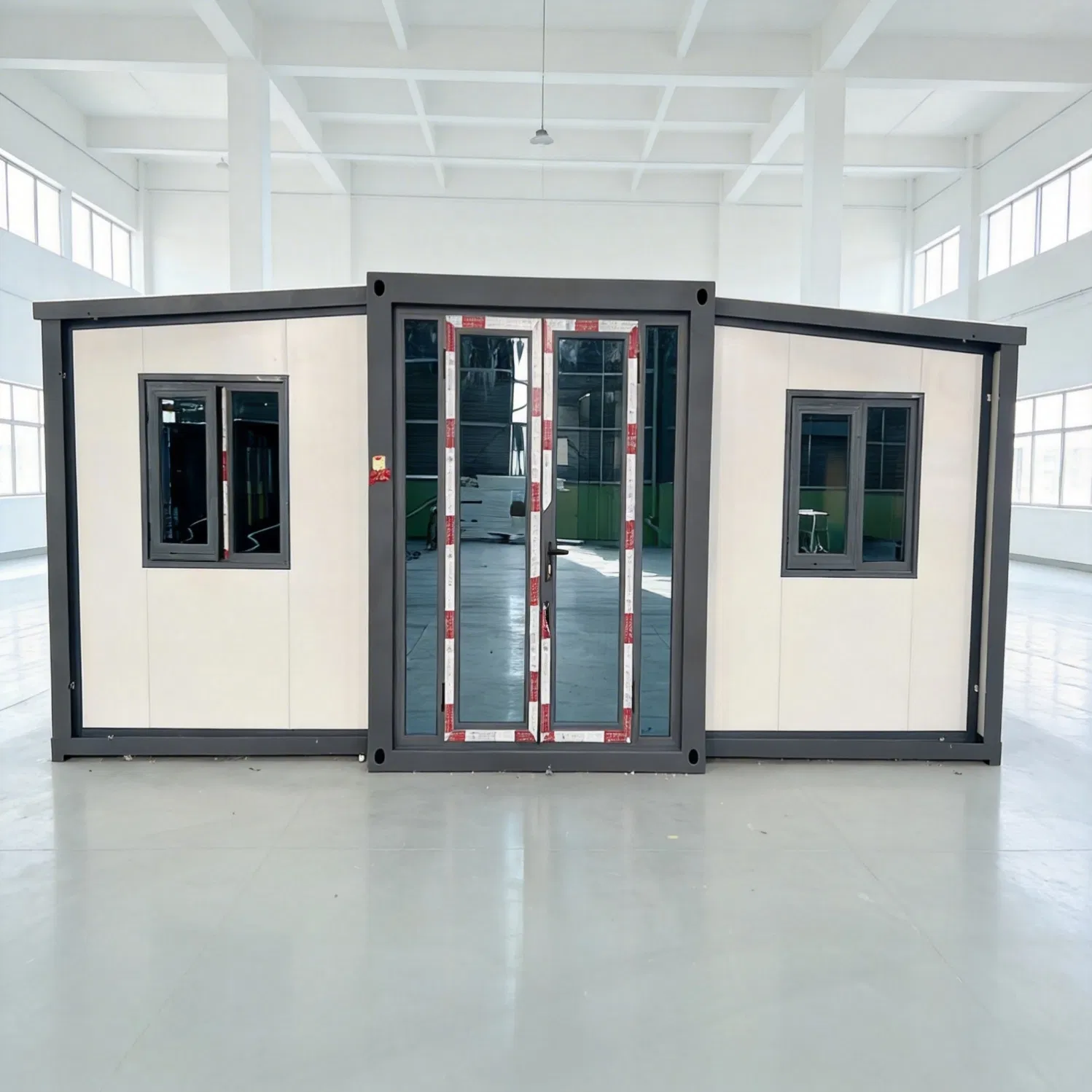

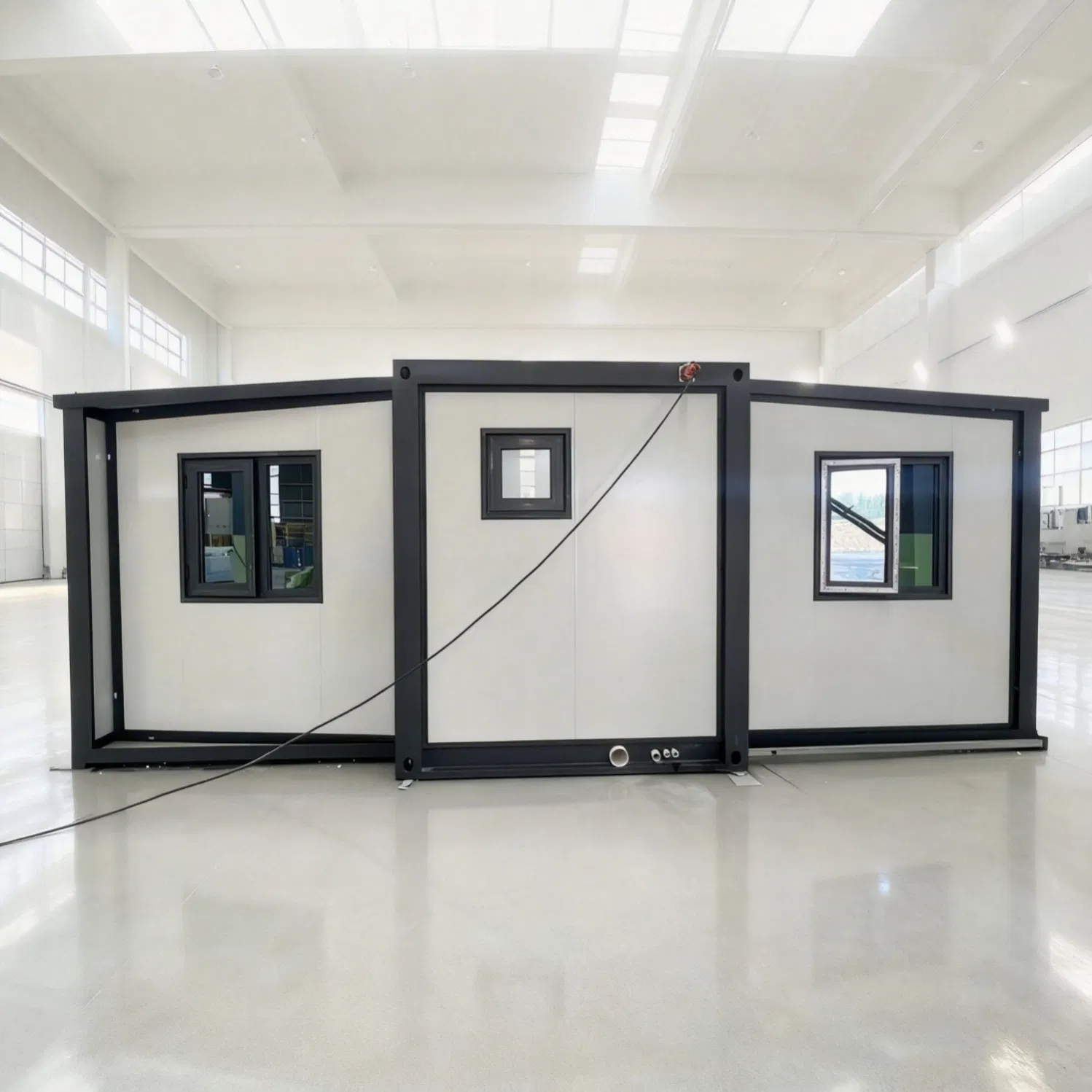

Expandable Twenty Foot Double Wing Modular Unit with No Nail Construction and 40X60mm Square Tube Support Frame

After-sales Service: Field Installation, Commissioning and Training
Application: Apartment
Fast Installation: Standard Installation

Product Description

i

Basic Specifications

Feature:
Earthquake Resistant, Easily Movable, Eco-Friendliness, Leak Proof, Moisture Proof, Safe
Material:
Container
Expanded:
L5900 × W6480 × H2480
Interior:
L5460 × W6320 × H2235
Folded:
L5900 × W2200 × H2480
Occupancy:
2-4 People
Power:
12 Kw
Transport:
40hq Container
Specification:
40 HQ container *6
Trademark:
BRICK MATE
Origin:
China
Capacity:
1000 Sets/Year

Key Product Highlights

Expandable Double Wing Unit
  • Superior Load-Bearing Roof: High-density EPS top panel delivers excellent structural strength and durability.
  • Reinforced Lifting Points: 8 mm thick lifting anchors, exceeding standard specifications for safer handling and transport.
  • Premium Exterior Finish: 0.27 mm orange-peel textured wall panels offer an attractive appearance and enhanced weather resistance.
  • Seamless, Nail-Free Exterior: No exposed nails on the outer surface, ensuring better waterproofing and corrosion protection.
  • Upgraded Base Frame: 40×60 mm bottom steel tubing provides greater rigidity and resistance to deformation.
  • Double-Glazed Windows: Improved thermal insulation and noise reduction for enhanced comfort.
📋

Technical Parameters

ParameterDetails
Product name20ft Double-wing Expandable Container
Expanded DimensionsL5900 × W6480 × H2480
Interior DimensionsL5460 × W6320 × H2235
Folded DimensionsL5900 × W2200 × H2480
Occupancy2–4 people
Net WeightApprox. 3.5 tons
Floor Area38.2 m²
📷

Product Gallery

Container Detail

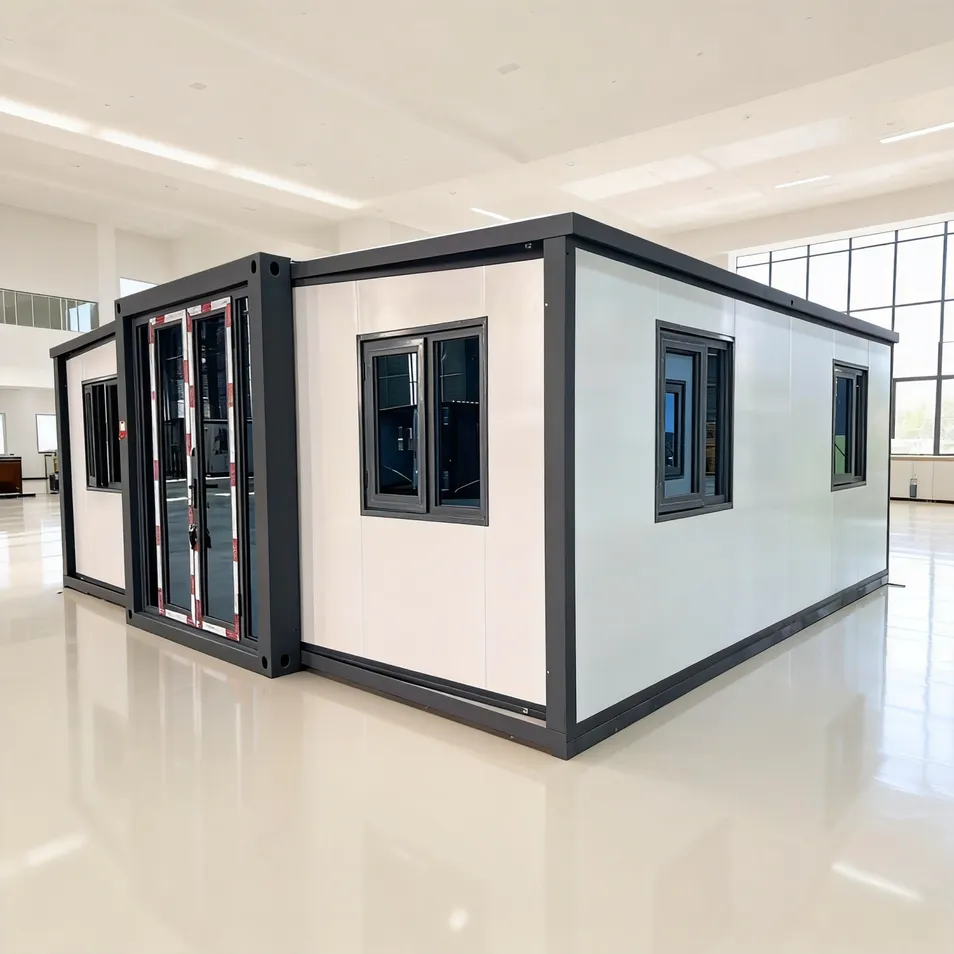

Container Exterior
Container View

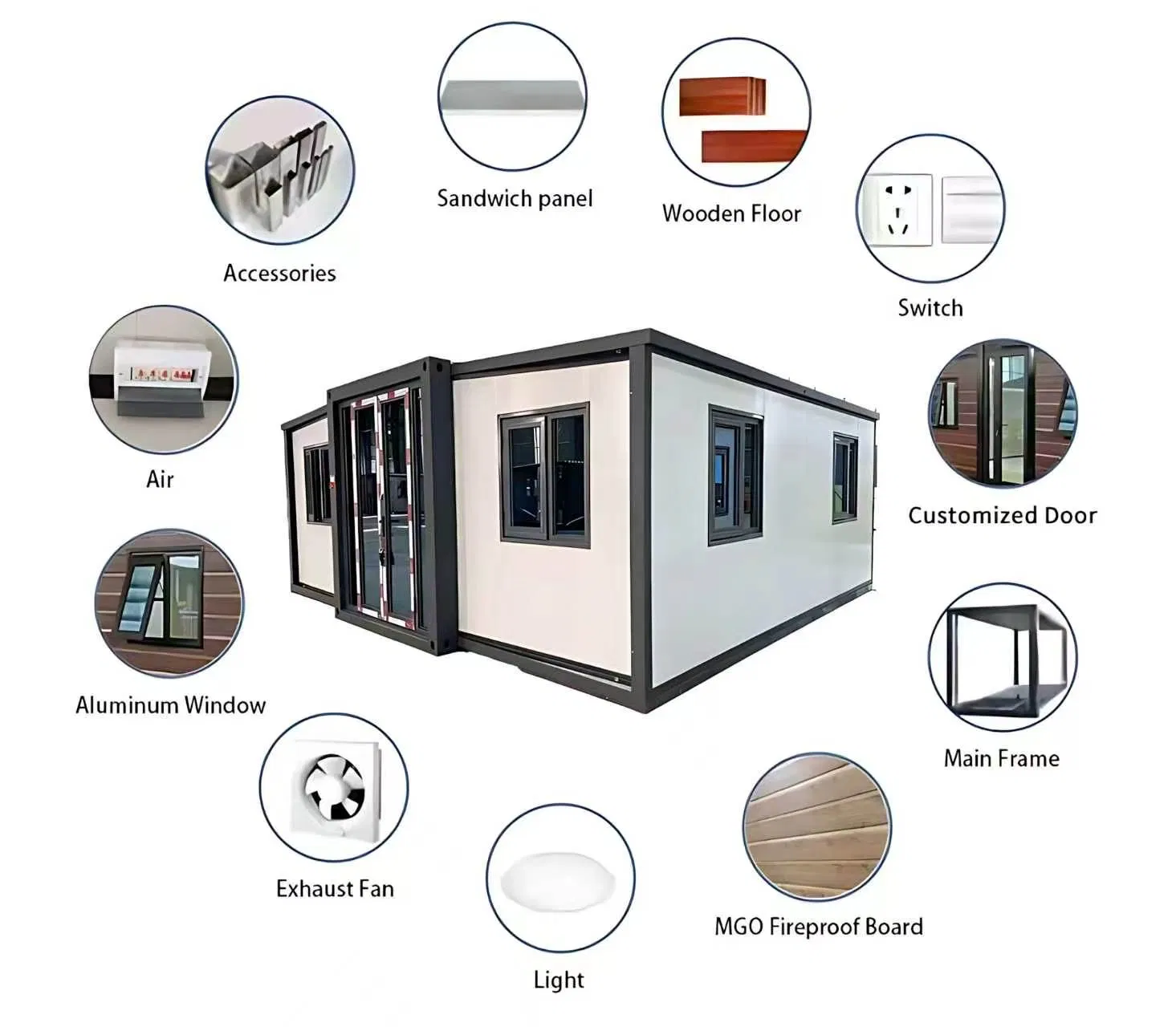

Structure Layout

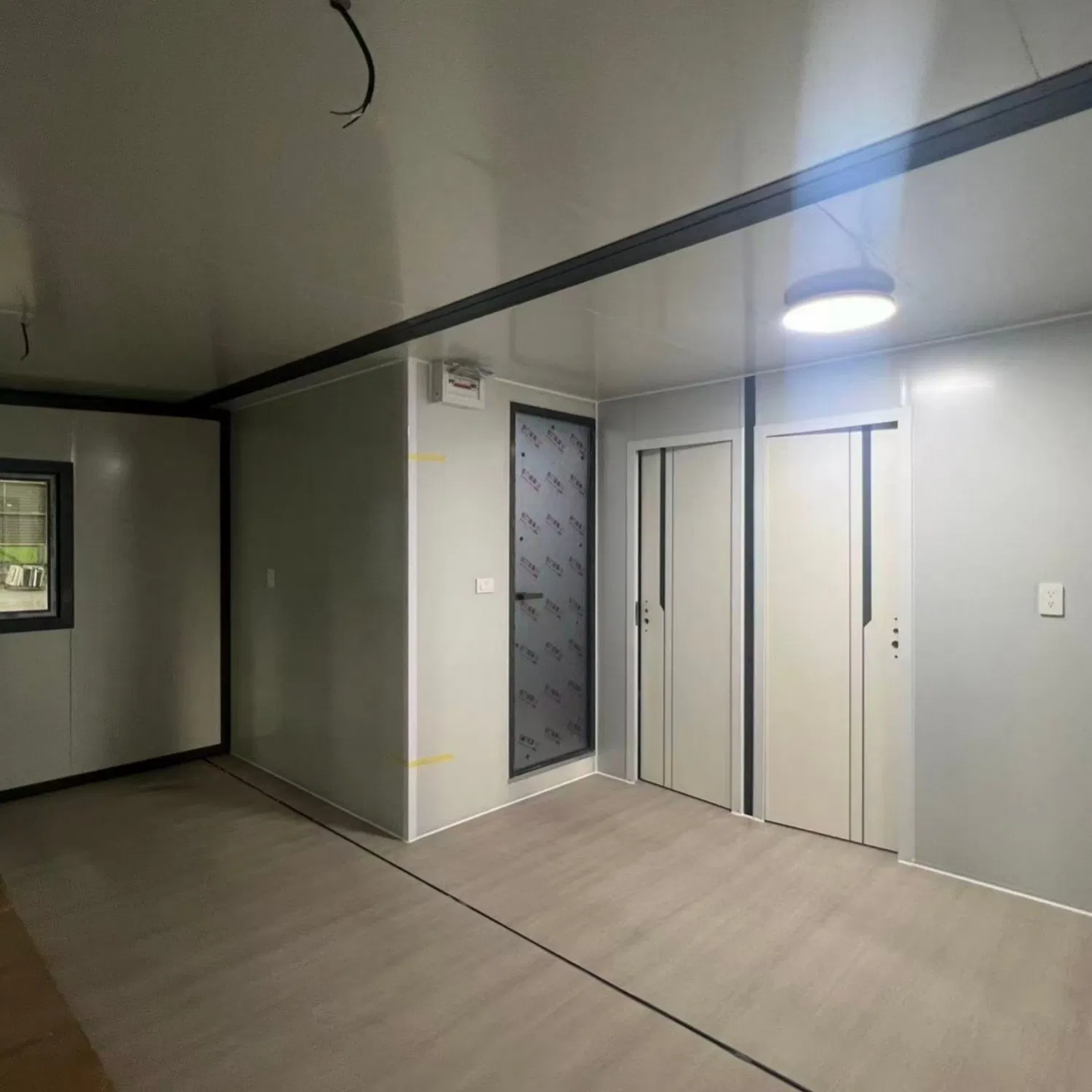

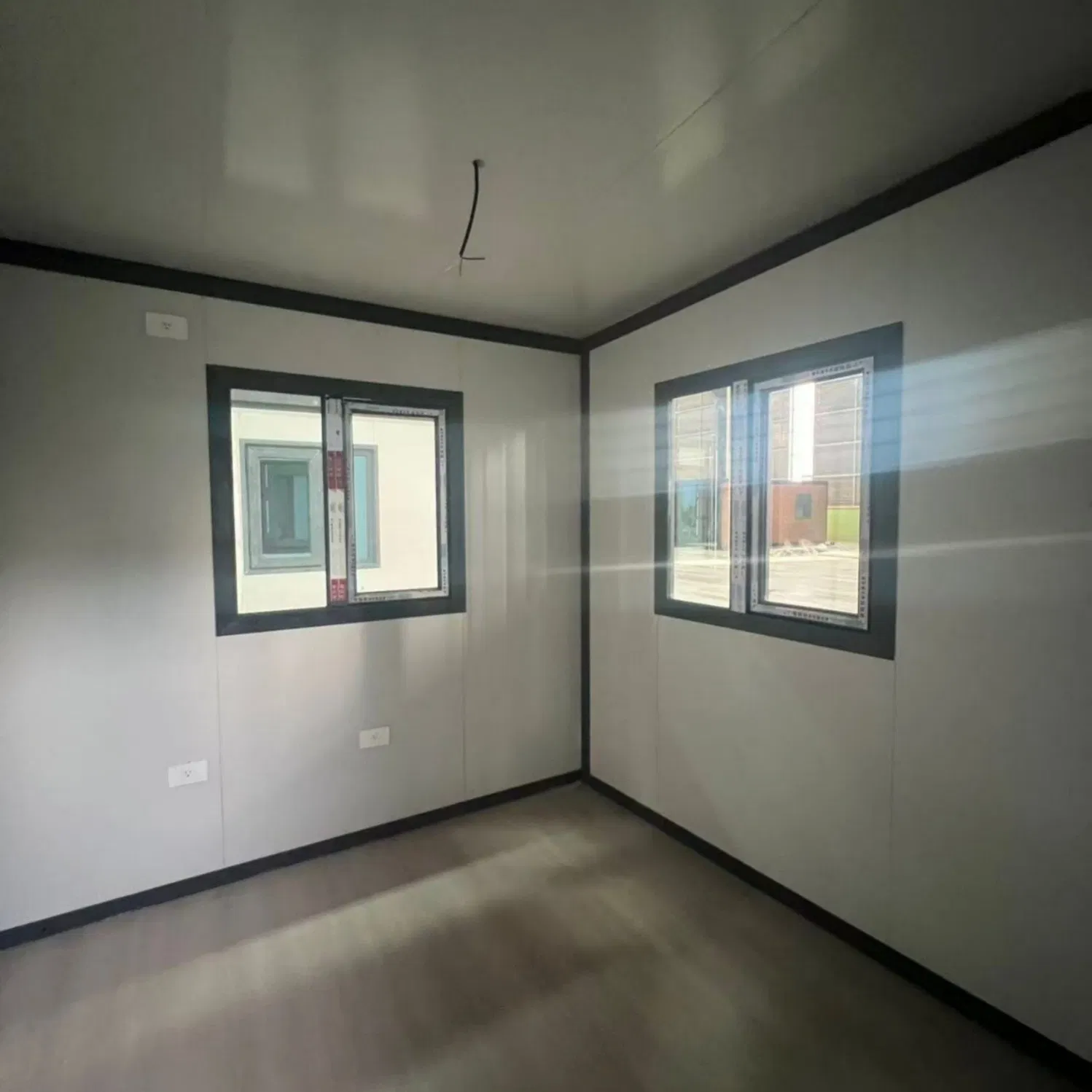

Internal View

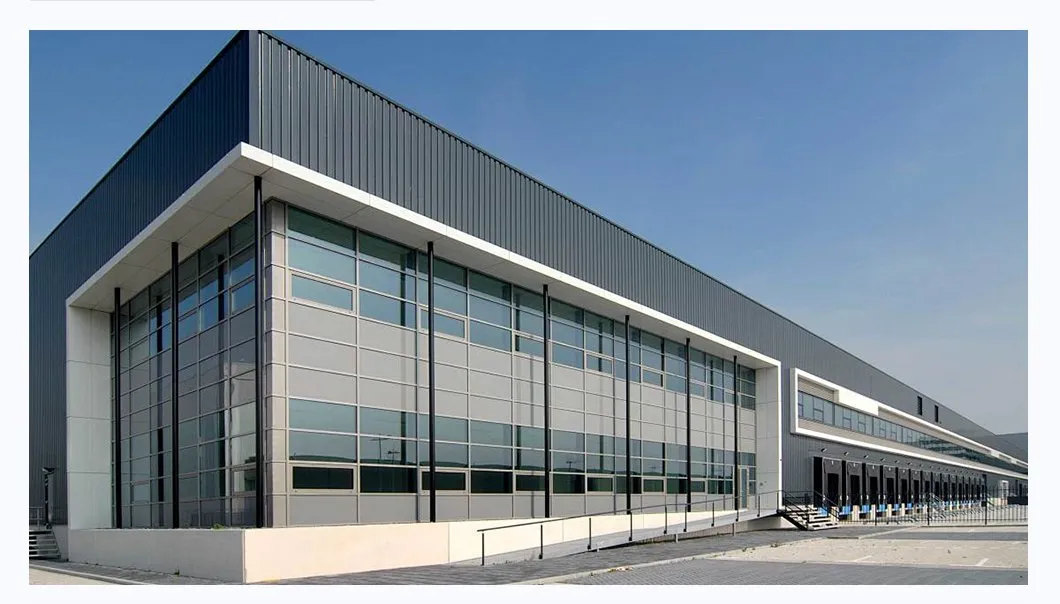

Manufacturing
🏗️

Main Frame & Materials

ComponentSub-itemSpecification
Main frame (Galvanized)Top main beam80*80*2.5mm square tube
Top beamBending piece 2.0mm
Bottom main beam60*80*2.5mm square tube
Bottom cross memberBending piece 2.0mm
Protective coatingSprayingElectrostatic Spraying
External Center Top1.0 thick steel plate (integrally welded)
Internal Top Plate50mm EPS sandwich panel
Dimension Layout
Modular Unit 1
Modular Unit 2
?

Frequently Asked Questions

Are you a manufacturer?
We are not only the manufacturer but also a production expert in modular housing solutions.
What is the quality standard of your units?
Our units undergo strict quality control with reinforced steel frames and premium EPS panels. They are designed for durability and long-term use.
Do you provide installation assistance?
Yes, we provide guidance and can deploy experienced engineers to assist with installation abroad if required.
What is the warranty period?
The units come with a one-year warranty, and we also offer support to solve technical issues outside the warranty period.
Is the expandable container earthquake resistant?
Yes, the structural design is specifically engineered to be earthquake resistant and safe for various environmental conditions.
How is the unit transported?
The units are designed to be folded and can be conveniently shipped inside a standard 40HQ container to ensure cost-effective logistics.
