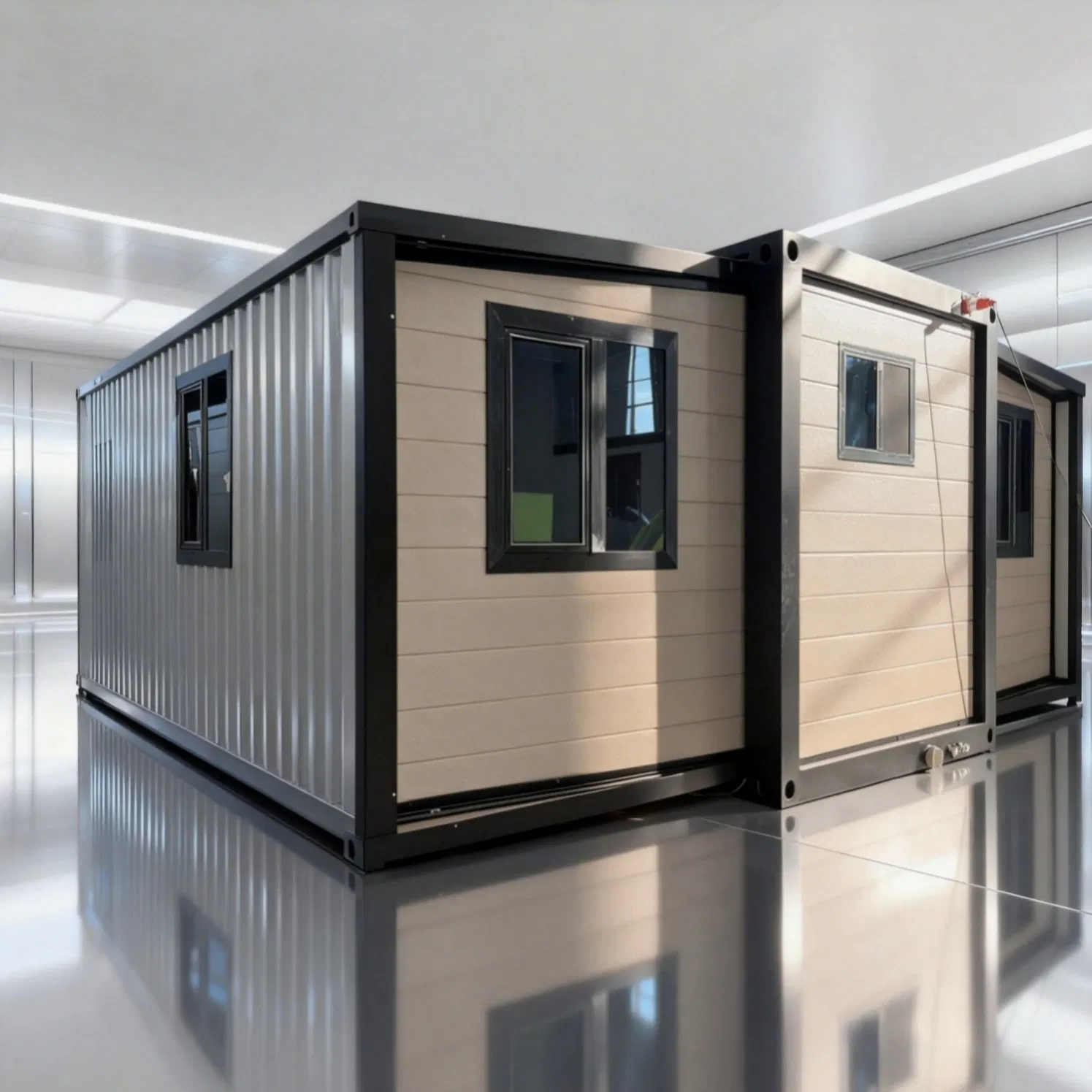

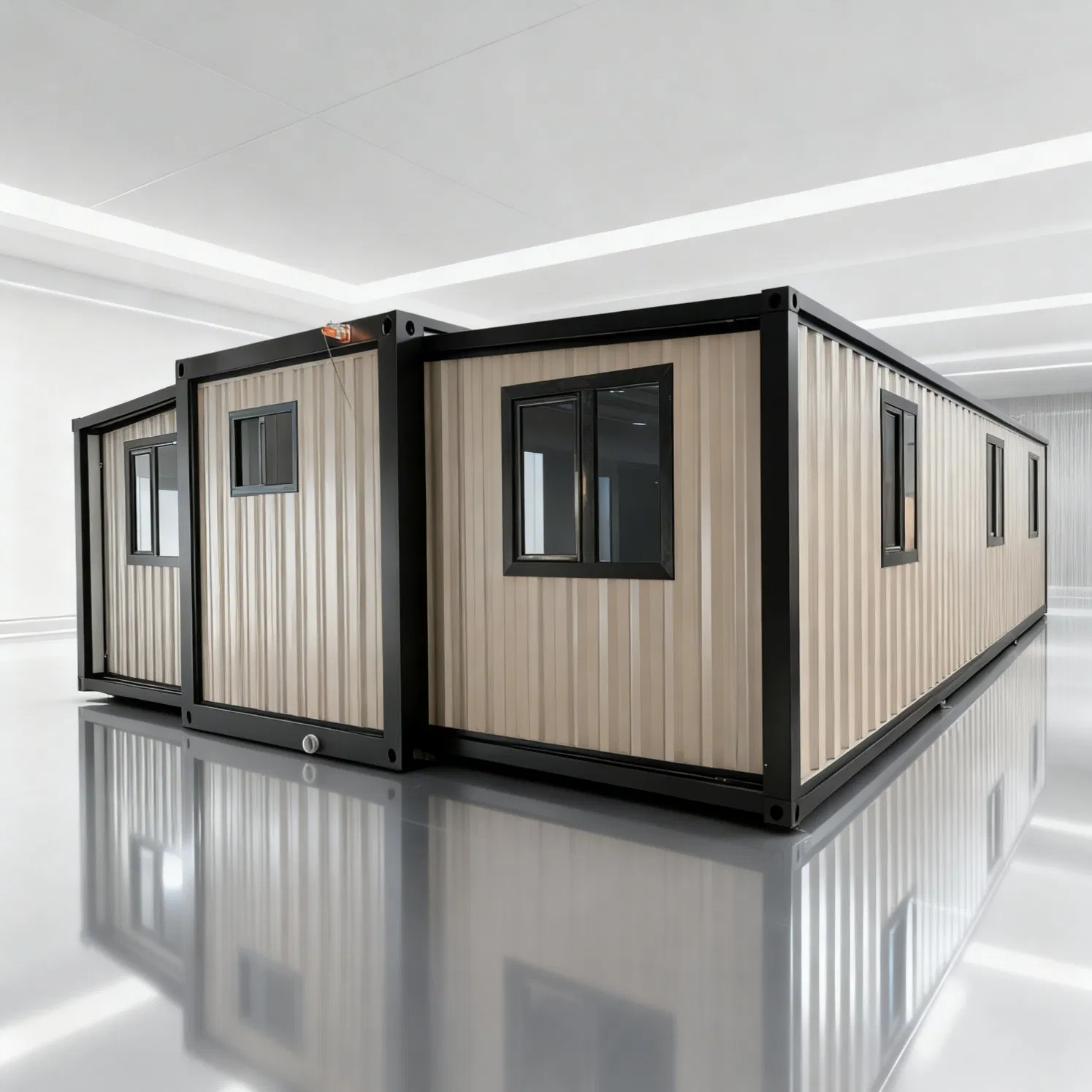

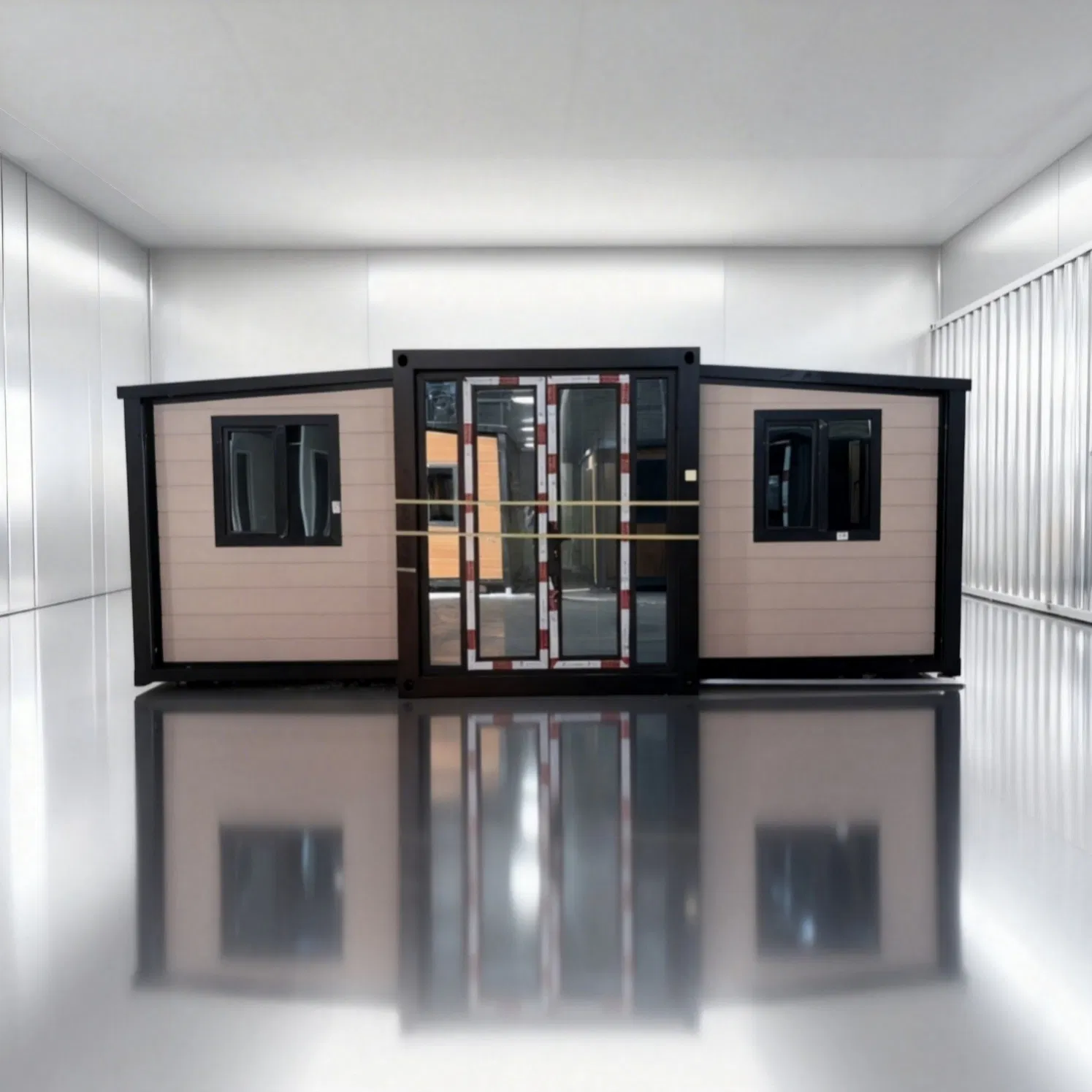

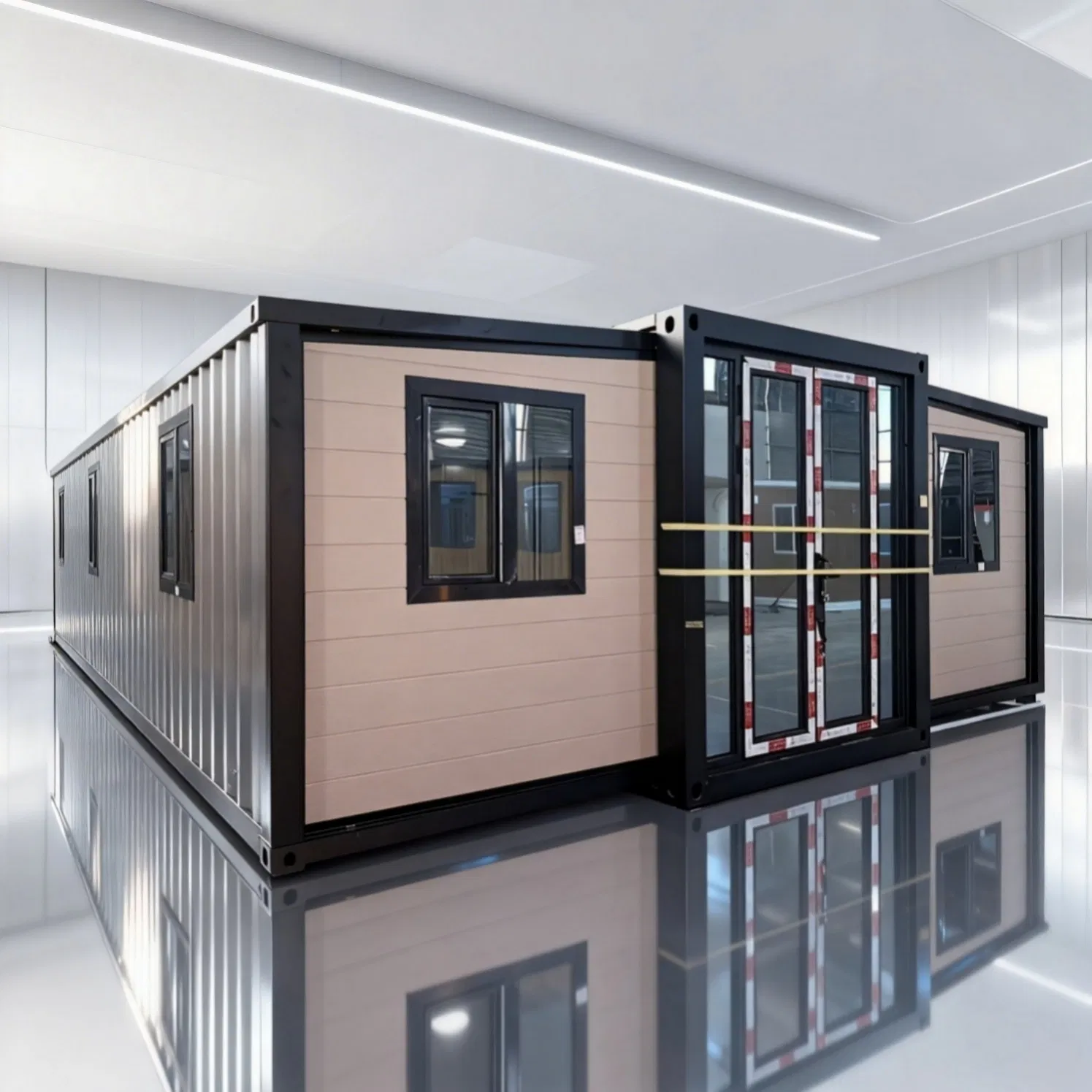

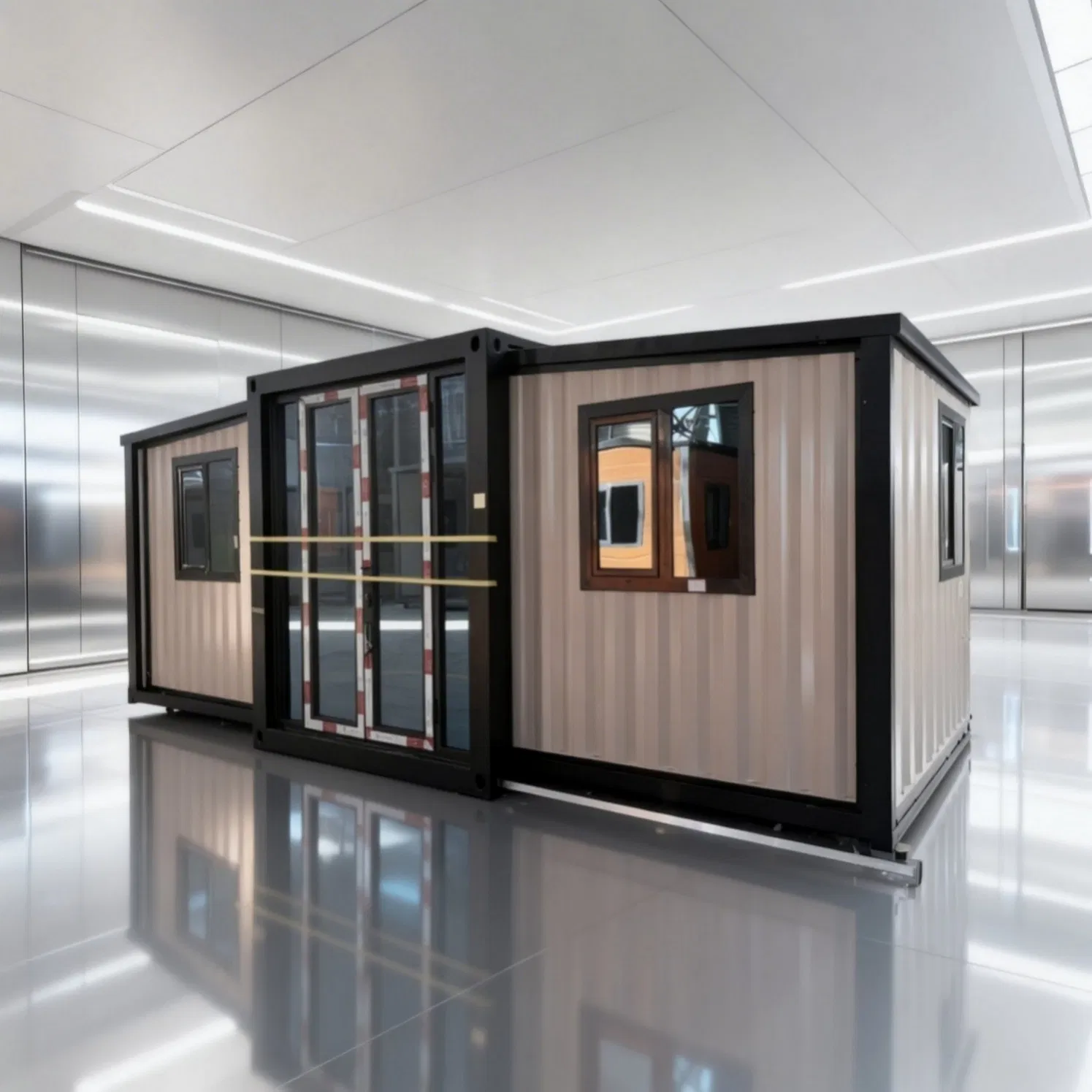

40FT Double Wing Expandable Modular Unit with 8mm Heavy Duty Lugs and 0.27mm Orange Peel Corrugated Surface Finish
40FT Double Wing Expandable Modular Unit with 8mm Heavy Duty Lugs and 0.27mm Orange Peel Corrugated Surface Finish
40FT Double Wing Expandable Modular Unit with 8mm Heavy Duty Lugs and 0.27mm Orange Peel Corrugated Surface Finish
40FT Double Wing Expandable Modular Unit with 8mm Heavy Duty Lugs and 0.27mm Orange Peel Corrugated Surface Finish
40FT Double Wing Expandable Modular Unit with 8mm Heavy Duty Lugs and 0.27mm Orange Peel Corrugated Surface Finish
1 / 5
40FT Double Wing Expandable Modular Unit with 8mm Heavy Duty Lugs and 0.27mm Orange Peel Corrugated Surface Finish
40FT Double Wing Expandable Modular Unit with 8mm Heavy Duty Lugs and 0.27mm Orange Peel Corrugated Surface Finish
40FT Double Wing Expandable Modular Unit with 8mm Heavy Duty Lugs and 0.27mm Orange Peel Corrugated Surface Finish
40FT Double Wing Expandable Modular Unit with 8mm Heavy Duty Lugs and 0.27mm Orange Peel Corrugated Surface Finish
40FT Double Wing Expandable Modular Unit with 8mm Heavy Duty Lugs and 0.27mm Orange Peel Corrugated Surface Finish

40FT Double Wing Expandable Modular Unit with 8mm Heavy Duty Lugs and 0.27mm Orange Peel Corrugated Surface Finish

After-sales Service: Field Installation, Commissioning and Training
Application: Apartment
Fast Installation: Standard Installation
Send Inquiry

Product Description

Basic Specifications

Feature
Earthquake Resistant, Easily Movable, Eco-Friendliness, Leak Proof, Moisture Proof, Safe
Material
Container
Expanded Size
L11800 × W6200 × H2480mm
Interior Size
L11200 × W6060 × H2200mm
Occupancy
4-6 People
Production
1000 Sets/Year

Product Overview

40FT Expandable Modular Unit
Double Wing Design

Key Features & Advantages

1
Superior Load-Bearing Roof

High-density EPS top panel delivers excellent structural strength and durability.

2
Reinforced Lifting Points

8 mm thick lifting anchors exceed standard specifications for safer handling.

3
Premium Exterior Finish

0.27 mm orange-peel textured wall panels offer enhanced weather resistance.

4
Seamless Construction

Nail-free exterior ensures better waterproofing and a clean corrosion-protected finish.

5
Upgraded Base Frame

40×60 mm bottom steel tubing provides greater rigidity and resistance to deformation.

6
Thermal Insulation

Double-glazed plastic-steel windows for improved insulation and noise reduction.

Technical Specifications

Product name 40ft Double-wing Expandable Container
Expanded Dimensions L11800 × W6200 × H2480mm
Interior Dimensions L11200 × W6060 × H2200mm
Net Weight Approx. 5.5 tons
Floor Area 74.8 m²
Power Consumption 12 kW

Detailed Interior & Exterior

Container Detail
Structure Detail

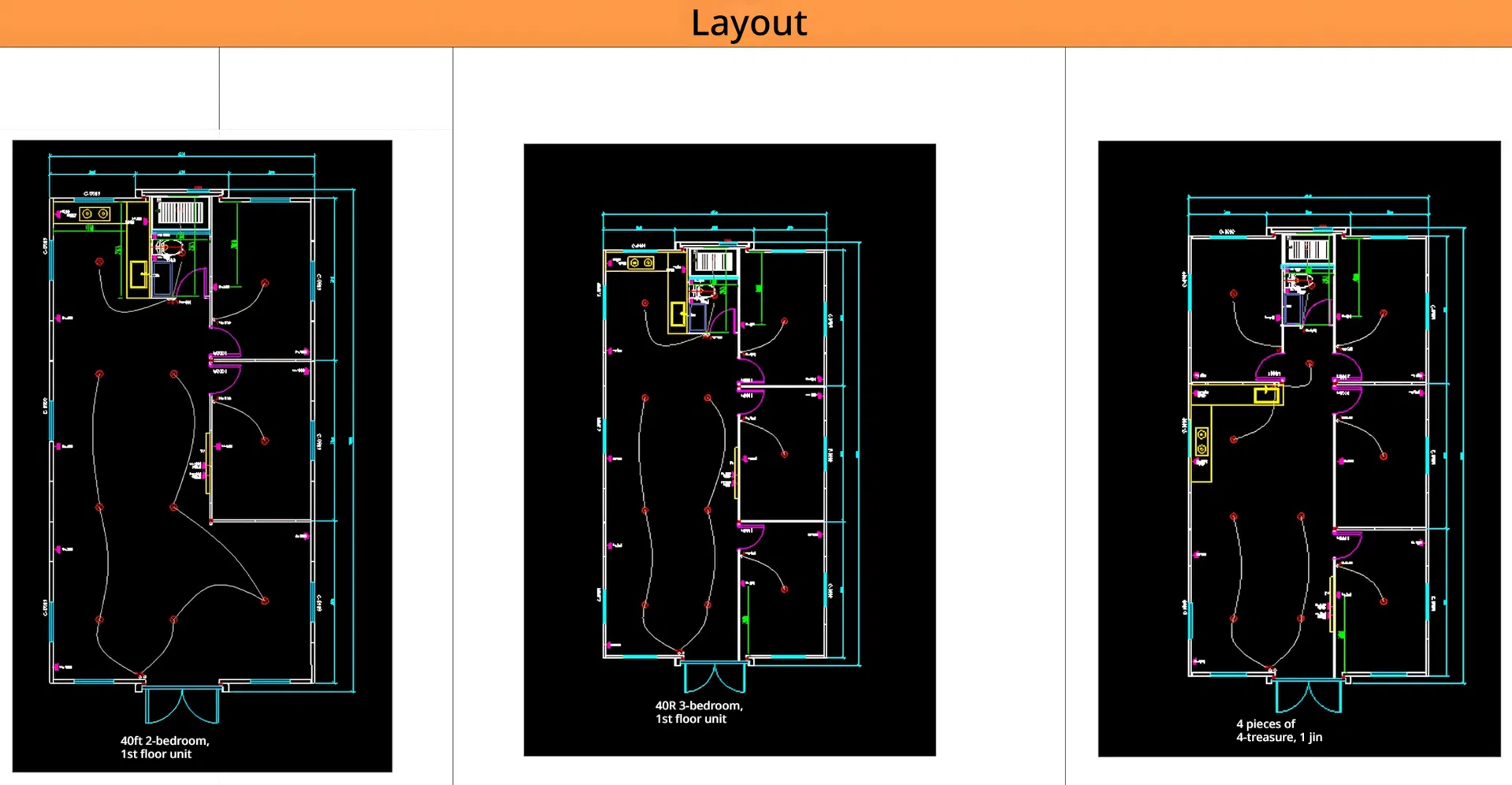

Layout View

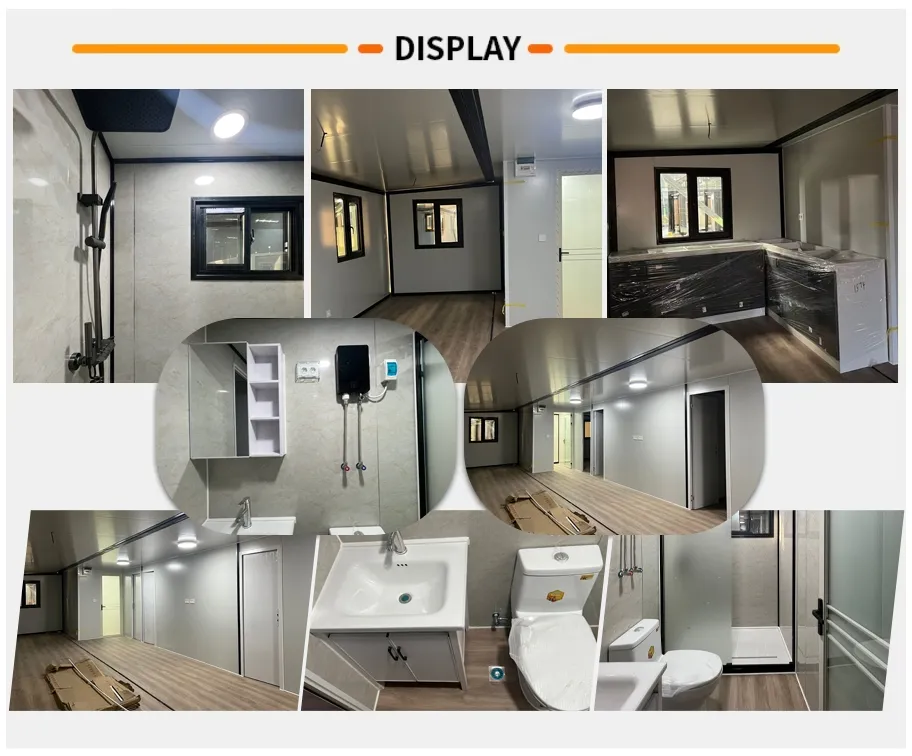

Interior View
Window System

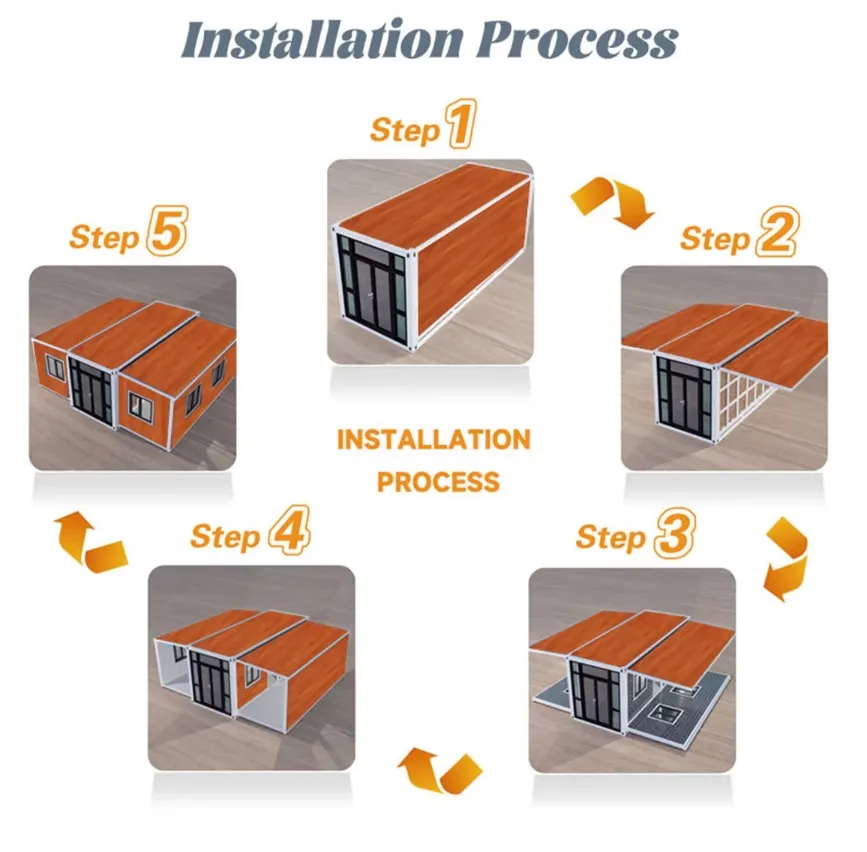

Installation Stage

Frame Materials (Fully Galvanized)

Component Description Specification
Main Frame Top main beam 80×140×3.5mm square tube
Bottom main beam 80×140×3.5mm square tube
Vertical post 3.0mm bending part with 6mm liner
Side Wing Frame Top Frame 40×80×2.0mm / 60×80×2.0mm
Folding hinge 13mm galvanized hinge
Coating Overall Protection Electrostatic powder spray coating
Bottom Frame
Packaging
Shipping Load
Delivery Ready

Frequently Asked Questions

Are you a manufacturer?
Yes, we are both a direct manufacturer and production experts specializing in modular container units.
How is the quality of the expandable container?
Our units are built with high-grade galvanized steel and high-density EPS panels. They are designed for durability, safety, and moisture resistance.
Do you provide installation assistance?
Absolutely. We provide detailed guidance and can arrange for experienced engineers to assist with international installations.
What is the warranty period?
We provide a one-year warranty on the main structure and continue to offer technical support and problem-solving beyond the warranty period.
Can the interior layout be customized?
Yes, the 40ft expandable container offers a large floor area of 74.8 m² that can be configured for various residential or commercial occupancy needs.
How are the units transported?
The units are designed to be folded and shipped efficiently via standard 40HQ shipping containers, ensuring global reach and easy logistics.
