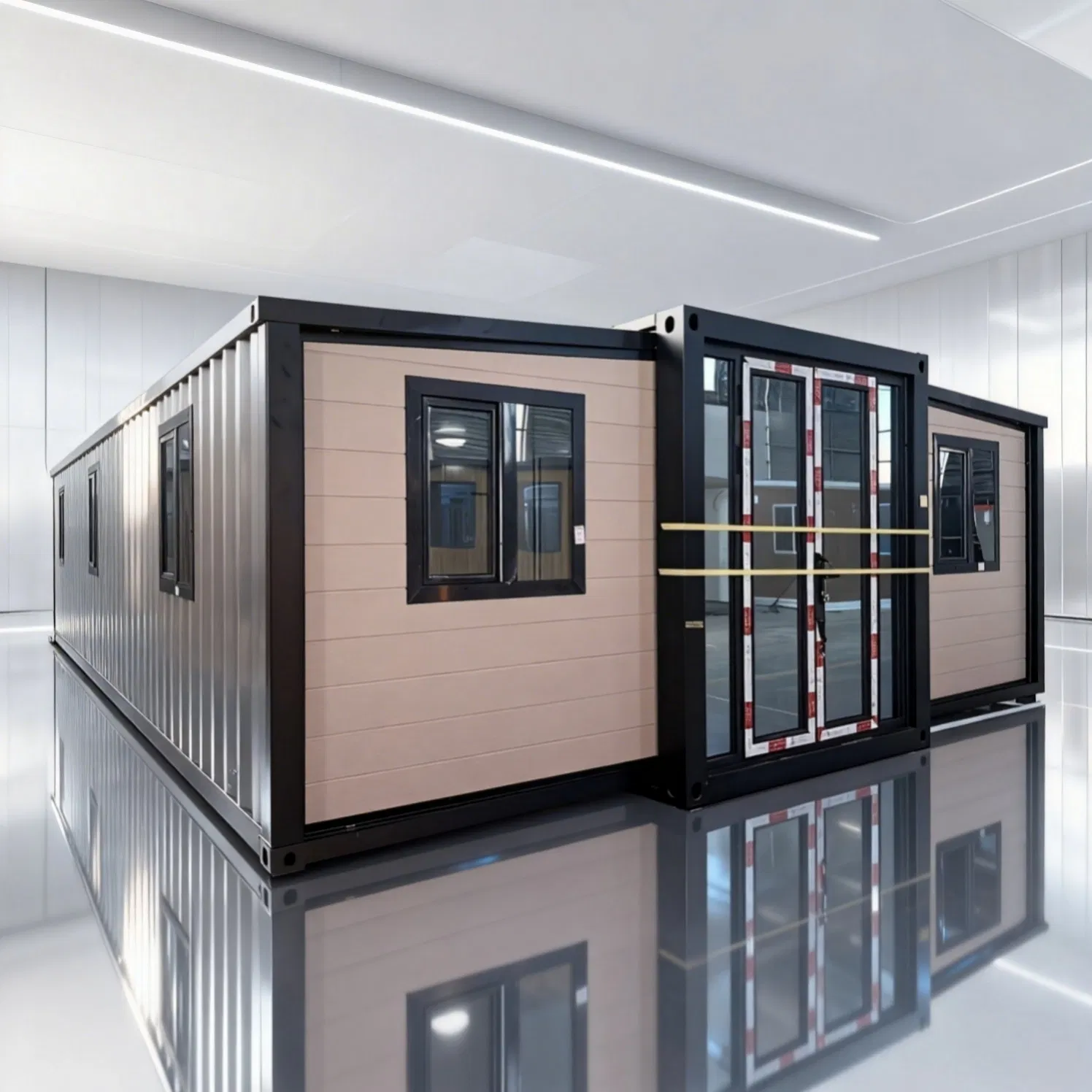

40FT Double Wing Modular Housing Unit with 8mm Corner Castings and 0.27mm Durable Orange Peel Coated Exterior Panels
40FT Double Wing Modular Housing Unit with 8mm Corner Castings and 0.27mm Durable Orange Peel Coated Exterior Panels
40FT Double Wing Modular Housing Unit with 8mm Corner Castings and 0.27mm Durable Orange Peel Coated Exterior Panels
40FT Double Wing Modular Housing Unit with 8mm Corner Castings and 0.27mm Durable Orange Peel Coated Exterior Panels
40FT Double Wing Modular Housing Unit with 8mm Corner Castings and 0.27mm Durable Orange Peel Coated Exterior Panels
1 / 5
40FT Double Wing Modular Housing Unit with 8mm Corner Castings and 0.27mm Durable Orange Peel Coated Exterior Panels
40FT Double Wing Modular Housing Unit with 8mm Corner Castings and 0.27mm Durable Orange Peel Coated Exterior Panels
40FT Double Wing Modular Housing Unit with 8mm Corner Castings and 0.27mm Durable Orange Peel Coated Exterior Panels
40FT Double Wing Modular Housing Unit with 8mm Corner Castings and 0.27mm Durable Orange Peel Coated Exterior Panels
40FT Double Wing Modular Housing Unit with 8mm Corner Castings and 0.27mm Durable Orange Peel Coated Exterior Panels

40FT Double Wing Modular Housing Unit with 8mm Corner Castings and 0.27mm Durable Orange Peel Coated Exterior Panels

After-sales Service: Field Installation, Commissioning and Training
Application: Apartment
Fast Installation: Standard Installation
Send Inquiry

Product Description

Basic Information
Feature
Earthquake Resistant, Easily Movable, Eco-Friendliness, Leak Proof, Moisture Proof, Safe
Material
Container
Expanded Dimensions
L11800 × W6200 × H2480mm
Interior Dimensions
L11200 × W6060 × H2200mm
Folded Dimensions
L11800 × W2200 × H2480mm
Occupancy
4-6 People
Power Consumption
12 Kw
Transport Package
40hq Container
Production Capacity
1000 Sets/Year
Origin
China
Key Product Features

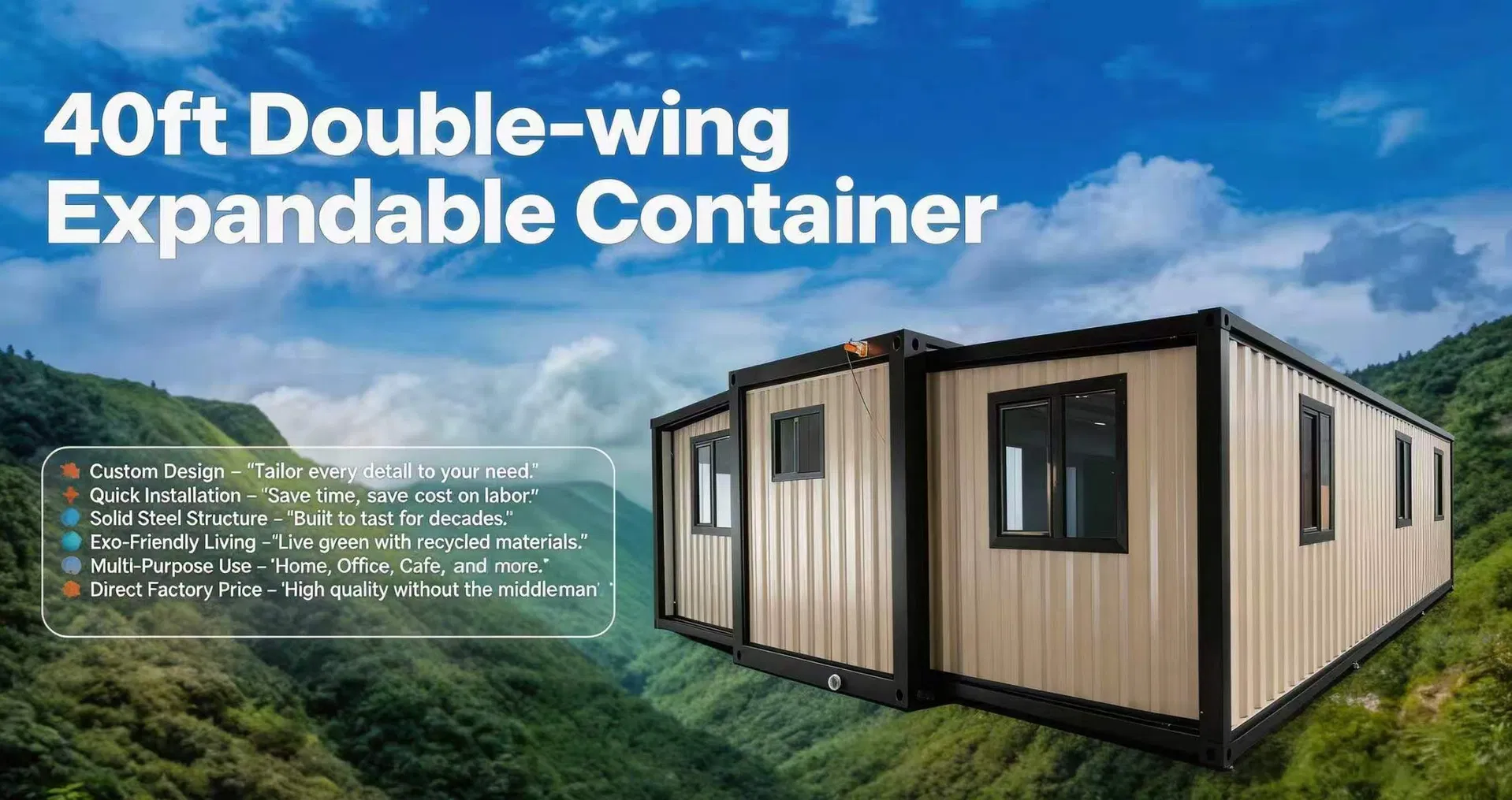

40FT Double Wing Modular Housing Unit
Superior Load-Bearing Roof – High-density EPS top panel delivers excellent structural strength.
Reinforced Lifting Points – 8 mm thick lifting anchors for safer handling and transport.
Premium Exterior Finish – 0.27 mm orange-peel textured wall panels for weather resistance.
Seamless Exterior – No exposed nails, ensuring better waterproofing and corrosion protection.
Upgraded Base Frame – 40×60 mm bottom steel tubing for greater rigidity.
Double-Glazed Windows – Plastic-steel windows for thermal insulation and noise reduction.

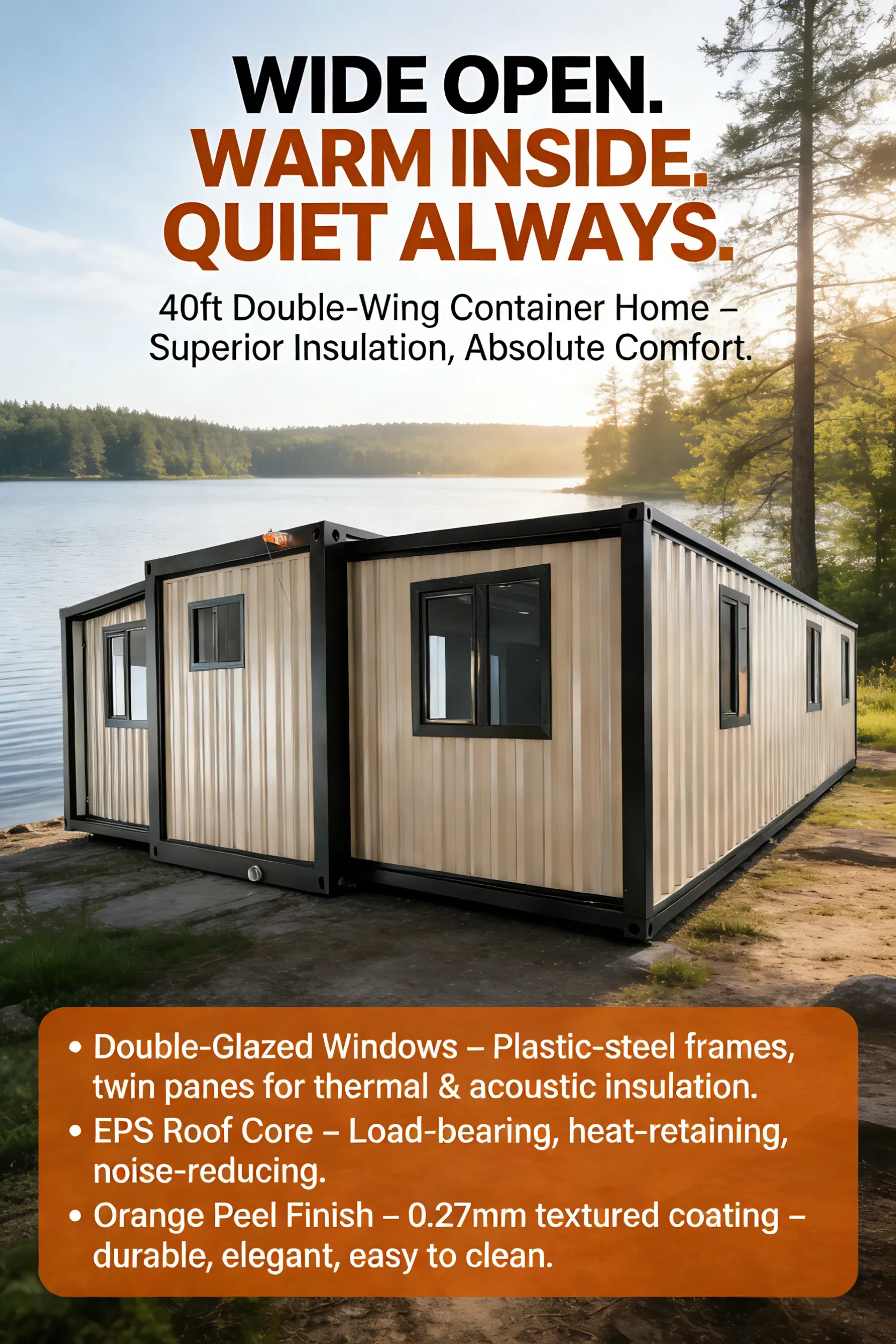

Structure View 1
Structure View 2

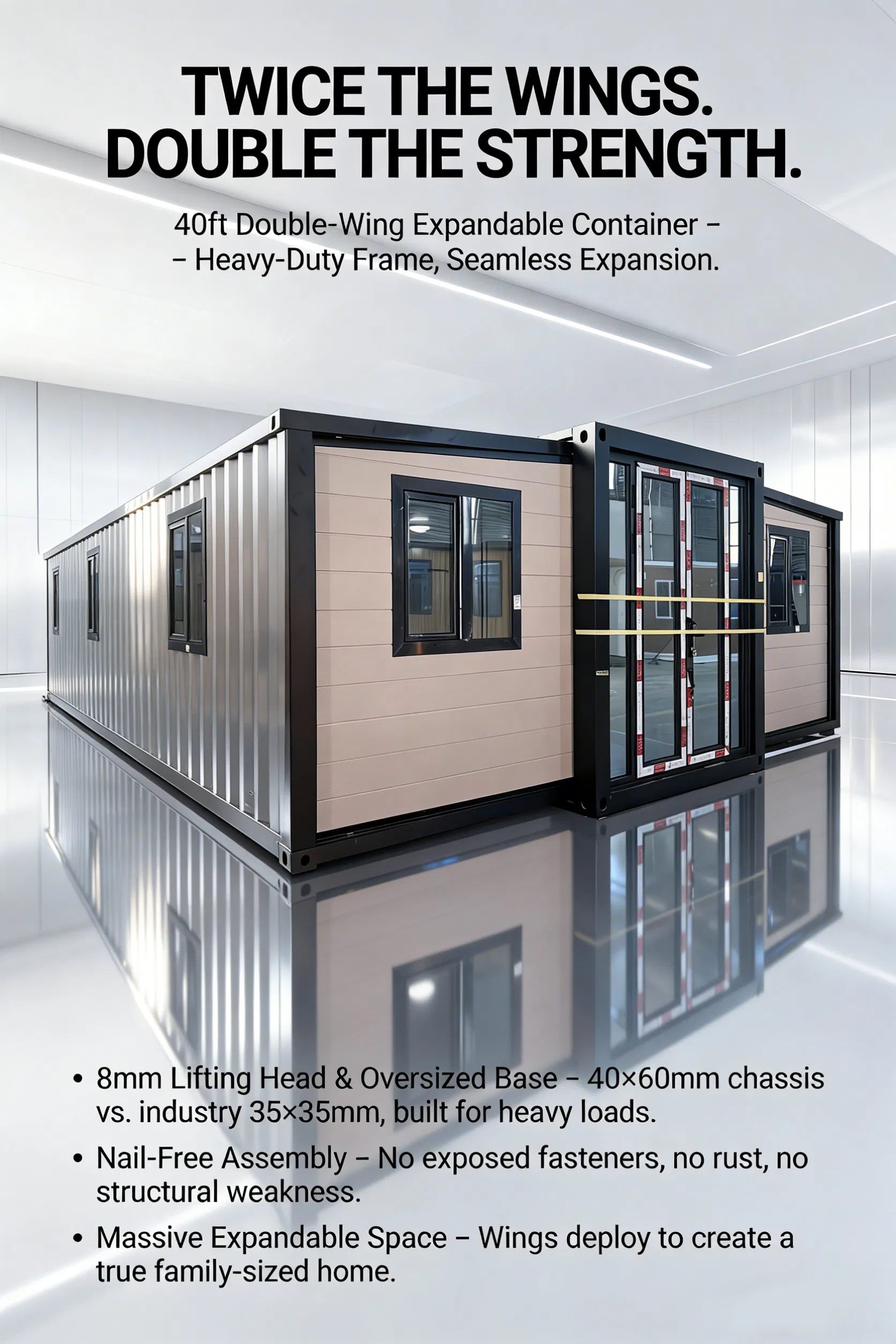

Interior Design 1

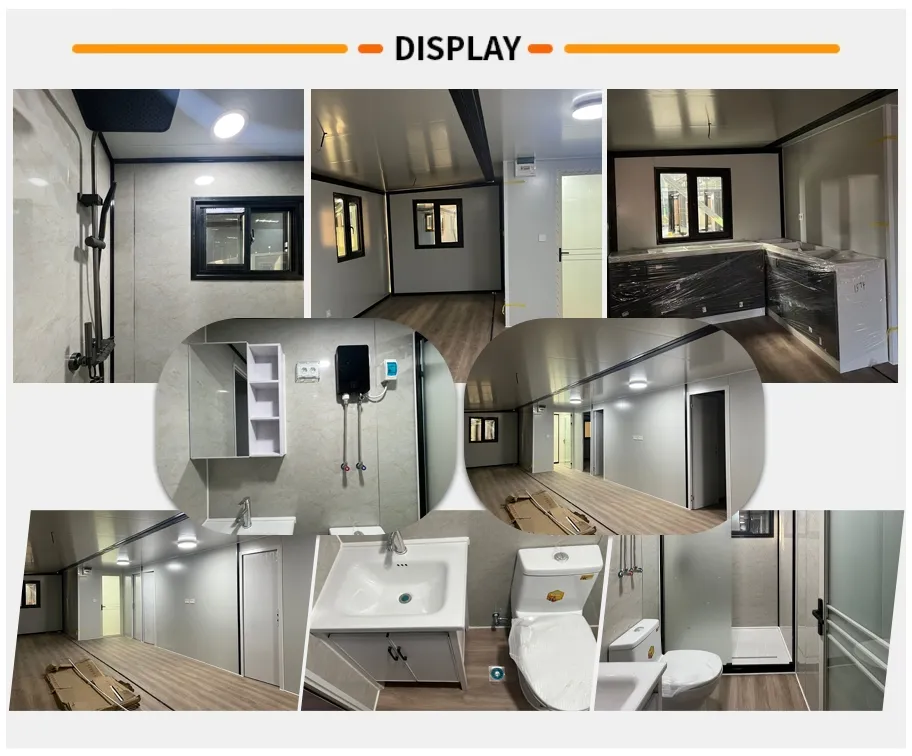

Interior Design 2
Interior Design 3
Detailed Specifications
Dimension & Capacity
Product name40ft Double-wing Expandable Container
Expanded DimensionsL11800 × W6200 × H2480mm
Interior DimensionsL11200 × W6060 × H2200mm
Folded DimensionsL11800 × W2200 × H2480mm
Net WeightApprox. 5.5 tons
Floor Area74.8 m²
Main Frame (Fully Galvanized)
Top main beam80×140×3.5mm square tube
Top cross beamBending part, 3.0mm
Bottom main beam80×140×3.5mm square tube
Bottom cross memberBending part, 3.0mm
Vertical post + lifting headBending part, 3.0mm (with 6mm lifting head liner)

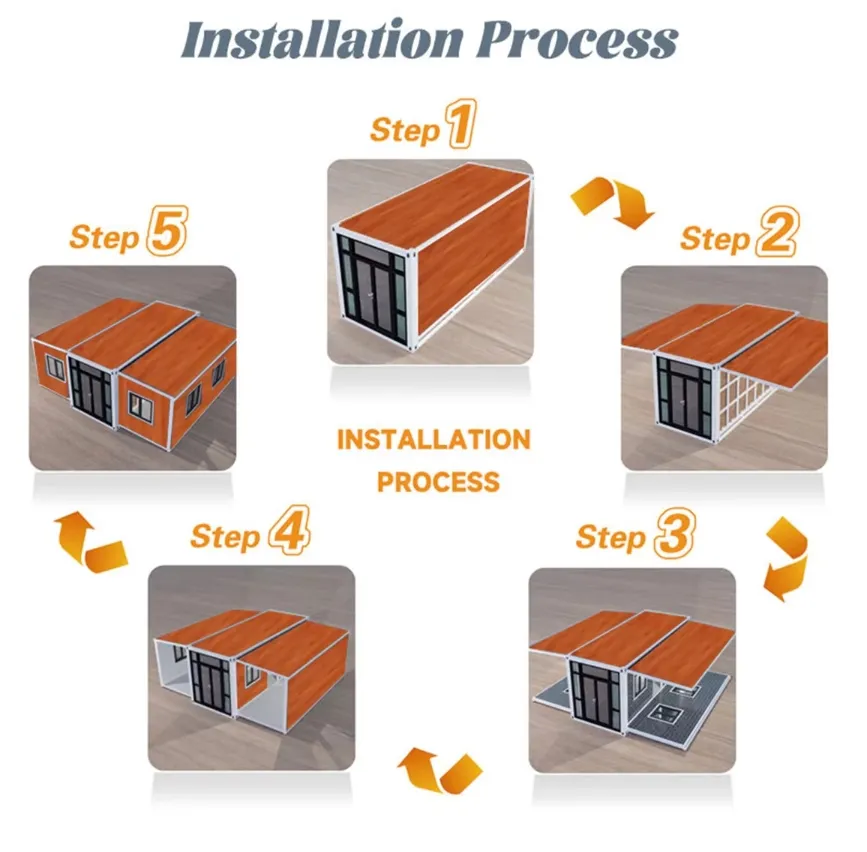

Configuration 1

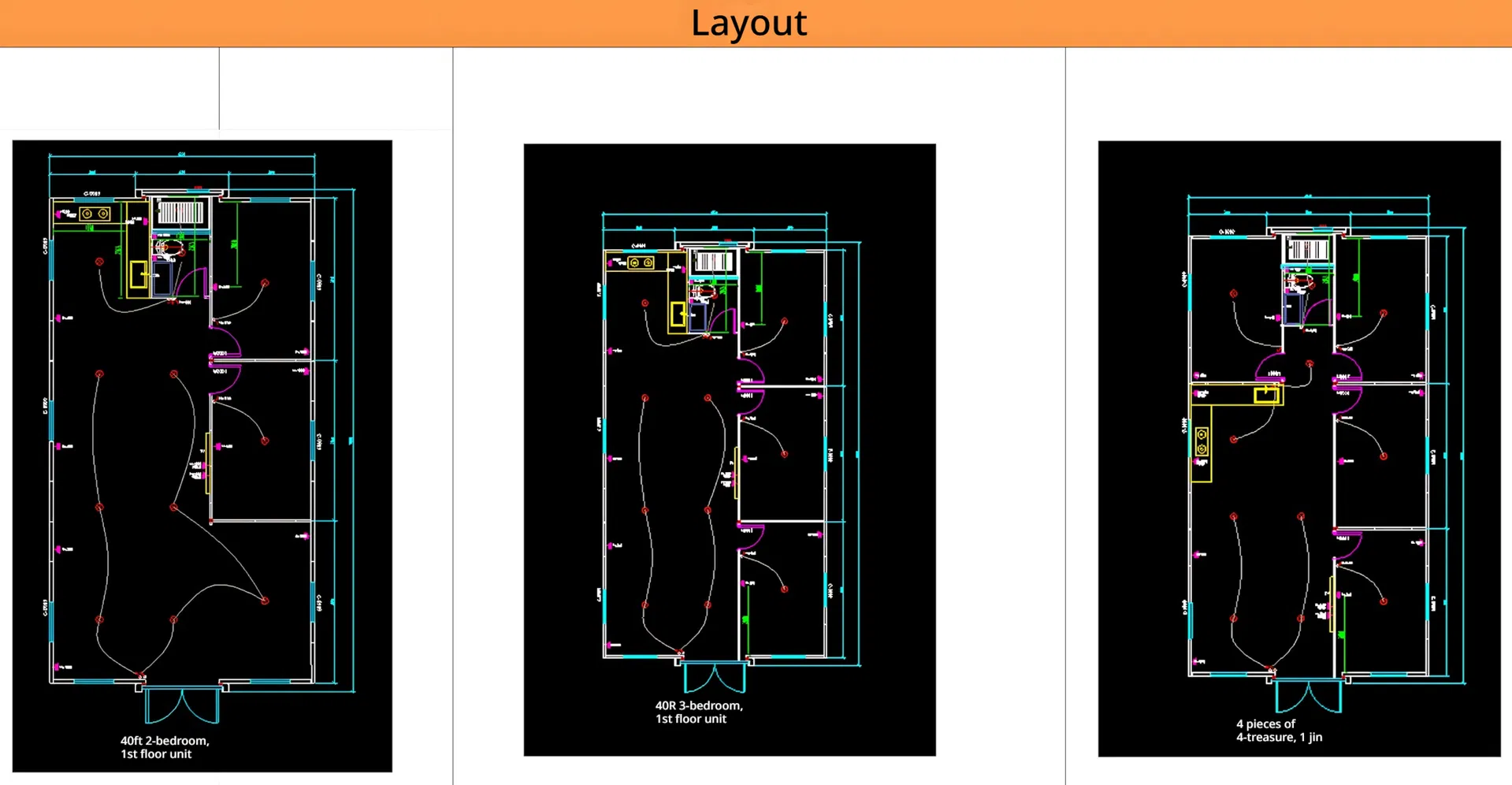

Configuration 2

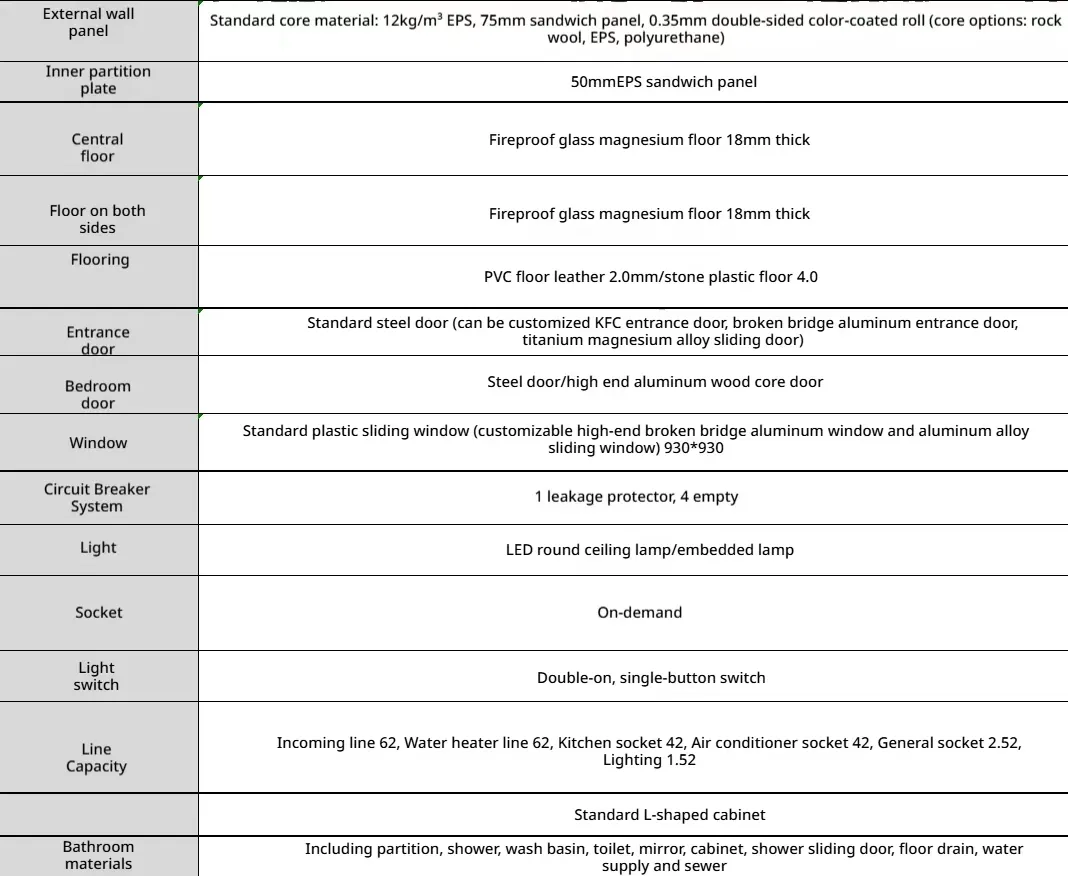

Configuration 3
Configuration 4
Frame Protection
Frequently Asked Questions
What are the expanded dimensions of the 40ft modular house?
The expanded dimensions are L11800 × W6200 × H2480mm, providing a total floor area of approximately 74.8 m².
How many people can this housing unit comfortably accommodate?
This unit is designed for occupancy by 4 to 6 people, making it ideal for family housing or team accommodation.
Is the structure earthquake resistant and durable for outdoor use?
Yes, the unit is earthquake resistant and features a fully galvanized main frame with spray coating for electrostatic powder protection, ensuring high durability.
What are the key advantages of the exterior panels?
The unit uses 0.27mm orange-peel textured wall panels and a seamless, nail-free exterior design, which significantly improves waterproofing and corrosion protection.
Does the unit provide good thermal and noise insulation?
Yes, it is equipped with double-glazed plastic-steel windows and a high-density EPS top panel to ensure excellent thermal insulation and noise reduction.
How is the unit transported and handled?
The unit is shipped in a 40HQ container. It features reinforced 8mm thick lifting anchors for safer and more efficient handling during installation.
