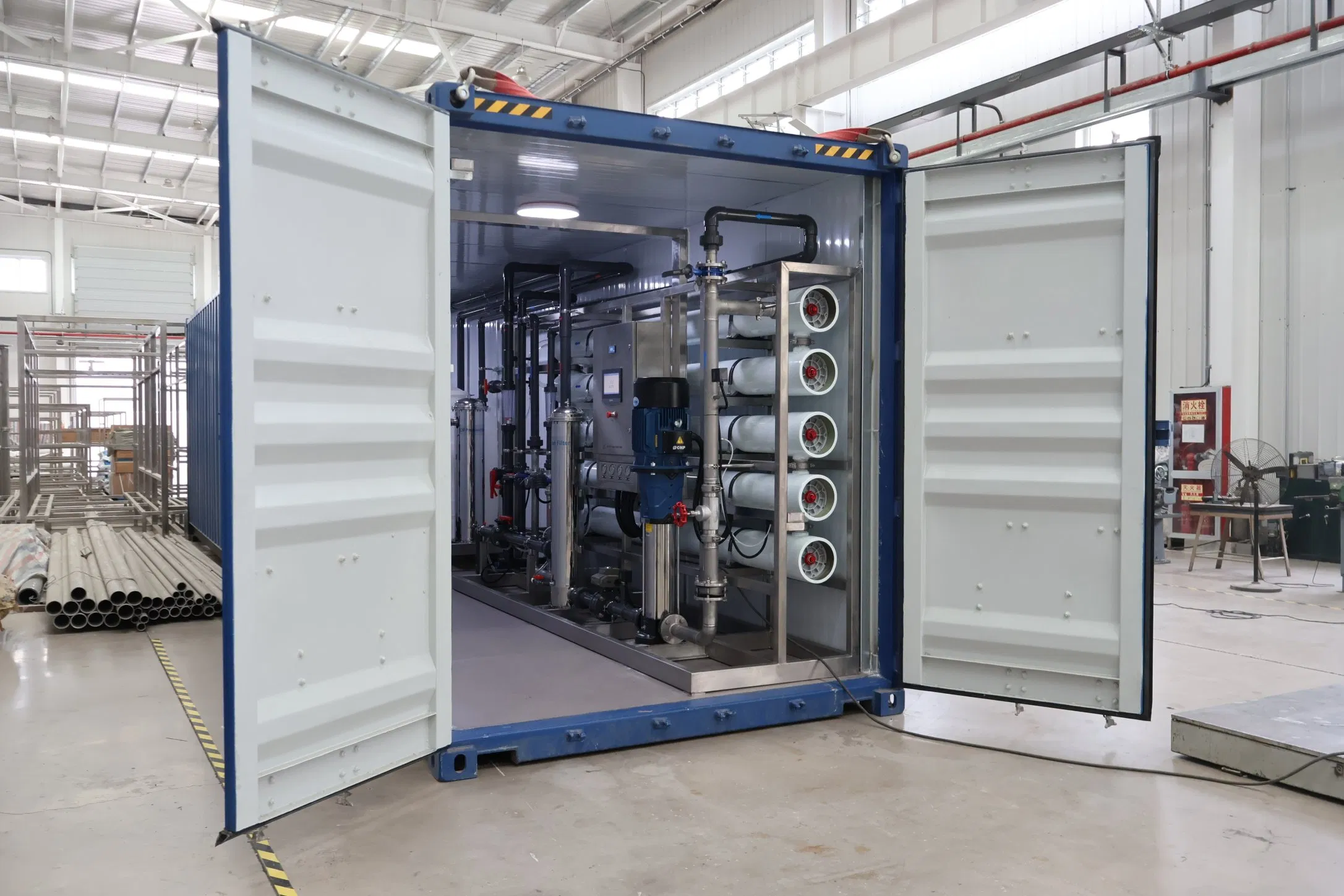

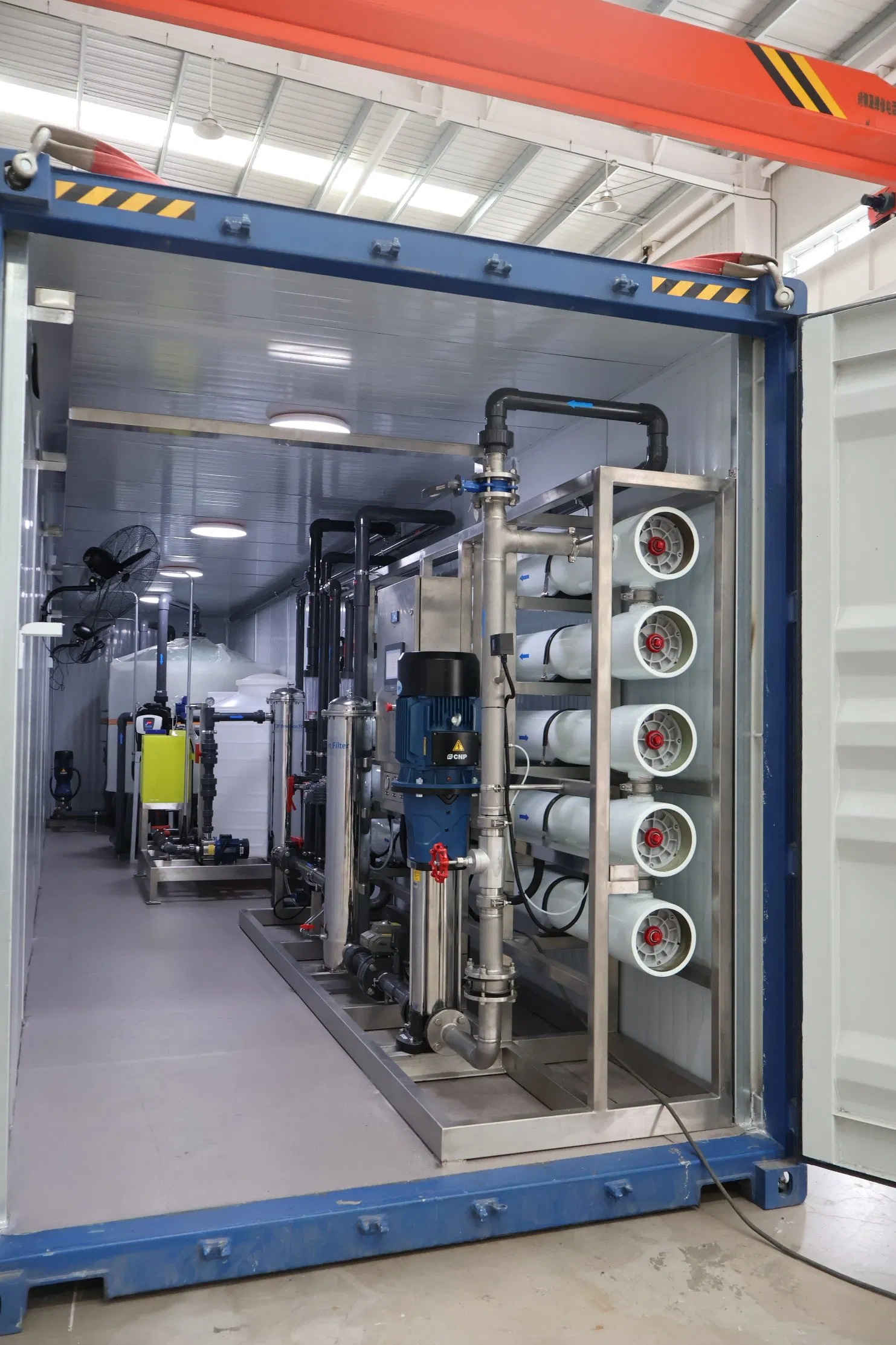

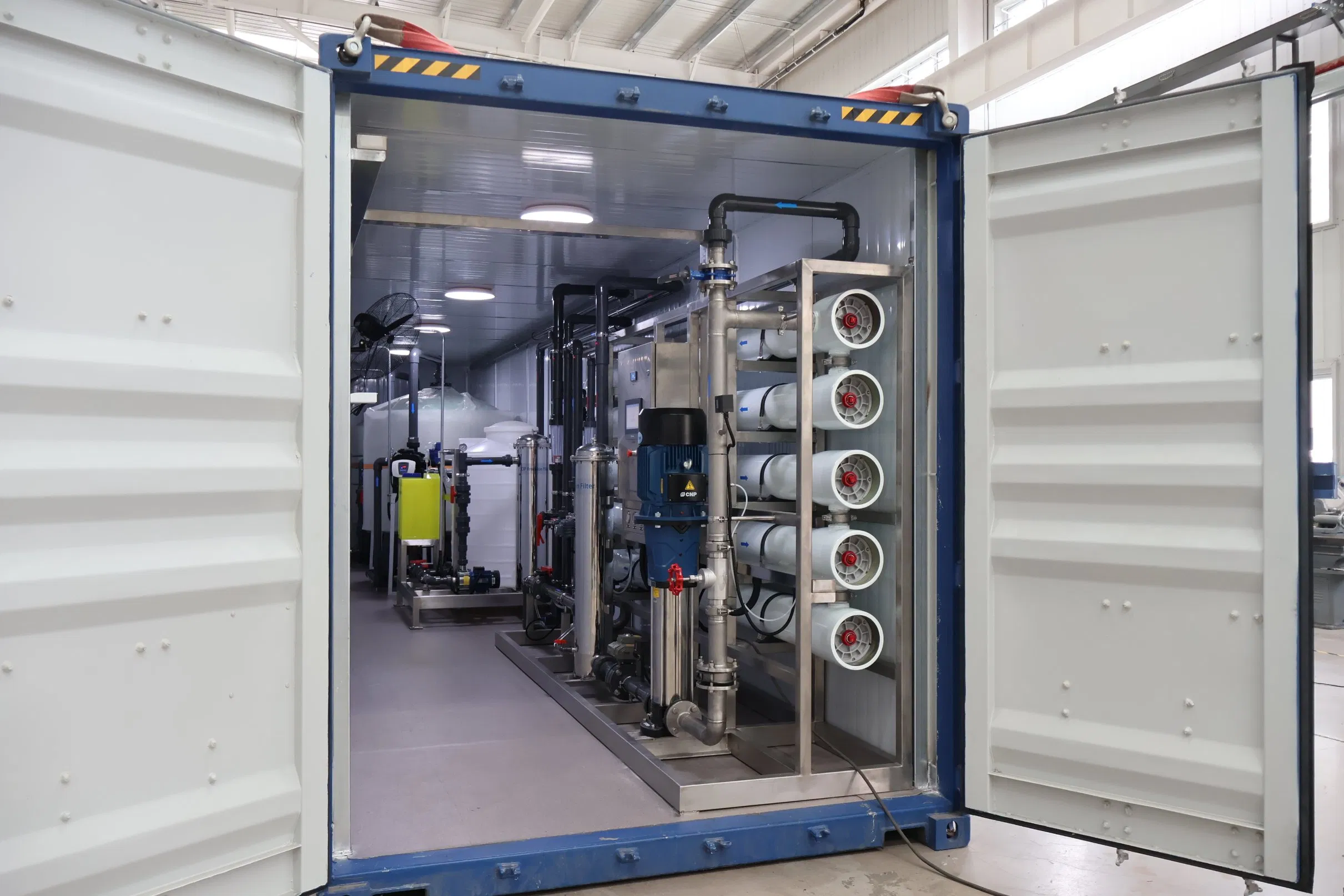

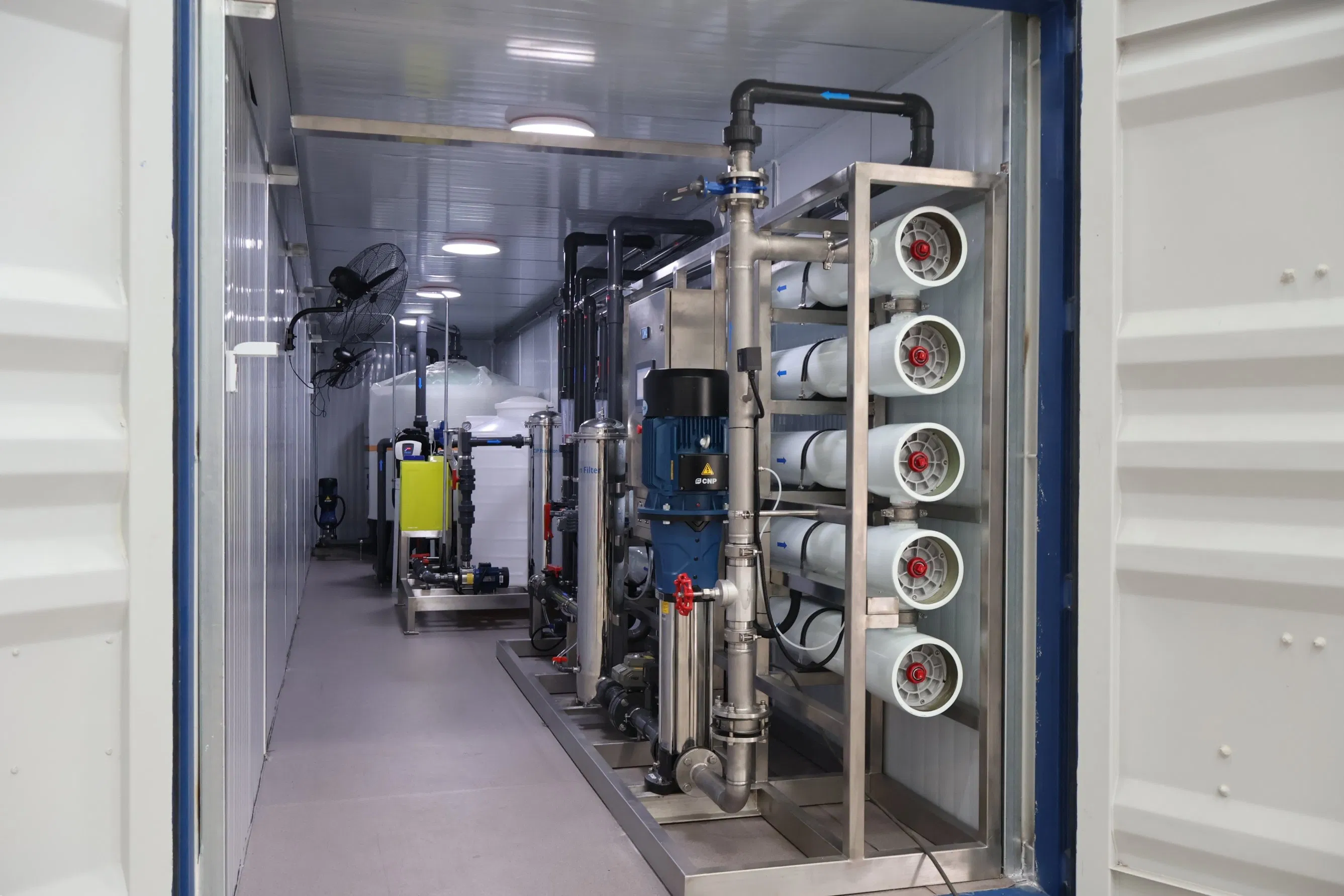

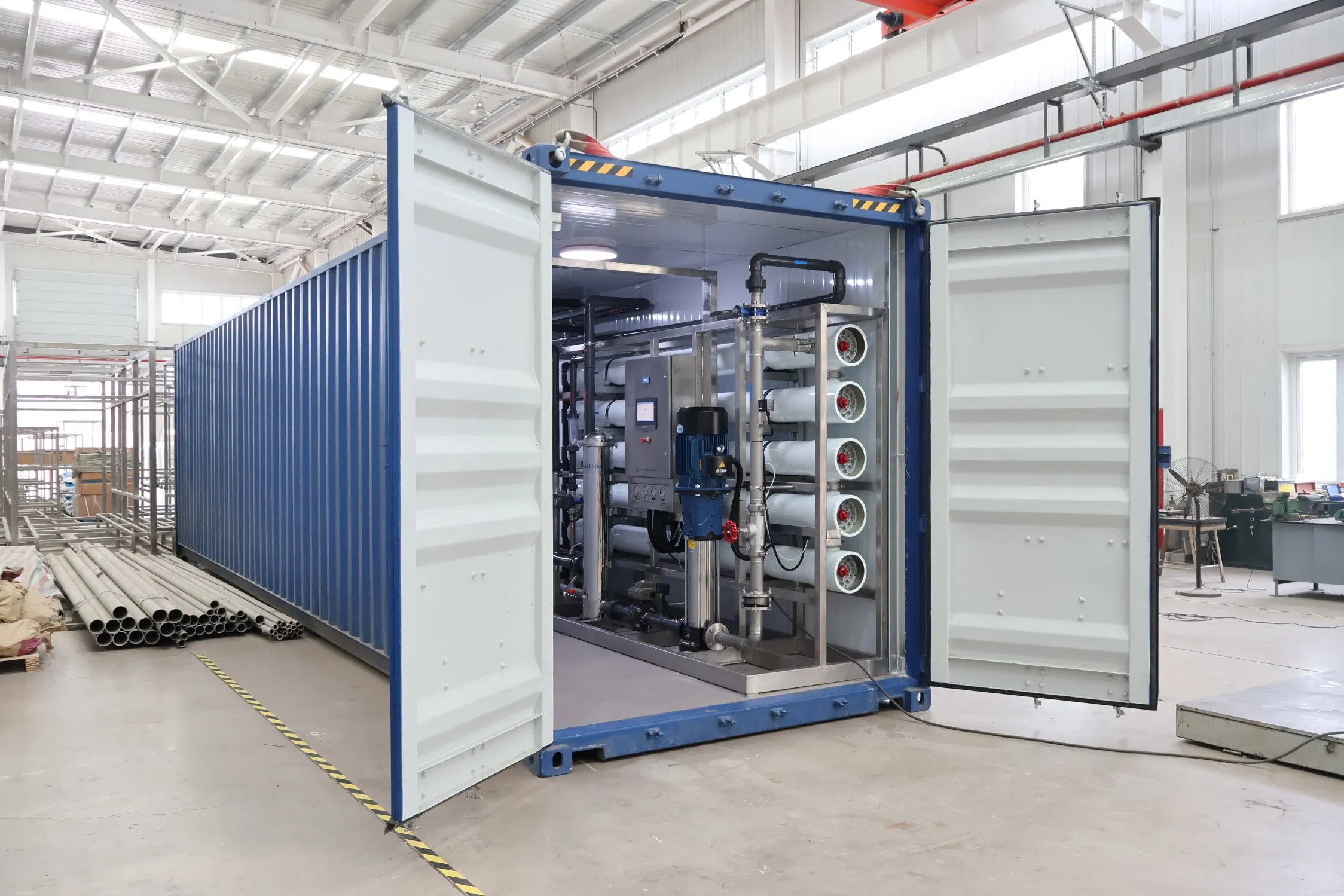

15tph Reverse Osmosis Water Treatment Machine Mobile RO System Containerized Water System

Customization: Available
Certification: ISO9001, CE
Salt Rejection Rate: 99.5%

Product Description

Containerized Water System Banner

Basic Specifications

Model NO. JFRO-15T Application Industry
Capacity 6000lph Operating Pressure 0.8-1.2MPa
Recovery Rate 67% Desalination Rate Less Than 99.5%
RO Frame SUS304 Membrane Elements Dow /Hydranautics/Troy/ Vontron (Optional)
Control Valve Manual/Automatic Production Capacity 6tph
Package Size 235.00cm * 155.00cm * 230.00cm

What is Containerized Water Treatment Equipment?

Containerized water treatment equipment is a convenient and efficient solution for water treatment, housing various water treatment processes within a standard shipping container.

  • Structure and Design: Typically utilizes a standard shipping container as a foundation, providing structural strength and ease of transportation. Modular design allows for easy maintenance and updates.
  • Application Scenarios: Ideal for construction sites, disaster response, temporary camps, and remote areas requiring reliable water without existing infrastructure.
  • Key Components: Includes pre-treatment units (particle/sand filters), main treatment units (reverse osmosis membranes), and disinfection units (UV lamps/ozone).
  • Advantages: Offers flexibility, cost-effectiveness compared to traditional built-in-place plants, and high operational efficiency.
Containerized Water Treatment Equipment

Performance & Characteristics

  • Desalination rate up to 99.5% using advanced reverse osmosis technology.
  • Automatic management through modern control technology to reduce labor costs.
  • Energy-saving design to lower the cost of water production.
  • Stainless steel rack pipelines and corrosion-resistant fittings for durability.
  • Reliable 24-hour continuous operation.
  • Simple operation; provides fresh water immediately after start-up.
  • Integrated electrical control system for status, alarms, and flow monitoring.
  • Technical Specifications Banner
    Producing Capacity 15m³/h RO Membrane 8″
    Recovery Rate 75% Power Supply Tri-phase: 110/220/380/415V 50/60Hz
    Operating Pressure 1.0-1.6MPa Power Consumption 21KW/22KW
    Filtration Accuracy 0.0001 micron Control Type Manual / Auto control

    System Workflow

    Workflow Banner

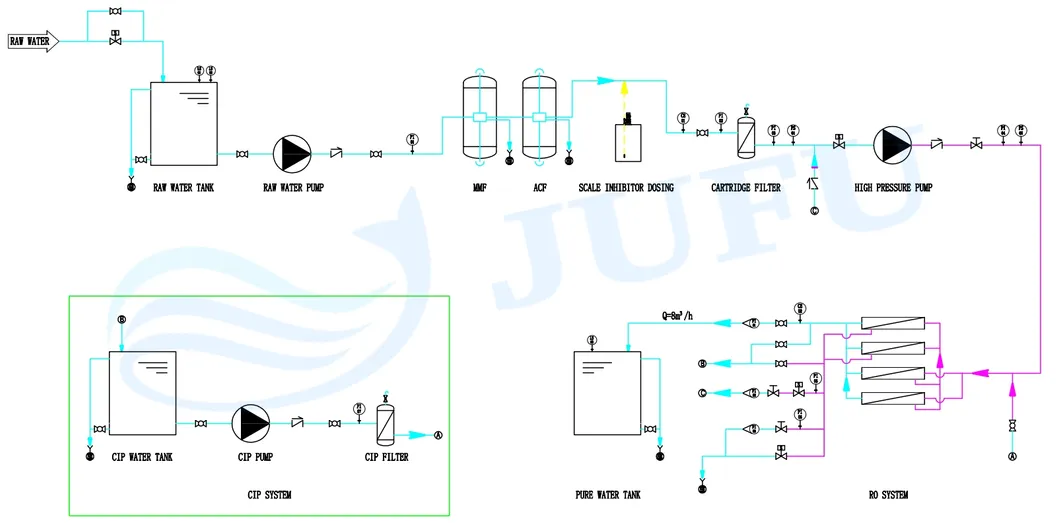

    Raw water tank → Booster pump → Quartz sand filter → Activated carbon filter → Scale inhibitor dosing → Precision filter → High pressure pump → Reverse Osmosis System → Pure water tank
    System Flow Chart

    Product Gallery

    Gallery Title

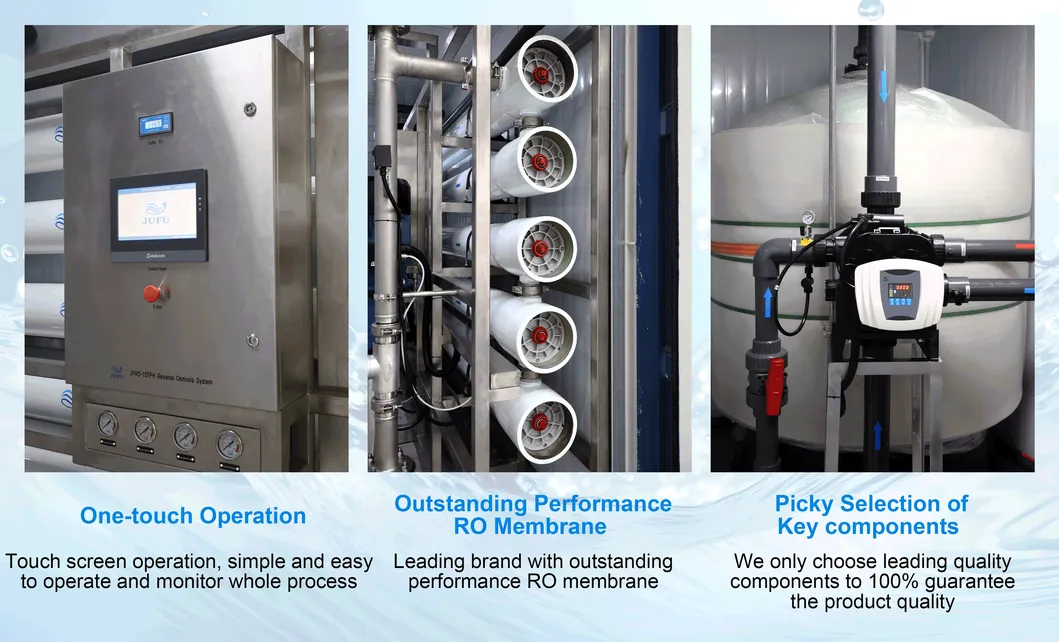

    Water Treatment Detail 1 Water Treatment Detail 2 Water Treatment Detail 3
    Installation Banner
    Field Installation 1 Field Installation 2 Field Installation 3
    System View

    Frequently Asked Questions

    Q: What's the type of your company? Manufacturer or Trading agent?

    A: We are a high-tech manufacturer in the water treatment industry for almost two decades. We specialize in Research & Development, Manufacturing, Sales, and Engineering installation for water purification equipment.

    Q: What kind of information is needed for product selection?

    A: Please provide the raw water source (and water analysis report if possible), your required output capacity, the application of the project, local piping standards, and whether you need on-site installation guidance.

    Q: How can I choose the products that perfectly match my case?

    A: Tailor-made solutions are provided by professional engineers based on your specific requirements. All project pain-points are analyzed and solved for overall system optimization.

    Q: What are your standard payment terms?

    A: Generally, we require a deposit in advance and the remaining balance to be paid before delivery.

    Q: What is the typical lead time for equipment?

    A: It depends on the order, but typically ranges from 3-5 weeks for general water treatment products.

    Q: What kind of warranty is offered on the equipment?

    A: We offer a 1-year warranty for the products. With proper use and regular maintenance, the equipment itself can reliably work for over 5 years.
