Basic Specification
Operating Pressure
0.8-1.2MPa
Membrane
Dow /Hydranautics/Troy/ Vontron
Pump Brand
Cnp/Nyp (Optional)
Package Size
235cm * 155cm * 230cm

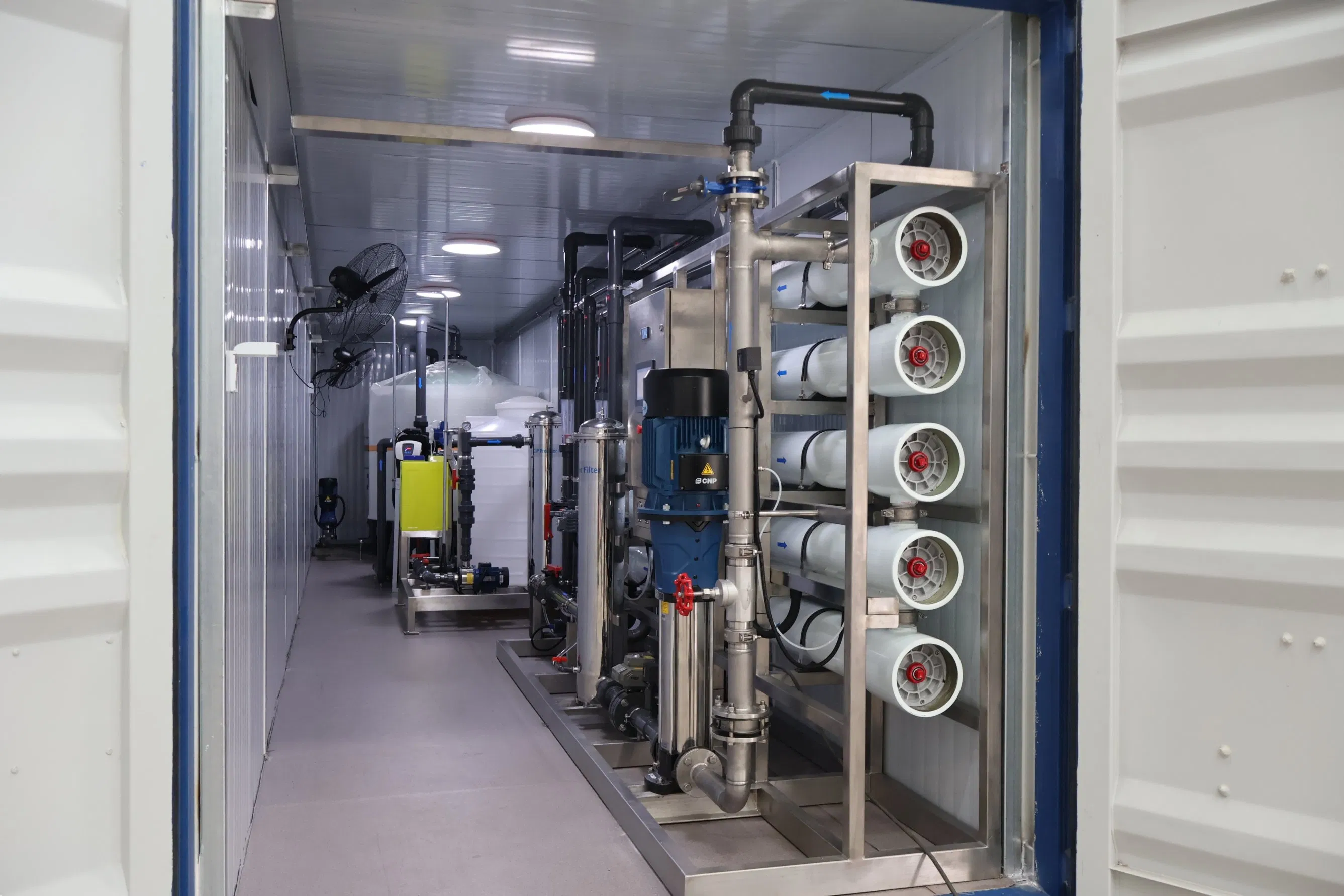

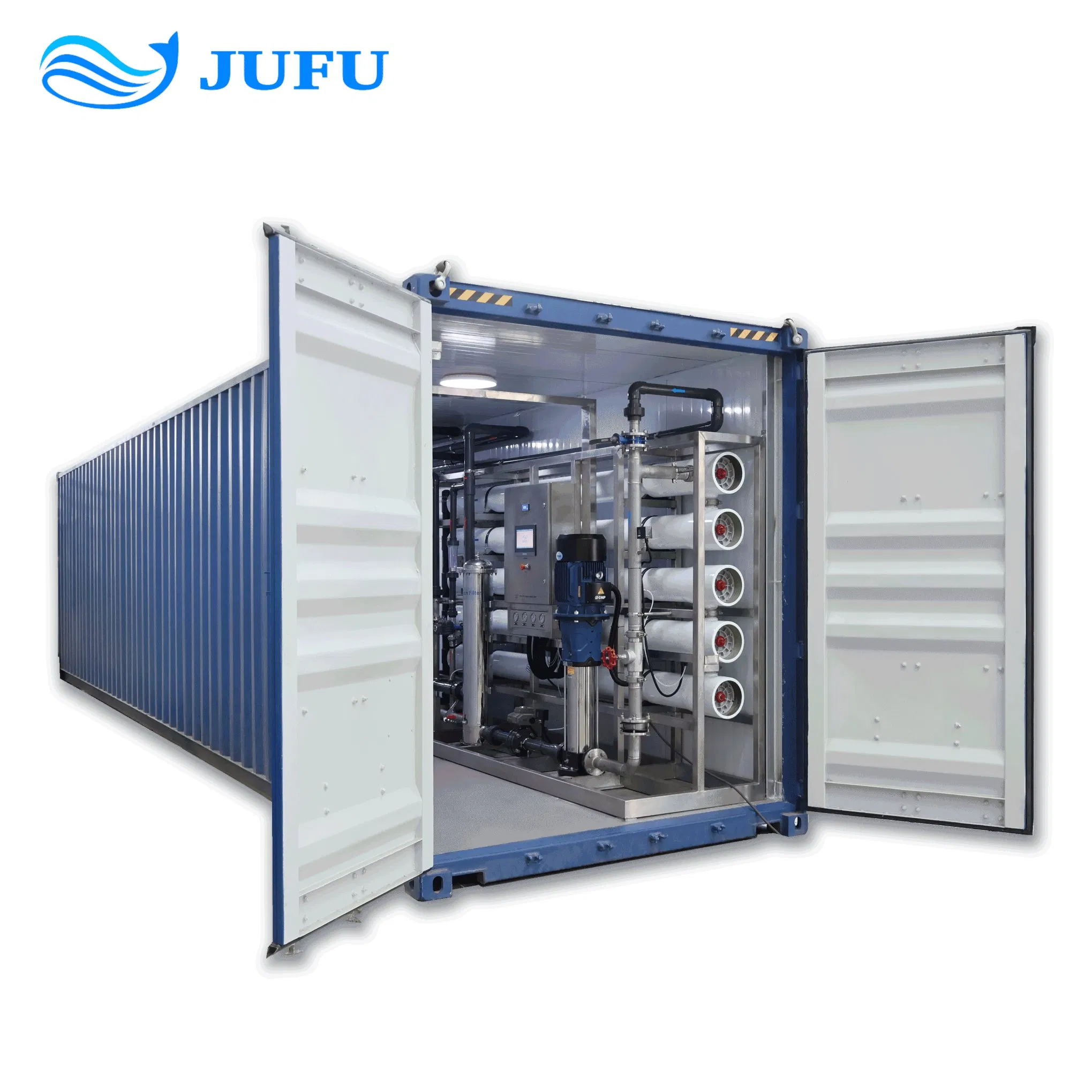

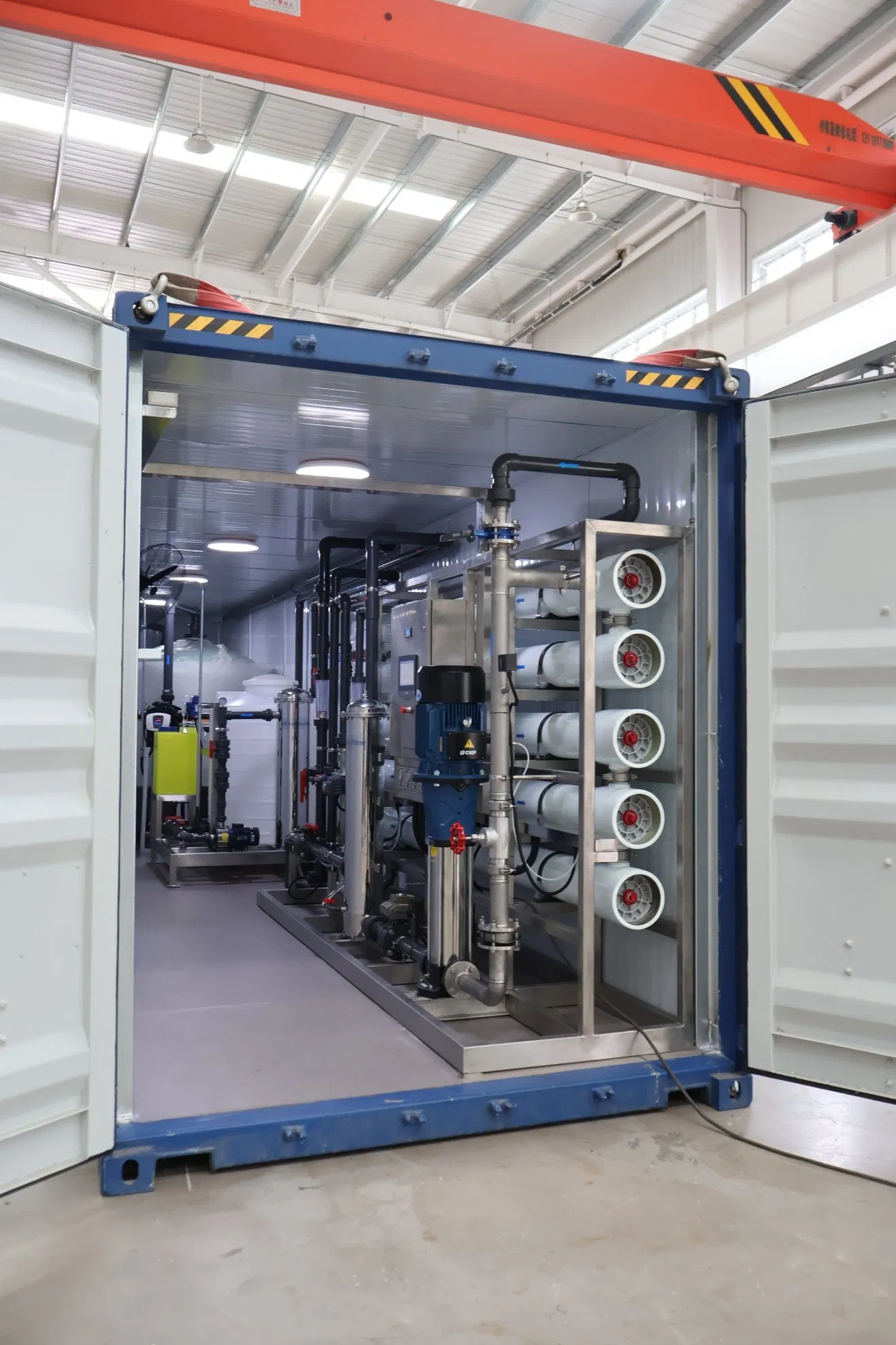

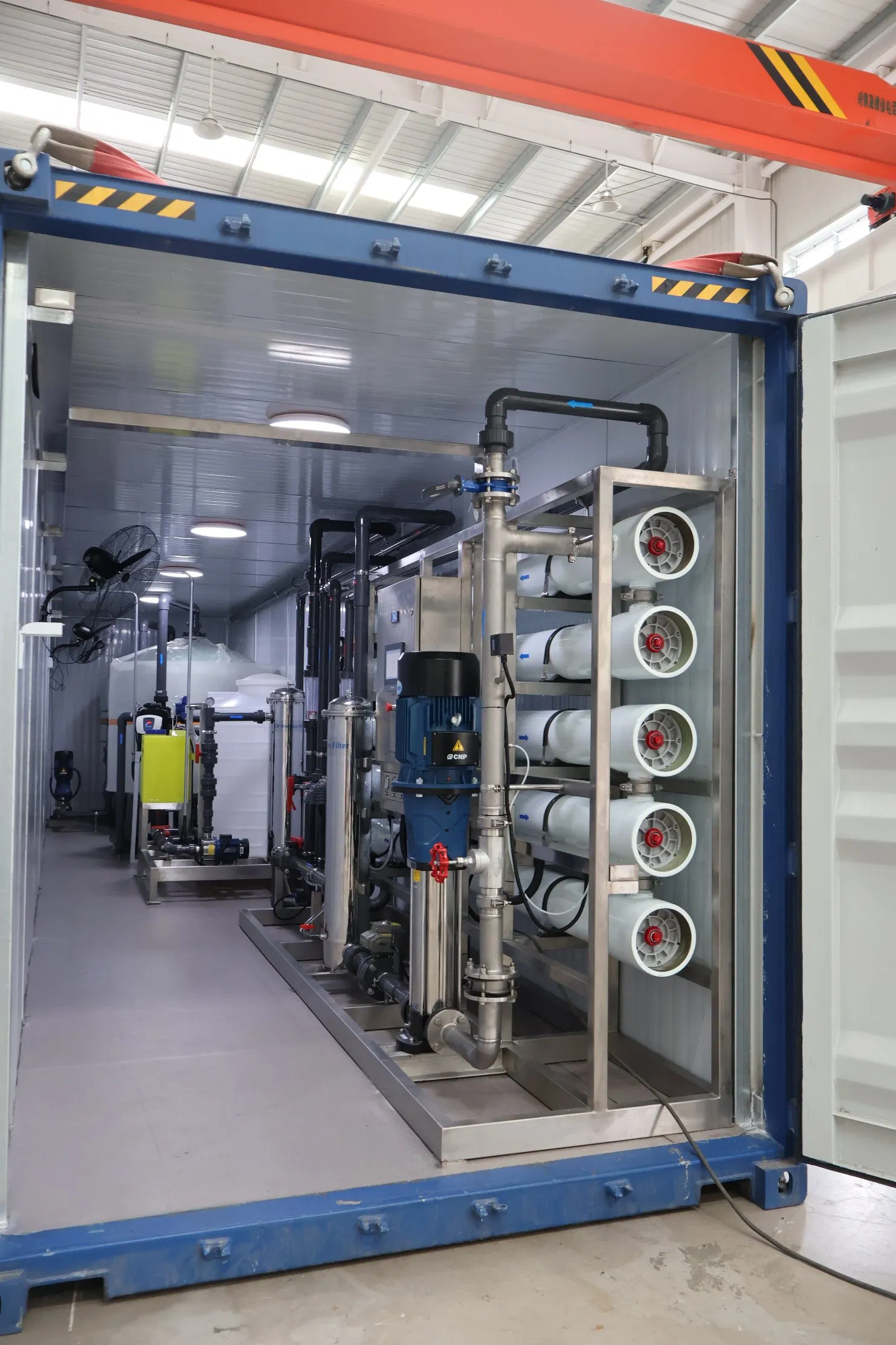

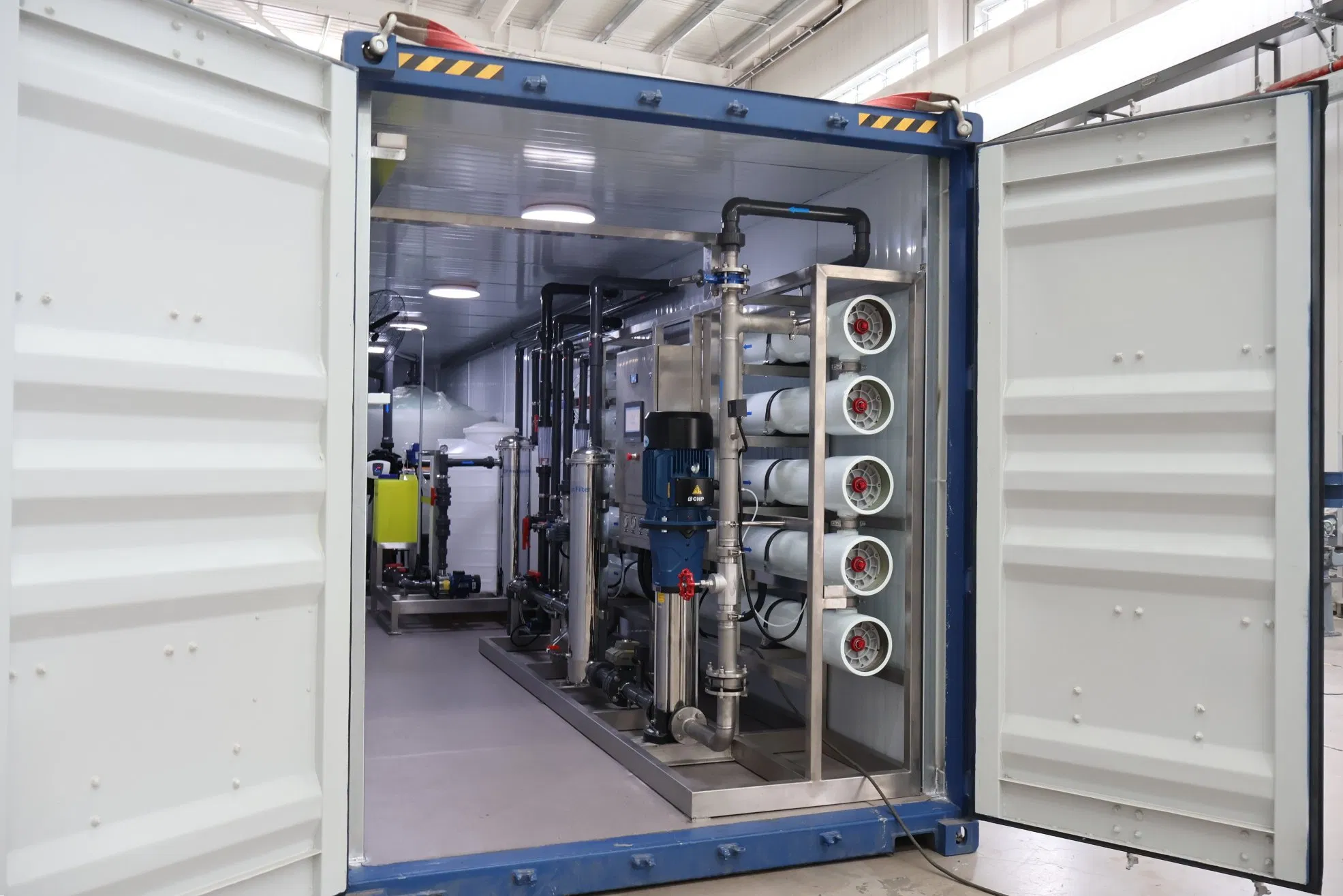

Containerized Water Treatment System
Containerized water treatment equipment is a convenient and efficient solution for water treatment, housing various water treatment processes within a standard shipping container.
Key Structure & Design
- Container Base: Standard shipping container provides structural strength and ease of transportation.
- Modular Design: Independent modules (filters, RO units, disinfection) for easy maintenance.
Application Scenarios
- Temporary or Mobile Projects (Construction sites, disaster response).
- Remote Areas lacking reliable infrastructure.
- Emergency response for rapid safe water deployment.
Performance & Characteristics
- Desalination rate up to 99.5% using advanced RO technology.
- Modern automatic control technology for reduced labor costs.
- Energy-saving design to lower water production costs.
- Corrosion-resistant stainless steel pipelines for durability.
- Reliable 24-hour continuous operation.
- Integrated communication for status, alarms, and flow monitoring.
| Model | JFRO-15T |
Capacity | 15m³/h |
| Recovery Rate | 75% |
RO Membrane | 8″ |
| Operating Pressure | 1.0-1.6MPa |
Power Supply | 3-Phase: 110/220/380/415V |
| Desalination Rate | 99% |
Consumption | 21KW / 22KW |
| Accuracy | 0.0001 micron |
Control Type | Manual / Automatic |
| Feed Water |
TDS < 2000mg/L; SDI < 5; Free Chlorine < 0.1mg/L |

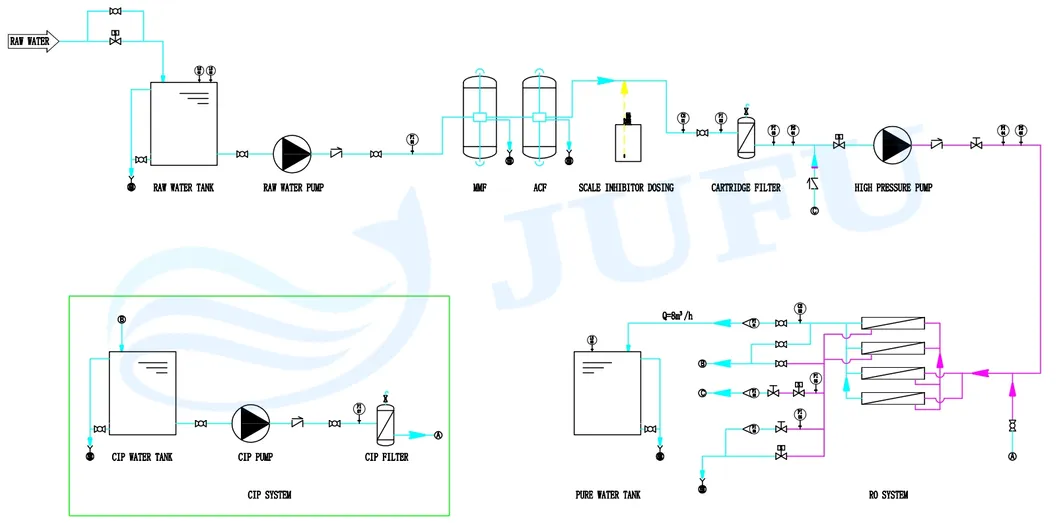

Process Flow: Raw water tank → Booster pump → Quartz sand filter → Activated carbon filter → Scale inhibitor dosing → Precision filter → High pressure pump → Reverse Osmosis System → Pure water tank

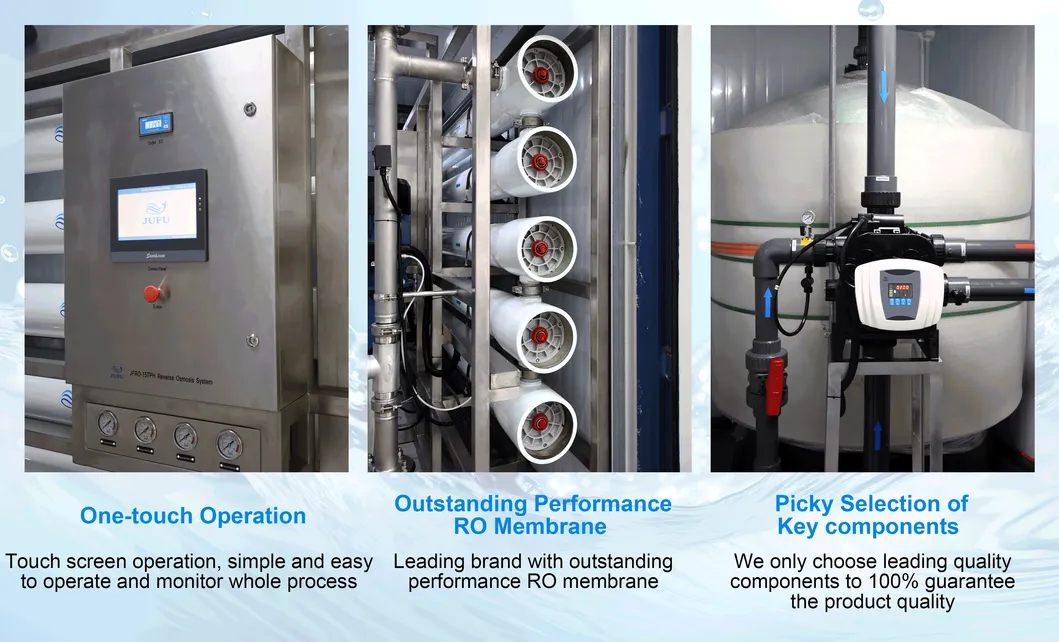

Equipment Details
Frequently Asked Questions
Q: What type of company are you?
A: We are a high-tech manufacturer in the water treatment industry for almost two decades, specializing in R&D, manufacturing, engineering installation, and consultancy.
Q: What information is needed for product selection?
A: Please provide your raw water source (Water Analysis Report if possible), required output capacity, application details, and local piping standards.
Q: Can I get a solution tailored to my specific case?
A: Yes, professional engineers provide tailor-made solutions based on your requirements to optimize performance and solve project pain-points.
Q: What are the payment terms and lead time?
A: Payment typically requires a deposit in advance with the balance before delivery. Lead time is generally 3-5 weeks for standard products.
Q: What is the product warranty?
A: We offer a 1-year warranty. With proper maintenance and use, the equipment itself can serve for over 5 years.
