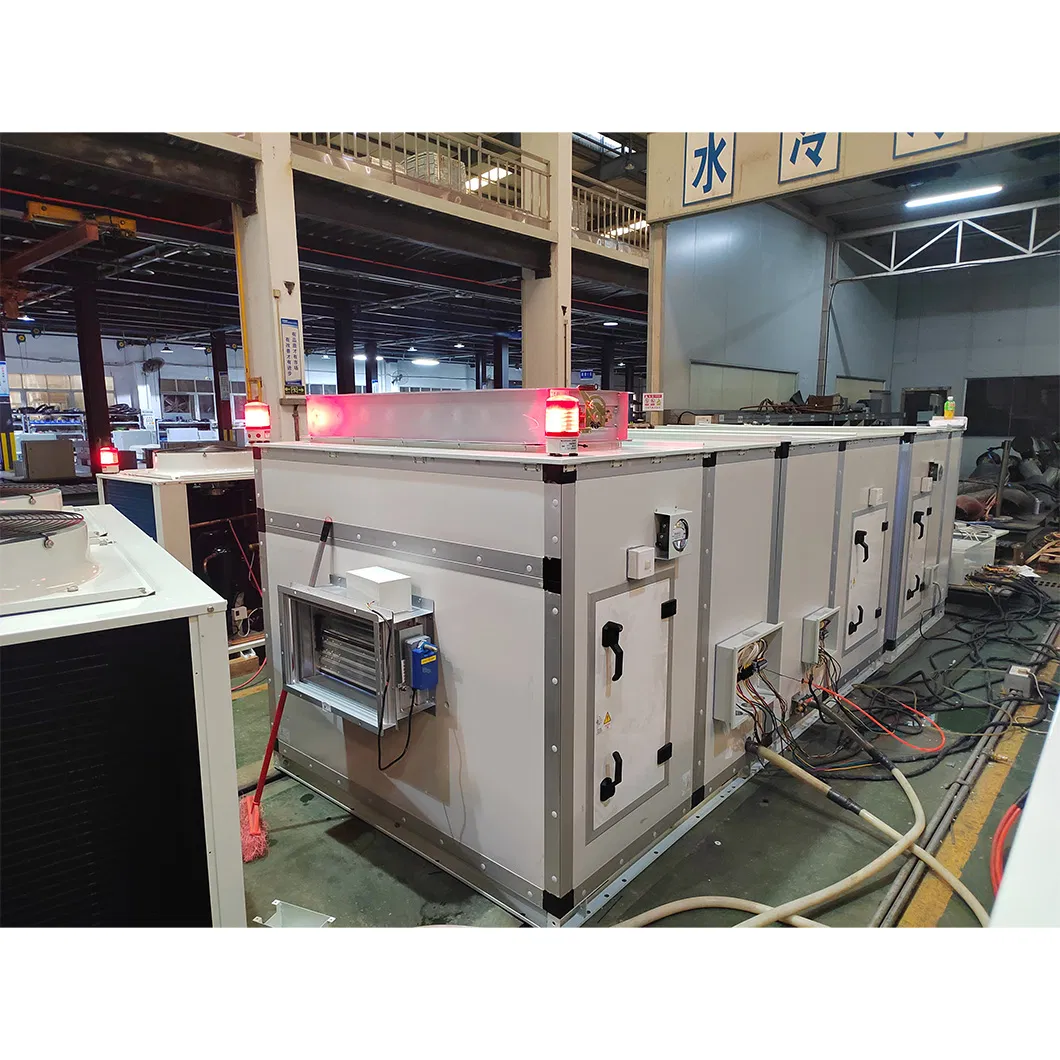

HVAC Heat Energy Recovery Industrial Medical Surgery Room Ahu Fresh Rooftop Packaged Air Handling Unit

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
ZK006/KAO-100G
Type
Air Handling Unit
Air Tube Material
Galvanized Sheet
Corrosion Durability
Ultrahigh
Application Fields
Medicine
Mounting
Floor Standing
Lifetime
10~15 years
Certification
CE
Condition
New
Modular Design
Easy Assembling & Transit
Thermal Insulation
No Thermal Bridge
Option
BMS RS485 Connection
Product Description

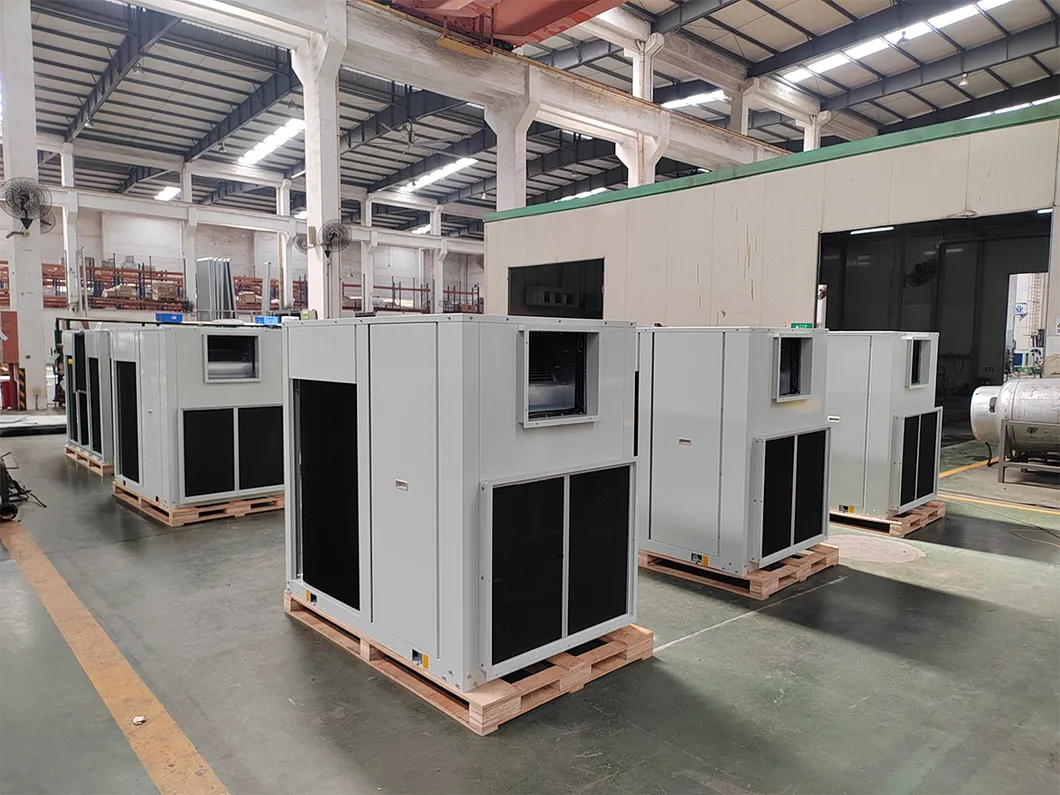

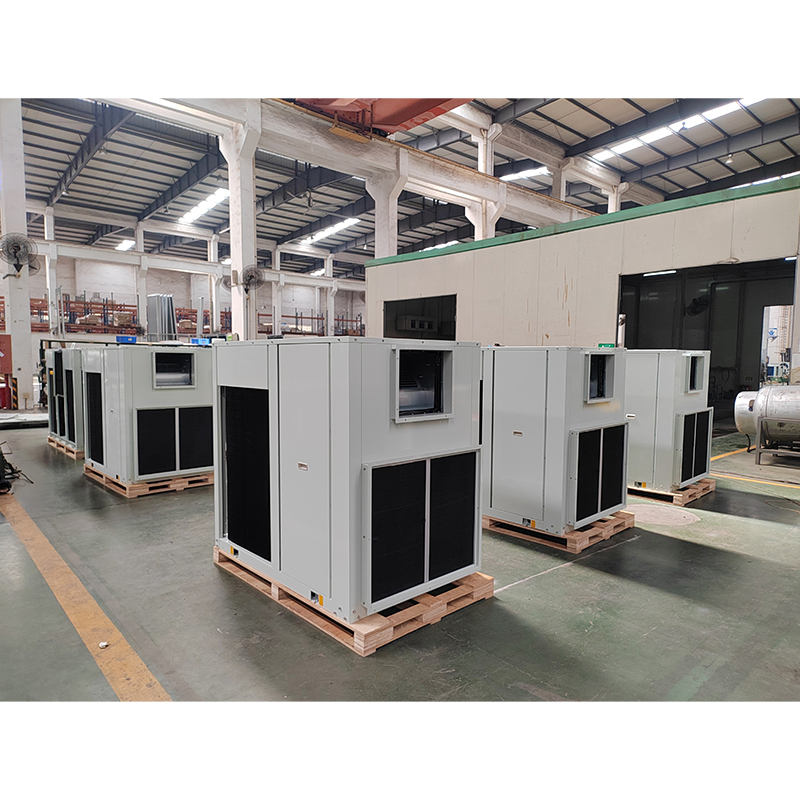

Central HVAC air conditioning system, including rooftop packaged air conditioners and specialized medical surgery room air conditioning units. Capacities range from 5-50 Ton, utilizing R410a or R454B refrigerants.

Key Capabilities

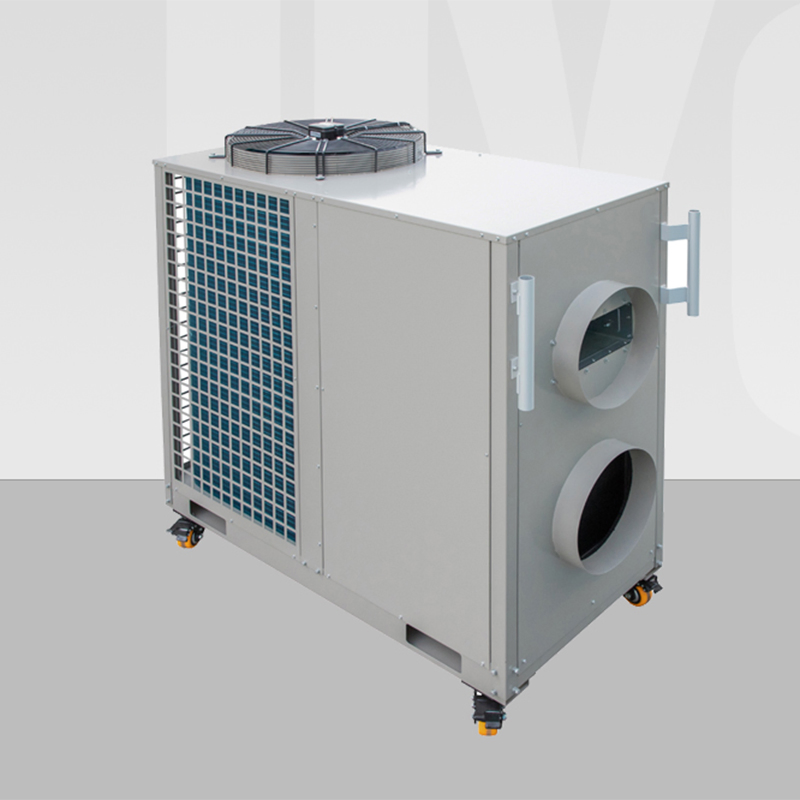

  • All-in-one packaged air-air heat pumps for greenhouses, mushroom growing rooms, and tents.

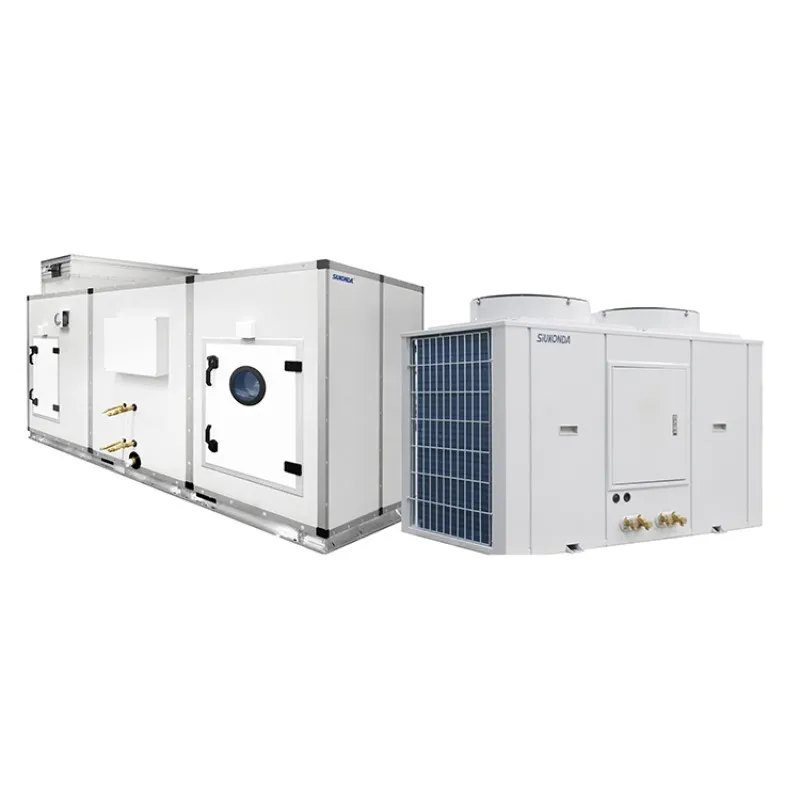

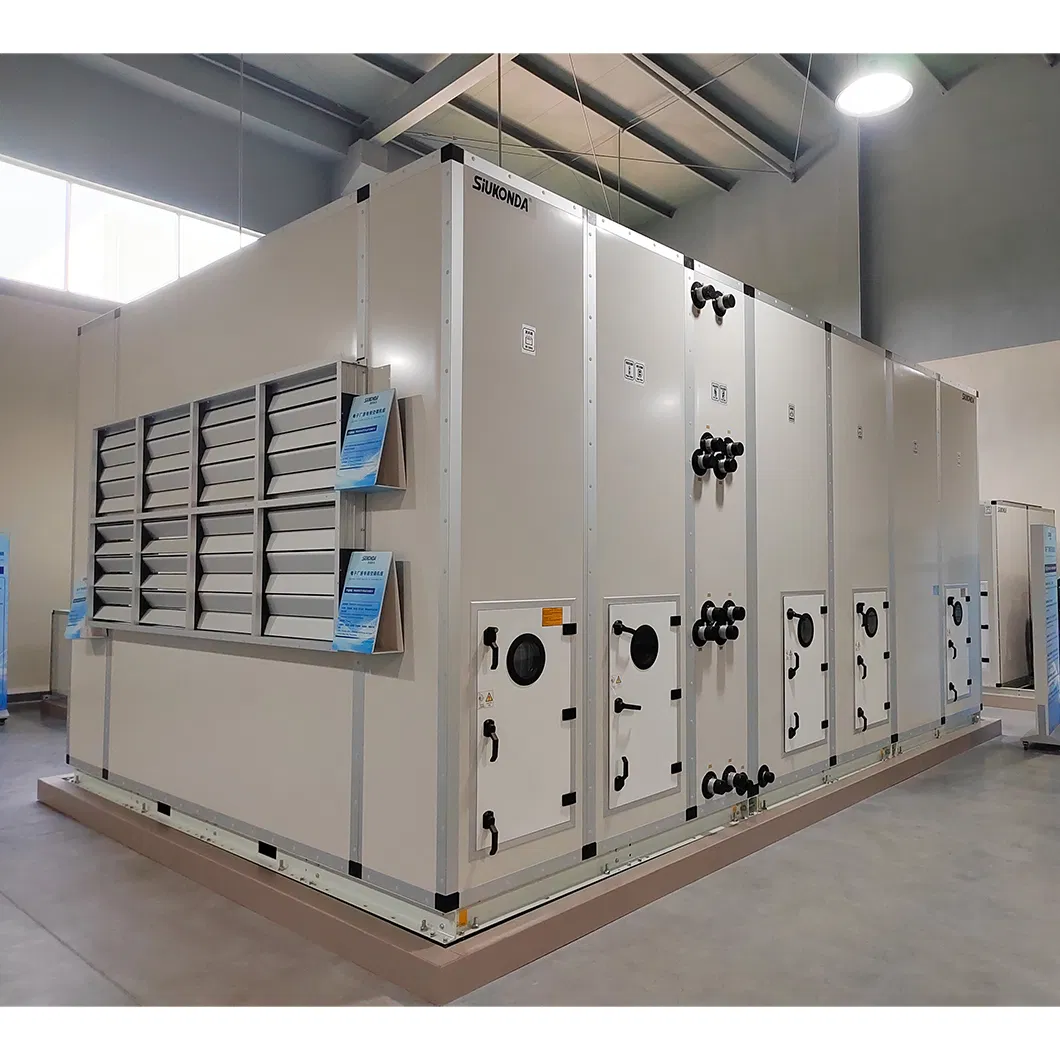

  • Air handling units with direct expansion cooling coils & air-cooled condensing units.
  • Chilled water coil air handling units.
  • Air flow range: 6,000 to 49,000 m³/H.
  • Cooling capacity: 28kw to 266kw.
Technical Features
  • Sandwich panel construction with CFC-free polyurethane (50KG/m³ density).
  • Patent anti-thermal bridging design with plastic connector configuration.
  • Excellent anti-leakage performance: Casing air leakage Level L1 (EN1886).
  • Filter bypass leakage level F9.

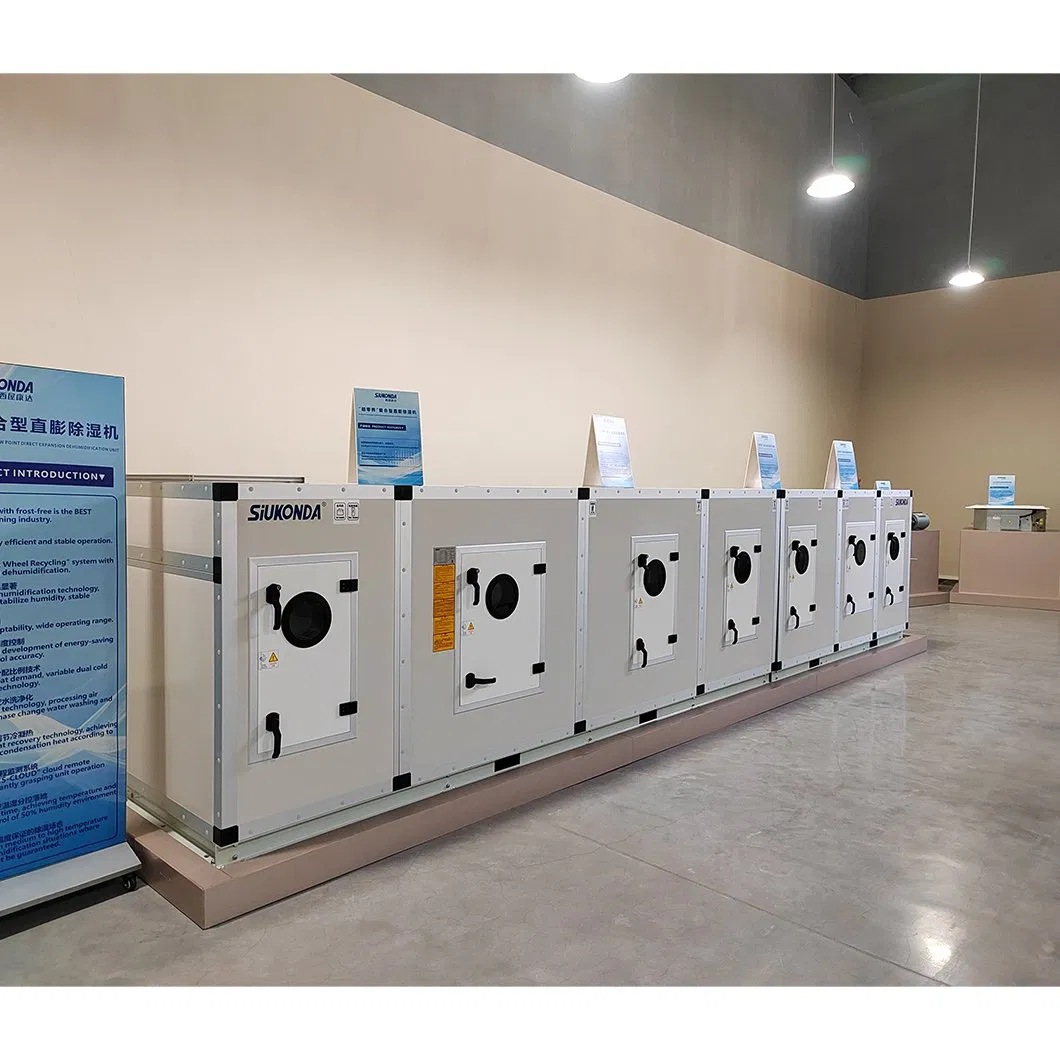

  • Modular design with customizable functional sections.
  • Optional Inverter blower/EC motor for automatic air flow regulation.

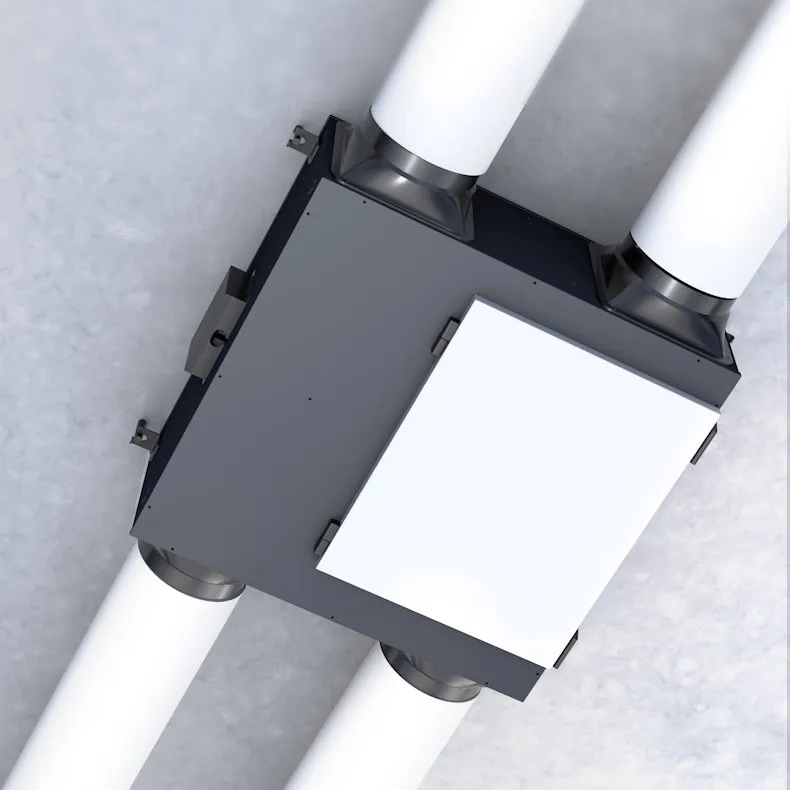

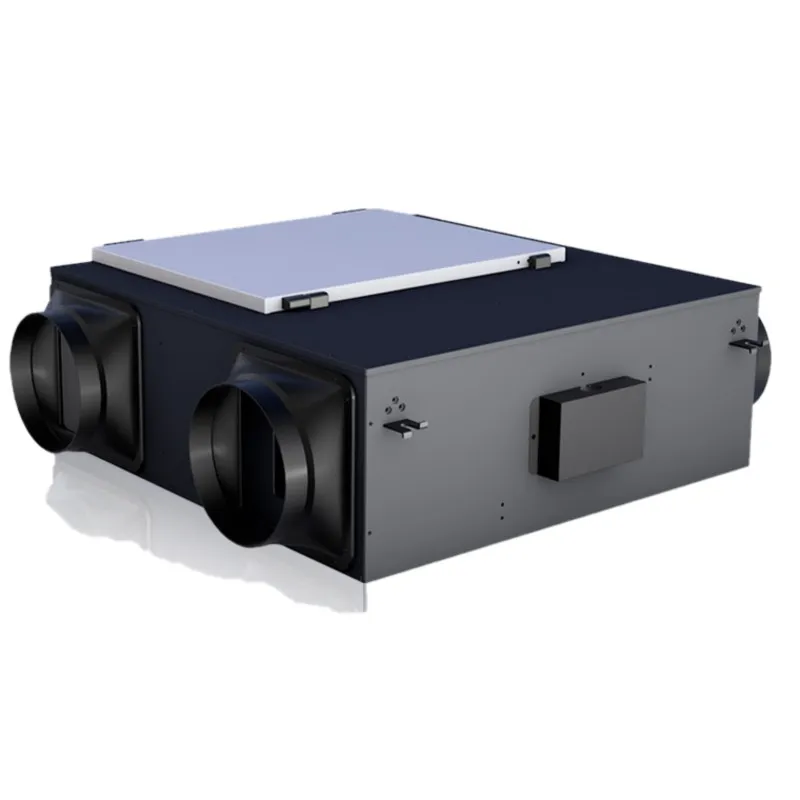

Heat Recovery Ventilators

Air flow ranges from 250 to 10,000 m³/h, available with EC or DC fan blowers.

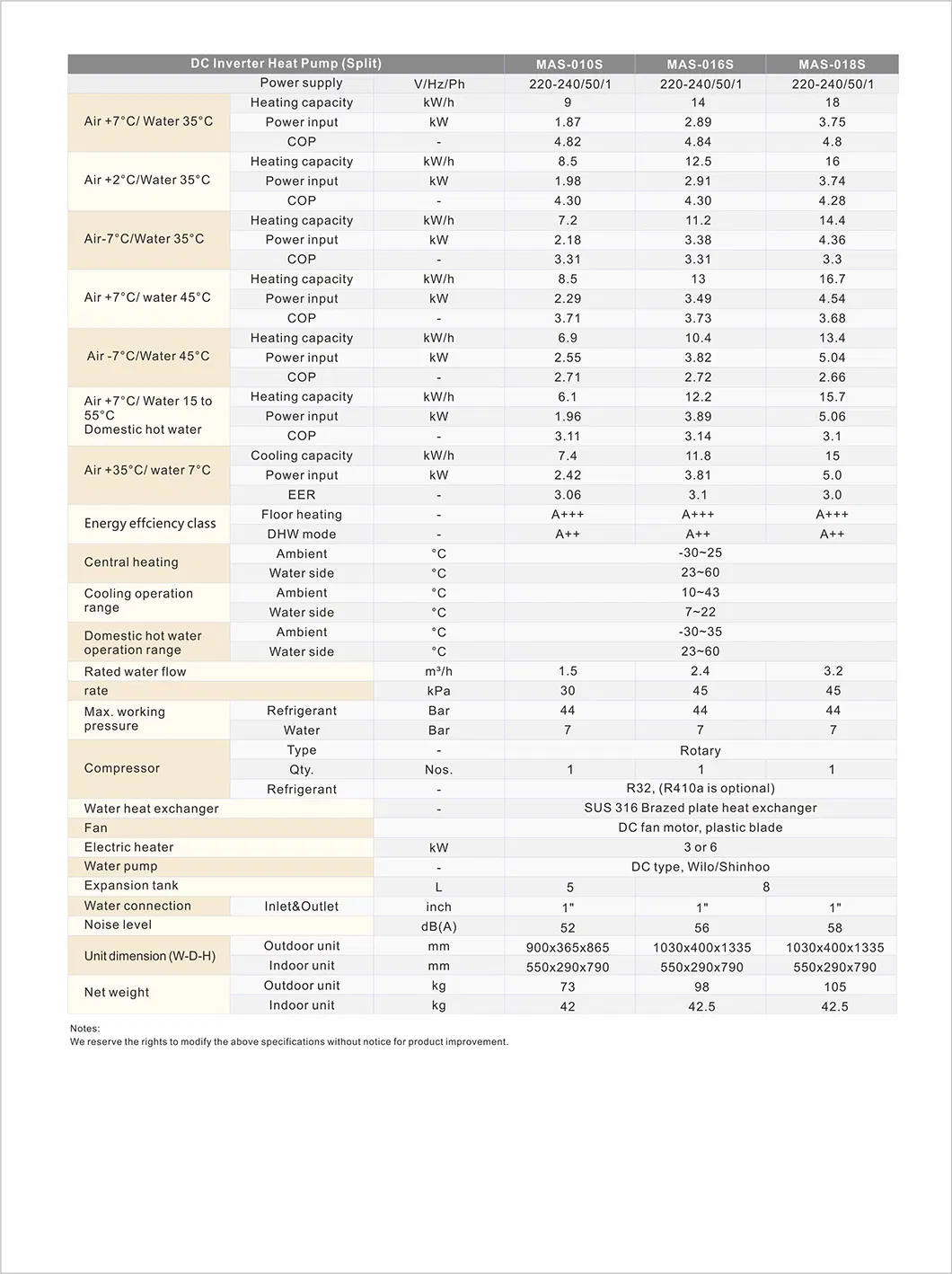

Air to Water Heat Pumps

Inverter air to water heat pumps designed for house heating, cooling, and sanitary hot water production. Energy efficiency rated A+++ for floor heating applications.

  • Capacity options: 6kw, 9kw, 14kw, 18kw, 30kw, 90kw.
  • Room temperature compensation and heating curve functions.
  • Smart Modes: Vacation, Sleep, and ECO modes.
  • Intelligent defrosting and anti-frosting design.
  • Wifi control via Smart APP.

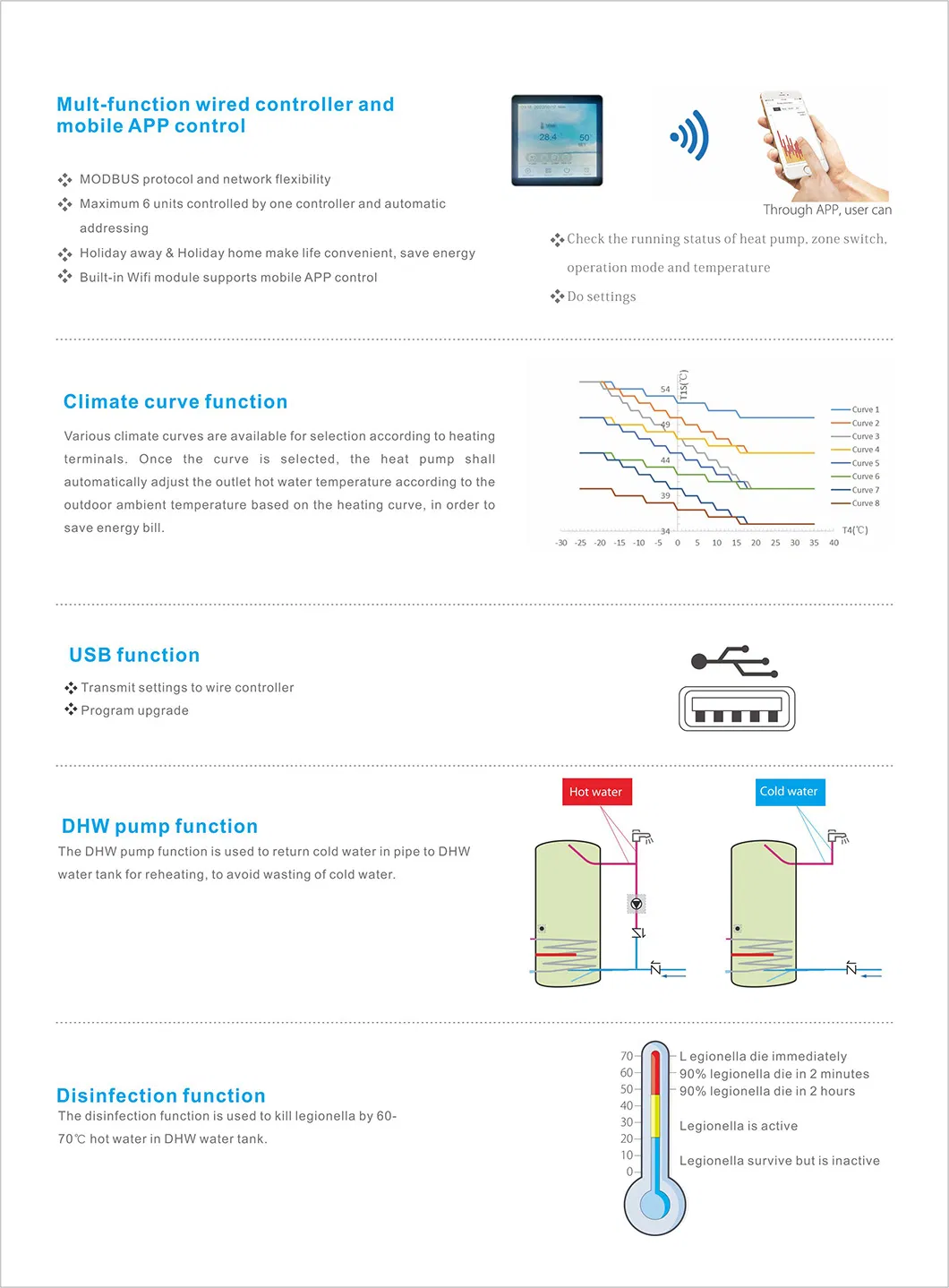

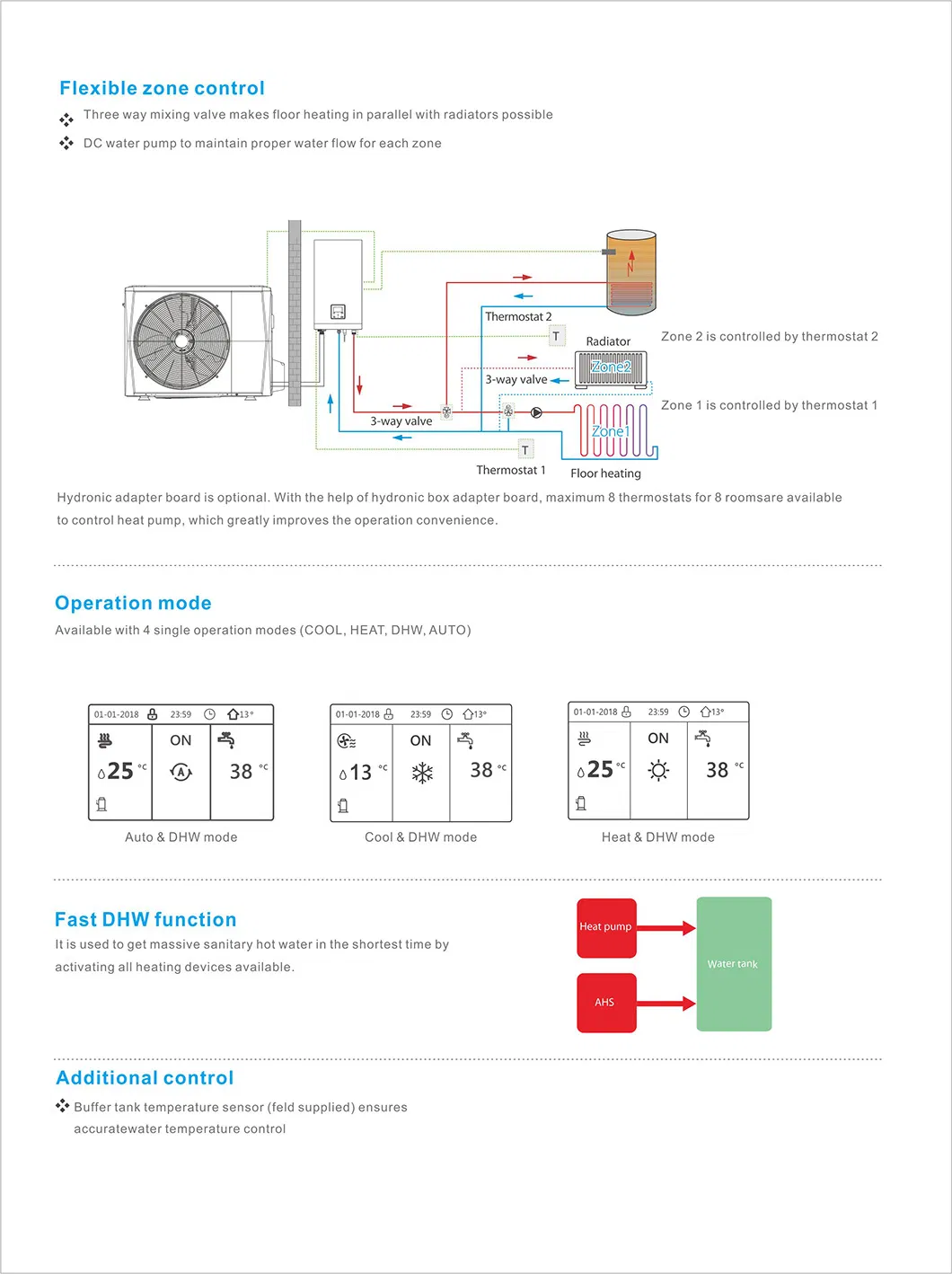

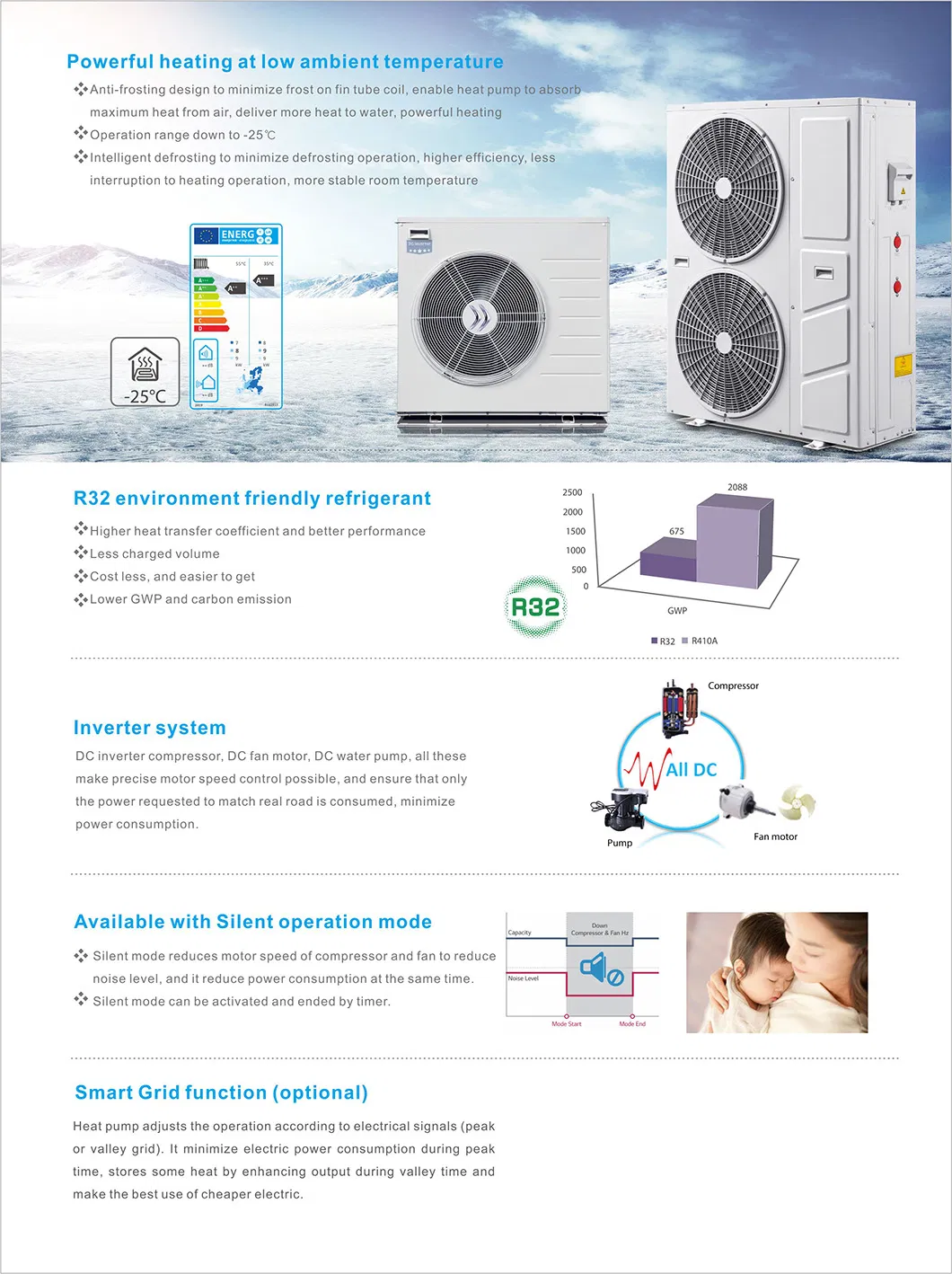

Function & Features

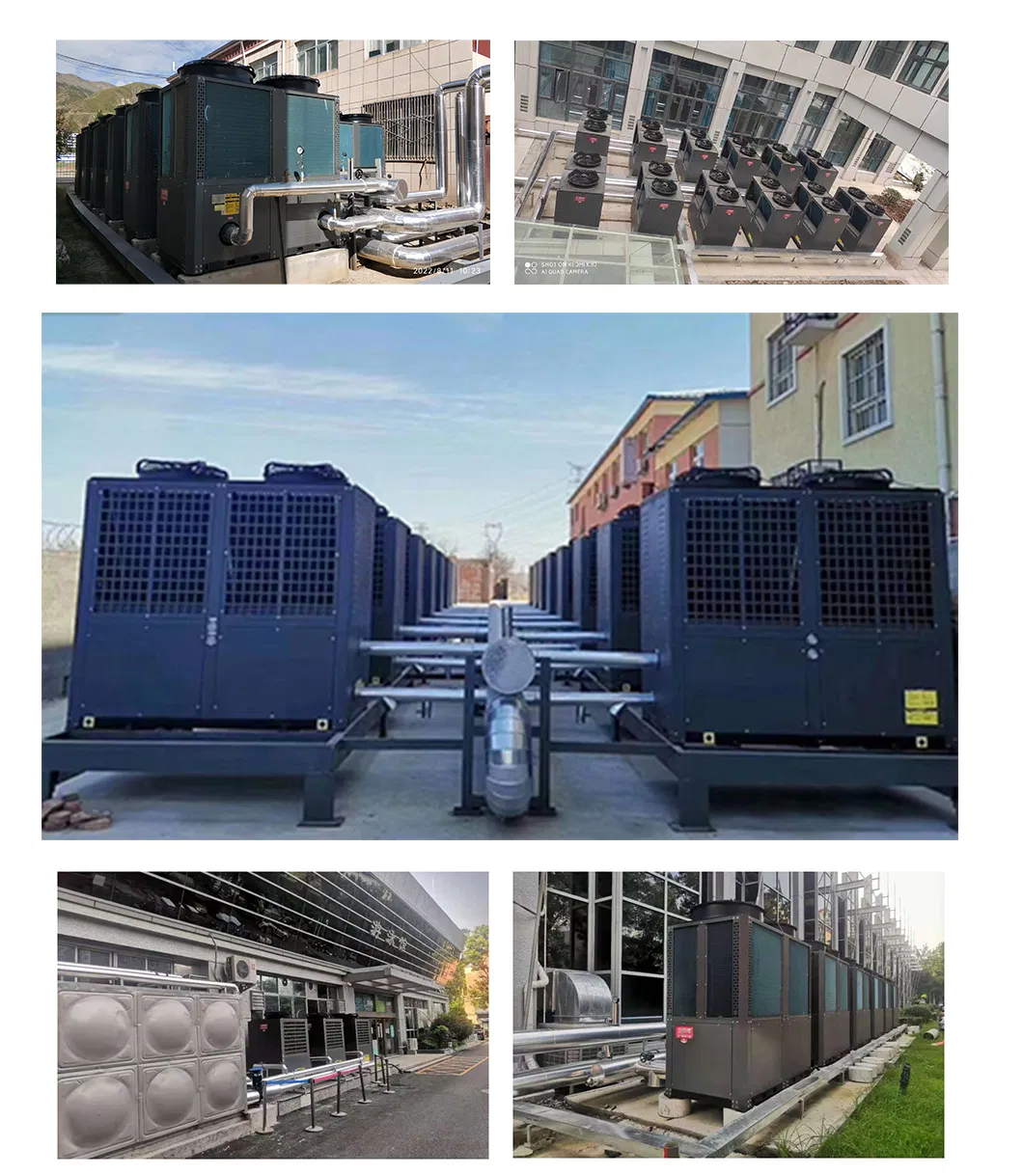

Commercial Reference Projects
Our Advantages

Specialized in RHVAC products since 2007 with extensive experience in the international market. We provide comprehensive technical support and global service through our expert engineers.

Frequently Asked Questions
What is the air flow and cooling capacity of the AHU?
The air flow range is from 6,000 to 49,000 m³/H, with a cooling capacity ranging from 28kw up to 266kw.
What kind of panel insulation is used in these units?
We use sandwich panels with CFC-free polyurethane insulation, featuring a high density of 50KG/m³ for optimal thermal performance.
Are these units suitable for hospital or medical environments?
Yes, the units are specifically designed for medical surgery rooms and high-hygiene industrial applications, featuring anti-leakage Level L1 casing.
What refrigerants are compatible with the rooftop units?
The units are compatible with R410a and R454B refrigerants, meeting modern environmental standards.
Do the heat pumps support smart home integration?
Yes, the inverter air-to-water heat pumps come with Wifi control and a dedicated smart APP for remote management.
What is the typical lifespan of the Air Handling Unit?
Due to the high-quality galvanized sheet material and ultra-high corrosion durability, the units have a projected lifetime of 10 to 15 years.
