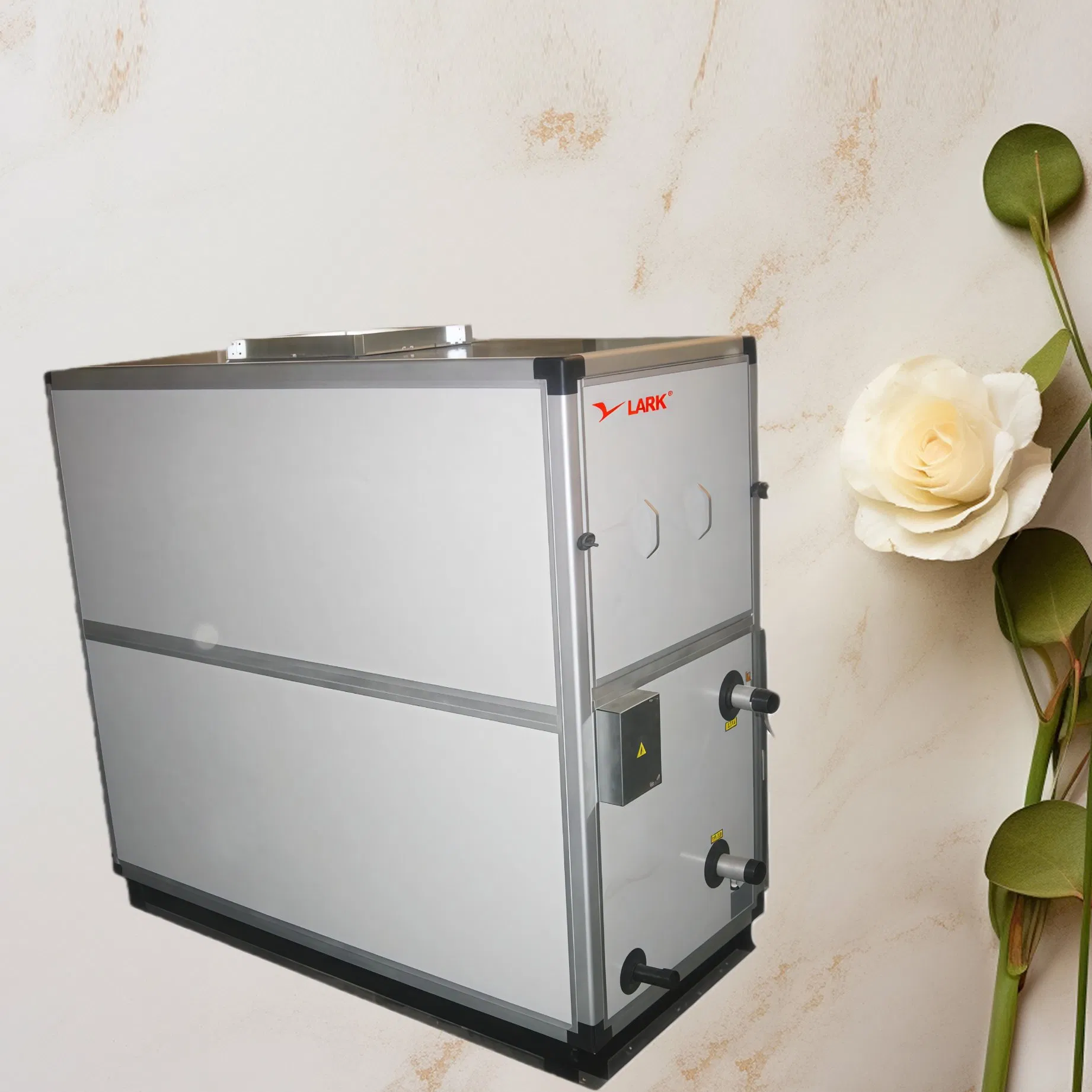

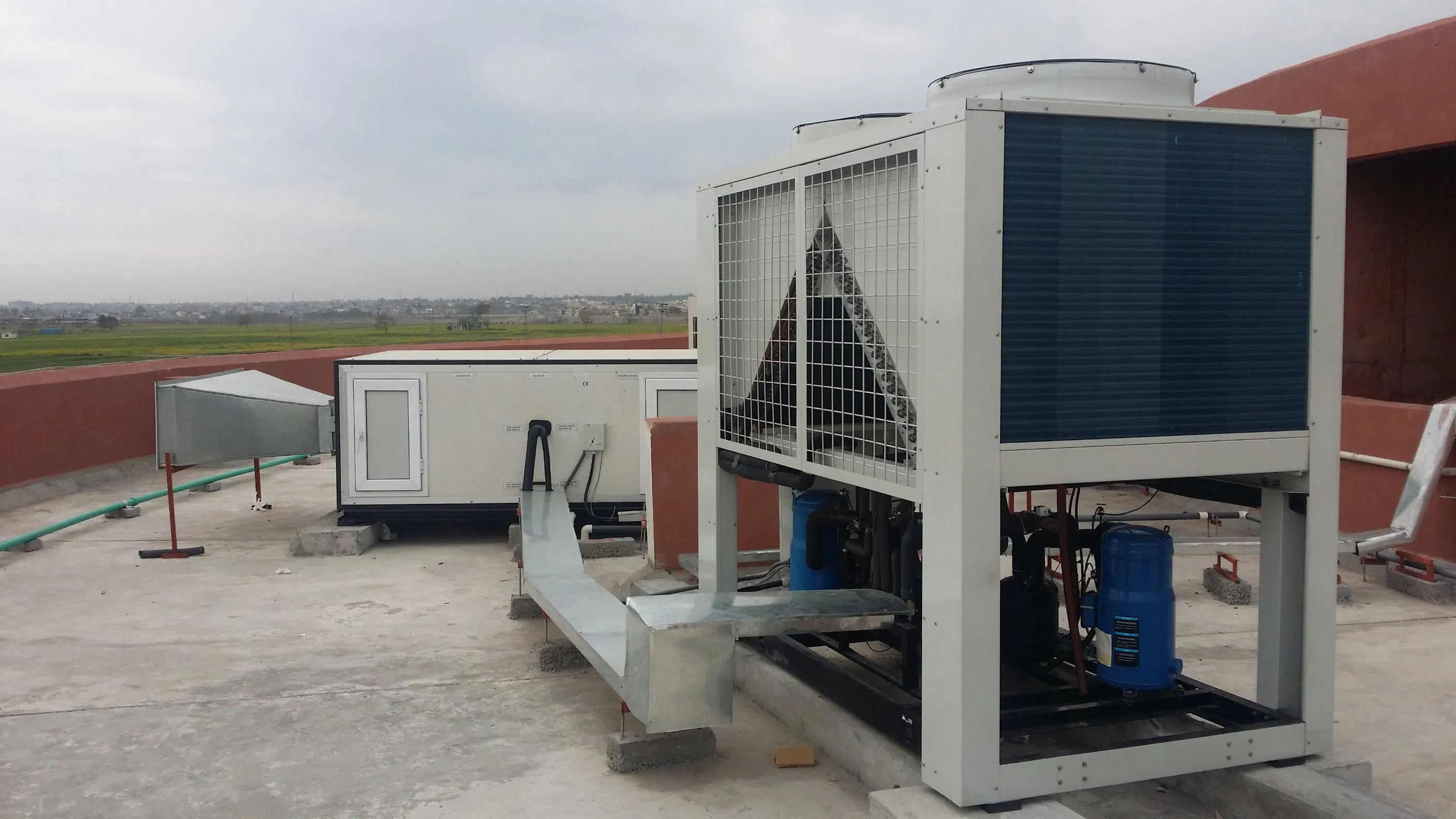

Dx Type/Water Chilled Type Dx Coil Heat Recovoery Modular Air Handling Unit Fahu Ahu

1 / 5

Dx Type/Water Chilled Type Dx Coil Heat Recovoery Modular Air Handling Unit Fahu Ahu

Customization:	Available
After-sales Service:	Offer Foc Spare Parts and Installation Training
Warranty:	One Year for The Whole Unit

Send Inquiry

Product Description

Basic Specifications

Model NO.Sanitary air handling unit

TypeAir Handling Unit

MaterialGalvanized Sheet

DurabilityUltrahigh

Voltage380/400 VAC

Noise LevelUltra Low

ApplicationFood Processing

MountingCeiling Mount

Lifetime>20 years

CertificationISO, CE, CCC

Skin30/50mm Double Skin

RefrigerantWater/R410A/R22/R407c

Capacity1000-70000CFM

Our Advantages

15 Years Experience: Manufacturing and designing full ranges of HVAC products.
Global Reach: Exported to more than 60 countries with reliable quality.
Customization: OEM/ODM and customized products tailored to specific project needs.
One-Stop Solution: Full range manufacturer providing complete HVAC solutions.
Quality Standards: Produced according to ISO 9001:2000 and ISO 14001:2004.

Available HVAC Products

We provide a wide range of HVAC products including:

Packaged rooftop Units

Condensing Units

Modular Chillers

Air Cooled Screw Chillers

Water Source Heat Pump

Fan Coils & AHUs

HRVs and more

Product Features

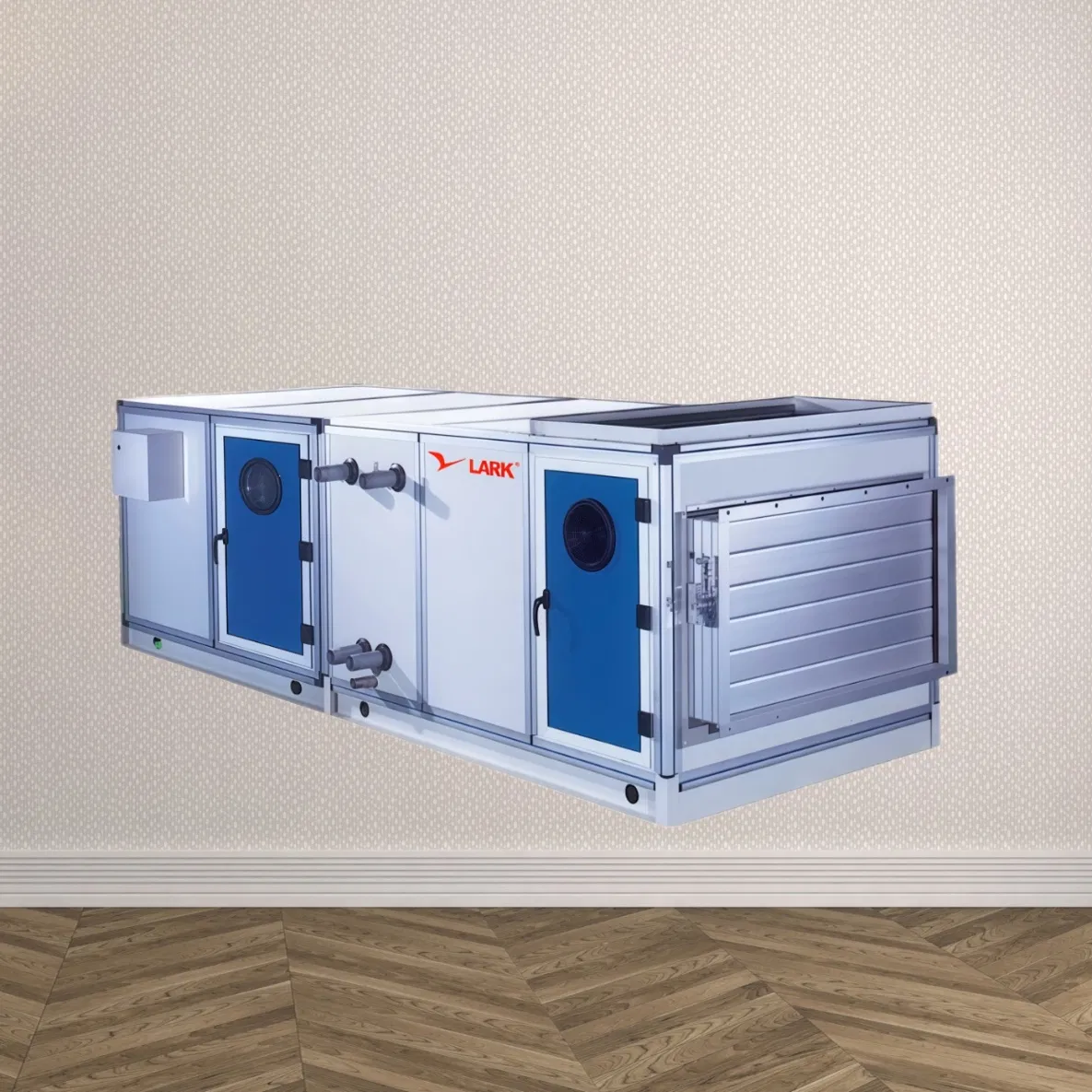

Modular Design: Manufactured in modular sections where each module contains specific components, allowing flexible arrangements based on task requirements.

Indoor Air Quality: Ideal for controlling filtration, humidification, cooling, heating, and noise levels.

High Efficiency: Features high-efficiency centrifugal fans and heat exchangers with excellent vibration absorption.

Serviceability: Designed for easy access through doors and panels, ensuring long life through simple maintenance.

Insulation: 30mm to 50mm thickness foaming material provides a strong body and superior heating insulation.

Performance Parameters

Model	Air Volume (m3/h)	Cooling (kW)		Heating (kW)		Power (kW)	Noise dB(A)	Dimension (mm)
Model	Air Volume (m3/h)	4R	6R	4R	6R	Power (kW)	Noise dB(A)	Dimension (mm)
LKCD1.5A	1500	8.1	11.1	12.1	16.5	0.32	55	900×750×550
LKCD2A	2000	11.1	14.9	16.5	22.2	0.32	56	940×800×600
LKCD3A	3000	15.2	22.2	22.6	33.1	0.55	58	940×1090×600
LKCD5A	5000	32.9	37.9	49.0	56.5	1.5	60	1100×1420×680
LKCD10A	10000	59.9	78.9	89.3	118.0	3.0	64	1300×1900×890

* Cooling: Inlet DB 27°C/WB 19.5°C, Water 7°C. Heating: Inlet DB 21°C, Water 60°C.

Gallery

Frequently Asked Questions

Q1: Are you a professional manufacturer in the HVAC industry? Yes, we have over 15 years of experience in manufacturing and exporting high-quality HVAC products globally.

Q2: Can you help select the correct model for my project? Absolutely. Our experienced engineers can assist based on your application industry, water flow rate, required ESP, and specific function sections needed.

Q3: How do you ensure product quality? All products carry CE certificates and comply with ISO9001. We use world-famous brand components and every unit is fully tested before leaving the factory.

Q4: What is the standard warranty period? We provide a 1-year warranty for the whole unit to ensure peace of mind for our clients.

Q5: What are the standard payment terms? For new clients, the standard is 30% TT deposit before production and the balance before shipment. LC at sight is also available for long-term business.

Q6: Do you offer customized modular units? Yes, we specialize in customized AHUs (including DX types) and have exported them to over 30 countries for over 15 years.
