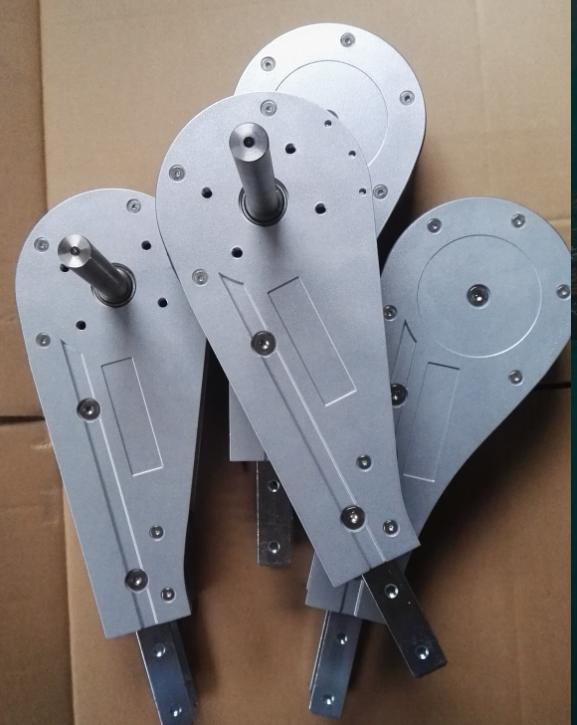

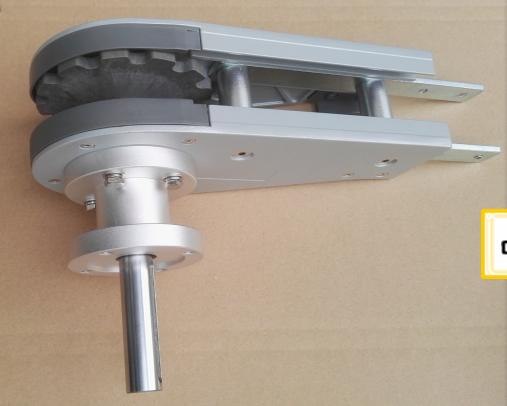

140 Flexible Conveyor System Drive Units

1 / 5

140 Flexible Conveyor System Drive Units

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.140

Surface TreatmentPolishing

MaterialAluminum

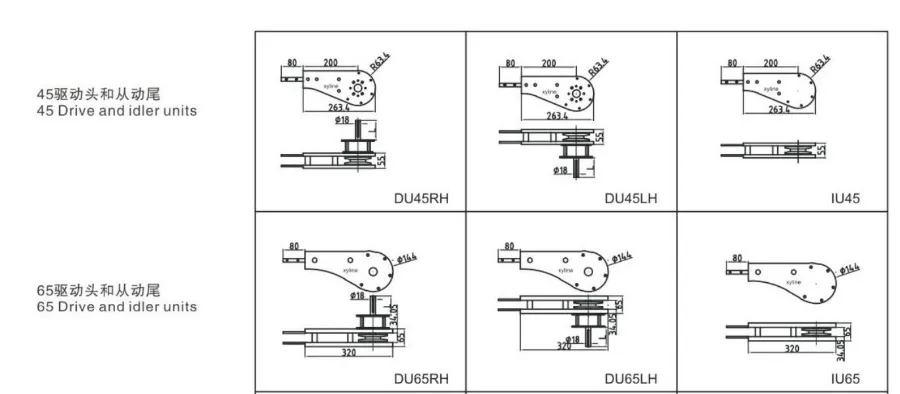

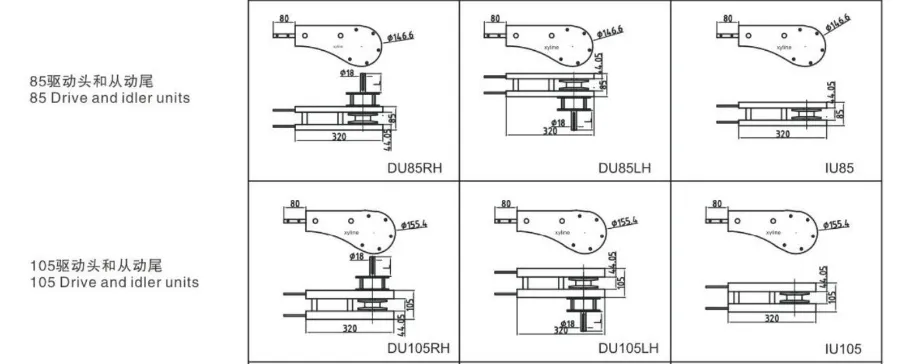

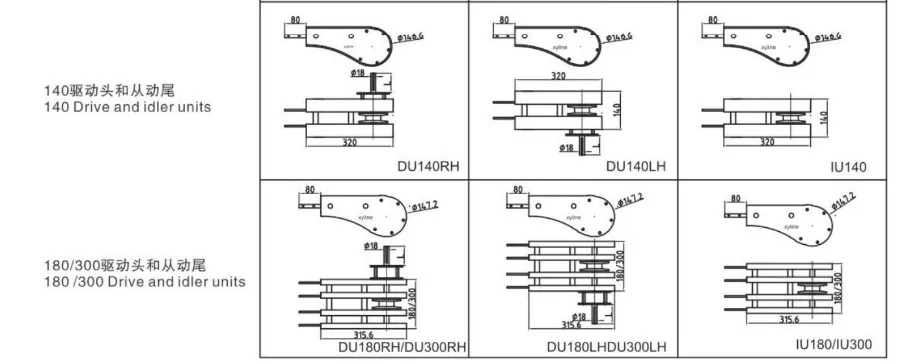

Type45 65 85

Packing2PCS

Condition100% Brand New

Transport PackagePallets/Wooden Box

HS Code8431390000

Production Capacity500sets/Months

Product Description

Flexible Aluminum Modular System

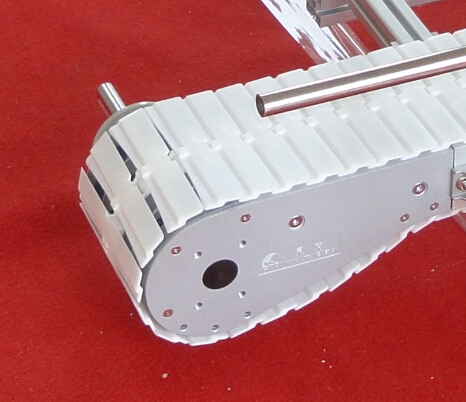

The flexible chain conveyor is a light conveying system featuring an aluminum frame and a thermoplastic conveyor chain. Designed with standard modularity, this system is flexible, light, easy to install, stable, compact, and quiet. It operates without pollution and is ideal for high automation, sanitary requirements, and impact factories.

Widths:63, 83, 103, 130, 140, 175, 44 mm

Max Length:25 m (single drive)

Working Temp:-20°C ~ 60°C

Max Speed:50 m/min

Turning Radius:Min 150mm

Core Advantages

Clean & Sanitary: Made of white high-capacity engineering plastic chain and anodic oxidized aluminum. Operates without lubrication or periodic maintenance. Corresponds to GMP specifications.

Quiet Operation: Running noise levels are maintained below 30dB.

Smart Design: Arbitrary disassembly and assembly. Flexible vertical and horizontal curves allow for complex 3D space transportation.

Simple Installation: No special tools required; assembly can be completed with basic manual tools.

High Stability: Ensures products do not fall over or shift during the conveying process.

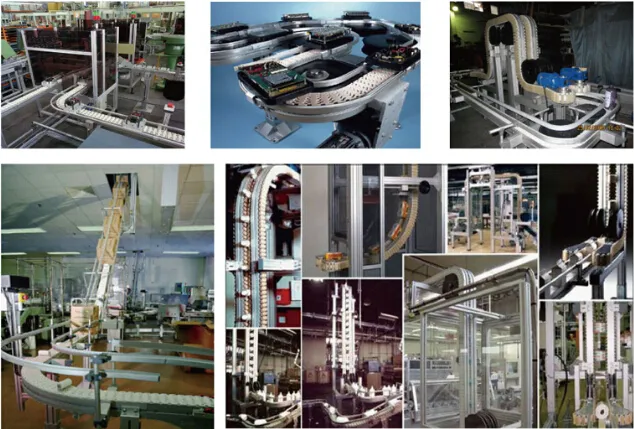

Industry Applications

Packaging & Conveying Beverage Bottling Food & Meat Processing Chemical Industry Pharmaceuticals Automobile Industry Electrical & Electronics Textile Industry Light Engineering

Frequently Asked Questions

Q1: What materials are the conveyor chains made of? The chains are made of high-capacity white engineering plastic, which is durable and requires no lubrication.

Q2: Does this system meet sanitary standards for food processing? Yes, the system uses anodic oxidized aluminum and plastic components that meet GMP specifications for cleanliness.

Q3: How difficult is it to install or modify the conveyor layout? It is very simple. The modular design allows for disassembly and assembly using only basic manual tools without needing specialized equipment.

Q4: What is the maximum speed the conveyor can achieve? The system can reach a maximum transmission speed of up to 50 meters per minute.

Q5: Can the conveyor handle 3D space transportation? Yes, with different radii of vertical and horizontal curves, the system can be configured for complex 3D space transportation.

Q6: What is the noise level during operation? The system is designed to be very quiet, with operational noise levels typically below 30dB.
