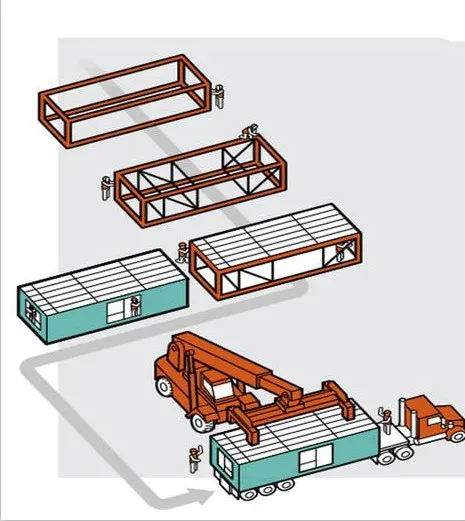

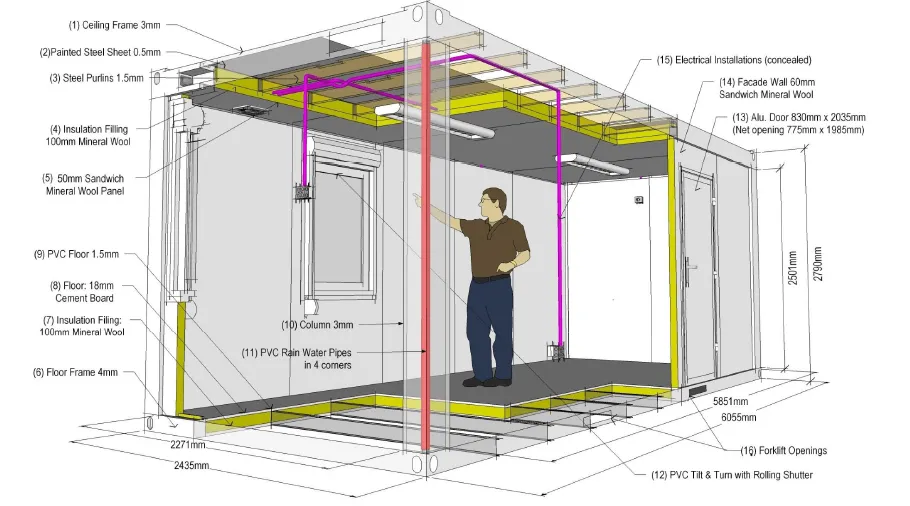

This modular home building system utilizes high-quality flat pack 20ft container units. These units are engineered for high mobility, durability, and rapid assembly, making them an ideal solution for alternative housing, office spaces, and industrial workshops.
| Specification Item | Standard Parameters |
|---|---|
| External Dimensions (L x W x H) | 6.058m x 2.438m x 2.591m |
| Internal Height | 2.300m (Optional up to 2.800m) |
| Framework | 3mm-4mm Cold formed zinced metal profiles |

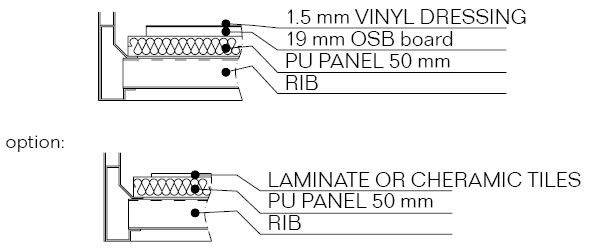

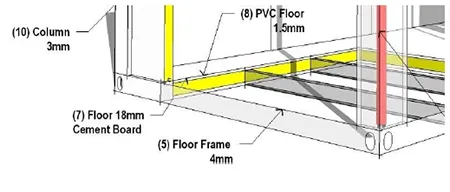

| Floor Insulation | 100mm Noncombustible mineral wool (50 Kg/m³) |

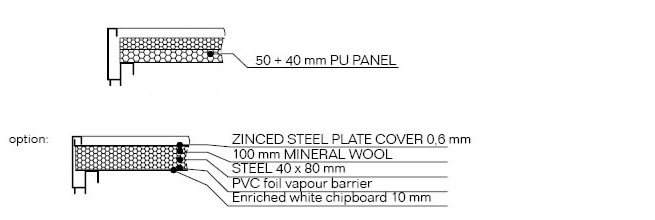

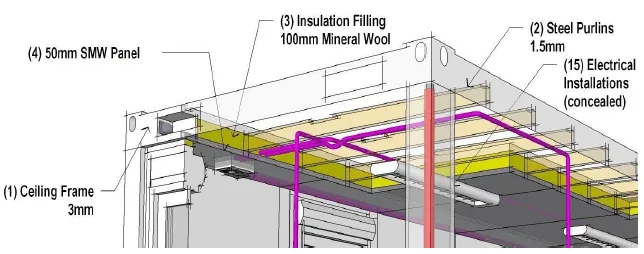

| Roof Insulation | 50mm-60mm Mineral wool sandwich panel |

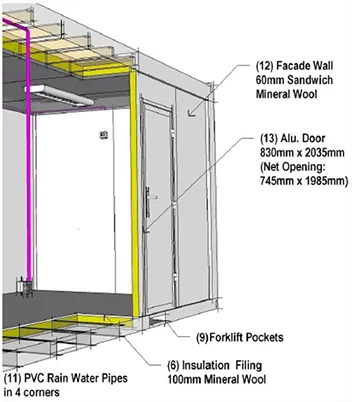

| Wall Panels | 60mm Sandwich mineral wool (120 Kg/m³) |
| Tare Weight | 1950 Kg |
| Component | Material & Detail |
|---|---|
| Columns & Beams | H-Shaped Q235/Q345 Steel |
| External Doors | Aluminum frame, 40mm thick, insulated with polystyrene |

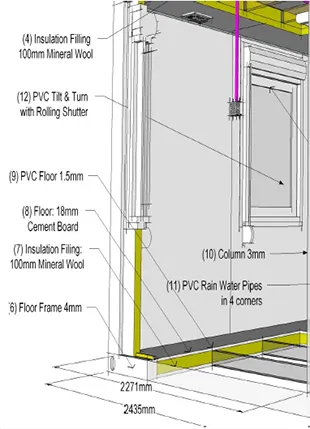

| Windows | PVC, Double layer glass (4/15/4mm), with rolling shutters |
| Electrical System | UK Specification, 220V, 50Hz, with IP65 rated lighting |
| Surface Treatment | Shot blasting, Epoxy ground coat (30μm), Vinyl acrylic finish (60-70μm) |
Step-by-Step Production: Steel plate cutting → H section assembly → Automatic submerged arc welding → H section strengthening → Manual welding → Shot blasting (Sa2.5 Grade) → Precision Painting → Quality Storage.
The standard service life is 30 years, though with proper maintenance and standard environmental conditions, the life cycle can extend up to 50 years.

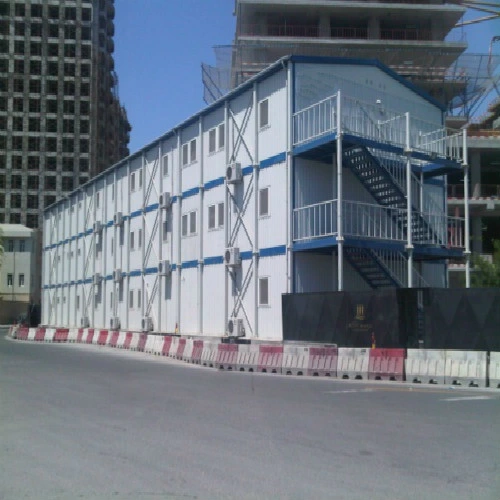

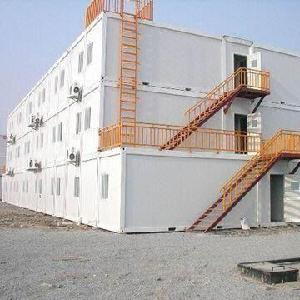

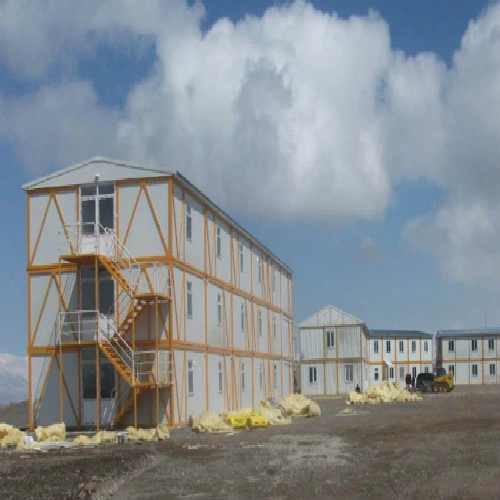

Yes, the system allows for unlimited compounding in longitudinal and transverse directions. Units can be stacked up to 2 floors for residential use and 3 floors for warehousing.
Units can be mounted on a flat solid surface like asphalt or concrete, on point foundations (concrete cubes), or on band foundations depending on the site requirements.
Yes, the wall and roof panels use noncombustible mineral wool insulation. Fire ratings meet GB 12955-91 (36 minutes) and BS 476 (20 minutes) standards.
The units feature high-density mineral wool or polyurethane insulation (50mm to 120mm options) providing excellent thermal resistance (U-values as low as 0.37 W/m²k for floors).
Our modular systems are fully compliant with ISO standards, CE certification, and the components are RINA certified for dimensions, weight, and payload.
