Basic Information
Material
Container, Container
After-Sales
Perfect Service and Installation Guidance
Wall Material
PU /EPS/Rock Wool Sandwich Panel
Steel Frame
Galvanized Square Tube Beam
Usage

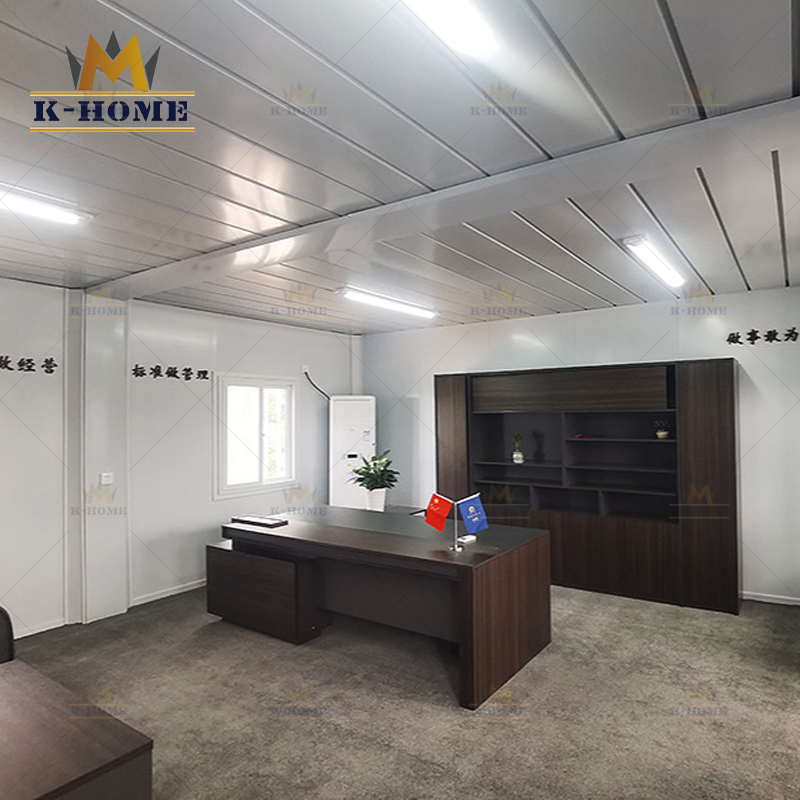

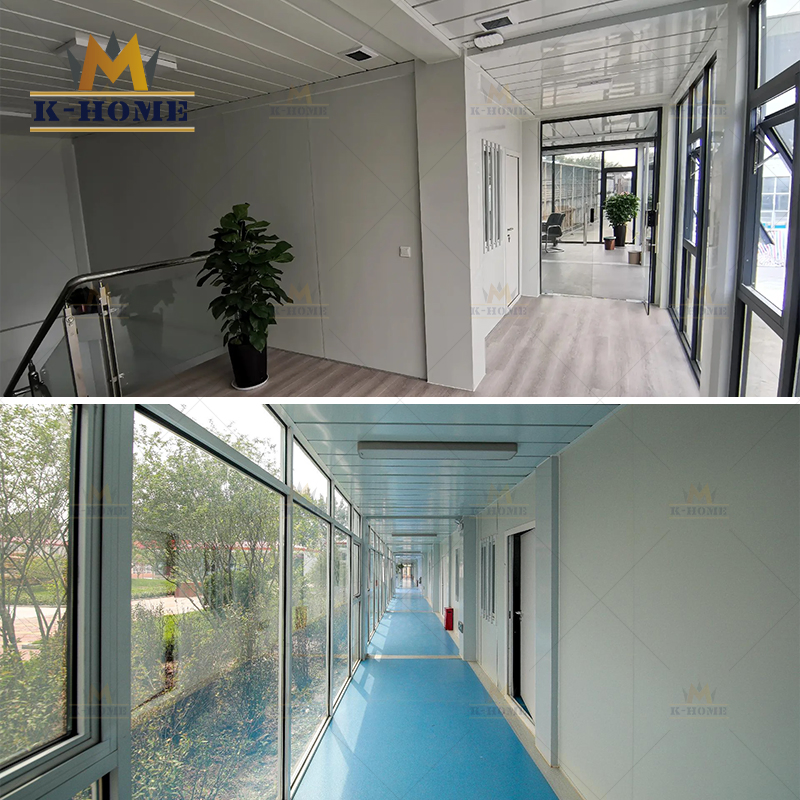

Dormitories, Warehouse, Villa, Offices, Workshop, School, Hospital
Certification
CE, ISO, SGS, Pvoc
Specification
3000*6000*2800mm or Customized

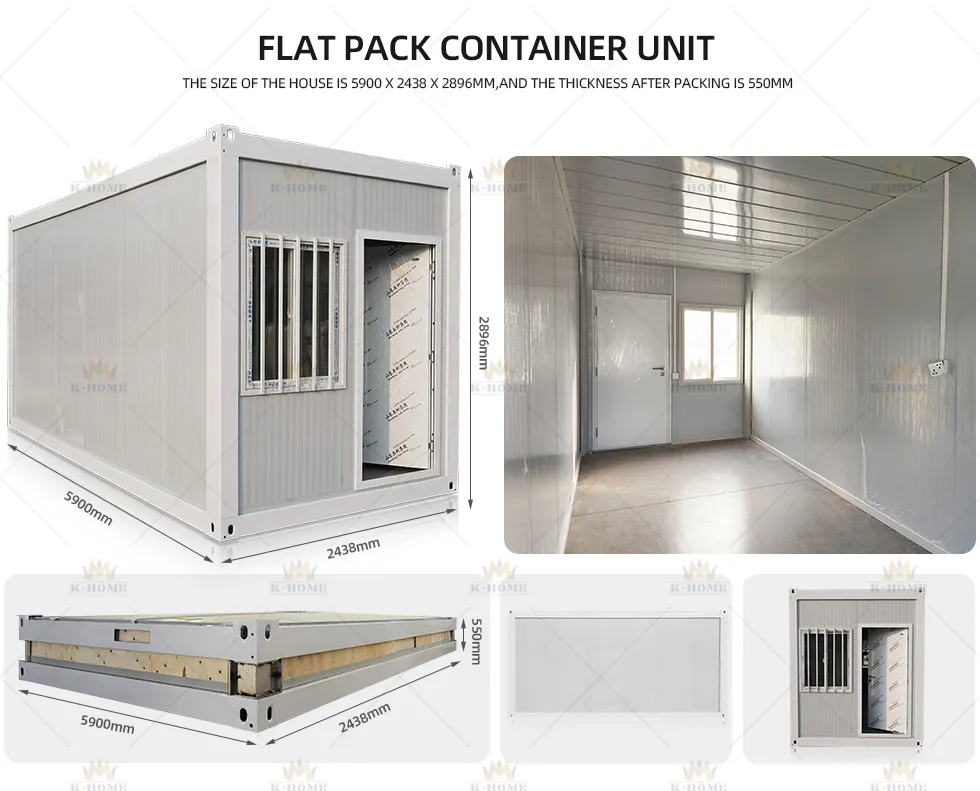

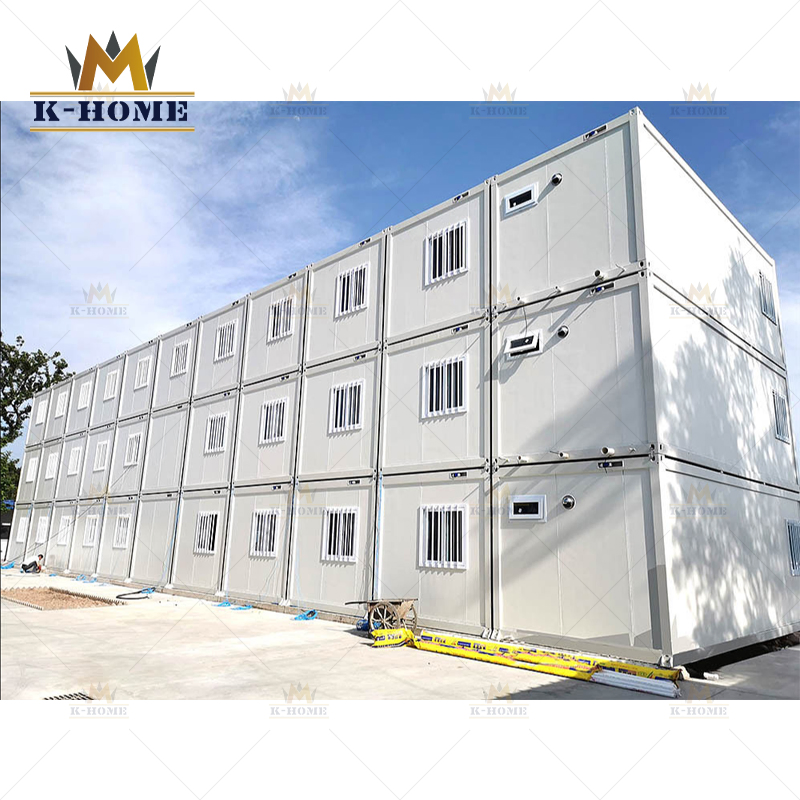

20 FT Prefabricated Low Cost Flat Pack Modular Building

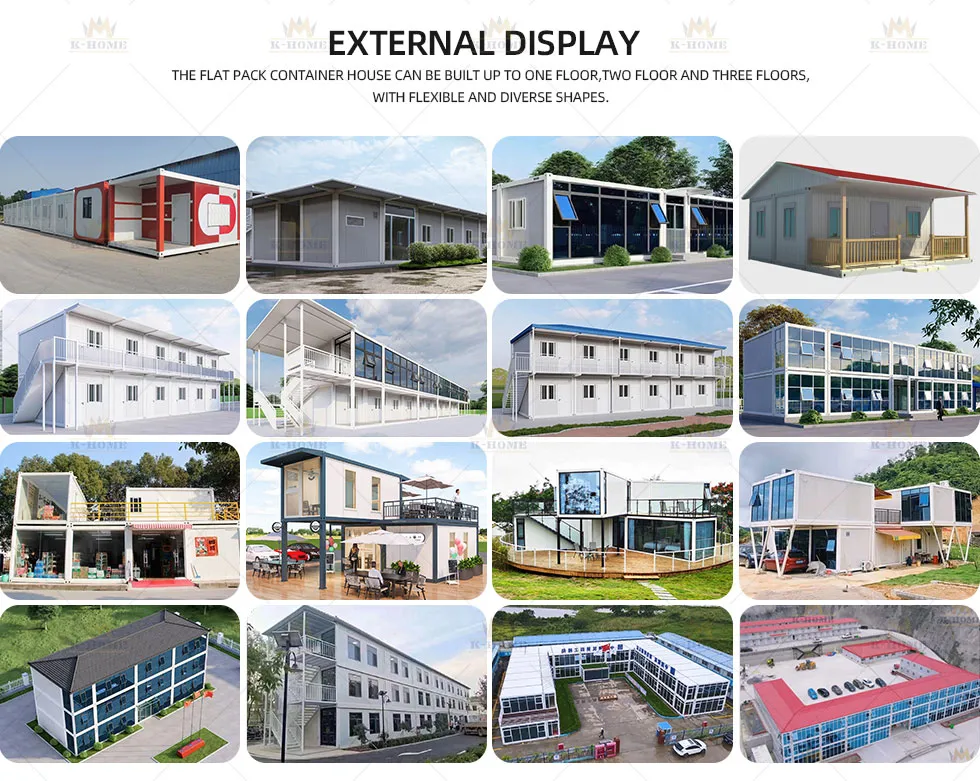

Flat pack container houses are increasingly used in various fields and scenarios. As global attention to environmental protection and sustainable development rises, the potential of modular buildings is being fully realized. Composed of assembled units with high structural strength, they serve as residences, offices, studios, and exhibition halls. They provide quick solutions for emergency rescue and field expansion due to their flexibility, reusability, and adaptability to environments ranging from urban centers to remote islands.

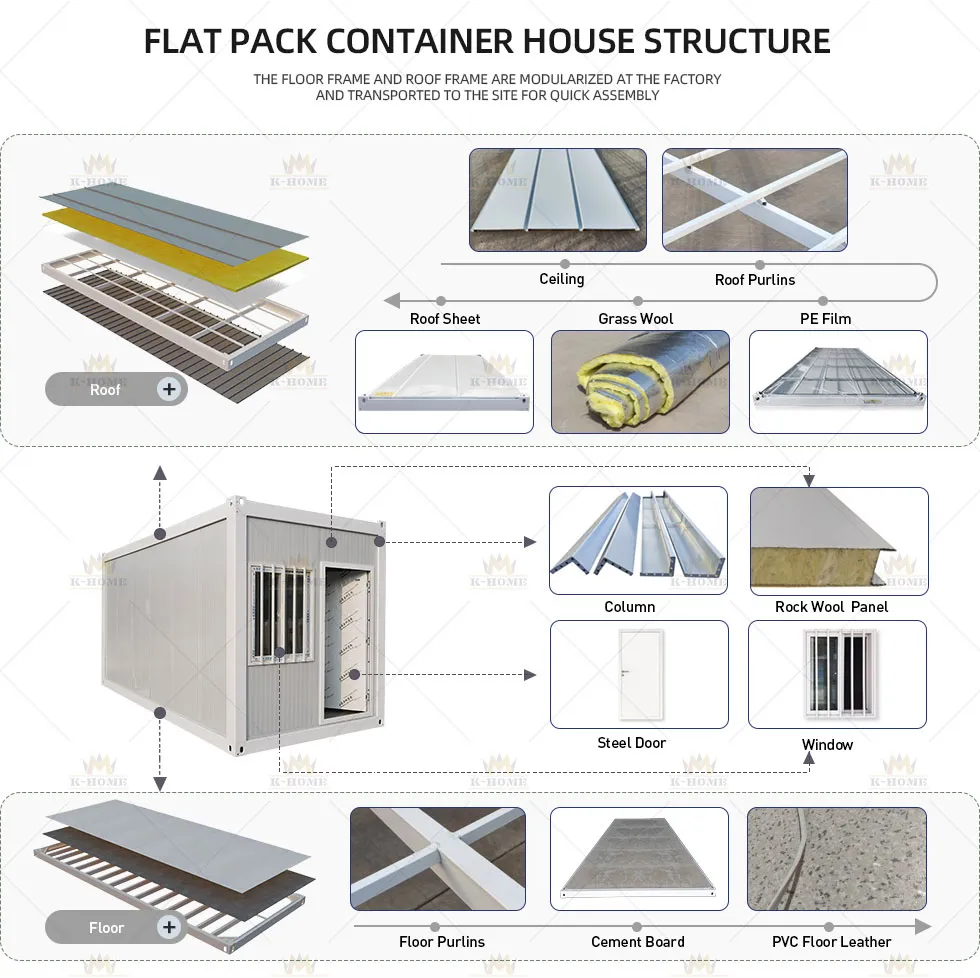

Technical Specifications
| Item |
Part |
Detailed Specification |
| Roof System |
Steel Frame & Insulation |
Q235 galvanized fitting; 0.4mm pre-coated steel sheet; 50mm glass wool insulation. |
| Floor System |
Structure & Finish |
3mm Galvanized Steel main structure + 1.5mm secondary beam; 15mm chipboard + PVC leather. |
| Column System |
Support |
2.3mm Shaped Galvanized Steel. |
| Wall System |
Sandwich Panel |
50mm EPS Foam; Outside silver gray (0.35mm); Inside white (0.35mm). |
| Doors/Windows |
Entry & Ventilation |
Steel door (2000*980mm); Aluminum alloy double hollow glass sliding window (1200*1000mm). |
| Electric System |
Power |
LED lights, double sockets (2 sets), air-switch (2 sets), electrical box with safety protection. |
Steel Frame & Wall Options

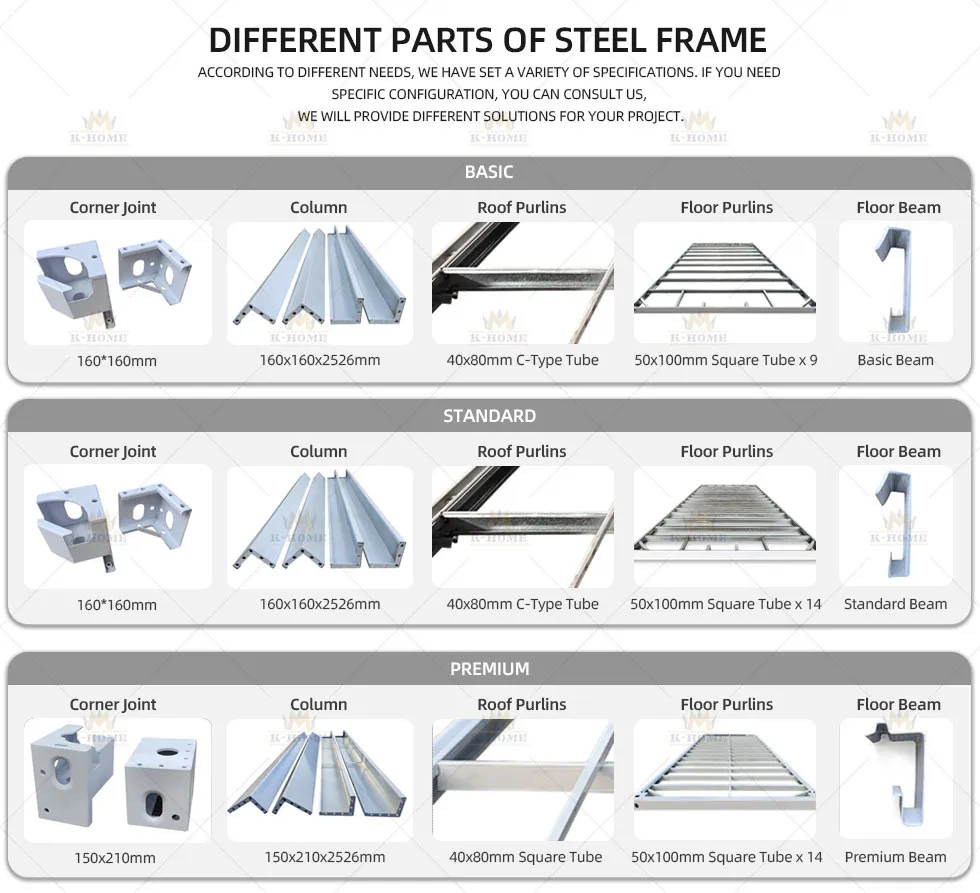

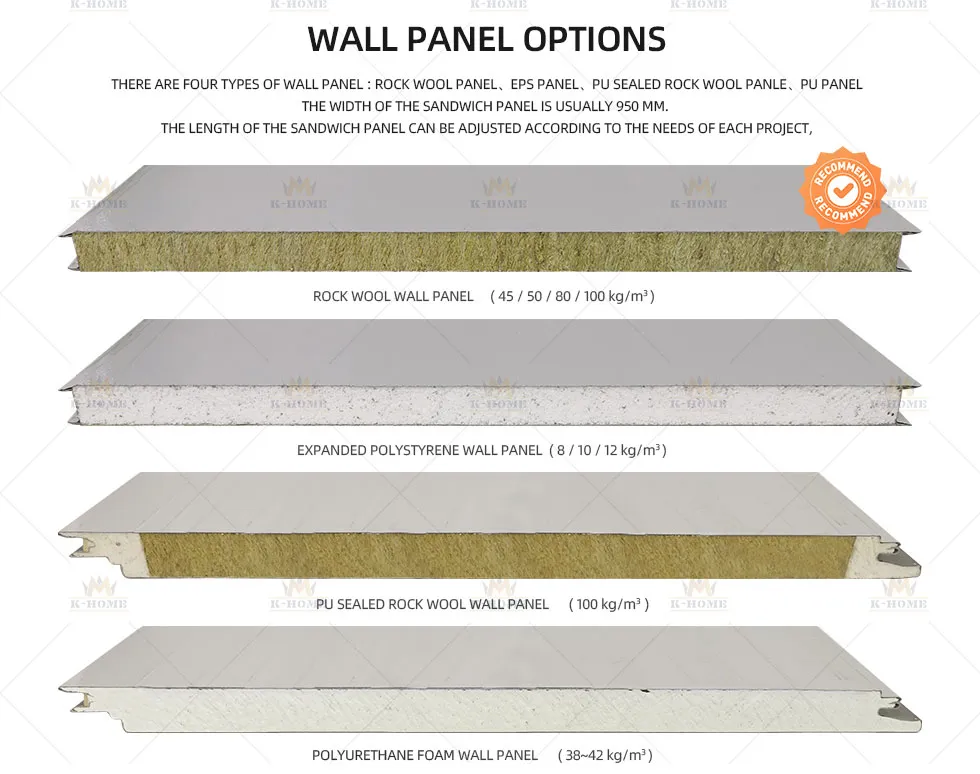

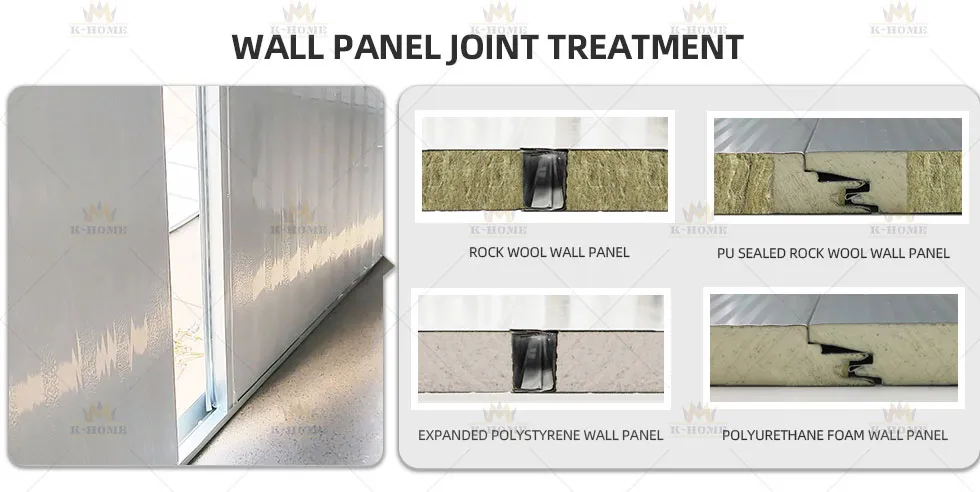

We offer three different specifications for the steel frame to accommodate different budget requirements. For wall panels, four options are available: EPS sandwich, Rock wool sandwich, PU panel, and PU sealed rock wool panel.
Why Choose Rock Wool Sandwich Panels?
Standard modular homes often utilize rock wool for its excellent adiabatic performance, sound insulation, and fire resistance. It can withstand temperatures up realized to 600 degrees Celsius, providing safety and durability at a low cost.
Main Features of Container Houses
⚙ Simple Installation

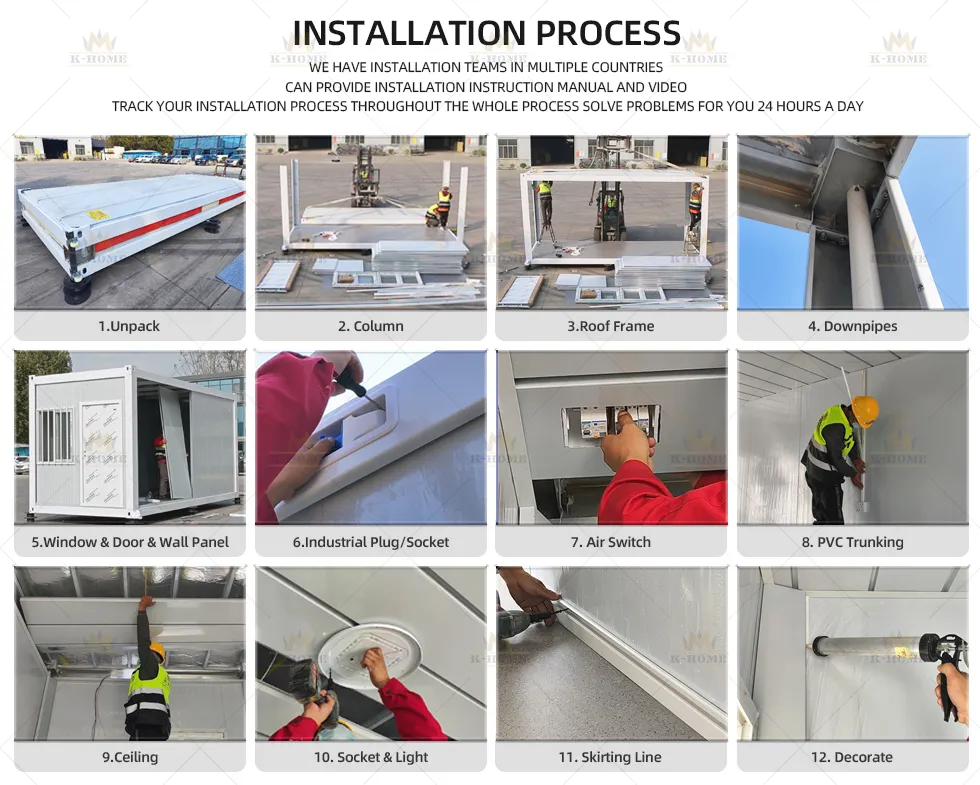

Ground foundations are simple, requiring only cement blocks at fixed points. The units are lifted into place, preventing moisture. Floors use fireproof or cement boards for enhanced waterproofing.
🎨 Flexible Design

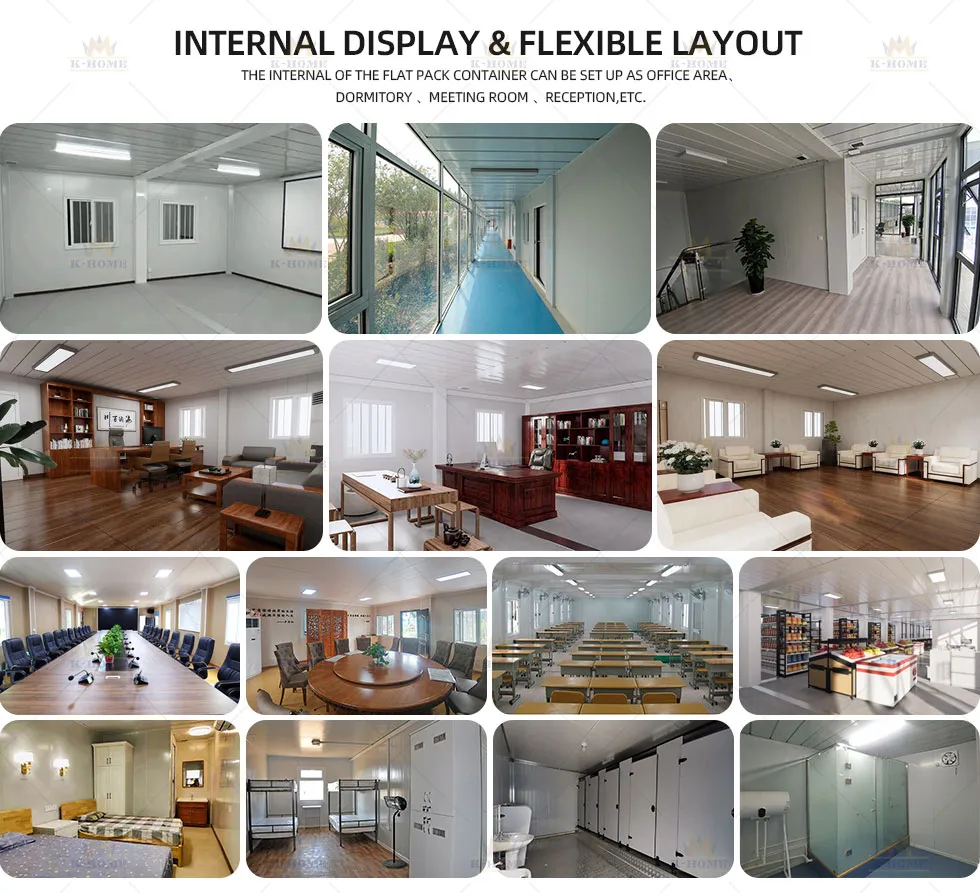

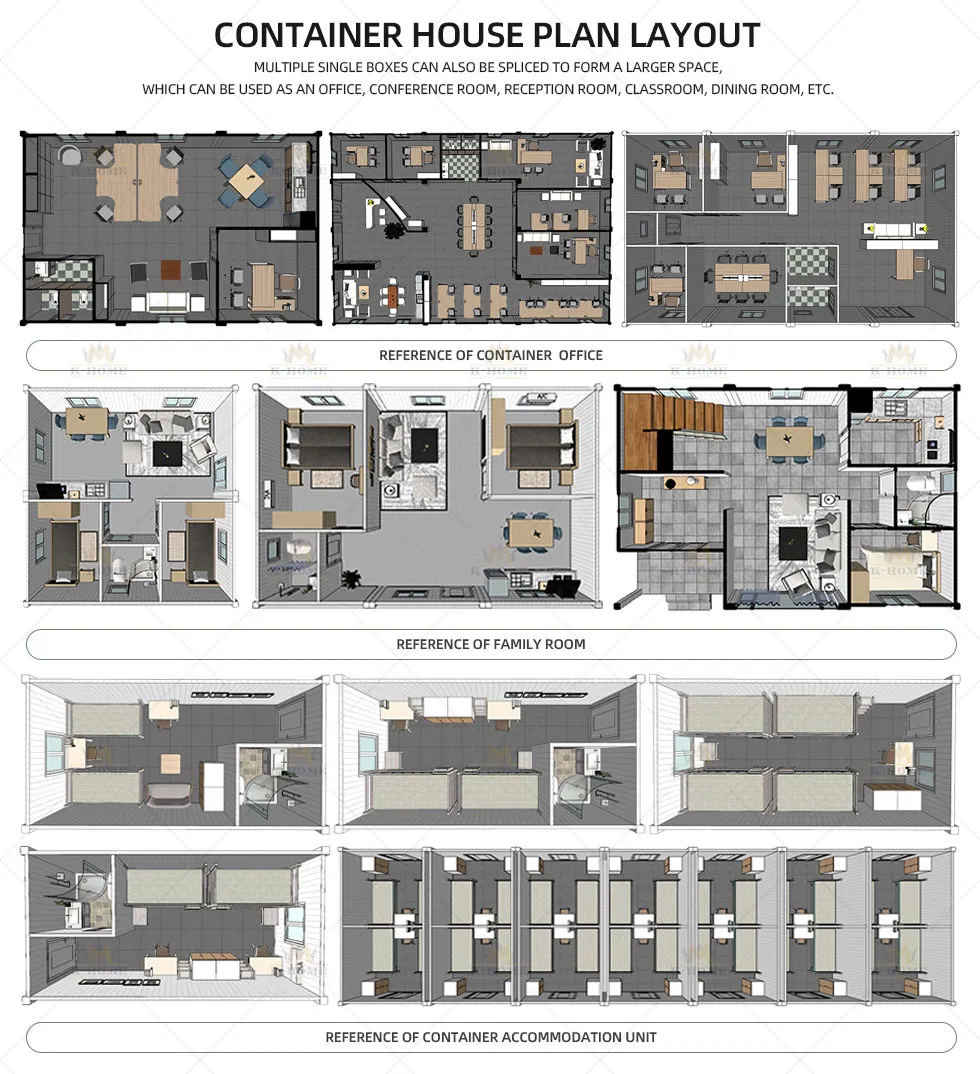

Exterior and interior spaces can be fully customized. Units can include living rooms, separate toilets, kitchens, and multiple bedrooms (2-bedroom or 3-bedroom layouts).
🛡 Comfortable Living Environment
Highly prefabricated for quick onsite installation. Features include thermal insulation, soundproofing, and a tough, secure structure adapted to various local climates.
Service & Quality Assurance
We provide detailed maintenance manuals and active problem-solving for all quality issues. Our mission is to make temporary buildings safer and more comfortable through standardized production and a complete supply chain management system.
- Comprehensive usage and maintenance manuals provided
- Active quality problem resolution
- Regular return visits and maintenance support

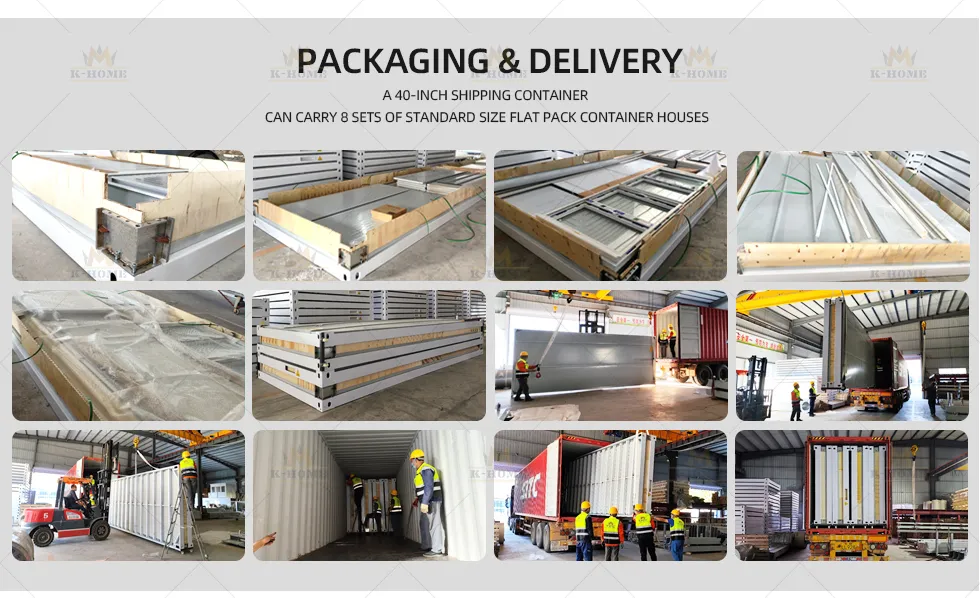

- Global logistics and installation services
Frequently Asked Questions (FAQ)
What are the standard dimensions of a flat pack container?
The standard size is 3000mm * 6000mm * 2800mm, but sizes can be customized based on specific project requirements.
Is the container house suitable for cold climates?
Yes, we offer various insulation options including EPS, Rock Wool, and PU panels which provide excellent thermal retention for cold environments.
How long does it take to install a single unit?
Due to the high degree of prefabrication, container houses can be installed very quickly on-site with basic tools and lifting equipment.

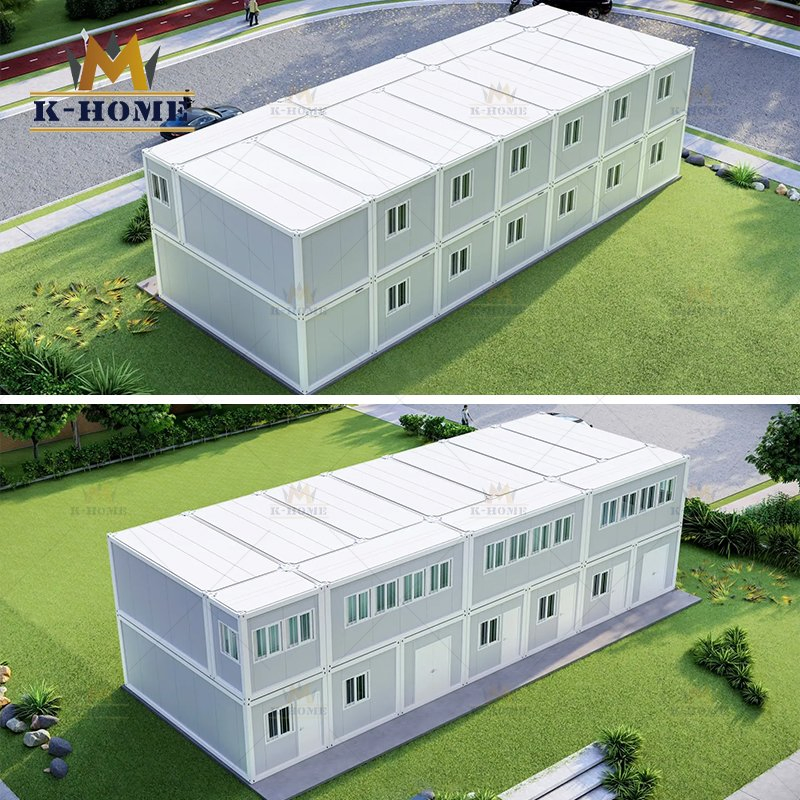

Can these containers be stacked or joined?

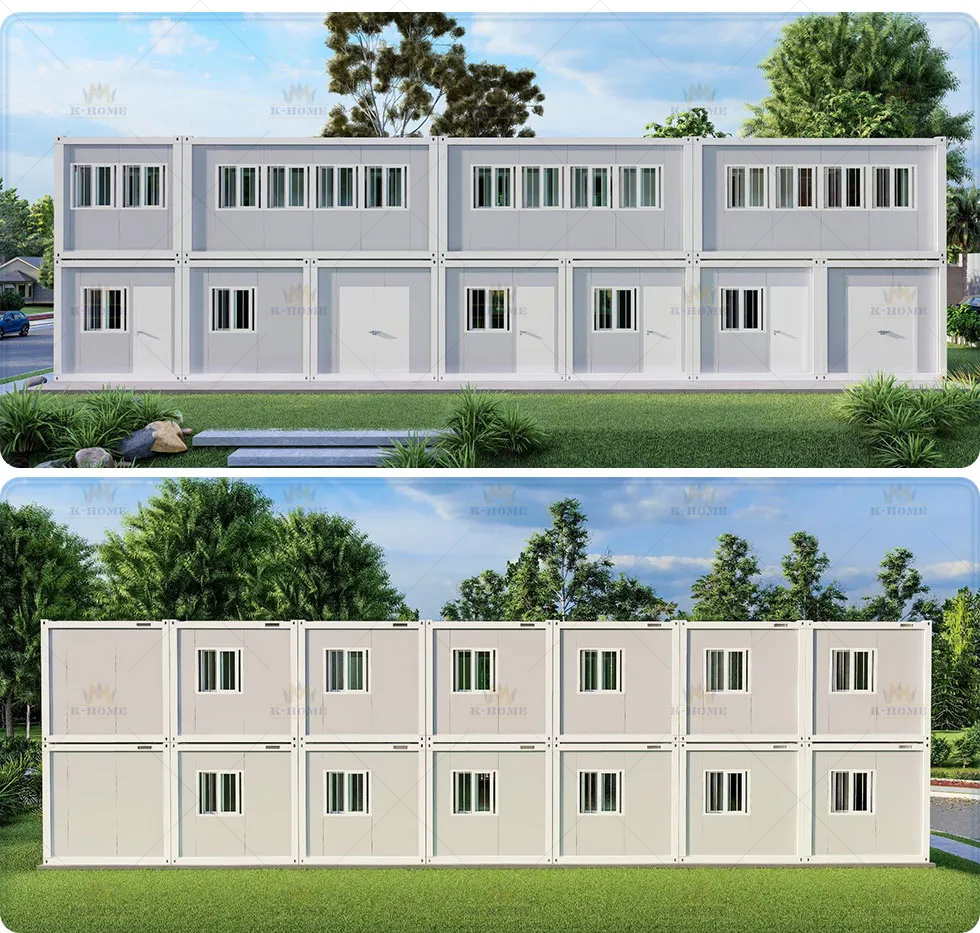

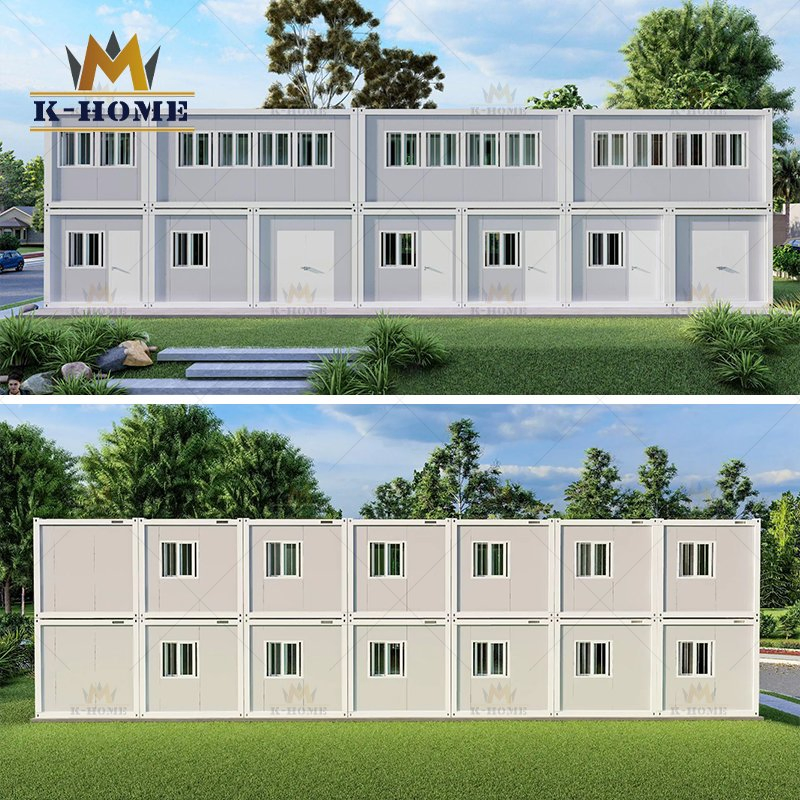

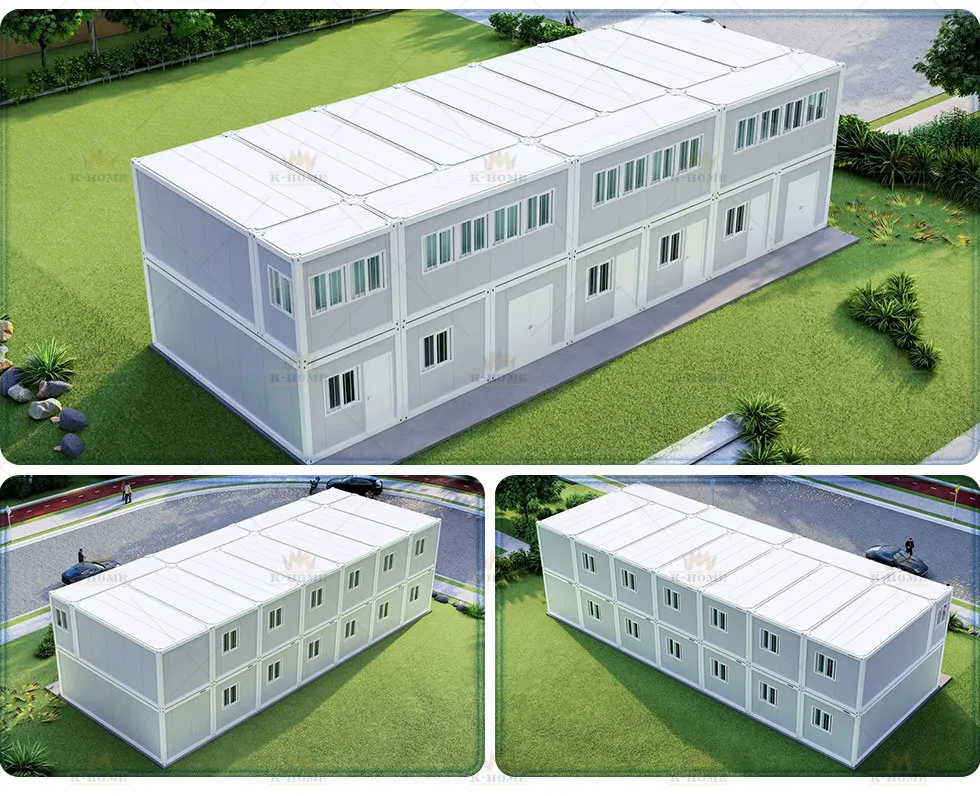

Absolutely. The modular design allows units to be combined horizontally or stacked vertically to create larger living or office spaces.
What kind of foundation is required?
A simple foundation is sufficient. You can use cement blocks or a simple concrete slab at fixed points to support the container frame.
Are the electrical systems safe?
Yes, all units include an electrical box with safety protection devices, LED lighting, and certified switches and sockets.
