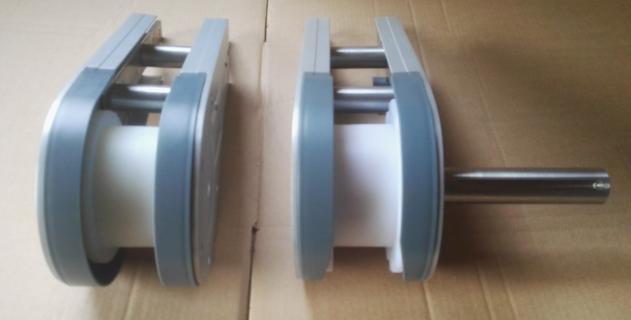

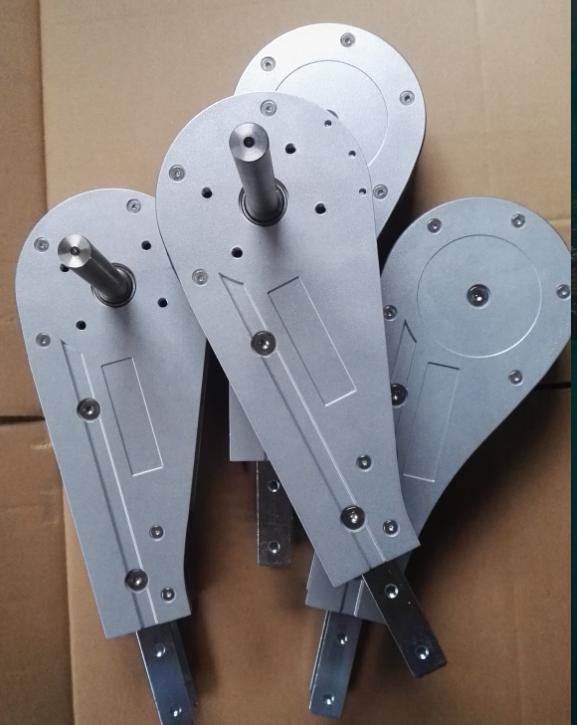

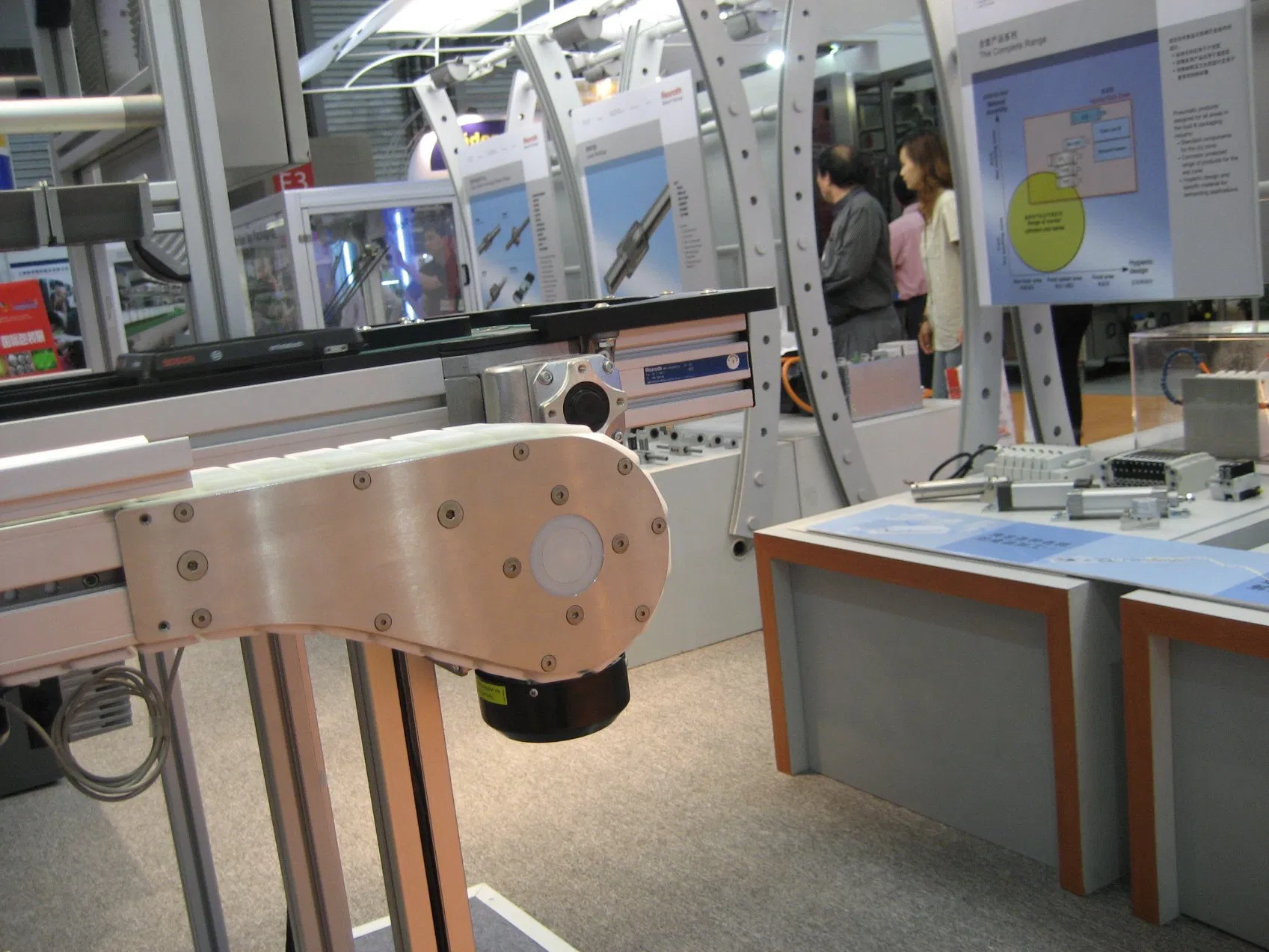

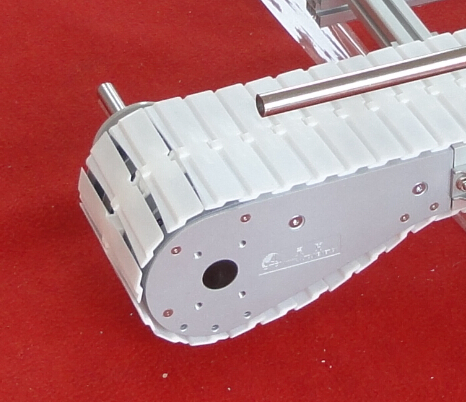

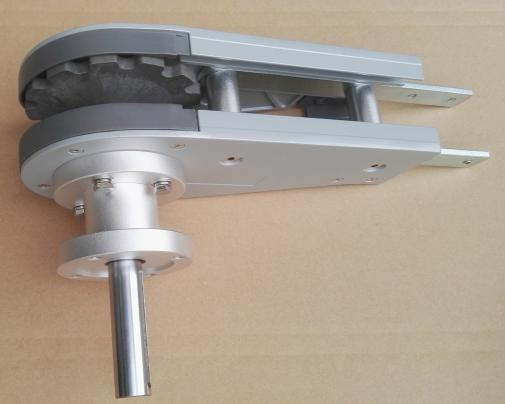

85 Drive and Idler Units for Conveyor Systems
85 Drive and Idler Units for Conveyor Systems
85 Drive and Idler Units for Conveyor Systems
85 Drive and Idler Units for Conveyor Systems
85 Drive and Idler Units for Conveyor Systems
1 / 5
85 Drive and Idler Units for Conveyor Systems
85 Drive and Idler Units for Conveyor Systems
85 Drive and Idler Units for Conveyor Systems
85 Drive and Idler Units for Conveyor Systems
85 Drive and Idler Units for Conveyor Systems

85 Drive and Idler Units for Conveyor Systems

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Technical Specifications
Model NO.
85
Surface Treatment
Polishing
Material
Aluminum
Transport Package
Pallets/Wooden Box
Specification
45
Origin
China
HS Code
8431390000
Capacity
500sets/Months
Product Overview

Flexible aluminum modular system is a light conveying system featuring an aluminum frame and thermoplastic conveyor chain. Designed with standard modularity, it offers exceptional flexibility, stability, and a compact, quiet operation without pollution. Ideal for high automation environments and strict sanitary requirements.

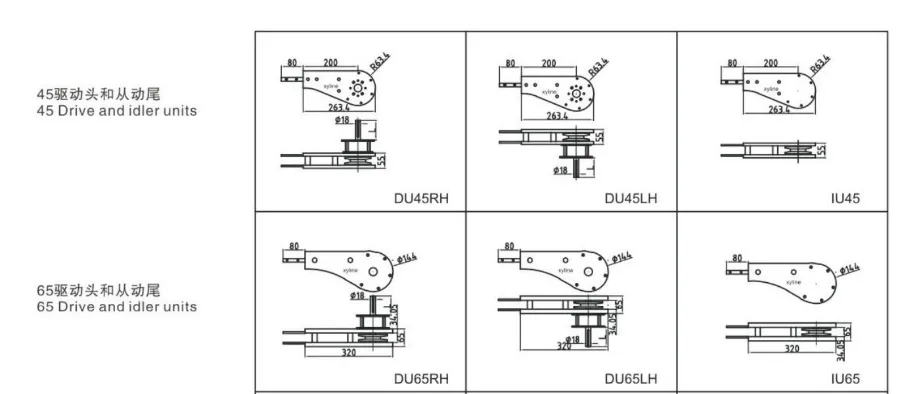

Conveyor System 1

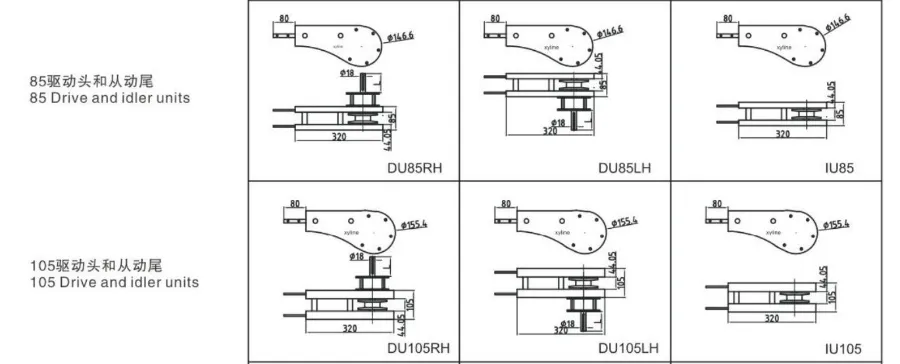

Conveyor System 2

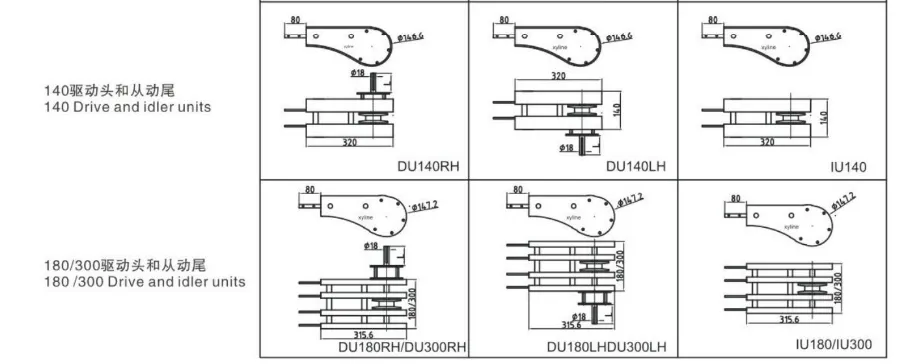

Conveyor System 3
Conveyor System 4

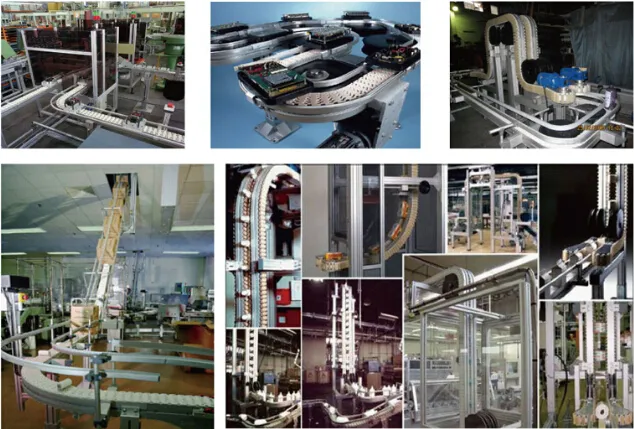

Conveyor System 5
Product Parameters
Available Widths: 63mm 83mm 103mm 130mm 140mm 175mm 44mm
🔹
Maximum single drive head length: 25 m
🔹
Working temperature range: -20°C to 60°C
🔹
Maximum transmission speed: 50 m/min
🔹
Material bar distance: 25.4mm / 33.5mm / 38.1mm
🔹
Minimum turning radius: 150mm
Core Advantages
✅
Clean & Sanitary: Made of white high-capacity engineering plastic chain and anodic oxidized aluminum. Operates without lubrication or periodic maintenance, composite with GMP specifications.
✅
Quiet Operation: Noise level is maintained below 30dB during operation.
✅
Smart Design: Arbitrary disassembly and assembly. Flexible radius for vertical and horizontal curves allows for 3D space transportation.
✅
Simple Maintenance: No special tools required; basic manual tools are sufficient for disassembly.
✅
High Stability: Guarantees stable product delivery without falling over during conveying.
Industry Applications
Packaging & Conveying Beverage Bottling Food & Meat Processing Chemical Industry Pharmaceuticals Automobile Electrical & Electronics Textile Light Engineering
Frequently Asked Questions
What is the maximum conveying length for a single drive unit?
The system supports a maximum transmission length of 25 meters for a single drive head.
Does this conveyor system require regular lubrication?
No, the system is designed to run without lubrication, making it ideal for clean environments and GMP compliant facilities.
What is the noise level during operation?
The device is extremely quiet, with an operating sound level of less than 30dB.
Can the conveyor handle 3D space transportation?
Yes, the modular design allows for vertical and horizontal curves, enabling the system to transport products through complex 3D spaces.
Is special equipment needed for installation?
No special tools are required. The entire line can be assembled or disassembled using simple manual tools.
What materials are used in the construction?
The frame is made of anodic oxidized aluminum, and the chain plate is made of high-capacity white engineering plastic.
