Basic Specifications
Model NO.JFRO-15T
ApplicationIndustry
Capacity6000lph
Operating Pressure0.8-1.2MPa
Recovery Rate67%
Desalination RateLess Than 99.5%
RO FrameSUS304
Membrane ElementsDow /Hydranautics/Troy/ Vontron (Optional)
Control ValveManual/Automatic
Production Capacity6tph
Product Overview

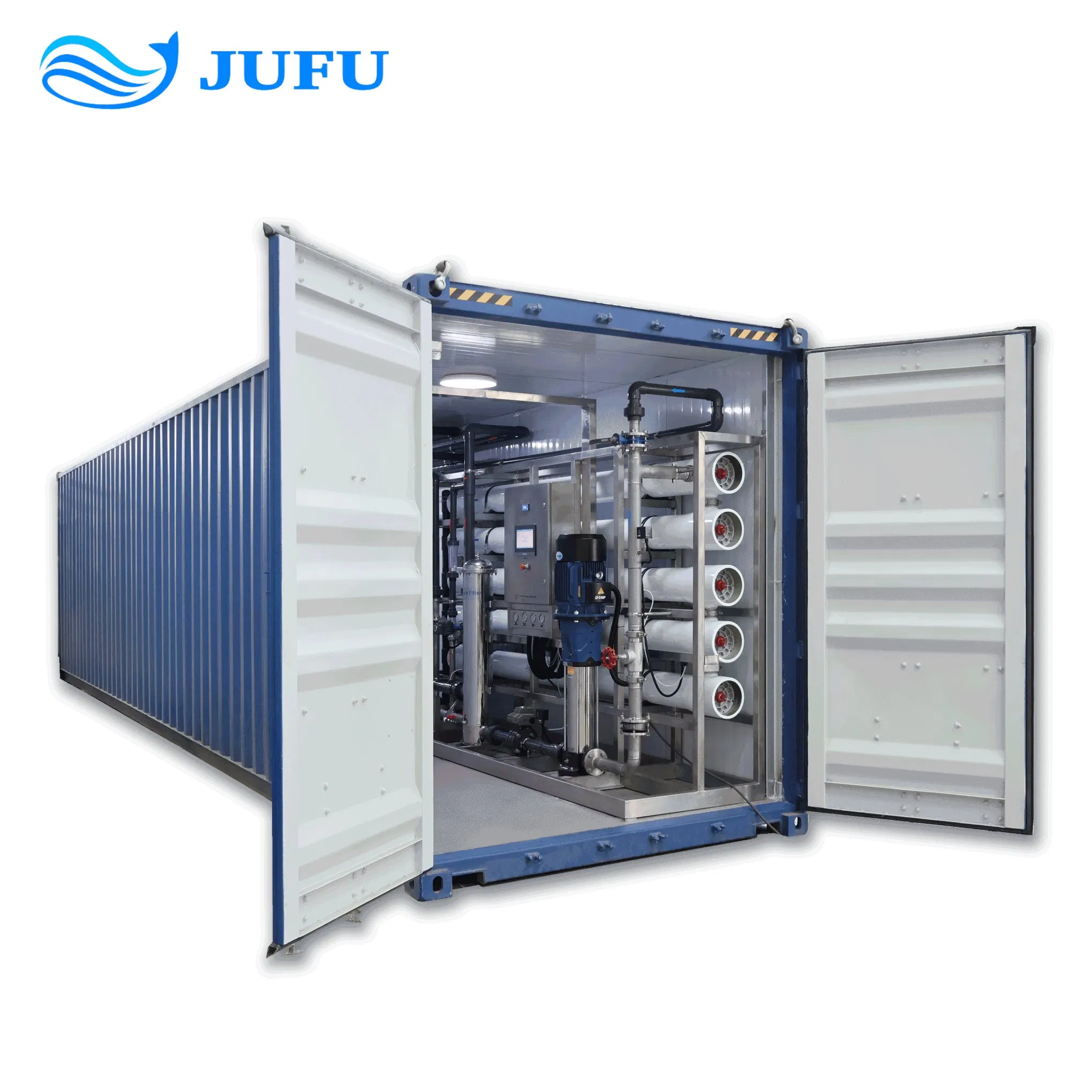

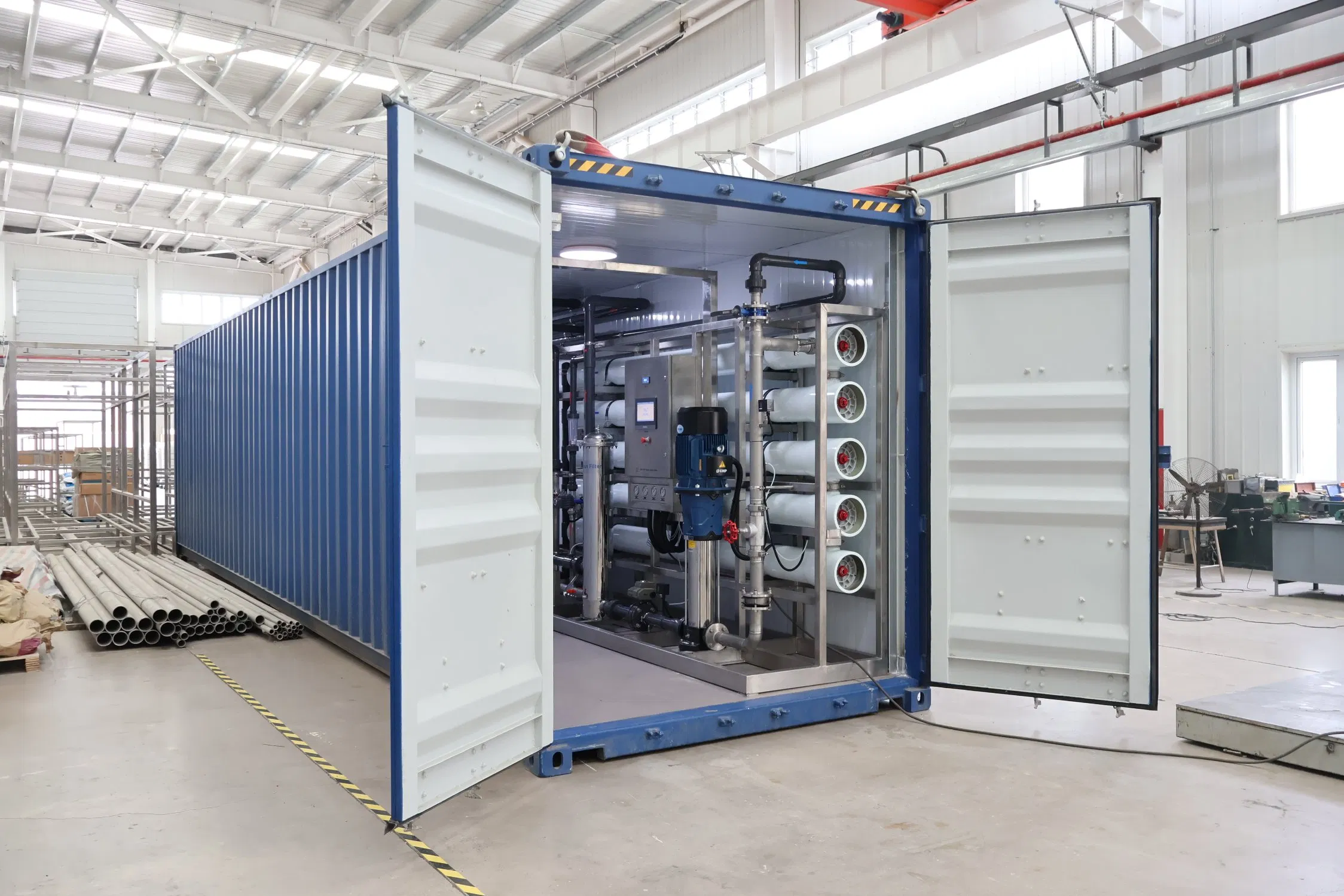

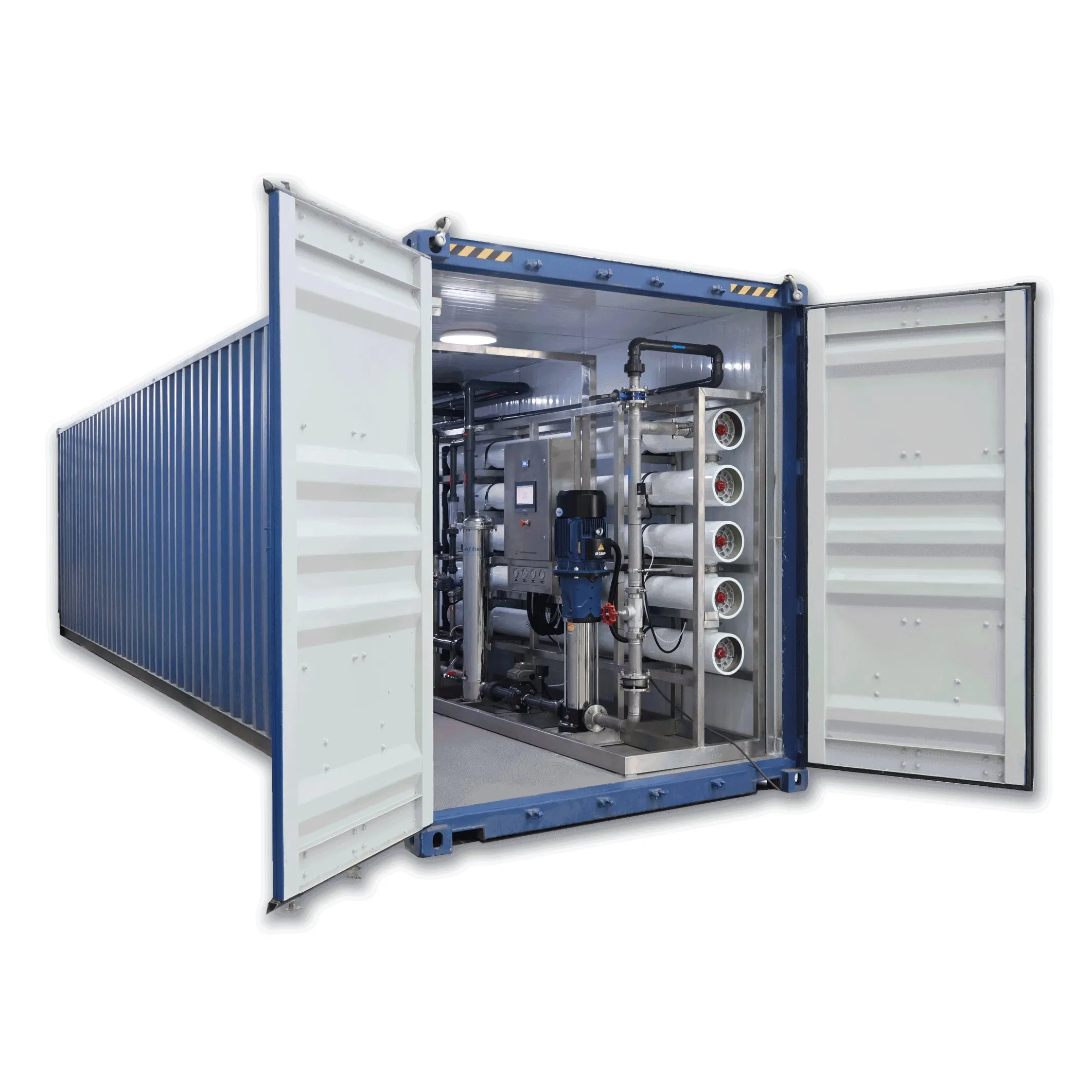

What is Containerized Water Treatment Equipment?

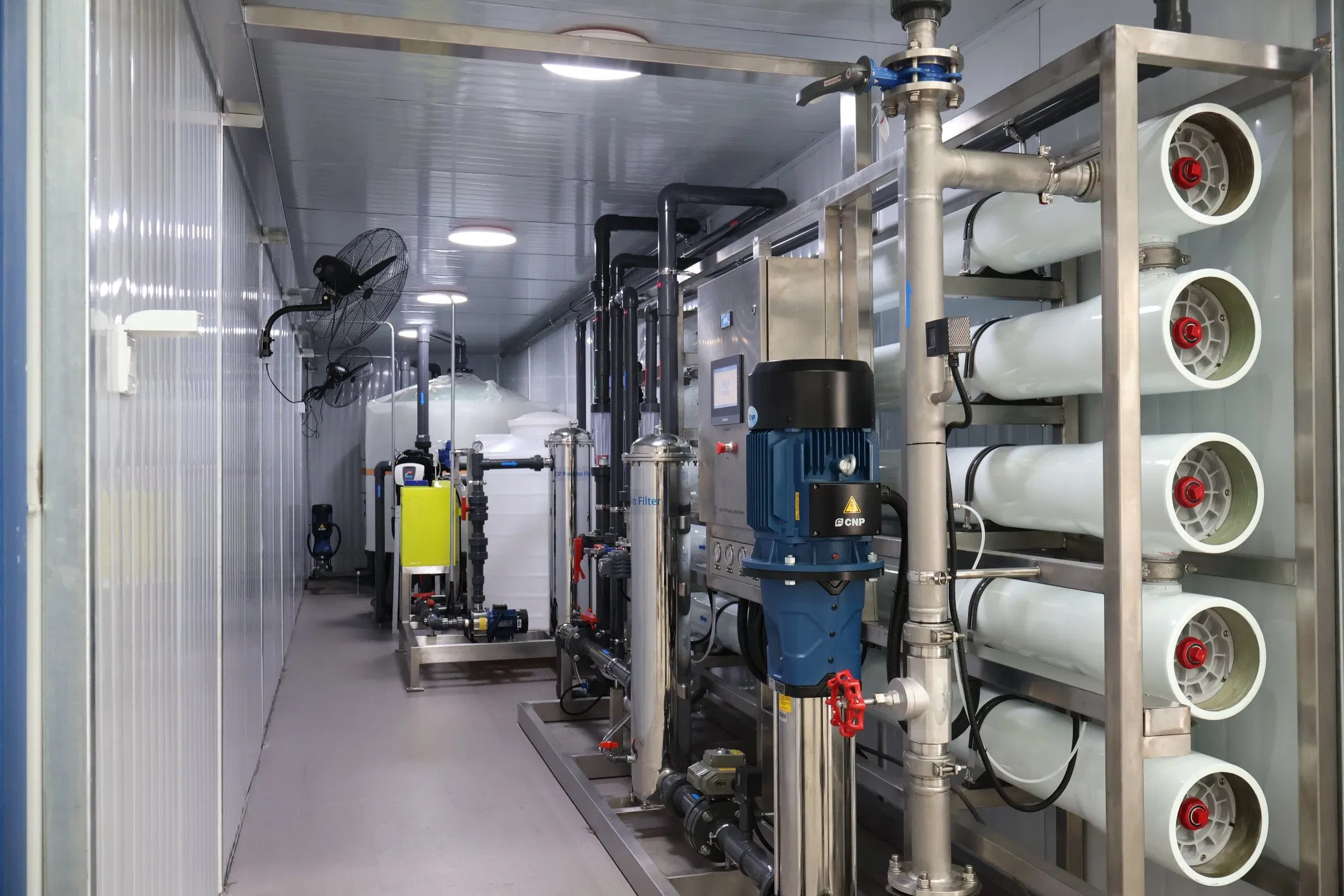

Containerized water treatment equipment is a convenient and efficient solution for water treatment, housing various water treatment processes within a standard shipping container.
🚀 Structure and Design

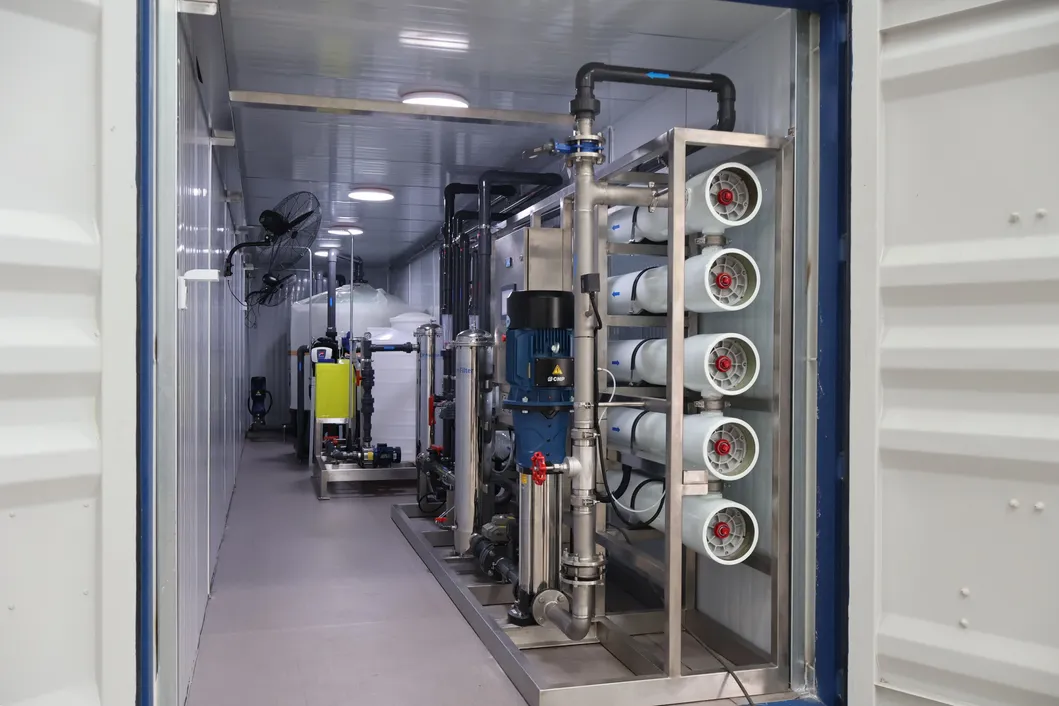

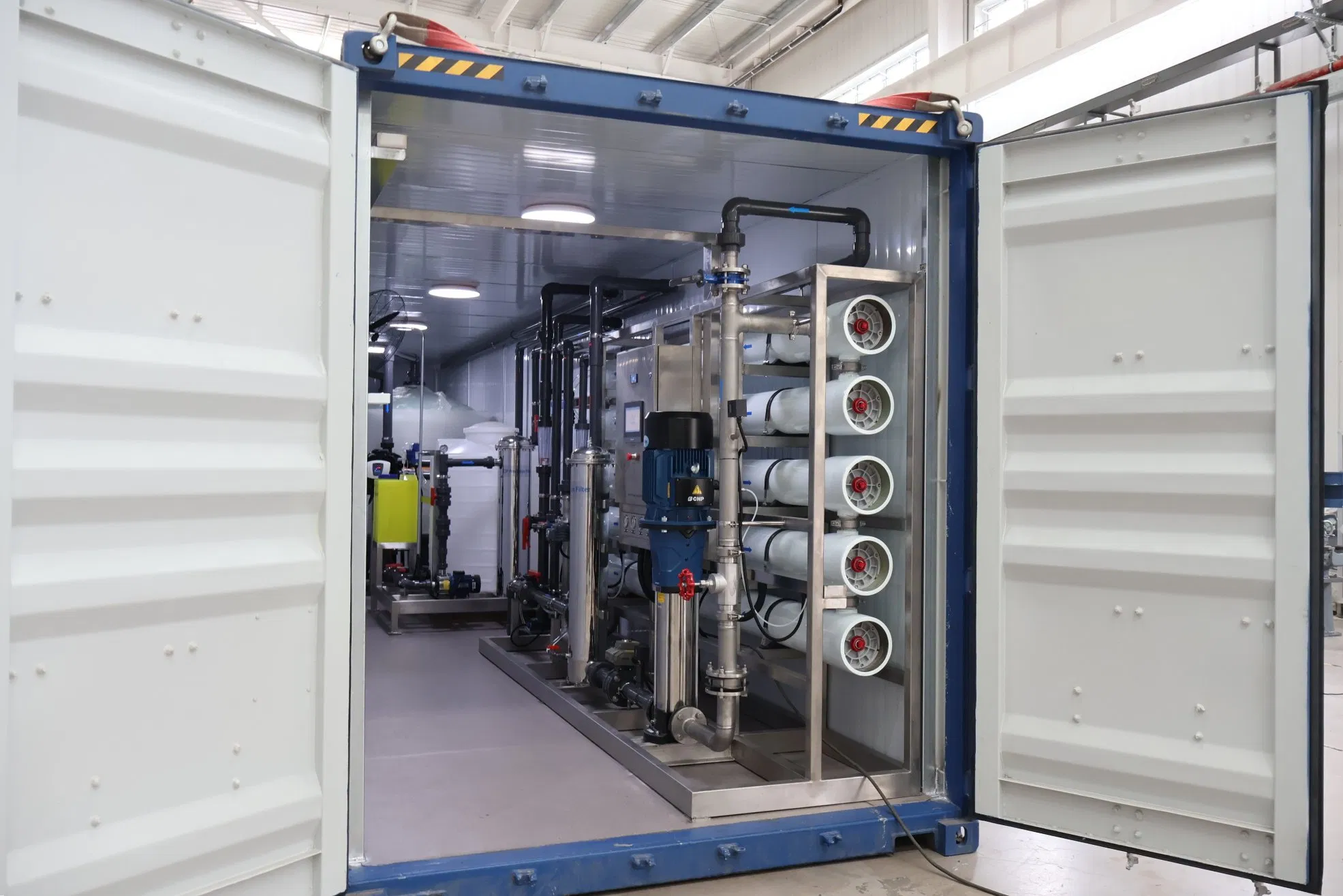

Modular design utilizing standard shipping containers for structural strength and easy transportation. Units like filters and RO systems are arranged independently for easy maintenance.
📍 Application Scenarios
Ideal for construction sites, disaster response, remote mining areas, and temporary camps where plug-and-play water treatment is required.
Technical Parameters
| Parameter |
Details |
Parameter |
Details |
| Model |
JFRO-15T |
RO Membrane Size |
8″ |
| Capacity |
15m³/h |
Power Supply |
Tri-phase: 110/220/380/415V 50/60Hz |
| Recovery Rate |
75% |
Power Consumption |
21KW / 22KW |
| Desalination Rate |
99% |
Control Type |
Manual / Auto control |
| Filtration Accuracy |
0.0001 micron |
Feed Water TDS |
< 2000mg/L |
Performance Characteristics
- Advanced RO technology with desalination rates up to 99.5%.

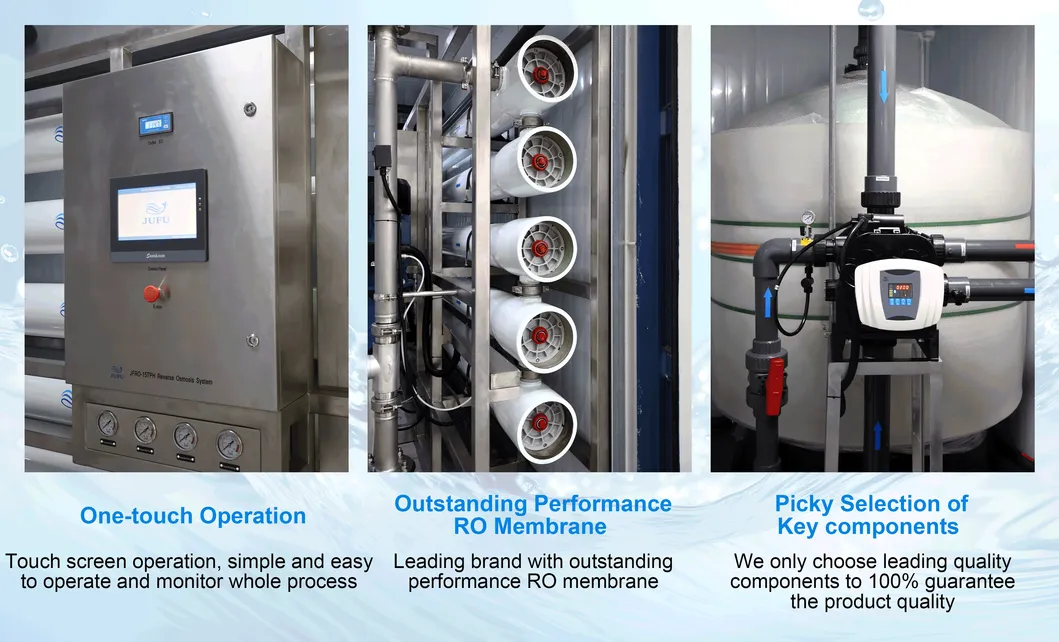

- Integrated automatic control systems to reduce management costs.
- Energy-saving design for lower water production costs.
- Corrosion-resistant SUS304 stainless steel pipelines and fittings.
- Reliable 24-hour continuous operation capacity.

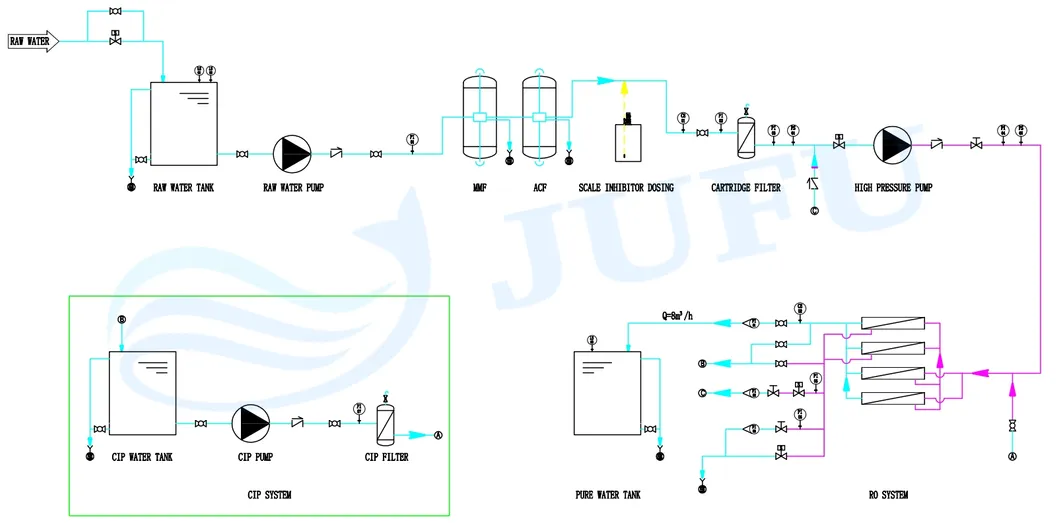

System Flow Chart
Raw water tank → Booster pump → Quartz sand filter → Activated carbon filter → Scale inhibitor dosing → Precision filter → High pressure pump → Reverse Osmosis System → Pure water tank
Frequently Asked Questions
What information is needed for product selection?
Please provide the raw water source (water analysis report), required output capacity, application details, and local piping standards.
How can I choose the best matching solution?
Tailor-made solutions are provided by professional engineers based on your specific requirements to solve project pain-points and optimize efficiency.
What is the typical lead time for these systems?
It generally takes 3-5 weeks for standard products, depending on the complexity and customization level.
What is the warranty period?
We offer a 1-year warranty. The equipment itself is designed to operate for over 5 years with proper use and routine maintenance.
What are the payment terms?
The standard terms involve a deposit in advance and the remaining balance settled before delivery.
Can the equipment handle high TDS water?
Yes, advanced RO membranes can handle feed water with TDS up to 2000mg/L or higher depending on the specific model configuration.
