Flexible Aluminum Modular System

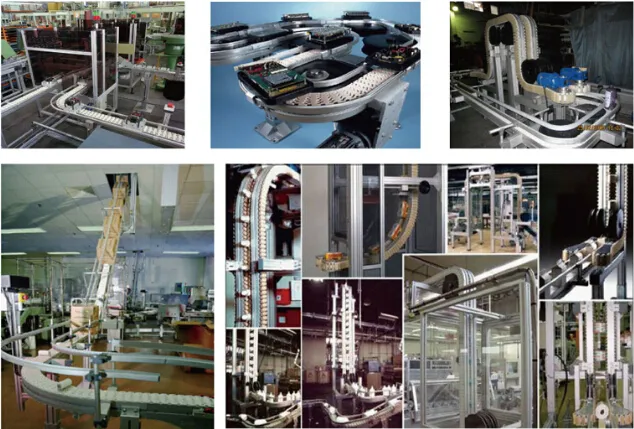

Flexible chain conveyor is a light conveying system, with aluminum frame and thermoplastic conveyor chain. For the standard modular design, this type of system features: flexible, light, simple installation, stability, compact, quiet, and pollution-free. It is ideal for high automatic fields, sanitary requirements, and impact factories.
📏
Width Options
44mm - 175mm
🚀
Max Speed
50 m / min
🌡️
Temperature
-20°C ~ 60°C
⛓️
Max Length
25 m (Single Drive)
✔
Clean & Sanitary: Made of white high-capacity engineering plastic chain and anodic oxidized aluminum. Operates without lubrication, reducing maintenance and meeting GMP specifications.
✔
Quiet Operation: Running noise is less than 30Db, ensuring a comfortable working environment.
✔
Smart & Flexible: Arbitrary disassembly and assembly. Supports vertical and horizontal curves in 3D space transportation.
✔
Simple Maintenance: No special tools required; basic manual tools are sufficient for disassembly.
✔
High Stability: Guarantees products will not fall or tip over during the conveying process.
Frequently Asked Questions
What materials are used in the conveyor construction?
The system utilizes an aluminum frame with anodic oxidation surface treatment and white high-capacity engineering plastic chains.
Does this conveyor system require regular lubrication?
No, the equipment is designed to run without lubrication, making it clean and compliant with GMP specifications.
Can the conveyor handle complex 3D paths?
Yes, thanks to its modular design and vertical/horizontal curves, it can be configured for arbitrary 3D space transportation.
What is the noise level of the drive units?
The system is extremely quiet, with an operating noise level of less than 30dB.
Are special tools needed for installation or disassembly?
No, the entire line is designed for simplicity. Basic manual tools are all you need for assembly or disassembly.
What is the maximum speed and length supported?
The system supports a maximum transmission speed of 50 m/min and a maximum length of 25 meters for a single drive head.
