Basic Info
Size
3000*5950*2800mm or Customized
Wall Material
Rock Wool Sandwich Panel
Wall Panel
50mm EPS/Rockwool/PU Sandwich Panel
Usage
Dormitories, Camp, School, Hospital, Offices
Product Description

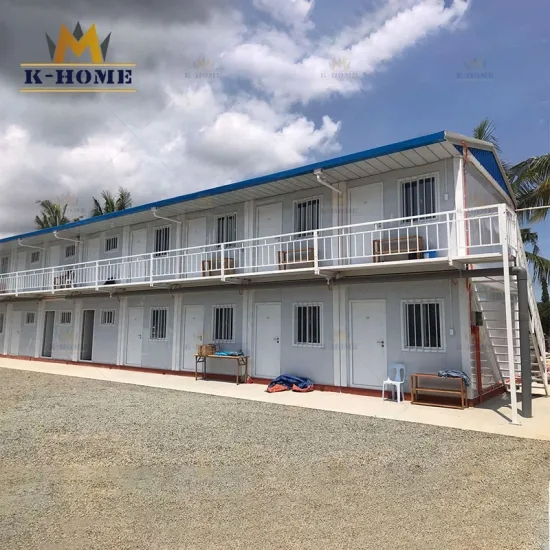

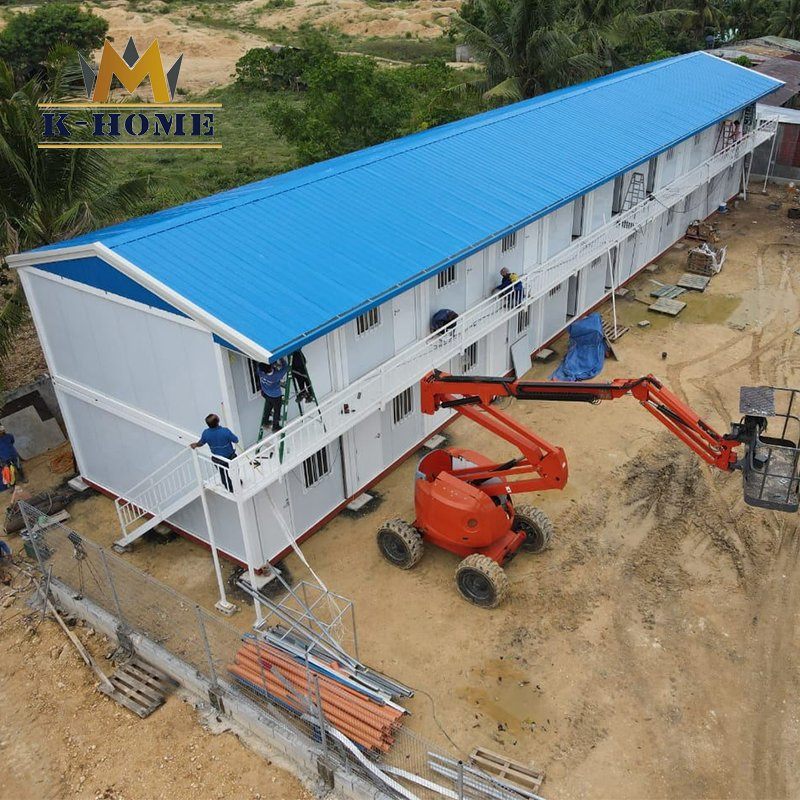

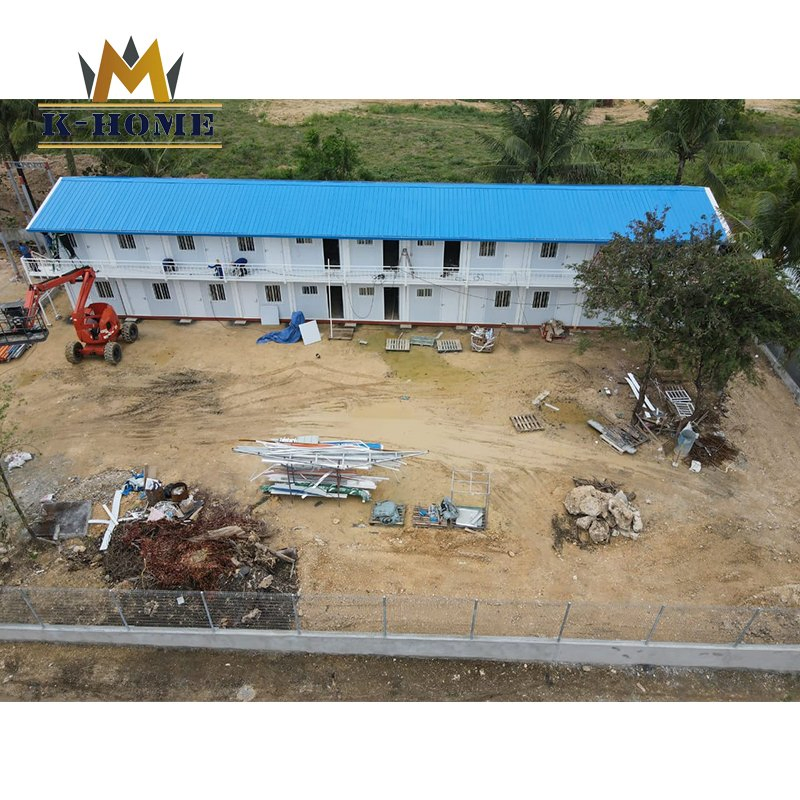

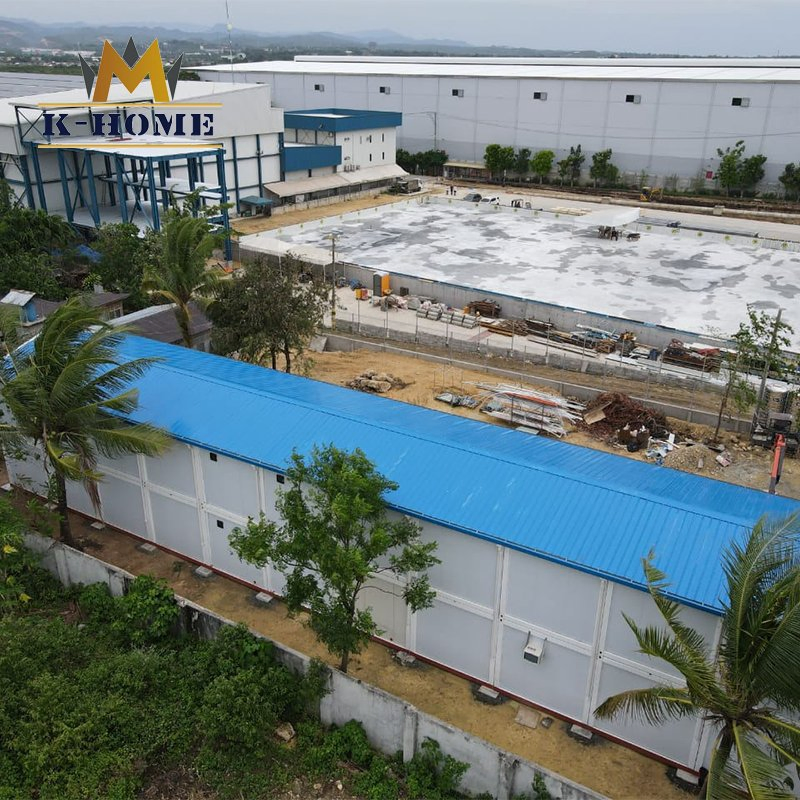

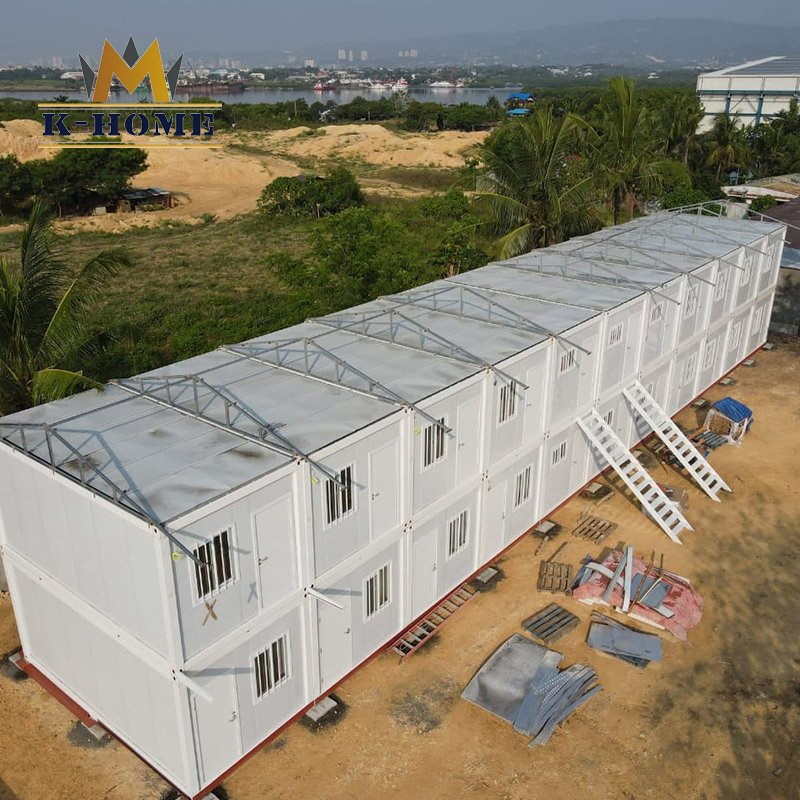

Modular Workforce Housing for Construction Site Living Quarters
These modular units utilize a bolt connection structure with a frame made of specialized steel plate. The side panels feature high-quality sound and heat insulation fillers, providing excellent protection against cold, heat, and fire. Designed for durability, these non-combustible and mold-resistant structures offer a structural life of up to 70 years, while the galvanized components ensure a service life of over 30 years.
Customization is a core advantage. Depending on the intended use—remote camps, dormitories, engineering offices, portable toilets, or temporary schools—modular units can be assembled in various configurations. Construction companies favor these units because they produce no construction waste and preserve the site's geological environment.
Key Characters
✓Excellent ability to assemble and disassemble multiple times without damage.
✓Flexible lifting, fixing, and combination possibilities.
✓Superior fireproof and waterproof performance.
✓Cost-saving transportation (4 units per standard shipping container).
✓Long service life of 15 - 20 years for standard usage.
Technical Parameters
Thermal (Wall)
K=0.442W/mk

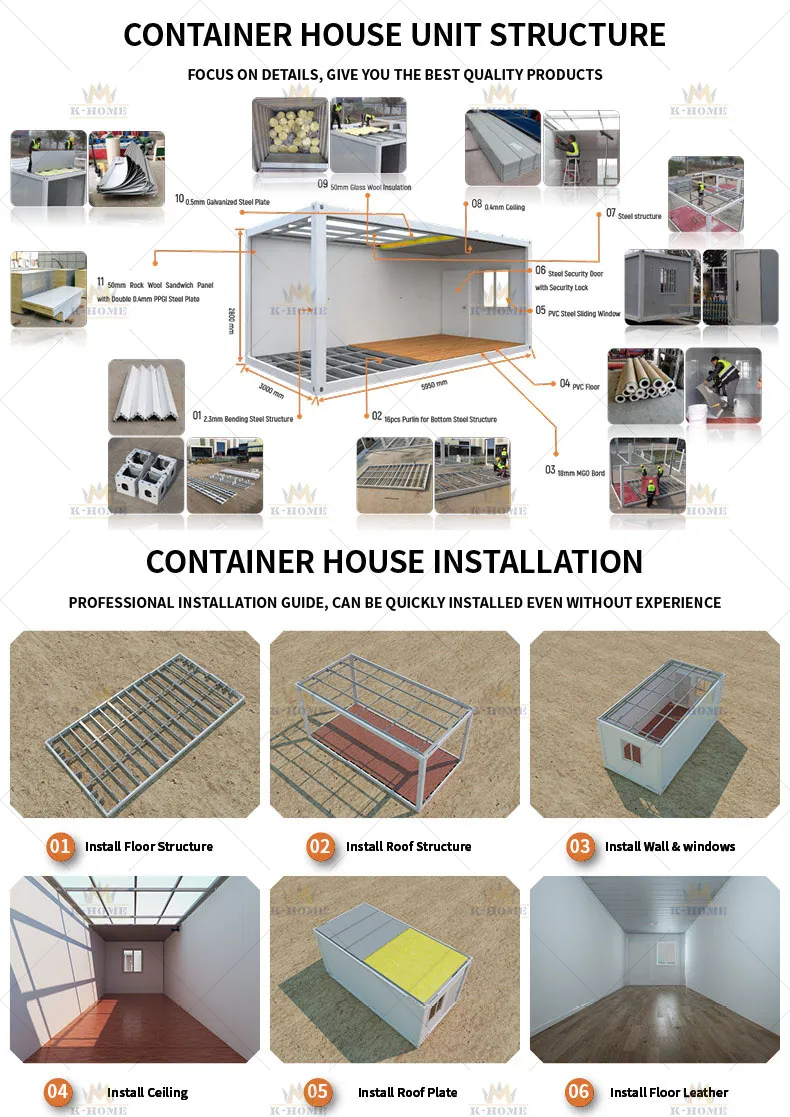

Detailed Specifications
| System |
Component |
Specification Details |
| Roof System |
Steel Frame |
Q235 galvanized fitting |
| Insulation |
0.4mm pre-coated steel sheet + 50mm glass wool |
| Floor System |
Structure |
3mm Galvanized Steel main structure + 1.5mm secondary beam |
| Finish |
15mm chipboard + PVC leather flooring |
| Wall System |
Panel |
50mm EPS Foam Sandwich Panel (0.35mm double-side steel) |
| Door & Window |
Steel Door |
2000*980mm (H*W) |
| Window |
Aluminum alloy double hollow glass sliding window (1200*1000mm) |
| Electric |
Fittings |
LED light, double sockets, air-switch, and safety protection box |

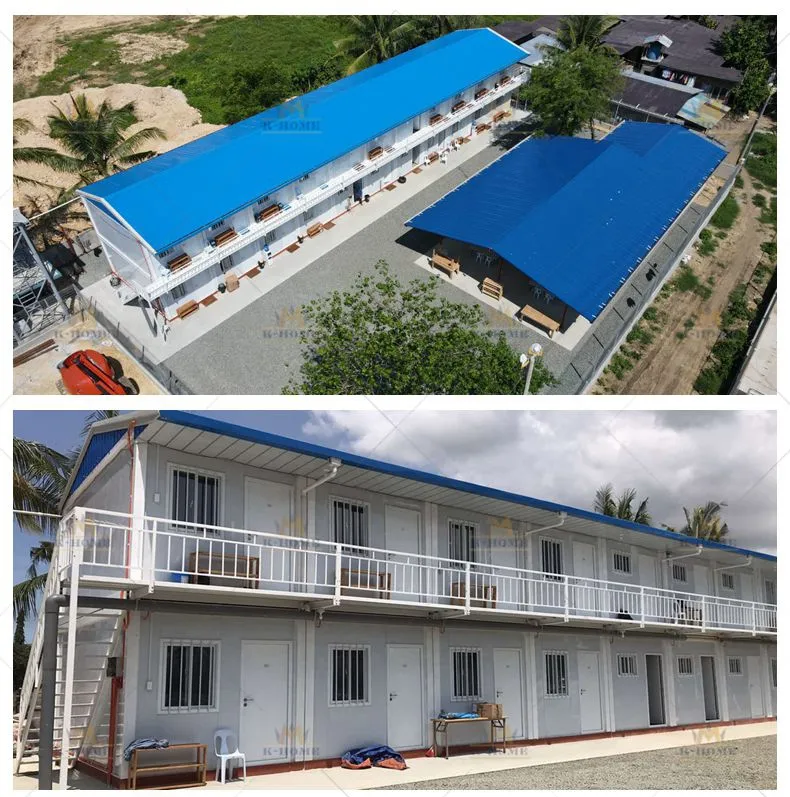

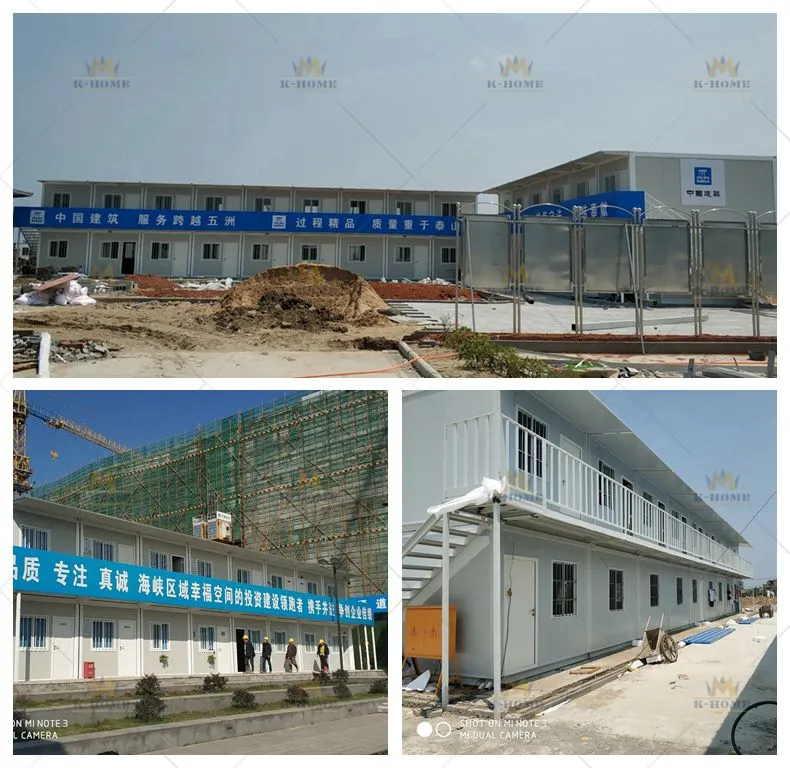

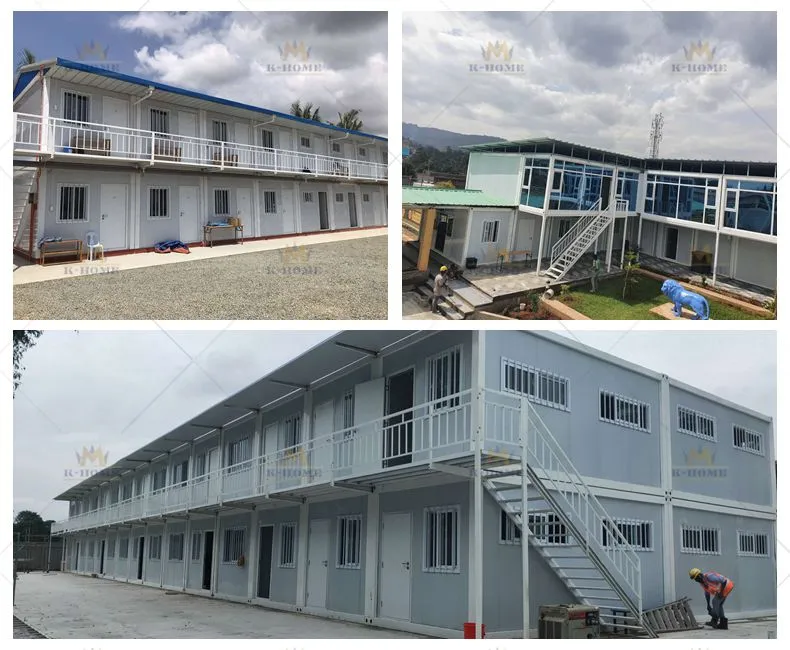

Project Show
Frequently Asked Questions
How long does the installation take?
The modular design allows for rapid assembly. On average, three skilled workers can complete the basic installation of one standard unit in approximately 3 to 5 hours.
Can these modular houses withstand extreme weather?
Yes, they are designed with Grade 12 wind resistance and feature insulation materials like rock wool or EPS to maintain internal temperature in both hot and cold climates.
Is it possible to stack these units?
Absolutely. The high-strength 2.3mm-3mm steel frame is designed to support multi-story configurations, typically up to 2 or 3 levels for construction site living quarters.
Are the units fireproof?
The steel frame combined with Rockwool or specialized sandwich panels provides excellent fire resistance, meeting international safety standards for temporary housing.
Can the housing be relocated?
One of the primary benefits is portability. The bolt-connection structure allows the units to be disassembled and transported to a new site with minimal effort and no material waste.
What maintenance is required?
Minimal maintenance is needed. The galvanized and painted steel surfaces are resistant to corrosion. Periodic checks on the sealant and roof drainage are recommended to ensure a 20+ year lifespan.
